3DRE(M), 3DRE(M)E Size 10 & 16 Series 7x
Pilot operated proportional pressure reducing valves without/with max. pressure limitation without/with integrated electronics (OBE) 3DRE(M), 3DRE(M)E
- Size 10, 16
- Component series 7X
- Max. operating pressure 350 bar
- Flow, max. 300 l/min
Description

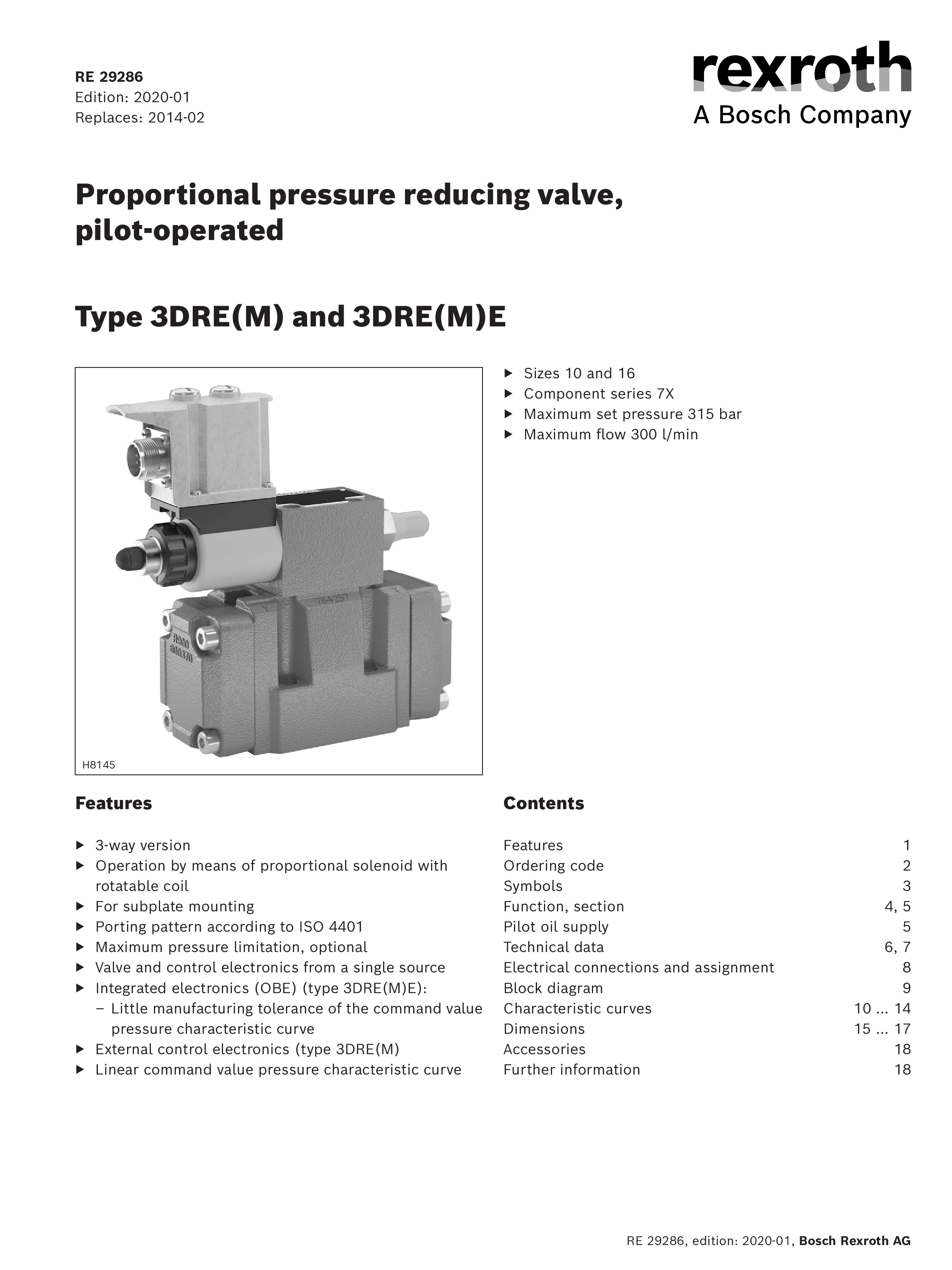

Downloads

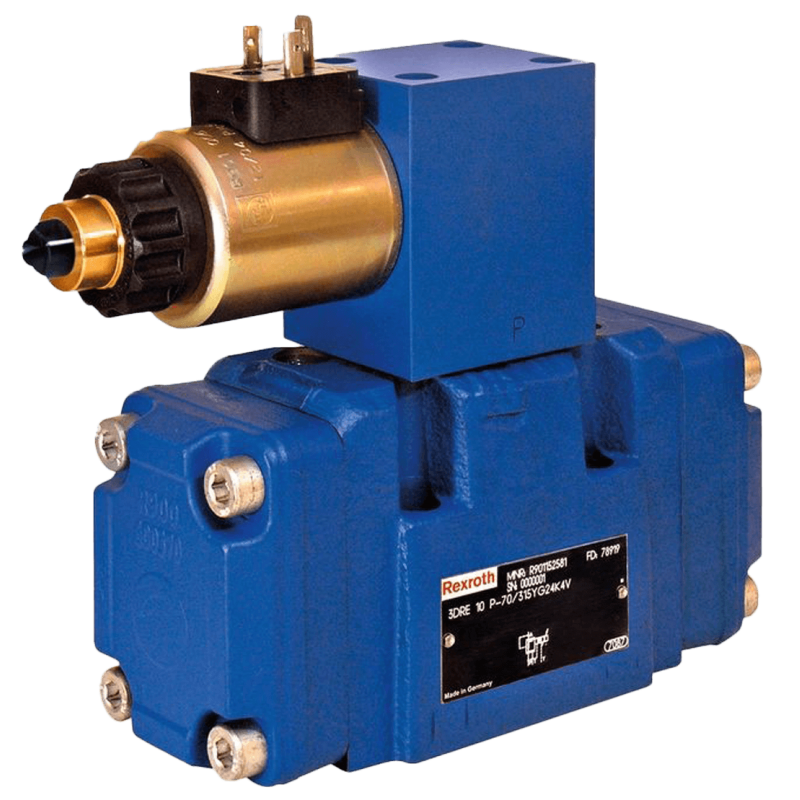

Bosch Rexroth Proportional Pressure Reducing Valve, Pilot-operated 3DRE(M) 3DRE(M)E
- Size 10, 16
- Component series 7X
- Max. operating pressure 350 bar
- Flow, max. 300 l/min
Features:
- Pilot-operated valves for pressure reduction (P to A) and limitation (A to T) of a system pressure
- Proportional solenoid operation
- Actuation by proportional solenoid with central thread and detachable coil
- For subplate mounting: Porting pattern according to DIN 24340 form A and ISO 4401
- Optional maximum pressure limitation
- Valve and control electronics from a single source
- External control electronics 3DRE(M)
- Integrated electronics (OBE) 3DRE(M)E with little manufacturing tolerance of the command value pressure characteristic curve
- Linear pressure/command value characteristic curve
