DBETBEX Size 6 Series 1x
Direct operated Proportional pressure relief valves with integrated electronics (OBE) and position feedback for subplate mounting DBETBEX
- Component series 1X
- Size 6
- Maximum operating pressure 315 bar
- Maximum flow 1 l/min
Description

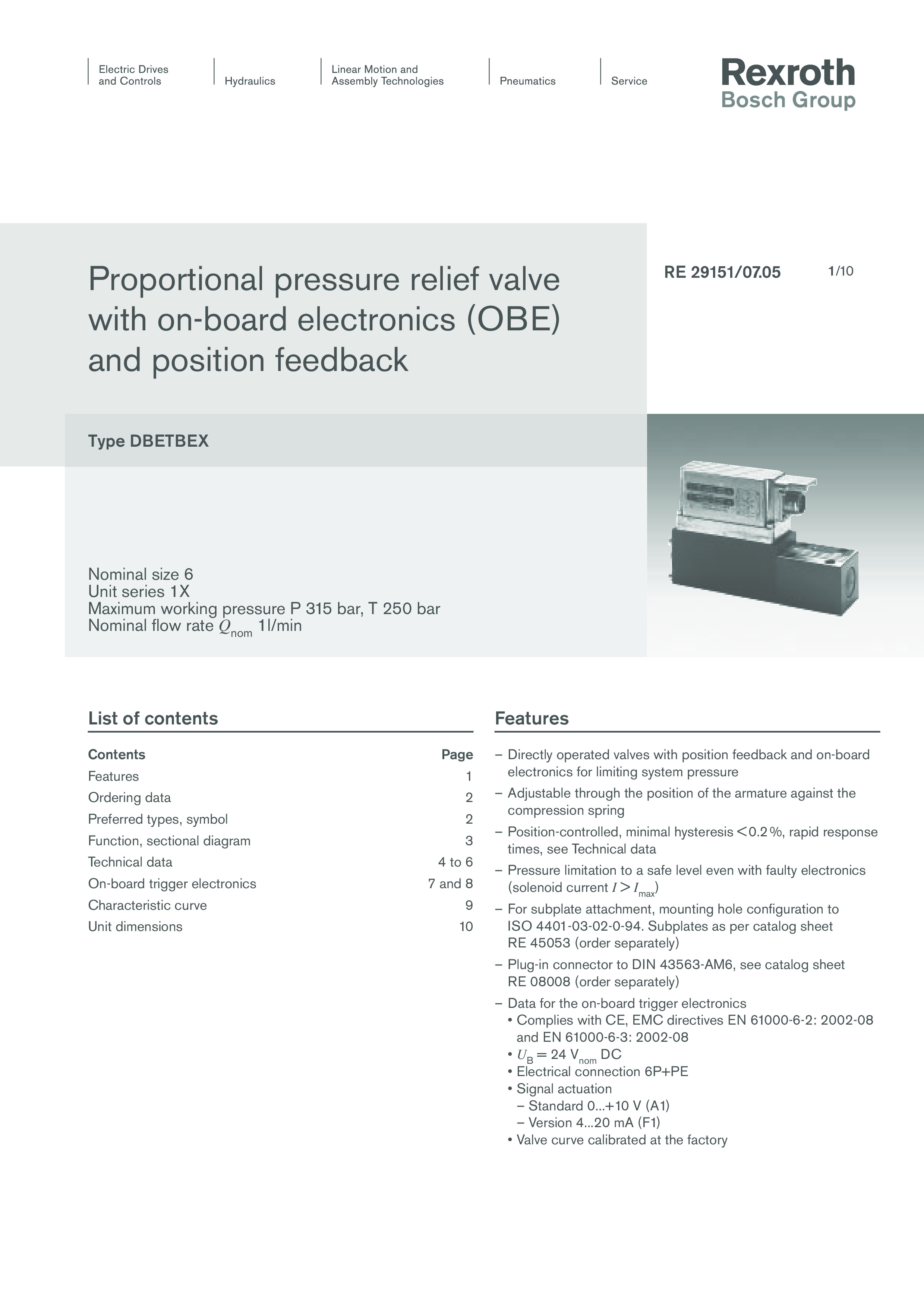

Downloads
Bosch Rexroth Direct Operated Proportional Pressure Relief Valves DBETBEX
- Component series 1X
- Size 6
- Maximum operating pressure 315 bar
- Maximum flow 1 l/min
Features:
- Directly operated valves with position feedback and on-board electronics for limiting system pressure
- Adjustable through the position of the armature against the compression spring
- Position-controlled, minimal hysteresis < 0.2 %, rapid response times, see Technical data
- Pressure limitation to a safe level even with faulty electronics (solenoid current I > Imax)
- For subplate attachment, mounting hole configuration to ISO 4401-03-02-0-94. Subplates as per catalogue sheet RE 45053 (order separately)
- Plug-in connector to DIN 43563-AM6, see catalogue sheet RE 08008 (order separately)
