Magnetic Clamping Systems M-TECS 80-F

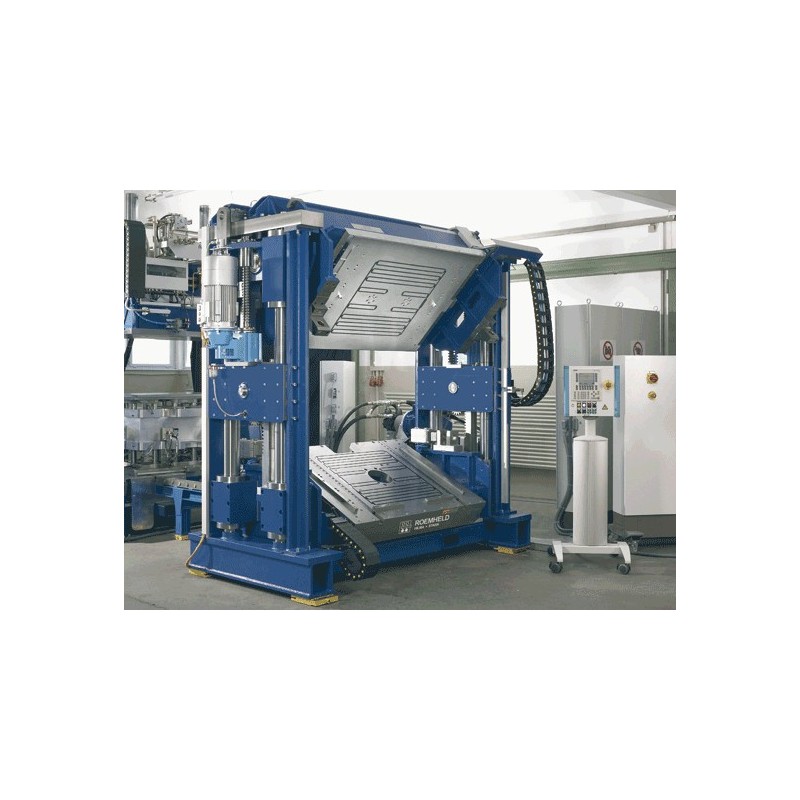

Magnetic Clamping Systems for Mould Carrier Systems - HILMA M-TECS 80-F

• Max. working temperature: 80°C
• Specific magnetic force: 18 kg/cm² (directly at the pole)
• Effective magnetic force: max 5-12 kg/cm²
• Magnetic penetration depth: 15-20mm
• Plate thickness: 47mm
• Mounting: as per customer's request
• Interface: as per EUROMAP 70.0 or 70.1 .

Description:

Whatever your individual wishes and requirements may be, magnetic clamping systems produced by Hilma and the large variety of products offered by the Roemheld Group will provide a clamping device tailor-made for you. Each magnetic plate can be individually adapted to the machine table. A longitudinal and a cross 20H7 slot ensure exact positioning on the machine table. The plate is fastened in a circumferential clamping slot using clamping claws. Combinations with Hilma vices or Stark zero point clamping systems are easy, because these products are manufactured in-house

We are always pleased to provide additional T-slots, fastening holes, stops and special dimensions. Thanks to their versatility and flexibility, Hilma magnetic plates can be used for almost any kind of milling work

• Benefits to you at a glance:
• Quick positioning of the workpiece
• 5-axis machining in a single clamping operation
• Suitable for every shape and dimension
• Low die wear thanks to the avoidance of vibration
• Absolutely safe clamping, controllable by means of machine safety devices
