Z4W(E)H10 Series 4x
Isolator valves in sandwich plate design Z4W(E)H10-4X 4/2 and 4/3 directional isolator valves
- Size 10
- Component series 4X
- Maximum operating pressure 315 bar Maximum flow 160 l/min
Description
Downloads

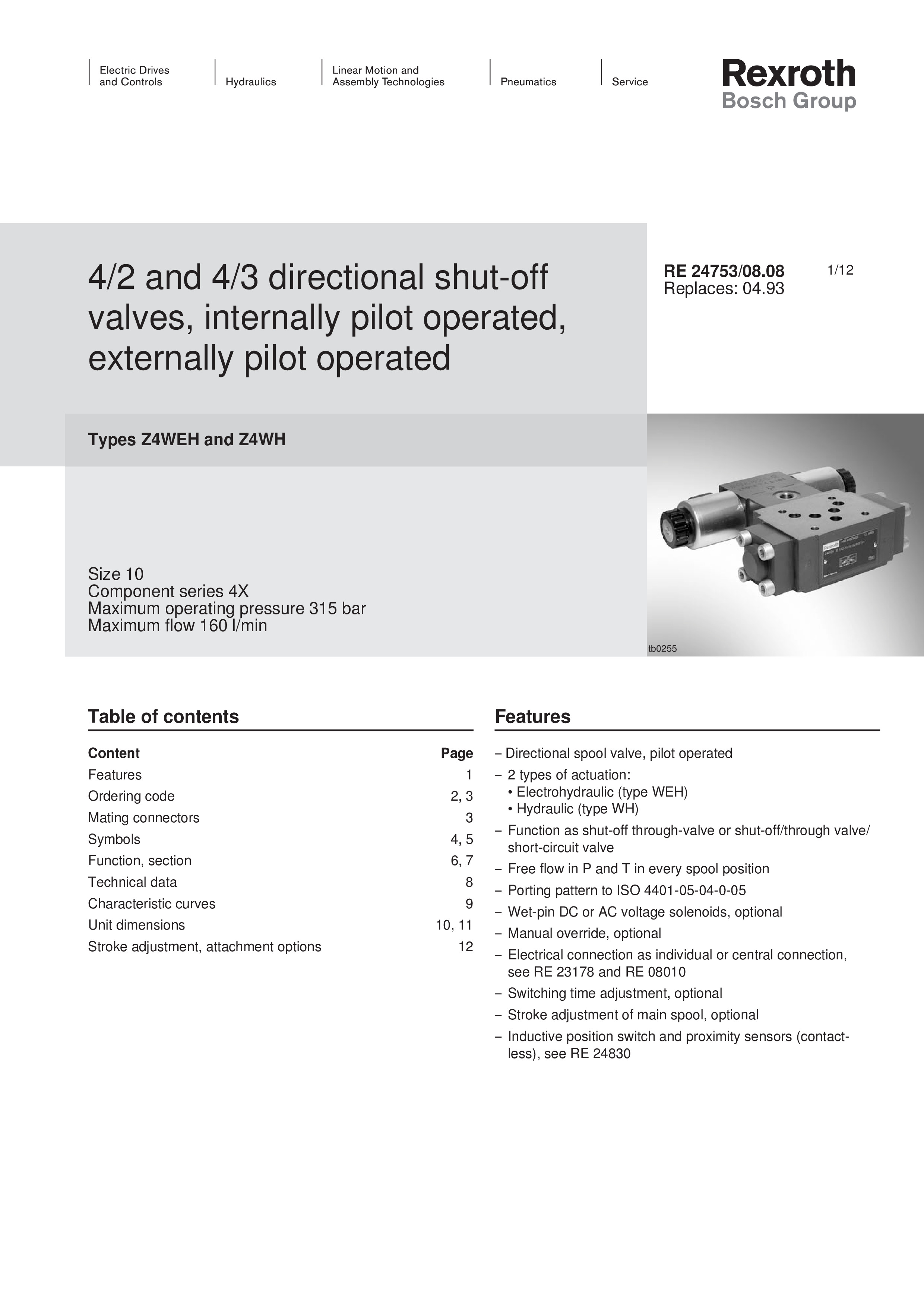

Bosch Rexroth Isolator Valves in Z4W(E)H10-4X
- Size 10
- Component series 4X
- Maximum operating pressure 315 bar Maximum flow 160 l/min
Features:
- Directional spool valve, pilot operated
- 2 types of actuation: Electrohydraulic (type WEH) Hydraulic (type WH)
- Function as shut-off through-valve or shut-off/through valve/short-circuit valve
- Free flow in P and T in every spool position
- Porting pattern to ISO 4401-05-04-0-05
- Wet-pin DC or AC voltage solenoids, optional
- Manual override, optional
- Electrical connection as individual or central connection, see RE 23178 and RE 08010
- Switching time adjustment, optional
- Stroke adjustment of main spool, optional
- Inductive position switch and proximity sensors (contact-less), see RE 24830
