Carr Lane Pull Ring Hand-Retractable Plungers

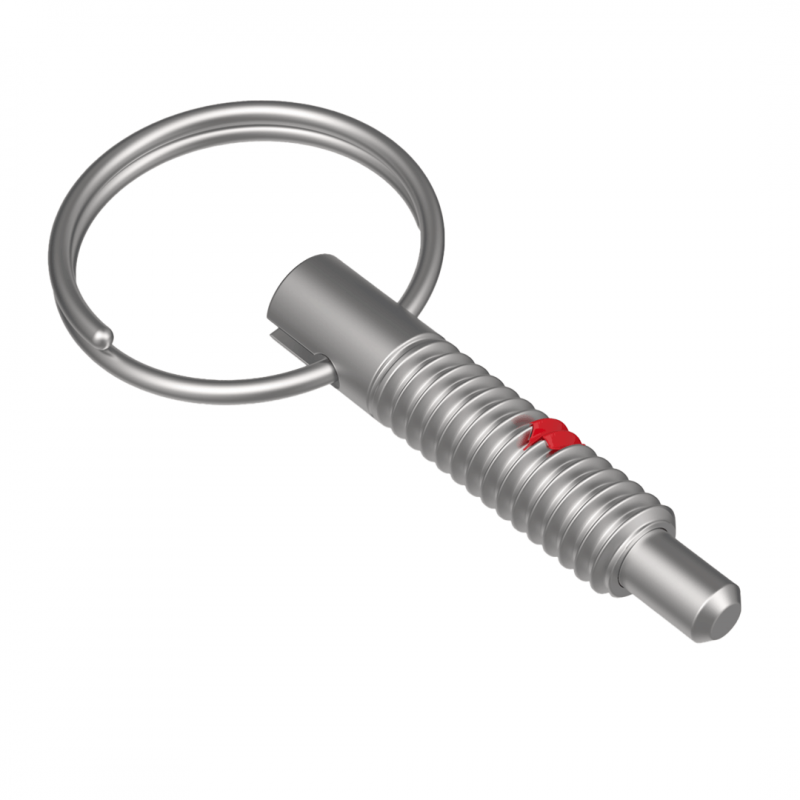

These Hand-retractable plungers feature a locking mechanism that secures it in the retracted position. The pull ring enables fast activation and can be tucked away when not in use. To lock the plunger, simply pull the ring back and twist it 90°. Available in thread sizes ranging from 1/4-20 to 1/2-13 and offered in both steel and stainless steel.

The extended locking pull ring hand-retractable plunger distinctive, quick-release pull pin securely locks in the extended position. The plunger tip is designed to retract manually, locking automatically in the forward position without relying on spring tension.  It has a slight taper for easy alignment during use.

  • Locking, Non-Locking and Extended Locking options available
  • Available in steel and stainless steel
Print page

Products
Downloads
Description
Part Number Material Number Material Locking or Non-Locking Thread Price Add to Parts List
CL-6-RHRP CL-6-RHRP Steel Non-Locking 3/8-16 £18.25
£21.90 Inc. VAT
CL-8-RHRP CL-8-RHRP Steel Non-Locking 1/2-13 £21.18
£25.42 Inc. VAT
CL-4-PHRP CL-4-PHRP Steel Locking 1/4-20 £29.21
£35.05 Inc. VAT
CL-6-PHRP CL-6-PHRP Steel Locking 3/8-16 £31.14
£37.37 Inc. VAT
CL-10-RHRP CL-10-RHRP Steel Non-Locking 5/8-11 £24.68
£29.62 Inc. VAT
CL-8-PHRP CL-8-PHRP Steel Locking 1/2-13 £35.86
£43.03 Inc. VAT
CL-4-RHRP CL-4-RHRP Steel Non-Locking 1/4-20 £18.41
£22.09 Inc. VAT
CL-8-EHRP-S CL-8-EHRP-S Steel Extended-Locking 1/2-13 On Enquiry
CL-4-RHRP-S CL-4-RHRP-S Stainless Steel Non-Locking 3/8-16 £24.30
£29.16 Inc. VAT
CL-4-PHRP-S CL-4-PHRP-S Stainless Steel Locking 1/4-20 £30.58
£36.70 Inc. VAT
CL-6-RHRP-S CL-6-RHRP-S Stainless Steel Non-Locking 3/8-16 £25.33
£30.40 Inc. VAT
CL-6-PHRP-S CL-6-PHRP-S Stainless Steel Locking 3/8-16 £37.81
£45.37 Inc. VAT
CL-8-RHRP-S CL-8-RHRP-S Stainless Steel Non-Locking 1/2-13 £30.28
£36.34 Inc. VAT
CL-8-PHRP-S CL-8-PHRP-S Stainless Steel Locking 1/2-13 £52.66
£63.19 Inc. VAT
CL-10-RHRP-S CL-10-RHRP-S Stainless Steel Non-Locking 5/8-11 £38.27
£45.92 Inc. VAT

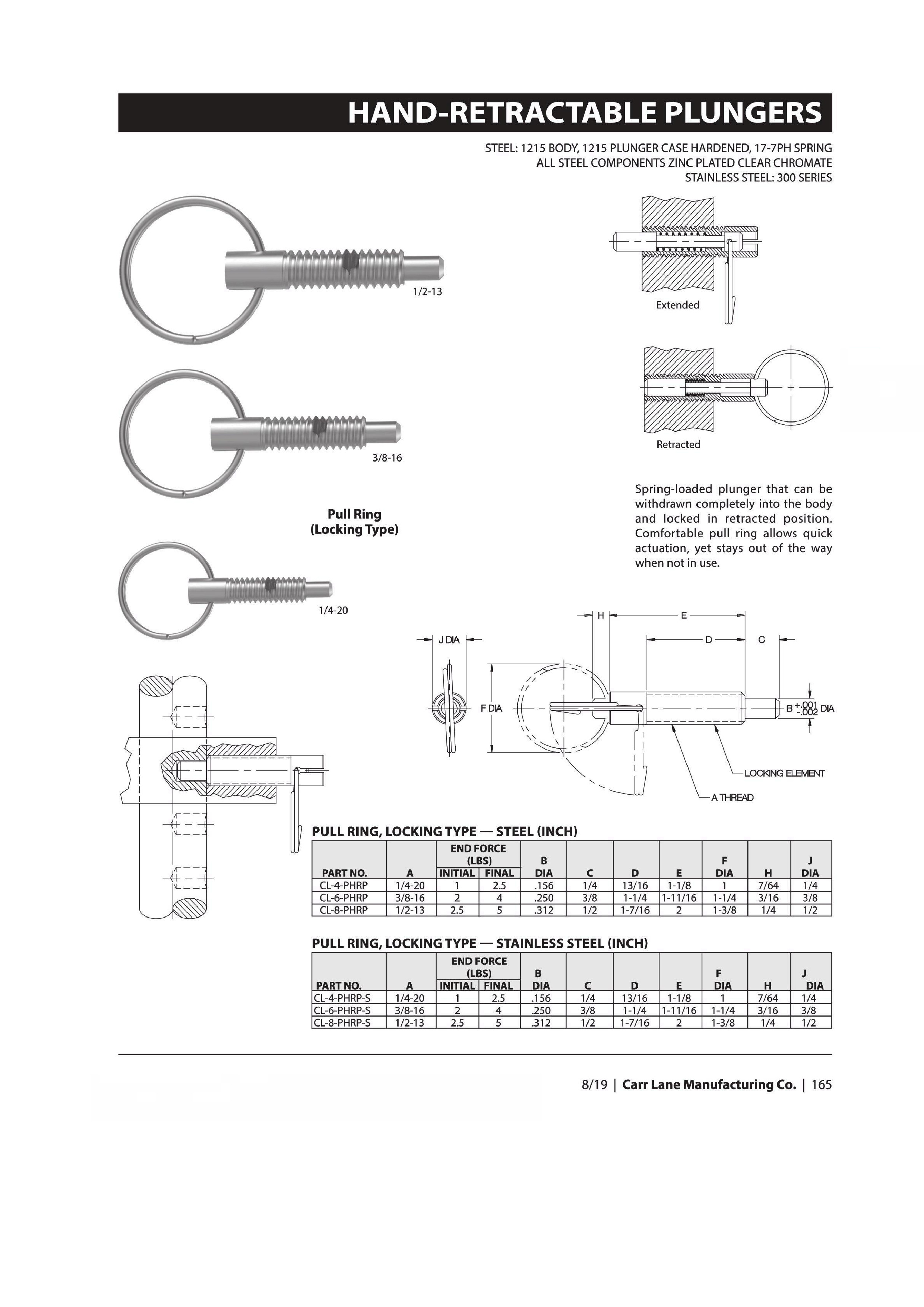

Pull Ring Hand-retractable Plungers datasheet

Carr Lane Pull Ring Hand Retractable Plungers

Options:

  • Locking, Non-Locking and Extended Locking options available
  • Thread A - 1/4-20 - 5/8-11
  • B Diameter - .156 - .375

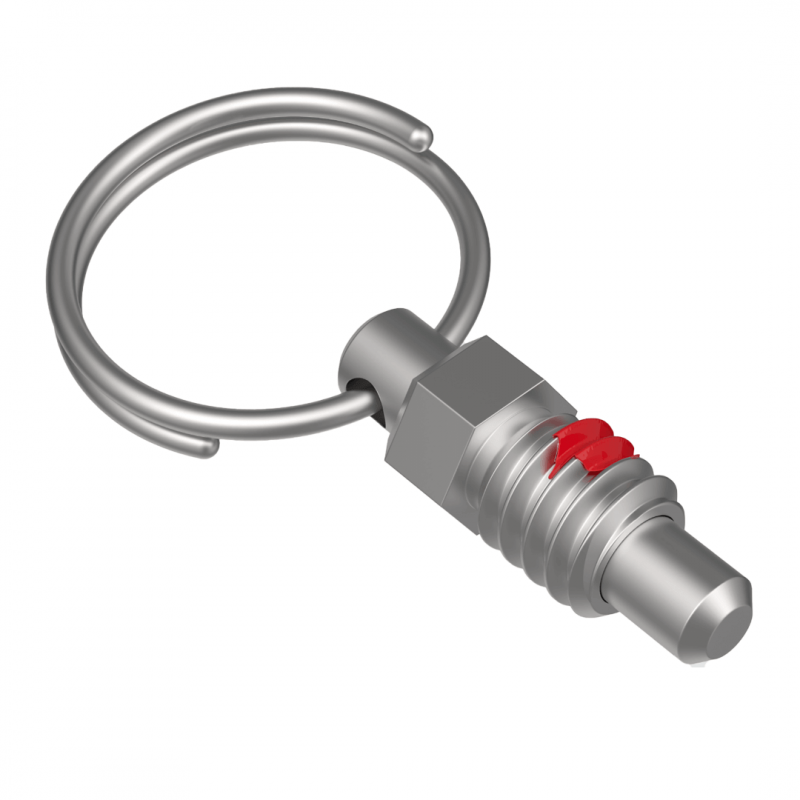

Pull Ring - Locking Type

Spring-loaded plunger that can be withdrawn completely into the body and locked in retracted position. Comfortable pull ring allows quick actuation, yet stays out of the way when not in use.

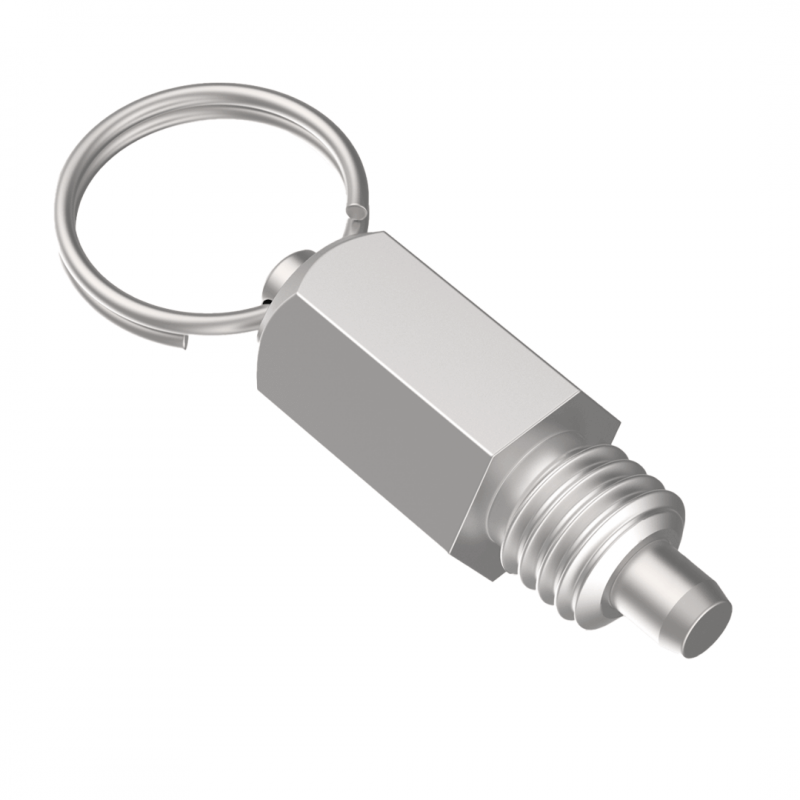

Pull Ring - Non-Locking Type

Extremely compact spring-loaded plunger that extends unless manually held in retracted position. Comfortable pull ring allows quick actuation, yet stays out of the way when not in use.

Pull Ring - Extended Locking Type

Unique, quick-release pull pin positively locks in extended position with slight taper on plunger tip for easy alignment. The hand-retractable plunger tip automatically locks in the forward position unless manually disengaged by pulling the ring, rather than being held forward by spring force.
