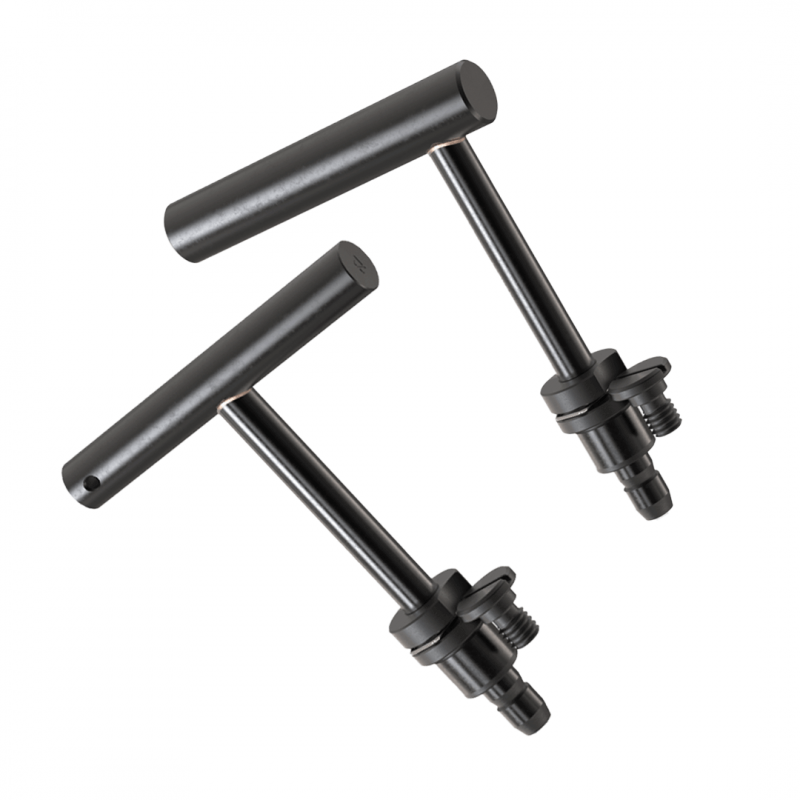

Carr Lane Locking L and T Pins

Locking L Pins and T Pins are available as complete assembly, L or T pin only and bushing only. They have precision-ground pin diameter to ensure accurate hole alignment. Locking L Pins and T Pins are removable locating pins with a durable construction, each featuring a handle end with a small hole for attaching an optional cable. These pins come in a variety of diameters and lengths. Locking L Pins and T Pins with a lock screw that securely holds bushings in place. These pins are available in both imperial and metric sizes

Print page

Products
Downloads
Description
Part Number Material Number Assembly Options Metric or Imperial External Diameter Length Price Add to Parts List
CL-5A-LPB CL-5A-LPB Bushing Only Imperial 5/16 0.37 £26.06
£31.27 Inc. VAT
CL-8A-LPB CL-8A-LPB Bushing Only Imperial 1/2 0.75 £33.07
£39.68 Inc. VAT
CL-3-LPB CL-3-LPB Bushing Only Imperial 3/16 0.31 £26.06
£31.27 Inc. VAT
CLM-12-LPB CLM-12-LPB Bushing Only Metric 12mm 0.71 £35.53
£42.64 Inc. VAT
CLM-8-LPB CLM-8-LPB Bushing Only Metric 8mm 0.39 £28.15
£33.78 Inc. VAT
CL-4-LPB CL-4-LPB Bushing Only Imperial 1/4 0.31 £26.06
£31.27 Inc. VAT
CL-6A-LPB CL-6A-LPB Bushing Only Imperial 3/8 0.5 £28.85
£34.62 Inc. VAT
CLM-6-LPB CLM-6-LPB Bushing Only Metric 6mm 0.31 £28.15
£33.78 Inc. VAT
CLM-10-LPB CLM-10-LPB Bushing Only Metric 10mm 0.47 £31.00
£37.20 Inc. VAT
CL-10-LLP CL-10-LLP L Pin Only Imperial 3/8 6 £14.70
£17.64 Inc. VAT
CL-39-LLP CL-39-LLP L Pin Only Imperial 5/16 2 £10.87
£13.04 Inc. VAT
CL-1A-LLP CL-1A-LLP L Pin Only Imperial 3/16 1 £10.21
£12.25 Inc. VAT
CL-14-LLP CL-14-LLP L Pin Only Imperial 1/2 6 £15.36
£18.43 Inc. VAT
CL-40A-LLP CL-40A-LLP L Pin Only Imperial 3/8 2 £13.21
£15.85 Inc. VAT
CL-5-LLP CL-5-LLP L Pin Only Imperial 1/4 3 £10.93
£13.12 Inc. VAT
CL-13A-LLP CL-13A-LLP L Pin Only Imperial 1/2 2 £13.54
£16.25 Inc. VAT
CL-7-LLP CL-7-LLP L Pin Only Imperial 5/16 3 £10.93
£13.12 Inc. VAT
CL-1-LLP CL-1-LLP L Pin Only Imperial 3/16 3 £10.27
£12.32 Inc. VAT
CL-9-LLP CL-9-LLP L Pin Only Imperial 3/8 4 £14.40
£17.28 Inc. VAT
CL-25-LLP CL-25-LLP L Pin Only Imperial 1/4 4 £12.78
£15.34 Inc. VAT
CL-13-LLP CL-13-LLP L Pin Only Imperial 1/2 4 £13.99
£16.79 Inc. VAT
CL-8-LLP CL-8-LLP L Pin Only Imperial 5/16 6 £11.69
£14.03 Inc. VAT
CL-38-LLP CL-38-LLP L Pin Only Imperial 1/4 2 £10.87
£13.04 Inc. VAT
CLM-12-LLP CLM-12-LLP L Pin Only Metric 12mm 4 £16.18
£19.42 Inc. VAT
CLM-8-LLP CLM-8-LLP L Pin Only Metric 8mm 3 £12.02
£14.42 Inc. VAT
CLM-10-LLP CLM-10-LLP L Pin Only Metric 10mm 3 £14.03
£16.84 Inc. VAT
CLM-6-LLP CLM-6-LLP L Pin Only Metric 6mm 3 £11.95
£14.34 Inc. VAT
CL-13-LTP CL-13-LTP T Pin Only Imperial 1/2 4 £13.76
£16.51 Inc. VAT
CL-8-LTP CL-8-LTP T Pin Only Imperial 5/16 6 £11.51
£13.81 Inc. VAT
CL-38-LTP CL-38-LTP T Pin Only Imperial 1/4 2 £10.68
£12.82 Inc. VAT
CL-10-LTP CL-10-LTP T Pin Only Imperial 3/8 6 £14.46
£17.35 Inc. VAT
CL-39-LTP CL-39-LTP T Pin Only Imperial 5/16 2 £10.68
£12.82 Inc. VAT
CL-1A-LTP CL-1A-LTP T Pin Only Imperial 3/16 1 £10.01
£12.01 Inc. VAT
CL-14-LTP CL-14-LTP T Pin Only Imperial 1/2 6 £15.11
£18.13 Inc. VAT
CL-40A-LTP CL-40A-LTP T Pin Only Imperial 3/8 2 £13.01
£15.61 Inc. VAT
CL-5-LTP CL-5-LTP T Pin Only Imperial 1/4 3 £10.75
£12.90 Inc. VAT
CL-13A-LTP CL-13A-LTP T Pin Only Imperial 1/2 2 £13.31
£15.97 Inc. VAT
CL-7-LTP CL-7-LTP T Pin Only Imperial 5/16 3 £10.75
£12.90 Inc. VAT
CL-1-LTP CL-1-LTP T Pin Only Imperial 3/16 3 £10.09
£12.11 Inc. VAT
CL-9-LTP CL-9-LTP T Pin Only Imperial 3/8 4 £14.15
£16.98 Inc. VAT
CL-25-LTP CL-25-LTP T Pin Only Imperial 1/4 4 £12.58
£15.10 Inc. VAT
CLM-6-LTP CLM-6-LTP T Pin Only Metric 6mm 3 £11.77
£14.12 Inc. VAT
CLM-12-LTP CLM-12-LTP T Pin Only Metric 12mm 4 £15.91
£19.09 Inc. VAT
CLM-8-LTP CLM-8-LTP T Pin Only Metric 8mm 3 £11.83
£14.20 Inc. VAT
CLM-10-LTP CLM-10-LTP T Pin Only Metric 10mm 3 £13.80
£16.56 Inc. VAT
CLM-10-LLP-B CLM-10-LLP-B L Pin Complete Assembly Metric 10mm 3 £41.52
£49.82 Inc. VAT
CLM-12-LLP-B CLM-12-LLP-B L Pin Complete Assembly Metric 12mm 4 £46.64
£55.97 Inc. VAT
CLM-8-LLP-B CLM-8-LLP-B L Pin Complete Assembly Metric 8mm 3 £35.86
£43.03 Inc. VAT
CL-1A-LLP-B CL-1A-LLP-B L Pin Complete Assembly Imperial 3/16 1 £34.27
£41.12 Inc. VAT
CL-14-LLP-B CL-14-LLP-B L Pin Complete Assembly Imperial 1/2 6 £47.40
£56.88 Inc. VAT
CL-40A-LLP-B CL-40A-LLP-B L Pin Complete Assembly Imperial 3/8 2 £39.84
£47.81 Inc. VAT
CL-5-LLP-B CL-5-LLP-B L Pin Complete Assembly Imperial 1/4 3 £35.56
£42.67 Inc. VAT
CL-13A-LLP-B CL-13A-LLP-B L Pin Complete Assembly Imperial 1/2 2 £45.13
£54.16 Inc. VAT
CL-7-LLP-B CL-7-LLP-B L Pin Complete Assembly Imperial 5/16 3 £35.86
£43.03 Inc. VAT
CL-1-LLP-B CL-1-LLP-B L Pin Complete Assembly Imperial 3/16 3 £34.40
£41.28 Inc. VAT
CL-9-LLP-B CL-9-LLP-B L Pin Complete Assembly Imperial 3/8 4 £40.60
£48.72 Inc. VAT
CL-25-LLP-B CL-25-LLP-B L Pin Complete Assembly Imperial 1/4 4 £37.52
£45.02 Inc. VAT
CL-13-LLP-B CL-13-LLP-B L Pin Complete Assembly Imperial 1/2 4 £46.26
£55.51 Inc. VAT
CL-8-LLP-B CL-8-LLP-B L Pin Complete Assembly Imperial 5/16 6 £36.30
£43.56 Inc. VAT
CL-38-LLP-B CL-38-LLP-B L Pin Complete Assembly Imperial 1/4 2 £34.96
£41.95 Inc. VAT
CL-10-LLP-B CL-10-LLP-B L Pin Complete Assembly Imperial 3/8 6 £41.06
£49.27 Inc. VAT
CL-39-LLP-B CL-39-LLP-B L Pin Complete Assembly Imperial 5/16 2 £35.09
£42.11 Inc. VAT
CLM-6-LLP-B CLM-6-LLP-B L Pin Complete Assembly Metric 6mm 3 £35.56
£42.67 Inc. VAT
CLM-8-LTP-B CLM-8-LTP-B T Pin Complete Assembly Metric 8mm 3 £35.28
£42.34 Inc. VAT
CLM-10-LTP-B CLM-10-LTP-B T Pin Complete Assembly Metric 10mm 3 £40.82
£48.98 Inc. VAT
CLM-6-LTP-B CLM-6-LTP-B T Pin Complete Assembly Metric 6mm 3 £34.97
£41.96 Inc. VAT
CLM-12-LTP-B CLM-12-LTP-B T Pin Complete Assembly Metric 12mm 4 £45.88
£55.06 Inc. VAT
CL-38-LTP-B CL-38-LTP-B T Pin Complete Assembly Imperial 1/4 2 £34.37
£41.24 Inc. VAT
CL-10-LTP-B CL-10-LTP-B T Pin Complete Assembly Imperial 3/8 6 £40.39
£48.47 Inc. VAT
CL-39-LTP-B CL-39-LTP-B T Pin Complete Assembly Imperial 5/16 2 £34.51
£41.41 Inc. VAT
CL-1A-LTP-B CL-1A-LTP-B T Pin Complete Assembly Imperial 3/16 1 £33.70
£40.44 Inc. VAT
CL-14-LTP-B CL-14-LTP-B T Pin Complete Assembly Imperial 1/2 6 £46.62
£55.94 Inc. VAT
CL-40A-LTP-B CL-40A-LTP-B T Pin Complete Assembly Imperial 3/8 2 £39.17
£47.00 Inc. VAT
CL-5-LTP-B CL-5-LTP-B T Pin Complete Assembly Imperial 1/4 3 £34.97
£41.96 Inc. VAT
CL-13A-LTP-B CL-13A-LTP-B T Pin Complete Assembly Imperial 1/2 2 £44.36
£53.23 Inc. VAT
CL-7-LTP-B CL-7-LTP-B T Pin Complete Assembly Imperial 5/16 3 £35.28
£42.34 Inc. VAT
CL-1-LTP-B CL-1-LTP-B T Pin Complete Assembly Imperial 3/16 3 £33.84
£40.61 Inc. VAT
CL-9-LTP-B CL-9-LTP-B T Pin Complete Assembly Imperial 3/8 4 £39.94
£47.93 Inc. VAT
CL-25-LTP-B CL-25-LTP-B T Pin Complete Assembly Imperial 1/4 4 £36.10
£43.32 Inc. VAT
CL-13-LTP-B CL-13-LTP-B T Pin Complete Assembly Imperial 1/2 4 £45.49
£54.59 Inc. VAT
CL-8-LTP-B CL-8-LTP-B T Pin Complete Assembly Imperial 5/16 6 £35.71
£42.85 Inc. VAT
L and T pins datasheet

Carr Lane Locking L and T Pins

Locating pin is positively retained in the bushing. The bushing's spring clip ring locks the pin fully retracted by snapping into the pin's groove. Spring pressure also holds the pin in intermediate positions, an advantage especially if the fixture is turned upside down.

Options:

  • Steel Black Oxide Finish
  • Available as Complete Assembly, L/T Pin only, Bushing only
