Carr Lane Ball Detents

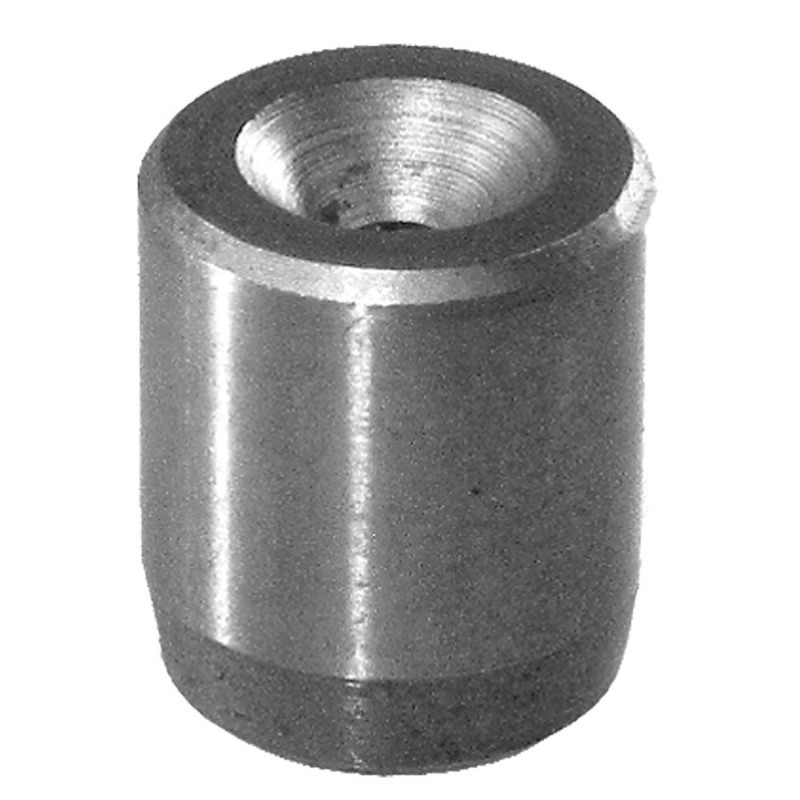

This press-in receptacle creates an ideal mating hole for a Ball Plunger. The 90° point ensures smooth detent action and dependable retention. These hardened receptacles are designed to withstand side loads, preventing wear to the parent material. They are available in sizes to fit all Ball Plungers, ranging from #4-48 to 5/8-11 (M4 to M12 in metric).

Available in Metric and Imperial
Sizes from #4-48 to 5/8-11 (M4 to M12)

Print page

First Name *

Last Name *

Position *

Email *

Company Name *

Contact Number *

Town/City *

Message *

Products

Downloads

Description

Part Number	External Diameter	Price
CL-1-BD CL-1-BD	.1075	On Enquiry
CL-2-BD CL-2-BD	.1175	£5.56 £6.67 Inc. VAT
CL-3-BD CL-3-BD	.1614	£6.30 £7.56 Inc. VAT
CL-4-BD CL-4-BD	.2034	£6.24 £7.49 Inc. VAT
CL-5-BD CL-5-BD	.2659	£6.08 £7.30 Inc. VAT
CL-6-BD CL-6-BD	.3284	£6.14 £7.37 Inc. VAT
CL-8-BD CL-8-BD	.4378	£7.02 £8.42 Inc. VAT
CL-10-BD CL-10-BD	.5472	£7.76 £9.31 Inc. VAT

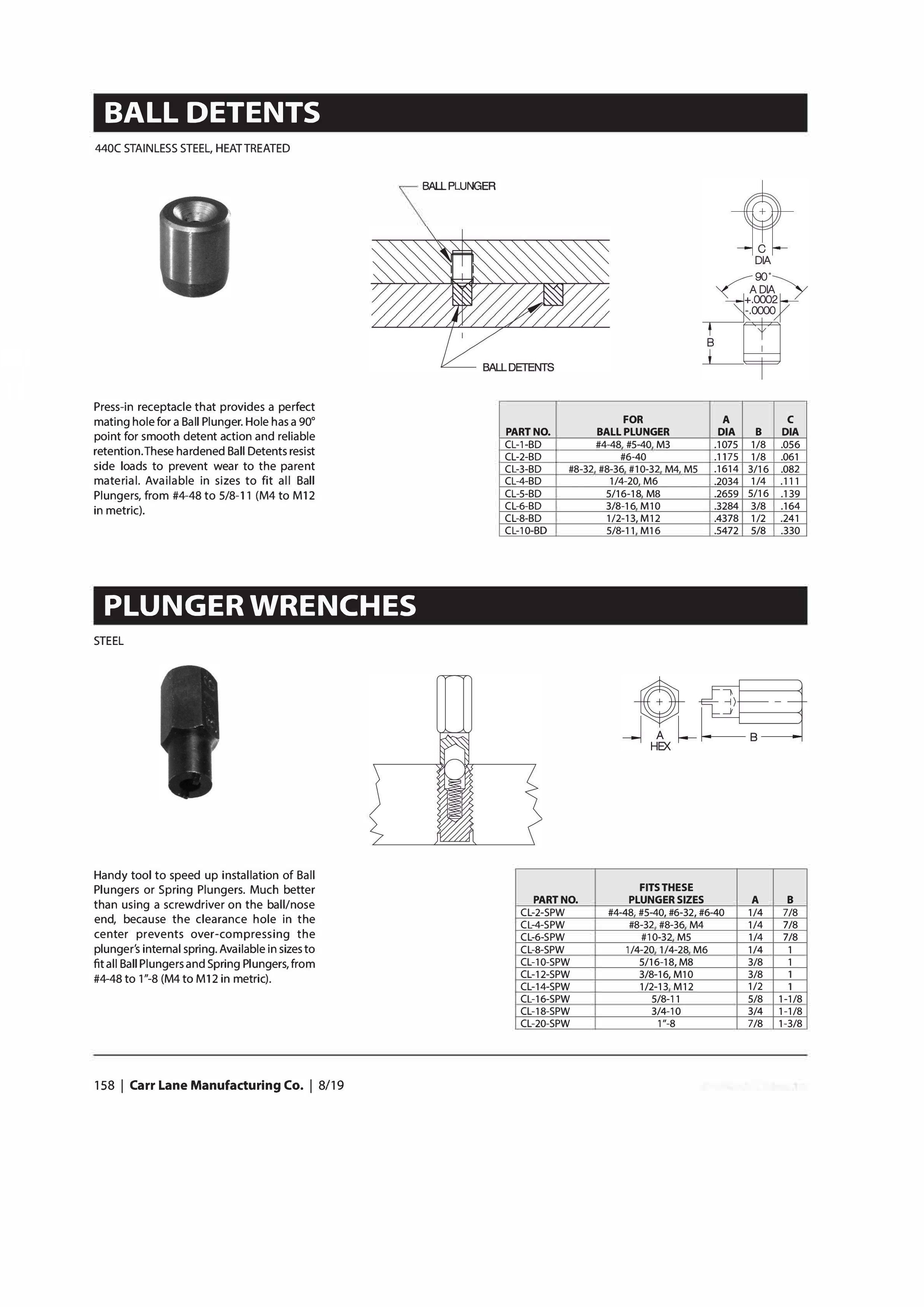

Ball Detents datasheet
