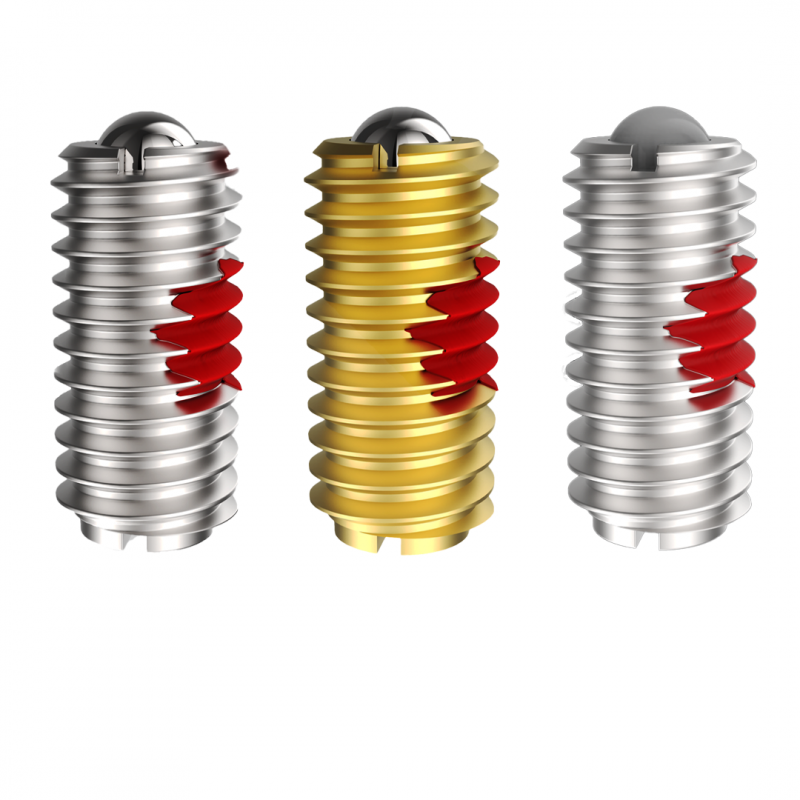

Carr Lane Ball Plungers

Ball plungers are essential elements in various mechanical and industrial applications, valued for their straightforward design and efficiency in positioning, securing, and holding parts. They come in a range of materials such as steel, stainless steel, and Delrin®, offering versatility to meet diverse operational needs. Ball plungers deliver an ideal balance of reliability, precision, and durability for your specific requirements.

  • Metric and Imperial sizes
  • Thread - .1147 - 5/8-11 or M3 - M16

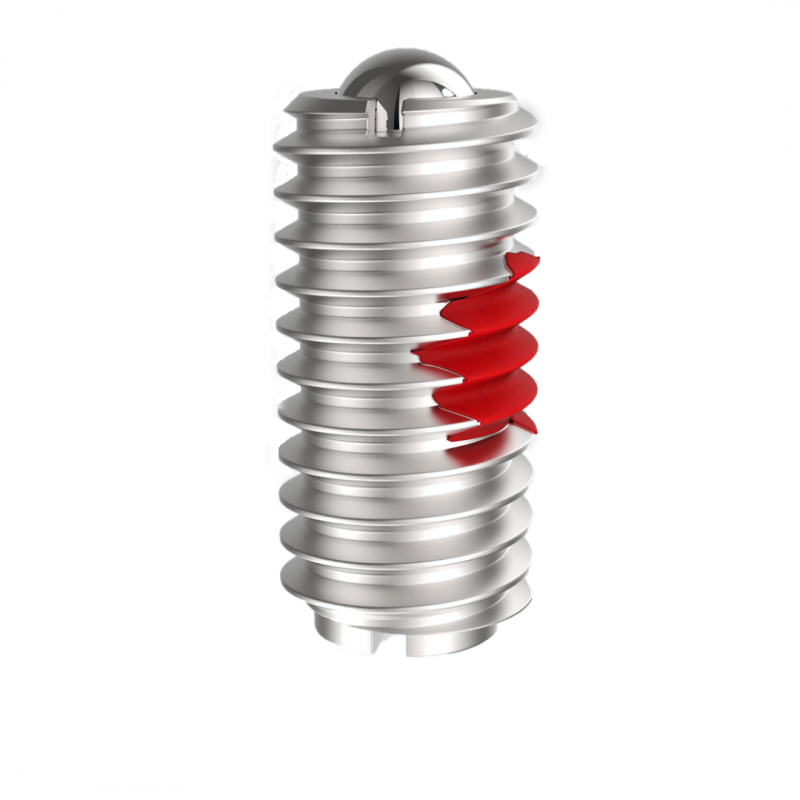

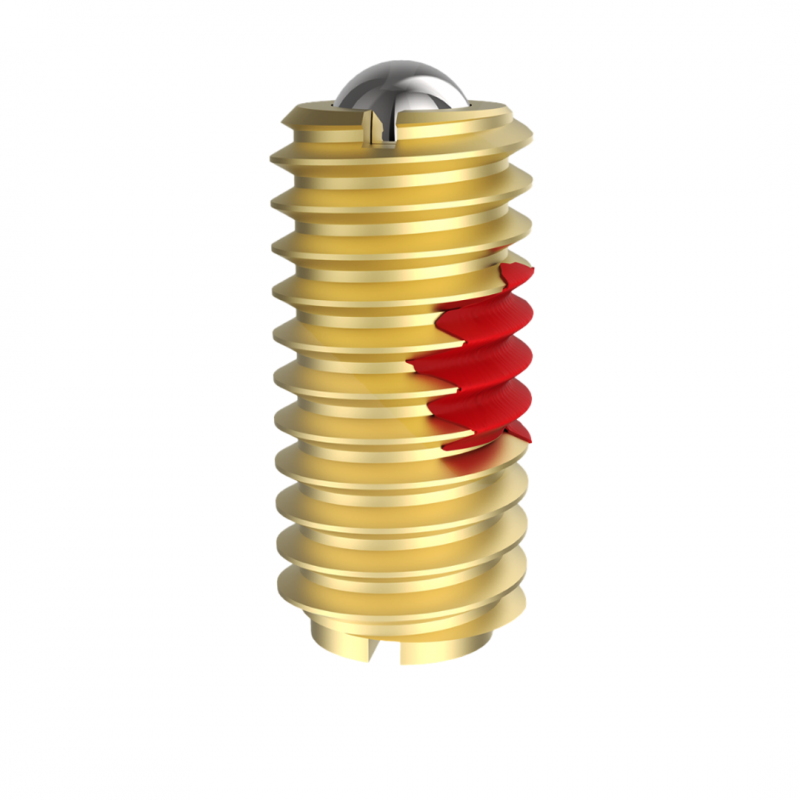

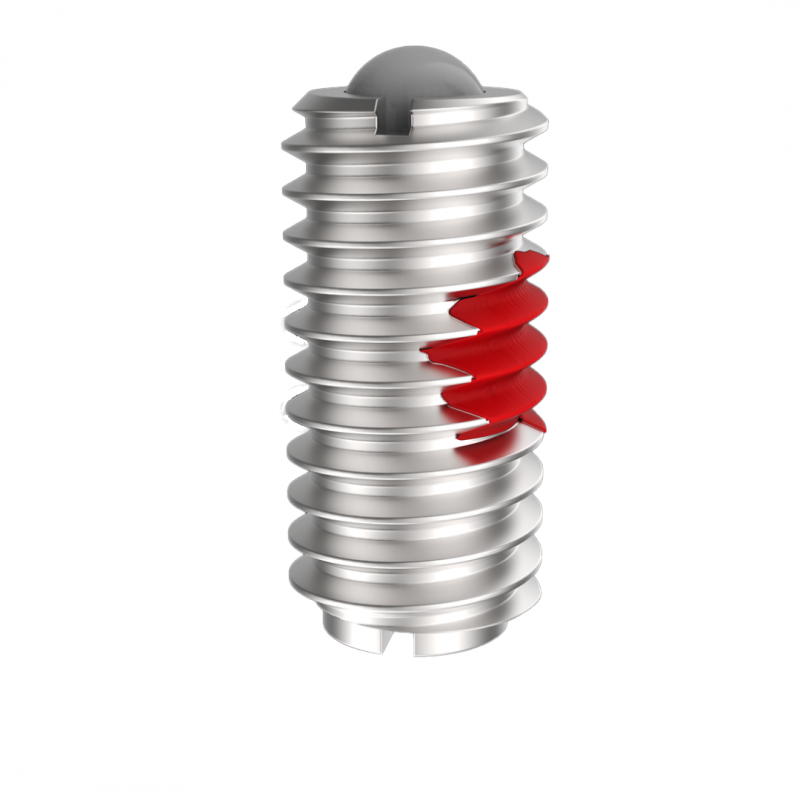

  • Standard and Delrin® balls with Steel, Stainless and Delrin® bodies available
Print page

Products

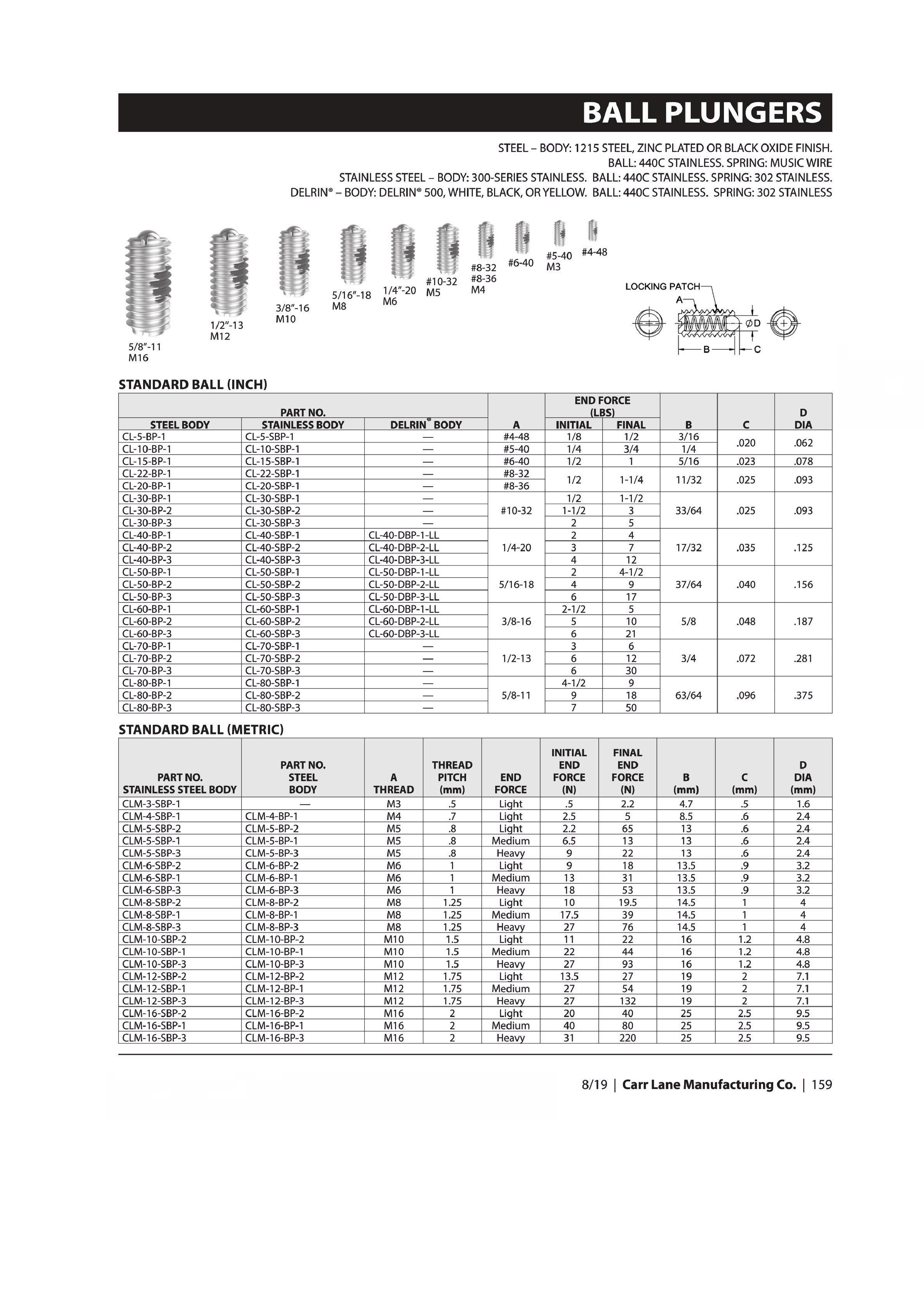

Downloads
Description
Part Number Material Number Metric or Imperial Length End Force (LBS) Ball Type Thread Plunger Body Type Colour Code Price Add to Parts List
CLM-4-SBPN-1 CLM-4-SBPN-1 Metric .34 Initial 9 Final 2.2 Delrin M4 Stainless Steel Body Plain £12.13
£14.56 Inc. VAT
CLM-5-SBP-3 CLM-5-SBP-3 Metric .51 Initial 2 Final 4.9 Standard M5 Stainless Steel Body Yellow £11.99
£14.39 Inc. VAT
CLM-12-SBP-3 CLM-12-SBP-3 Metric .75 Initial 6.1 Final 29.7 Standard M12 Stainless Steel Body Yellow £14.62
£17.54 Inc. VAT
CLM-10-SBP-1 CLM-10-SBP-1 Metric .63 Initial 5.0 Final 9.9 Standard M10 Stainless Steel Body Green £12.92
£15.50 Inc. VAT
CLM-10-SBPN-1 CLM-10-SBPN-1 Metric .63 Initial 5 Final 10 Delrin M10 Stainless Steel Body Green £13.39
£16.07 Inc. VAT
CLM-8-SBP-2 CLM-8-SBP-2 Metric .58 Initial 2.2 Final 4.4 Standard M8 Stainless Steel Body Plain £12.07
£14.48 Inc. VAT
CLM-16-BP-3 CLM-16-BP-3 Metric .98 Initial 7 Final 50 Standard M16 Steel Body Yellow On Enquiry
CLM-5-BP-1 CLM-5-BP-1 Metric .51 Initial 1.5 Final 2.9 Standard M5 Steel Body Green On Enquiry
CLM-12-BP-1 CLM-12-BP-1 Metric .75 Initial 6.1 Final 12.1 Standard M12 Steel Body Green On Enquiry
CLM-10-BP-2 CLM-10-BP-2 Metric .63 Initial 2.5 Final 5.0 Standard M10 Steel Body Plain On Enquiry
CLM-8-SBPN-2 CLM-8-SBPN-2 Metric .58 Initial 2.2 Final 4.4 Delrin M8 Stainless Steel Body Plain £12.60
£15.12 Inc. VAT
CLM-6-BP-3 CLM-6-BP-3 Metric .53 Initial 4 Final 12 Standard M6 Steel Body Yellow £7.69
£9.23 Inc. VAT
CLM-4-SBP-1 CLM-4-SBP-1 Metric .34 Initial 0.6 Final 1.1 Standard M4 Stainless Steel Body Plain £11.95
£14.34 Inc. VAT
CLM-10-SBP-3 CLM-10-SBP-3 Metric .63 Initial 6.1 Final 20.9 Standard M10 Stainless Steel Body Yellow £12.92
£15.50 Inc. VAT
CLM-12-SBPN-1 CLM-12-SBPN-1 Metric .75 Initial 6 Final 12 Delrin M12 Stainless Steel Body Green £14.93
£17.92 Inc. VAT
CLM-8-SBP-1 CLM-8-SBP-1 Metric .58 Initial 3.9 Final 8.8 Standard M8 Stainless Steel Body Green £12.53
£15.04 Inc. VAT
CLM-5-SBPN-1 CLM-5-SBPN-1 Metric .51 Initial 1.5 Final 2.9 Delrin M5 Stainless Steel Body Green £12.72
£15.26 Inc. VAT
CLM-6-SBP-2 CLM-6-SBP-2 Metric .53 Initial 2 Final 4 Standard M6 Stainless Steel Body Plain £11.45
£13.74 Inc. VAT
CLM-16-SBP-2 CLM-16-SBP-2 Metric .98 Initial 4.5 Final 9 Standard M16 Stainless Steel Body Plain £18.94
£22.73 Inc. VAT
CLM-10-BP-1 CLM-10-BP-1 Metric .63 Initial 5.0 Final 9.9 Standard M10 Steel Body Green £12.26
£14.71 Inc. VAT
CLM-10-SBPN-2 CLM-10-SBPN-2 Metric .63 Initial 2.5 Final 5.0 Delrin M10 Stainless Steel Body Plain £13.39
£16.07 Inc. VAT
CLM-8-BP-2 CLM-8-BP-2 Metric .58 Initial 2.2 Final 4.4 Standard M8 Steel Body Plain £8.10
£9.72 Inc. VAT
CLM-3-SBPN-1 CLM-3-SBPN-1 Metric .19 Initial .12 Final .5 Delrin M3 Stainless Steel Body Plain £12.07
£14.48 Inc. VAT
CLM-5-BP-3 CLM-5-BP-3 Metric .51 Initial 2 Final 4.9 Standard M5 Steel Body Yellow On Enquiry
CLM-12-BP-3 CLM-12-BP-3 Metric .75 Initial 6.1 Final 29.7 Standard M12 Steel Body Yellow £11.63
£13.96 Inc. VAT
CLM-16-SBPN-1 CLM-16-SBPN-1 Metric .98 Initial 9 Final 18 Delrin M16 Stainless Steel Body Green £19.46
£23.35 Inc. VAT
CLM-8-SBP-3 CLM-8-SBP-3 Metric .58 Initial 6.1 Final 17.1 Standard M8 Stainless Steel Body Yellow £12.07
£14.48 Inc. VAT
CLM-6-SBPN-1 CLM-6-SBPN-1 Metric .53 Initial 2.9 Final 7 Delrin M6 Stainless Steel Body Green £11.54
£13.85 Inc. VAT
CLM-6-SBP-1 CLM-6-SBP-1 Metric .53 Initial 2.9 Final 7 Standard M6 Stainless Steel Body Green £11.45
£13.74 Inc. VAT
CLM-16-SBP-1 CLM-16-SBP-1 Metric .98 Initial 9 Final 18 Standard M16 Stainless Steel Body Green £18.94
£22.73 Inc. VAT
CLM-5-SBP-2 CLM-5-SBP-2 Metric .51 Initial .5 Final 1.5 Standard M5 Stainless Steel Body Plain £11.99
£14.39 Inc. VAT
CLM-12-SBP-2 CLM-12-SBP-2 Metric .75 Initial 3.0 Final 6.1 Standard M12 Stainless Steel Body Plain £14.62
£17.54 Inc. VAT
CLM-12-SBPN-2 CLM-12-SBPN-2 Metric .75 Initial 3 Final 6 Delrin M12 Stainless Steel Body Plain £14.93
£17.92 Inc. VAT
CLM-8-BP-1 CLM-8-BP-1 Metric .58 Initial 3.9 Final 8.8 Standard M8 Steel Body Green £7.81
£9.37 Inc. VAT
CLM-5-SBPN-2 CLM-5-SBPN-2 Metric .51 Initial .5 Final 1.5 Delrin M5 Stainless Steel Body Plain £12.72
£15.26 Inc. VAT
CLM-6-BP-2 CLM-6-BP-2 Metric .53 Initial 2 Final 4 Standard M6 Steel Body Plain £7.69
£9.23 Inc. VAT
CLM-16-BP-2 CLM-16-BP-2 Metric .98 Initial 4.5 Final 9 Standard M16 Steel Body Plain £15.74
£18.89 Inc. VAT
CLM-3-SBP-1 CLM-3-SBP-1 Metric .19 Initial .12 Final .5 Standard M3 Stainless Steel Body Plain £11.65
£13.98 Inc. VAT
CLM-10-BP-3 CLM-10-BP-3 Metric .63 Initial 6.1 Final 20.9 Standard M10 Steel Body Yellow £12.54
£15.05 Inc. VAT
CLM-8-SBPN-1 CLM-8-SBPN-1 Metric .58 Initial 3.9 Final 9 Delrin M8 Stainless Steel Body Green £12.60
£15.12 Inc. VAT
CLM-6-SBP-3 CLM-6-SBP-3 Metric .53 Initial 4 Final 12 Standard M6 Stainless Steel Body Yellow £11.45
£13.74 Inc. VAT
CLM-16-SBP-3 CLM-16-SBP-3 Metric .98 Initial 7 Final 50 Standard M16 Stainless Steel Body Yellow £18.94
£22.73 Inc. VAT
CLM-5-SBP-1 CLM-5-SBP-1 Metric .51 Initial 1.5 Final 2.9 Standard M5 Stainless Steel Body Green £11.99
£14.39 Inc. VAT
CLM-12-SBP-1 CLM-12-SBP-1 Metric .75 Initial 6.1 Final 12.1 Standard M12 Stainless Steel Body Green £14.62
£17.54 Inc. VAT
CLM-10-SBP-2 CLM-10-SBP-2 Metric .63 Initial 2.5 Final 5.0 Standard M10 Stainless Steel Body Plain £12.92
£15.50 Inc. VAT
CLM-6-SBPN-2 CLM-6-SBPN-2 Metric .53 Initial 2 Final 4 Delrin M6 Stainless Steel Body Plain £11.54
£13.85 Inc. VAT
CLM-6-BP-1 CLM-6-BP-1 Metric .53 Initial 2.9 Final 7 Standard M6 Steel Body Green £7.69
£9.23 Inc. VAT
CLM-16-BP-1 CLM-16-BP-1 Metric .98 Initial 9 Final 18 Standard M16 Steel Body Green On Enquiry
CLM-5-BP-2 CLM-5-BP-2 Metric .51 Initial .5 Final 1.5 Standard M5 Steel Body Plain On Enquiry
CLM-12-BP-2 CLM-12-BP-2 Metric .75 Initial 3.0 Final 6.1 Standard M12 Steel Body Plain On Enquiry
CLM-16-SBPN-2 CLM-16-SBPN-2 Metric .98 Initial 4.5 Final 9 Delrin M16 Stainless Steel Body Plain £19.46
£23.35 Inc. VAT
CLM-8-BP-3 CLM-8-BP-3 Metric .58 Initial 6.1 Final 17.1 Standard M8 Steel Body Yellow £8.10
£9.72 Inc. VAT
CL-60-DBP-3-LL CL-60-DBP-3-LL Imperial 5/8 Initial 6 Final 21 Standard 3/8-16 Delrin Body Yellow On Enquiry
CL-30-SBPN-1 CL-30-SBPN-1 Imperial 33/64 Initial 1/2 Final 1-1/2 Delrin #10-32 Stainless Steel Body Plain £8.78
£10.54 Inc. VAT
CL-50-BP-1 CL-50-BP-1 Imperial 37/64 Initial 2 Final 4-1/2 Standard 5/16-18 Steel Body Plain £7.56
£9.07 Inc. VAT
CL-70-SBPN-1 CL-70-SBPN-1 Imperial 3/4 Initial 3 Final 6 Delrin 1/2-13 Stainless Steel Body Plain £12.67
£15.20 Inc. VAT
CL-60-BP-1 CL-60-BP-1 Imperial 5/8 Initial 2-1/2 Final 5 Standard 3/8-16 Steel Body Plain £6.53
£7.84 Inc. VAT
CL-80-SBP-2 CL-80-SBP-2 Imperial 63/64 Initial 9 Final 18 Standard 5/8-11 Stainless Steel Body Black On Enquiry
CL-70-BP-1 CL-70-BP-1 Imperial 3/4 Initial 3 Final 6 Standard 1/2-13 Steel Body Plain £9.18
£11.02 Inc. VAT
CL-20-SBPN-1 CL-20-SBPN-1 Imperial 11/32 Initial 1/2 Final 1-1/4 Delrin #8-36 Stainless Steel Body Plain £8.24
£9.89 Inc. VAT
CL-50-SBPN-1 CL-50-SBPN-1 Imperial 37/64 Initial 2 Final 4-1/2 Delrin 5/16-18 Stainless Steel Body Plain £10.33
£12.40 Inc. VAT
CL-60-SBPN-3 CL-60-SBPN-3 Imperial 5/8 Initial 6 Final 21 Delrin 3/8-16 Stainless Steel Body Yellow £10.64
£12.77 Inc. VAT
CL-40-DBP-1-LL CL-40-DBP-1-LL Imperial 17/32 Initial 2 Final 4 Standard 1/4-20 Delrin Body Plain On Enquiry
CL-50-DBP-3-LL CL-50-DBP-3-LL Imperial 37/64 Initial 6 Final 17 Standard 5/16-18 Delrin Body Yellow On Enquiry
CL-15-SBPN-1 CL-15-SBPN-1 Imperial 5/16 Initial 1/2 Final 1 Delrin #6-40 Stainless Steel Body Plain £8.46
£10.15 Inc. VAT
CL-40-DBPN-2-LL CL-40-DBPN-2-LL Imperial 17/32 Initial 3 Final 7 Delrin 1/4-20 Delrin Body Black On Enquiry
CL-80-SBPN-1 CL-80-SBPN-1 Imperial 63/64 Initial 4-1/2 Final 9 Delrin 5/8-11 Stainless Steel Body Plain £16.31
£19.57 Inc. VAT
CL-60-SBPN-2 CL-60-SBPN-2 Imperial 5/8 Initial 5 Final 10 Delrin 3/8-16 Stainless Steel Body Black £10.64
£12.77 Inc. VAT
CL-80-BP-1 CL-80-BP-1 Imperial 63/64 Initial 4-1/2 Final 9 Standard 5/8-11 Steel Body Plain £12.97
£15.56 Inc. VAT
CL-5-SBP-1 CL-5-SBP-1 Imperial 3/16 Initial 1/8 Final 1/2 Standard #4-48 Stainless Steel Body Plain £6.52
£7.82 Inc. VAT
CL-30-BP-3 CL-30-BP-3 Imperial 33/64 Initial 2 Final 5 Standard #10-32 Steel Body Yellow £6.37
£7.64 Inc. VAT
CL-40-SBP-3 CL-40-SBP-3 Imperial 17/32 Initial 4 Final 12 Standard 1/4-20 Stainless Steel Body Yellow £6.71
£8.05 Inc. VAT
CL-70-BP-3 CL-70-BP-3 Imperial 3/4 Initial 6 Final 30 Standard 1/2-13 Steel Body Yellow £6.98
£8.38 Inc. VAT
CL-10-SBP-1 CL-10-SBP-1 Imperial 1/4 Initial 1/4 Final 3/4 Standard #5-40 Stainless Steel Body Plain £6.64
£7.97 Inc. VAT
CL-60-DBPN-1-LL CL-60-DBPN-1-LL Imperial 5/8 Initial 2-1/2 Final 5 Delrin 3/8-16 Delrin Body Plain On Enquiry
CL-50-DBP-2-LL CL-50-DBP-2-LL Imperial 37/64 Initial 4 Final 9 Standard 5/16-18 Delrin Body Black On Enquiry
CL-60-DBP-1-LL CL-60-DBP-1-LL Imperial 5/8 Initial 2-1/2 Final 5 Standard 3/8-16 Delrin Body Plain On Enquiry
CL-80-SBP-3 CL-80-SBP-3 Imperial 63/64 Initial 7 Final 50 Standard 5/8-11 Stainless Steel Body Yellow £13.57
£16.28 Inc. VAT
CL-40-SBPN-1 CL-40-SBPN-1 Imperial 17/32 Initial 2 Final 4 Delrin 1/4-20 Stainless Steel Body Plain £8.86
£10.63 Inc. VAT
CL-60-BP-2 CL-60-BP-2 Imperial 5/8 Initial 5 Final 10 Standard 3/8-16 Steel Body Black £6.30
£7.56 Inc. VAT
CL-50-SBPN-2 CL-50-SBPN-2 Imperial 37/64 Initial 4 Final 9 Delrin 5/16-18 Stainless Steel Body Black £9.53
£11.44 Inc. VAT
CL-30-SBP-1 CL-30-SBP-1 Imperial 33/64 Initial 1/2 Final 1-1/2 Standard #10-32 Stainless Steel Body Plain £6.65
£7.98 Inc. VAT
CL-70-SBPN-2 CL-70-SBPN-2 Imperial 3/4 Initial 6 Final 12 Delrin 1/2-13 Stainless Steel Body Black £12.67
£15.20 Inc. VAT
CL-40-SBP-2 CL-40-SBP-2 Imperial 17/32 Initial 3 Final 7 Standard 1/4-20 Stainless Steel Body Black £6.71
£8.05 Inc. VAT
CL-30-SBPN-3 CL-30-SBPN-3 Imperial 33/64 Initial 2 Final 5 Delrin #10-32 Stainless Steel Body Yellow £8.46
£10.15 Inc. VAT
CL-50-DBP-1-LL CL-50-DBP-1-LL Imperial 37/64 Initial 2 Final 4-1/2 Standard 5/16-18 Delrin Body Plain On Enquiry
CL-80-BP-2 CL-80-BP-2 Imperial 63/64 Initial 9 Final 18 Standard 5/8-11 Steel Body Black £10.76
£12.91 Inc. VAT
CL-22-SBP-1 CL-22-SBP-1 Imperial 11/32 Initial 1/2 Final 1-1/4 Standard #8-32 Stainless Steel Body Plain £5.84
£7.01 Inc. VAT
CL-40-SBP-1 CL-40-SBP-1 Imperial 17/32 Initial 2 Final 4 Standard 1/4-20 Stainless Steel Body Plain £6.71
£8.05 Inc. VAT
CL-50-SBP-3 CL-50-SBP-3 Imperial 37/64 Initial 6 Final 17 Standard 5/16-18 Stainless Steel Body Yellow £7.13
£8.56 Inc. VAT
CL-60-SBP-3 CL-60-SBP-3 Imperial 5/8 Initial 6 Final 21 Standard 3/8-16 Stainless Steel Body Yellow £8.04
£9.65 Inc. VAT
CL-80-SBPN-3 CL-80-SBPN-3 Imperial 63/64 Initial 7 Final 50 Delrin 5/8-11 Stainless Steel Body Yellow £16.31
£19.57 Inc. VAT
CL-60-DBP-2-LL CL-60-DBP-2-LL Imperial 5/8 Initial 5 Final 10 Standard 3/8-16 Delrin Body Black On Enquiry
CL-50-SBPN-3 CL-50-SBPN-3 Imperial 37/64 Initial 6 Final 17 Delrin 5/16-18 Stainless Steel Body Yellow £10.33
£12.40 Inc. VAT
CL-30-SBP-2 CL-30-SBP-2 Imperial 33/64 Initial 1-1/2 Final 3 Standard #10-32 Stainless Steel Body Black £6.65
£7.98 Inc. VAT
CL-40-BP-3 CL-40-BP-3 Imperial 17/32 Initial 4 Final 12 Standard 1/4-20 Steel Body Yellow £6.18
£7.42 Inc. VAT
CL-5-SBPN-1 CL-5-SBPN-1 Imperial 3/16 Initial 1/8 Final 1/2 Delrin #4-48 Stainless Steel Body Plain £8.86
£10.63 Inc. VAT
CL-70-SBP-2 CL-70-SBP-2 Imperial 3/4 Initial 6 Final 12 Standard 1/2-13 Stainless Steel Body Black £9.96
£11.95 Inc. VAT
CL-60-SBPN-1 CL-60-SBPN-1 Imperial 5/8 Initial 2-1/2 Final 5 Delrin 3/8-16 Stainless Steel Body Plain £10.64
£12.77 Inc. VAT
CL-50-SBP-2 CL-50-SBP-2 Imperial 37/64 Initial 4 Final 9 Standard 5/16-18 Stainless Steel Body Black £7.13
£8.56 Inc. VAT
CL-10-SBPN-1 CL-10-SBPN-1 Imperial 1/4 Initial 1/4 Final 3/4 Delrin #5-40 Stainless Steel Body Plain £9.38
£11.26 Inc. VAT
CL-40-SBPN-2 CL-40-SBPN-2 Imperial 17/32 Initial 3 Final 7 Delrin 1/4-20 Stainless Steel Body Black £8.86
£10.63 Inc. VAT
CL-50-DBPN-1-LL CL-50-DBPN-1-LL Imperial 37/64 Initial 2 Final 4-1/2 Delrin 5/16-18 Delrin Body Plain On Enquiry
CL-30-BP-1 CL-30-BP-1 Imperial 33/64 Initial 1/2 Final 1-1/2 Standard #10-32 Steel Body Plain £6.13
£7.36 Inc. VAT
CL-40-BP-2 CL-40-BP-2 Imperial 17/32 Initial 3 Final 7 Standard 1/4-20 Steel Body Black £6.18
£7.42 Inc. VAT
CL-30-SBPN-2 CL-30-SBPN-2 Imperial 33/64 Initial 1-1/2 Final 3 Delrin #10-32 Stainless Steel Body Black £8.46
£10.15 Inc. VAT
CL-50-SBP-1 CL-50-SBP-1 Imperial 37/64 Initial 2 Final 4-1/2 Standard 5/16-18 Stainless Steel Body Plain £8.74
£10.49 Inc. VAT
CL-60-SBP-1 CL-60-SBP-1 Imperial 5/8 Initial 2-1/2 Final 5 Standard 3/8-16 Stainless Steel Body Plain £8.04
£9.65 Inc. VAT
CL-80-BP-3 CL-80-BP-3 Imperial 63/64 Initial 7 Final 50 Standard 5/8-11 Steel Body Yellow £8.99
£10.79 Inc. VAT
CL-70-SBP-1 CL-70-SBP-1 Imperial 3/4 Initial 3 Final 6 Standard 1/2-13 Stainless Steel Body Plain £9.96
£11.95 Inc. VAT
CL-20-SBP-1 CL-20-SBP-1 Imperial 11/32 Initial 1/2 Final 1-1/4 Standard #8-36 Stainless Steel Body Plain On Enquiry
CL-15-SBP-1 CL-15-SBP-1 Imperial 5/16 Initial 1/2 Final 1 Standard #6-40 Stainless Steel Body Plain £6.08
£7.30 Inc. VAT
CL-40-BP-1 CL-40-BP-1 Imperial 17/32 Initial 2 Final 4 Standard 1/4-20 Steel Body Plain £6.18
£7.42 Inc. VAT
CL-50-BP-3 CL-50-BP-3 Imperial 37/64 Initial 6 Final 17 Standard 5/16-18 Steel Body Yellow £6.17
£7.40 Inc. VAT
CL-60-BP-3 CL-60-BP-3 Imperial 5/8 Initial 6 Final 21 Standard 3/8-16 Steel Body Yellow £6.53
£7.84 Inc. VAT
CL-22-SBPN-1 CL-22-SBPN-1 Imperial 11/32 Initial 1/2 Final 1-1/4 Delrin #8-32 Stainless Steel Body Plain £8.24
£9.89 Inc. VAT
CL-40-SBPN-3 CL-40-SBPN-3 Imperial 17/32 Initial 4 Final 12 Delrin 1/4-20 Stainless Steel Body Yellow £8.86
£10.63 Inc. VAT
CL-80-SBPN-2 CL-80-SBPN-2 Imperial 63/64 Initial 9 Final 18 Delrin 5/8-11 Stainless Steel Body Black £16.31
£19.57 Inc. VAT
CL-60-DBPN-2-LL CL-60-DBPN-2-LL Imperial 5/8 Initial 5 Final 10 Delrin 3/8-16 Delrin Body Black On Enquiry
CL-80-SBP-1 CL-80-SBP-1 Imperial 63/64 Initial 4-1/2 Final 9 Standard 5/8-11 Stainless Steel Body Plain £13.57
£16.28 Inc. VAT
CL-30-SBP-3 CL-30-SBP-3 Imperial 33/64 Initial 2 Final 5 Standard #10-32 Stainless Steel Body Yellow £6.65
£7.98 Inc. VAT
CL-40-DBP-3-LL CL-40-DBP-3-LL Imperial 17/32 Initial 4 Final 12 Standard 1/4-20 Delrin Body Yellow On Enquiry
CL-70-BP-2 CL-70-BP-2 Imperial 3/4 Initial 6 Final 12 Standard 1/2-13 Steel Body Black £9.18
£11.02 Inc. VAT
CL-70-SBP-3 CL-70-SBP-3 Imperial 3/4 Initial 6 Final 30 Standard 1/2-13 Stainless Steel Body Yellow £9.96
£11.95 Inc. VAT
CL-50-BP-2 CL-50-BP-2 Imperial 37/64 Initial 4 Final 9 Standard 5/16-18 Steel Body Black £6.17
£7.40 Inc. VAT
CL-40-DBPN-1-LL CL-40-DBPN-1-LL Imperial 17/32 Initial 2 Final 4 Delrin 1/4-20 Delrin Body Plain On Enquiry
CL-60-SBP-2 CL-60-SBP-2 Imperial 5/8 Initial 5 Final 10 Standard 3/8-16 Stainless Steel Body Black £8.04
£9.65 Inc. VAT
CL-50-DBPN-2-LL CL-50-DBPN-2-LL Imperial 37/64 Initial 4 Final 9 Delrin 5/16-18 Delrin Body Black On Enquiry
CL-30-BP-2 CL-30-BP-2 Imperial 33/64 Initial 1-1/2 Final 3 Standard #10-32 Steel Body Black £6.16
£7.39 Inc. VAT
CL-70-SBPN-3 CL-70-SBPN-3 Imperial 3/4 Initial 6 Final 30 Delrin 1/2-13 Stainless Steel Body Yellow £13.15
£15.78 Inc. VAT
CL-40-DBP-2-LL CL-40-DBP-2-LL Imperial 17/32 Initial 3 Final 7 Standard 1/4-20 Delrin Body Black On Enquiry
Ball Plungers datasheet

Carr Lane Ball Plungers

Ball plungers are essential elements in various mechanical and industrial applications, valued for their straightforward design and efficiency in positioning, securing, and holding parts. They come in a range of materials such as steel, stainless steel, and Delrin®, offering versatility to meet diverse operational needs. Ball plungers deliver an ideal balance of reliability, precision, and durability for your specific requirements.

Options:

  • Metric and Imperial sizes
  • Initial End Force - 1/8 - 9
  • Final End Force - 1/2 - 50
  • Thread - .1147 - 5/8-11 or M3 - M16
  • Standard and Delrin® balls with Steel, Stainless and Delrin® bodies available

Quantity Unit discount You Save

Customers who bought this product also bought:

Carr Lane Shoulder Screws

Carr Lanes shoulder screws are a type of fastener that are manufactured with a cylindrical body and a shoulder between the threaded portion and the head of the screw. The shoulder is larger in diameter in comparison to the threaded area and is a bearing surface or precise reference point. This item is available in both metric and imperial sizing and in thread diameters from 1/4" to 3/4" (8 to 20mm). These shoulder screws are best used for critical applications where precision and performance are vital.

  • Metric and Imperial sizes available
  • Shoulder Dia - 1/4 - 3/4 or 8mm - 20mm
£7.64 £9.17 Inc. VAT
View
Carr Lane Knurled Knobs

Carr Lane Knurled Knobs Phenolic

Phenolic knurled knobs are compact, ergonomic knobs made from phenolic material. The textured head ensures a secure grip for easy hand tightening in light clamping tasks. A moulded brass insert enhances thread durability and strength. There is a selection of five different knob sizes and available with a moulded in steel stud. These knobs are available in three different configurations, which includes: stud type, stud type with short hub and tapped.

  • Thread: #6-32 - 3/8-16 or M5 - M10
  • Metric and Imperial sizes
  • Phenolic and Thermoplastic
  • Tapped and Stud Type options available
£0.00 £0.00 Inc. VAT
View

Carr Lane Stud Levelling Feet

A heavy duty stud levelling foot  that features a wide-diameter pad and an integrated stud. The stud and swivel ball are crafted as a single, sturdy piece. The large swivel ball allows for a high load capacity and offers a total swivel range of 20°. Available in thread sizes ranging from #10-32 to 1"-8 (M6 to M20 in metric), with five different material and finish options.

  • Metric and Imperial sizes available
  • Thread - .1941 - 1"- 8 or M6 - M20

£14.04 £16.85 Inc. VAT
View

Carr Lane Washers

Carr Lane offer various types of washers including flat washers, spherical washers and knurled face washers. Flat washers have a serrated surface designed to stop two parts from slipping relative to one another. Spherical Washers are robust two-piece washers designed to adjust when a stud and clamping surface are not perfectly perpendicular. These items are available in metric and imperial sizing as well as steel and stainless-steel options for selected products.

  • Available in metric and imperial
  • Available in steel and stainless steel
£0.71 £0.85 Inc. VAT
View

Carr Lane Bullet-Nose Dowels

A precision locating pin is commonly used with a matching bushing to align two parts of a fixture. The pin’s head and shank diameters are concentric within .0005" TIR. Available in pin diameters of 1/4", 5/16", 3/8", and 1/2" (6mm, 8mm, 10mm, and 12mm in metric). A precision bushing is used with a Bullet-Nose Dowel to align two components of a fixture. The bushing’s ID and OD are concentric within .0003" TIR. Available for pin diameters of 1/4", 5/16", 3/8", and 1/2" (6mm, 8mm, 10mm, and 12mm in metric).

  • Imperial and Metric
  • A Diameter - 1/4 - 1/2  6mm - 12mm
  • B Diameter - 1/4 - 1/2  6mm - 12mm
£5.42 £6.50 Inc. VAT
View

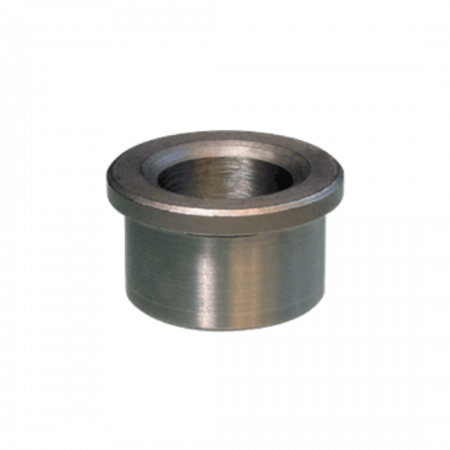

Carr Lane Head Liner Bushes

Carr Lane Head Liners are similar to L bushings but include a head that offers resistance to substantial axial forces. The inner diameter of the liner has an exact sliding tolerance with the outer diameter of the replaceable bushing. This arrangement ensures the correct positioning of the replaceable bushing and shields the jig plate from damage and wear caused by regular bushing changes. The "length" specified for an HL bushing refers to its total length, not the portion beneath the head. These are available in both metric and imperial sizing.

  • ID -5/16 - 2-1/4" or 8 - 105mm
  • OD - 1/2 - 2-3/4" or 12 - 125mm
  • Length - 5/16 - 3" or 10 - 112mm. Unground option available.
£15.78 £18.94 Inc. VAT
View
