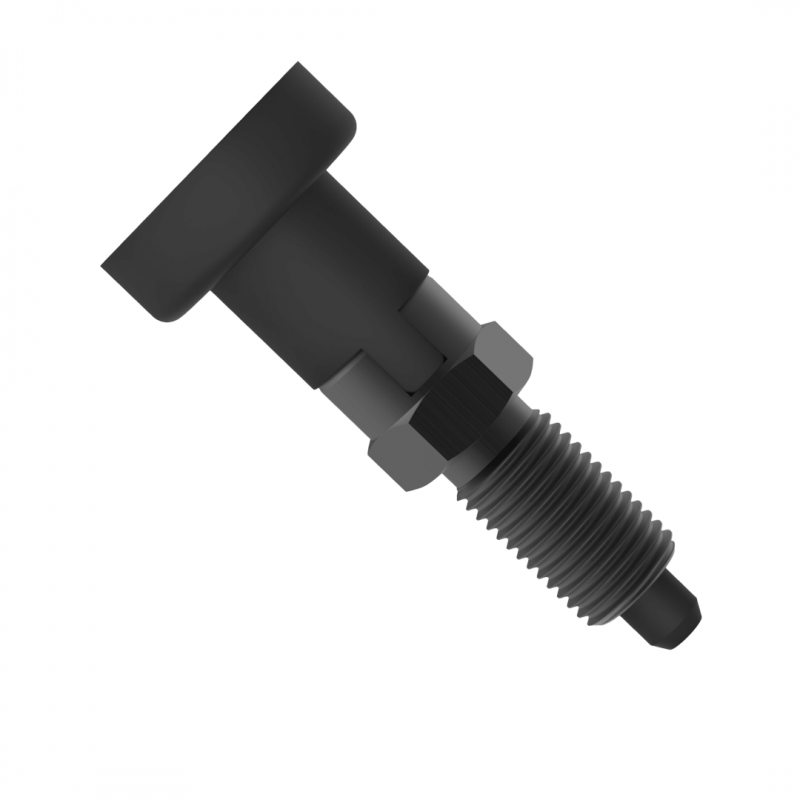

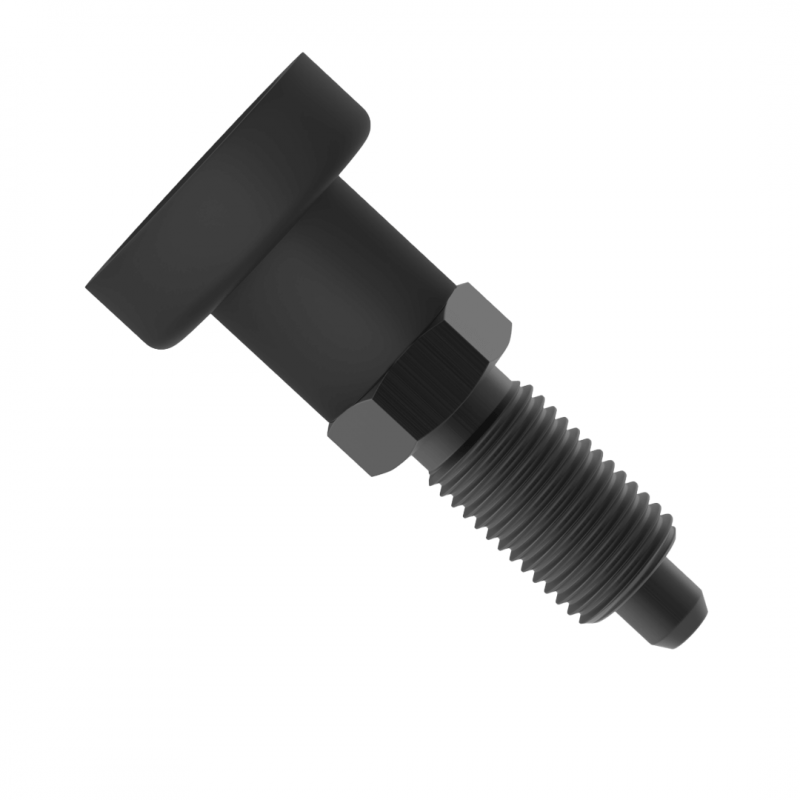

A precision indexing plunger featuring a user-friendly knob handle for easy retraction. The threaded-body model enables adjustable positioning and can be locked in place with an optional jam nut. It offers exceptional strength and durability in a compact design. The plunger is hardened and ground for added reliability. Available in both locking and non-locking versions.
| Part Number | Material Number | Locking or Non-Locking | Thread | Price | Add to Parts List |
|---|---|---|---|---|---|
| CL-10-HRPK-L | Locking | 5/8-11 | £38.09 £45.71 Inc. VAT |
|
|
| CL-6-HRPK-L | Locking | 3/8-24-FINE | £28.88 £34.66 Inc. VAT |
|
|
| CL-8-HRPK-L | Locking | 1/2-13 | £30.19 £36.23 Inc. VAT |
|
|
| CL-10-HRPK-N | Non-Locking | 5/8-11 | £28.57 £34.28 Inc. VAT |
|
|
| CL-6-HRPK-N | Non-Locking | 3/8-24-FINE | £21.72 £26.06 Inc. VAT |
|
|
| CL-8-HRPK-N | Non-Locking | 1/2-13 | £23.27 £27.92 Inc. VAT |
|

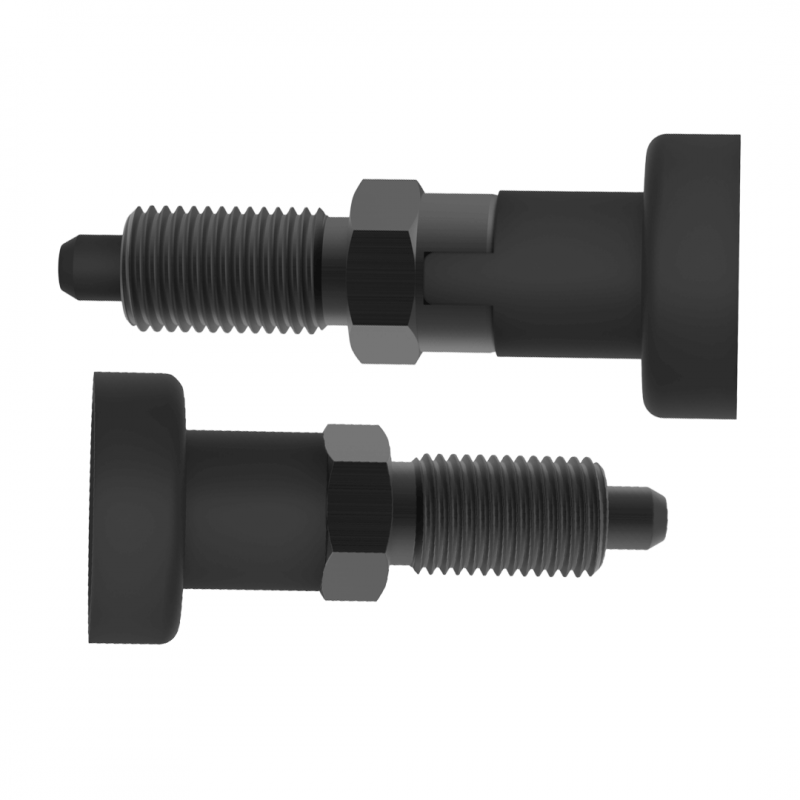

Options:
Locking Type has a spring-loaded plunger that locks in retracted position. To lock, pull knurled knob back and turn 90°, body is notched at 90° to keep the knob in its retracted position.
Non-locking Type has a spring-loaded plunger that stays extended by spring force except when manually held in retracted position.
