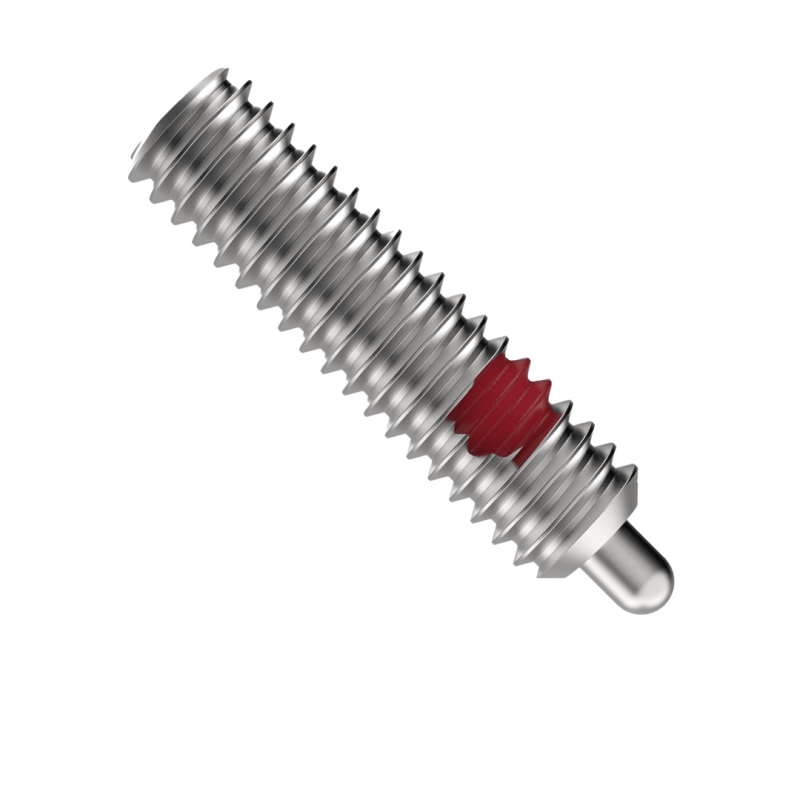

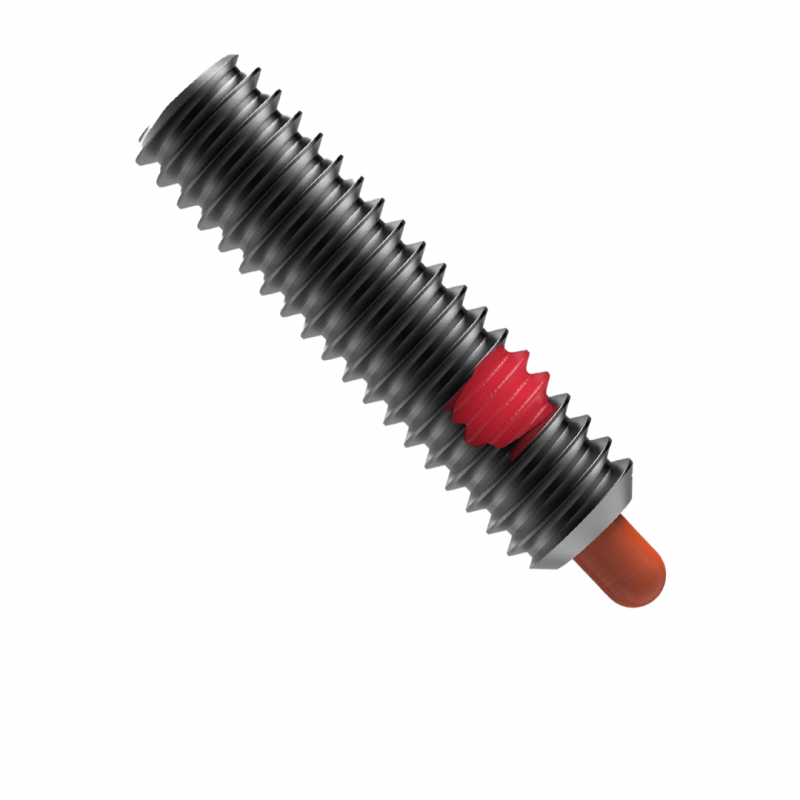

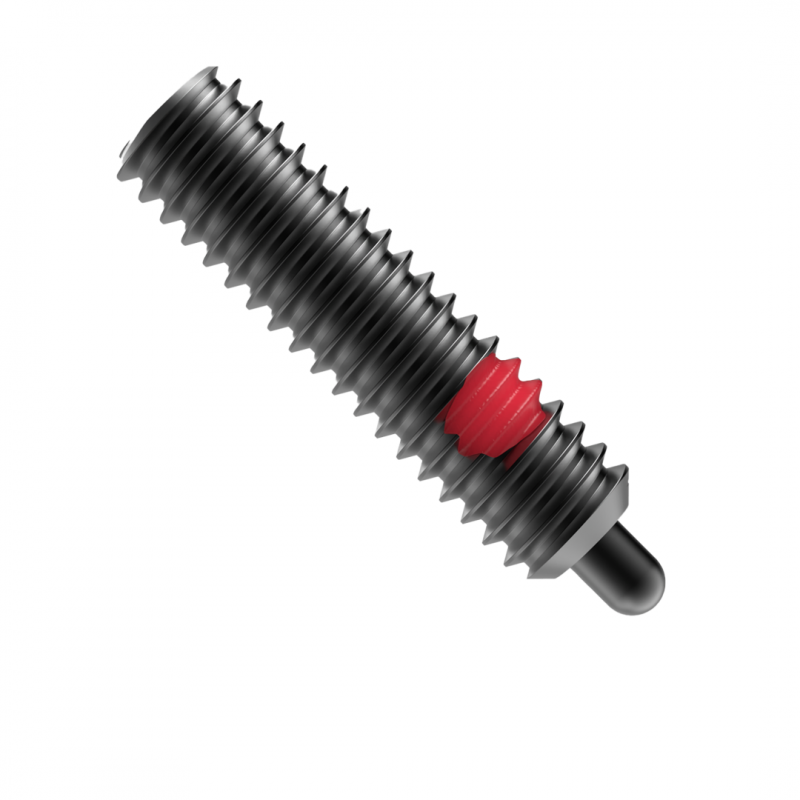

Carr Lane Spring Plungers

Carr Lane Spring Plungers are self-contained devices that combine a plunger and spring to deliver force across a wide range of movement. Featuring a sliding plunger nose with an extended bearing length, these plungers ensure smooth, consistent operation. Available in various options, including steel, stainless steel, and combinations of stainless steel or steel with a Delrin nose.

  • Light and Heavy Force
  • Metric and Imperial sizes available
  • Thread - #6-32 - 1"-8 or M6 - M12

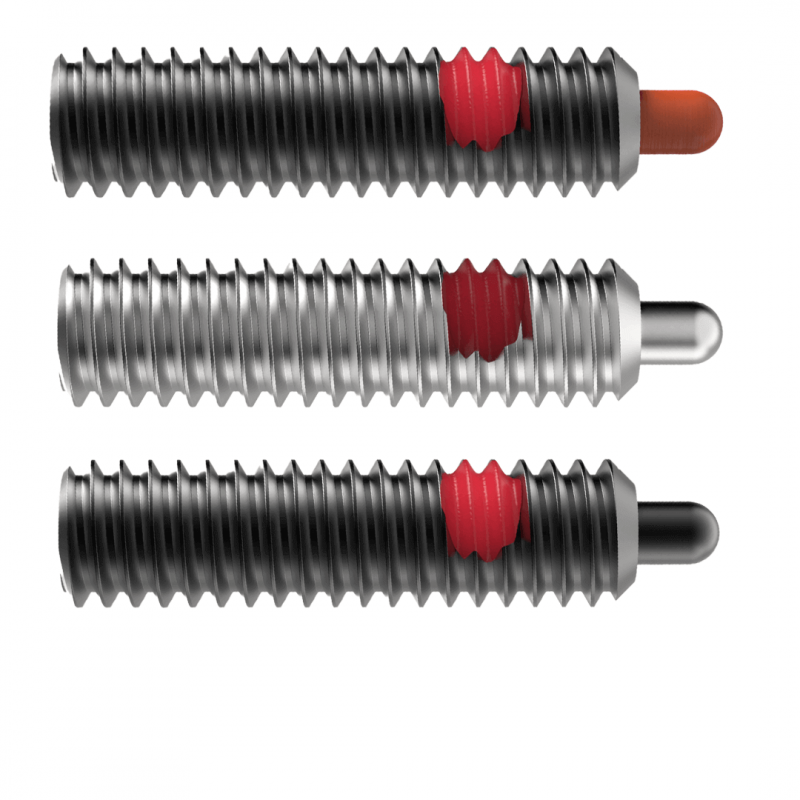

  • Standard and Delrin® with Steel and Stainless Steel options
Print page

Products
Downloads
Description
Part Number Material Number Metric or Imperial External Diameter Length Material Plunger Type Price Add to Parts List
CL-10-SSPN-1 CL-10-SSPN-1 Metric M10 1-1/8 Stainless Steel Standard Plunger Nose, Light Force On Enquiry
CLM-8-SSPS-2 CLM-8-SSPS-2 Metric M8 1 Stainless Steel Standard Plunger Nose, Heavy Force £16.68
£20.02 Inc. VAT
CLM-8-SSPS-1 CLM-8-SSPS-1 Metric M8 1 Stainless Steel Standard Plunger Nose, Light Force £16.68
£20.02 Inc. VAT
CL-10-SPN-1 CL-10-SPN-1 Metric M10 1-1/8 Steel Standard Plunger Nose, Light Force On Enquiry
CLM-8-SPS-2 CLM-8-SPS-2 Metric M8 1 Steel Standard Plunger Nose, Heavy Force On Enquiry
CLM-8-SPS-1 CLM-8-SPS-1 Metric M8 1 Steel Standard Plunger Nose, Light Force £16.54
£19.85 Inc. VAT
CLM-8-SPN-1 CLM-8-SPN-1 Metric M8 1 Steel Standard Plunger Nose, Light Force On Enquiry
CLM-6-SSPS-2 CLM-6-SSPS-2 Metric M6 1 Stainless Steel Standard Plunger Nose, Heavy Force £13.04
£15.65 Inc. VAT
CLM-6-SSPS-1 CLM-6-SSPS-1 Metric M6 1 Stainless Steel Standard Plunger Nose, Light Force £13.04
£15.65 Inc. VAT
CLM-6-SPN-1 CLM-6-SPN-1 Metric M6 1 Steel Standard Plunger Nose, Light Force On Enquiry
CLM-6-SPS-2 CLM-6-SPS-2 Metric M6 1 Steel Standard Plunger Nose, Heavy Force £8.26
£9.91 Inc. VAT
CLM-6-SPS-1 CLM-6-SPS-1 Metric M6 1 Steel Standard Plunger Nose, Light Force £8.26
£9.91 Inc. VAT
CLM-12-SSPS-2 CLM-12-SSPS-2 Metric M12 1-1/4 Stainless Steel Standard Plunger Nose, Heavy Force On Enquiry
CLM-12-SSPS-1 CLM-12-SSPS-1 Metric M12 1-1/4 Stainless Steel Standard Plunger Nose, Light Force £18.82
£22.58 Inc. VAT
CLM-12-SPS-2 CLM-12-SPS-2 Metric M12 1-1/4 Steel Standard Plunger Nose, Heavy Force £12.78
£15.34 Inc. VAT
CLM-12-SPS-1 CLM-12-SPS-1 Metric M12 1-1/4 Steel Standard Plunger Nose, Light Force £11.76
£14.11 Inc. VAT
CLM-10-SSPS-2 CLM-10-SSPS-2 Metric M10 1-1/8 Stainless Steel Standard Plunger Nose, Heavy Force £14.71
£17.65 Inc. VAT
CLM-10-SSPS-1 CLM-10-SSPS-1 Metric M10 1-1/8 Stainless Steel Standard Plunger Nose, Light Force On Enquiry
CLM-12-SPN-1 CLM-12-SPN-1 Metric M12 1-1/4 Steel Standard Plunger Nose, Light Force On Enquiry
CLM-10-SPS-2 CLM-10-SPS-2 Metric M10 1-1/8 Steel Standard Plunger Nose, Heavy Force £9.82
£11.78 Inc. VAT
CLM-10-SPS-1 CLM-10-SPS-1 Metric M10 1-1/8 Steel Standard Plunger Nose, Light Force £8.57
£10.28 Inc. VAT
CL-80-SPN-1 CL-80-SPN-1 Imperial 5/8-11 1-1/2 Stainless Steel Delrin Plunger Nose, Heavy Force On Enquiry
CL-90-SPS-1 CL-90-SPS-1 Imperial 3/4-10 1-3/4 Stainless Steel Standard Plunger Nose, Heavy Force £14.57
£17.48 Inc. VAT
CL-41-SSPS-1 CL-41-SSPS-1 Imperial 1/4-28 1 Stainless Steel Standard Plunger Nose, Heavy Force £10.70
£12.84 Inc. VAT
CL-60-SPN-2 CL-60-SPN-2 Imperial 3/8-16 1-1/8 Stainless Steel Delrin Plunger Nose, Light Force £6.79
£8.15 Inc. VAT
CL-70-SSPS-2 CL-70-SSPS-2 Imperial 1/2-13 1-1/4 Stainless Steel Standard Plunger Nose, Light Force On Enquiry
CL-40-SSPS-2 CL-40-SSPS-2 Imperial 1/4-20 1 Stainless Steel Standard Plunger Nose, Light Force £8.26
£9.91 Inc. VAT
CL-10-SPS-1 CL-10-SPS-1 Imperial #6-32 17/32 Steel Standard Plunger Nose, Heavy Force On Enquiry
CL-30-SPN-2 CL-30-SPN-2 Imperial #10-32 3/4 Stainless Steel Delrin Plunger Nose, Light Force £7.03
£8.44 Inc. VAT
CL-30-SPS-2 CL-30-SPS-2 Imperial #10-32 3/4 Steel Standard Plunger Nose, Light Force £6.84
£8.21 Inc. VAT
CL-80-SPS-1 CL-80-SPS-1 Imperial 5/8-11 1-1/2 Steel Standard Plunger Nose, Heavy Force £13.54
£16.25 Inc. VAT
CL-41-SPS-1 CL-41-SPS-1 Imperial 1/4-28 1 Steel Standard Plunger Nose, Heavy Force On Enquiry
CL-50-SPN-2 CL-50-SPN-2 Imperial 5/16-18 1 Stainless Steel Delrin Plunger Nose, Light Force On Enquiry
CL-70-SPS-2 CL-70-SPS-2 Imperial 1/2-13 1-1/4 Steel Standard Plunger Nose, Light Force £7.73
£9.28 Inc. VAT
CL-40-SPS-2 CL-40-SPS-2 Imperial 1/4-20 1 Steel Standard Plunger Nose, Light Force £6.91
£8.29 Inc. VAT
CL-11-SSPS-1 CL-11-SSPS-1 Imperial #6-32 3/8 Stainless Steel Standard Plunger Nose, Heavy Force £10.80
£12.96 Inc. VAT
CL-20-SPN-2 CL-20-SPN-2 Imperial #8-32 5/8 Stainless Steel Delrin Plunger Nose, Light Force On Enquiry
CL-20-SSPS-2 CL-20-SSPS-2 Imperial #8-32 5/8 Stainless Steel Standard Plunger Nose, Light Force £8.16
£9.79 Inc. VAT
CL-70-SPN-1 CL-70-SPN-1 Imperial 1/2-13 1-1/4 Stainless Steel Delrin Plunger Nose, Heavy Force On Enquiry
CL-40-SPN-2 CL-40-SPN-2 Imperial 1/4-20 1 Stainless Steel Delrin Plunger Nose, Light Force £8.57
£10.28 Inc. VAT
CL-60-SSPS-2 CL-60-SSPS-2 Imperial 3/8-16 1-1/8 Stainless Steel Standard Plunger Nose, Light Force £10.49
£12.59 Inc. VAT
CL-11-SPS-1 CL-11-SPS-1 Imperial #6-32 3/8 Steel Standard Plunger Nose, Heavy Force £11.93
£14.32 Inc. VAT
CL-95-SPS-2 CL-95-SPS-2 Imperial 1-8 2-13/32 Steel Delrin Plunger Nose, Light Force On Enquiry
CL-20-SPS-2 CL-20-SPS-2 Imperial #8-32 5/8 Steel Standard Plunger Nose, Light Force £8.09
£9.71 Inc. VAT
CL-60-SPN-1 CL-60-SPN-1 Imperial 3/8-16 1-1/8 Stainless Steel Delrin Plunger Nose, Heavy Force On Enquiry
CL-70-SSPS-1 CL-70-SSPS-1 Imperial 1/2-13 1-1/2 Stainless Steel Standard Plunger Nose, Heavy Force £11.48
£13.78 Inc. VAT
CL-40-SSPS-1 CL-40-SSPS-1 Imperial 1/4-20 1 Stainless Steel Standard Plunger Nose, Heavy Force £8.29
£9.95 Inc. VAT
CL-30-SPN-1 CL-30-SPN-1 Imperial #10-32 3/4 Stainless Steel Delrin Plunger Nose, Heavy Force £7.87
£9.44 Inc. VAT
CL-10-SSPS-2 CL-10-SSPS-2 Imperial #6-32 17/32 Stainless Steel Standard Plunger Nose, Light Force On Enquiry
CL-50-SPN-1 CL-50-SPN-1 Imperial 5/16-18 1 Stainless Steel Delrin Plunger Nose, Heavy Force On Enquiry
CL-70-SPS-1 CL-70-SPS-1 Imperial 1/2-13 1-1/2 Steel Standard Plunger Nose, Heavy Force £6.50
£7.80 Inc. VAT
CL-40-SPS-1 CL-40-SPS-1 Imperial 1/4-20 1 Steel Standard Plunger Nose, Heavy Force £6.60
£7.92 Inc. VAT
CL-20-SPN-1 CL-20-SPN-1 Imperial #8-32 5/8 Stainless Steel Delrin Plunger Nose, Heavy Force On Enquiry
CL-60-SPS-2 CL-60-SPS-2 Imperial 3/8-16 1-1/8 Steel Standard Plunger Nose, Light Force £6.91
£8.29 Inc. VAT
CL-30-SSPS-1 CL-30-SSPS-1 Imperial #10-32 3/4 Stainless Steel Standard Plunger Nose, Heavy Force £8.71
£10.45 Inc. VAT
CL-40-SPN-1 CL-40-SPN-1 Imperial 1/4-20 1 Stainless Steel Delrin Plunger Nose, Heavy Force £6.97
£8.36 Inc. VAT
CL-60-SSPS-1 CL-60-SSPS-1 Imperial 3/8-16 1-1/2 Stainless Steel Standard Plunger Nose, Heavy Force £11.06
£13.27 Inc. VAT
CL-42-SSPS-1 CL-42-SSPS-1 Imperial 1/4-20 3/4 Stainless Steel Standard Plunger Nose, Heavy Force £8.42
£10.10 Inc. VAT
CL-95-SPS-1 CL-95-SPS-1 Imperial 1-8 2-13/32 Steel Delrin Plunger Nose, Heavy Force £27.07
£32.48 Inc. VAT
CL-50-SSPS-2 CL-50-SSPS-2 Imperial 5/16-18 1 Stainless Steel Standard Plunger Nose, Light Force On Enquiry
CL-30-SPS-1 CL-30-SPS-1 Imperial #10-32 3/4 Steel Standard Plunger Nose, Heavy Force £6.61
£7.93 Inc. VAT
CL-10-SPS-2 CL-10-SPS-2 Imperial #6-32 17/32 Steel Standard Plunger Nose, Light Force On Enquiry
CL-60-SPS-1 CL-60-SPS-1 Imperial 3/8-16 1-1/2 Steel Standard Plunger Nose, Heavy Force £7.42
£8.90 Inc. VAT
CL-42-SPS-1 CL-42-SPS-1 Imperial 1/4-20 3/4 Steel Standard Plunger Nose, Heavy Force £9.48
£11.38 Inc. VAT
CL-50-SPS-2 CL-50-SPS-2 Imperial 5/16-18 1 Steel Standard Plunger Nose, Light Force £10.37
£12.44 Inc. VAT
CL-20-SSPS-1 CL-20-SSPS-1 Imperial #8-32 5/8 Stainless Steel Standard Plunger Nose, Heavy Force £8.88
£10.66 Inc. VAT
CL-90-SPS-2 CL-90-SPS-2 Imperial 3/4-10 1-3/4 Stainless Steel Standard Plunger Nose, Light Force On Enquiry
CL-41-SSPS-2 CL-41-SSPS-2 Imperial 1/4-28 1 Stainless Steel Standard Plunger Nose, Light Force £8.29
£9.95 Inc. VAT
CL-20-SPS-1 CL-20-SPS-1 Imperial #8-32 5/8 Steel Standard Plunger Nose, Heavy Force £9.02
£10.82 Inc. VAT
CL-50-SSPS-1 CL-50-SSPS-1 Imperial 5/16-18 1 Stainless Steel Standard Plunger Nose, Heavy Force On Enquiry
CL-80-SPN-2 CL-80-SPN-2 Imperial 5/8-11 1-1/2 Stainless Steel Standard Plunger Nose, Heavy Force On Enquiry
CL-30-SSPS-2 CL-30-SSPS-2 Imperial #10-32 3/4 Stainless Steel Standard Plunger Nose, Light Force £8.21
£9.85 Inc. VAT
CL-50-SPS-1 CL-50-SPS-1 Imperial 5/16-18 1 Steel Standard Plunger Nose, Heavy Force £9.91
£11.89 Inc. VAT
CL-70-SPN-2 CL-70-SPN-2 Imperial 1/2-13 1-1/4 Stainless Steel Delrin Plunger Nose, Light Force On Enquiry
CL-80-SPS-2 CL-80-SPS-2 Imperial 5/8-11 1-1/2 Steel Standard Plunger Nose, Light Force £12.19
£14.63 Inc. VAT
CL-41-SPS-2 CL-41-SPS-2 Imperial 1/4-28 1 Steel Standard Plunger Nose, Light Force £10.40
£12.48 Inc. VAT
CL-10-SSPS-1 CL-10-SSPS-1 Imperial #6-32 17/32 Stainless Steel Standard Plunger Nose, Heavy Force £13.68
£16.42 Inc. VAT

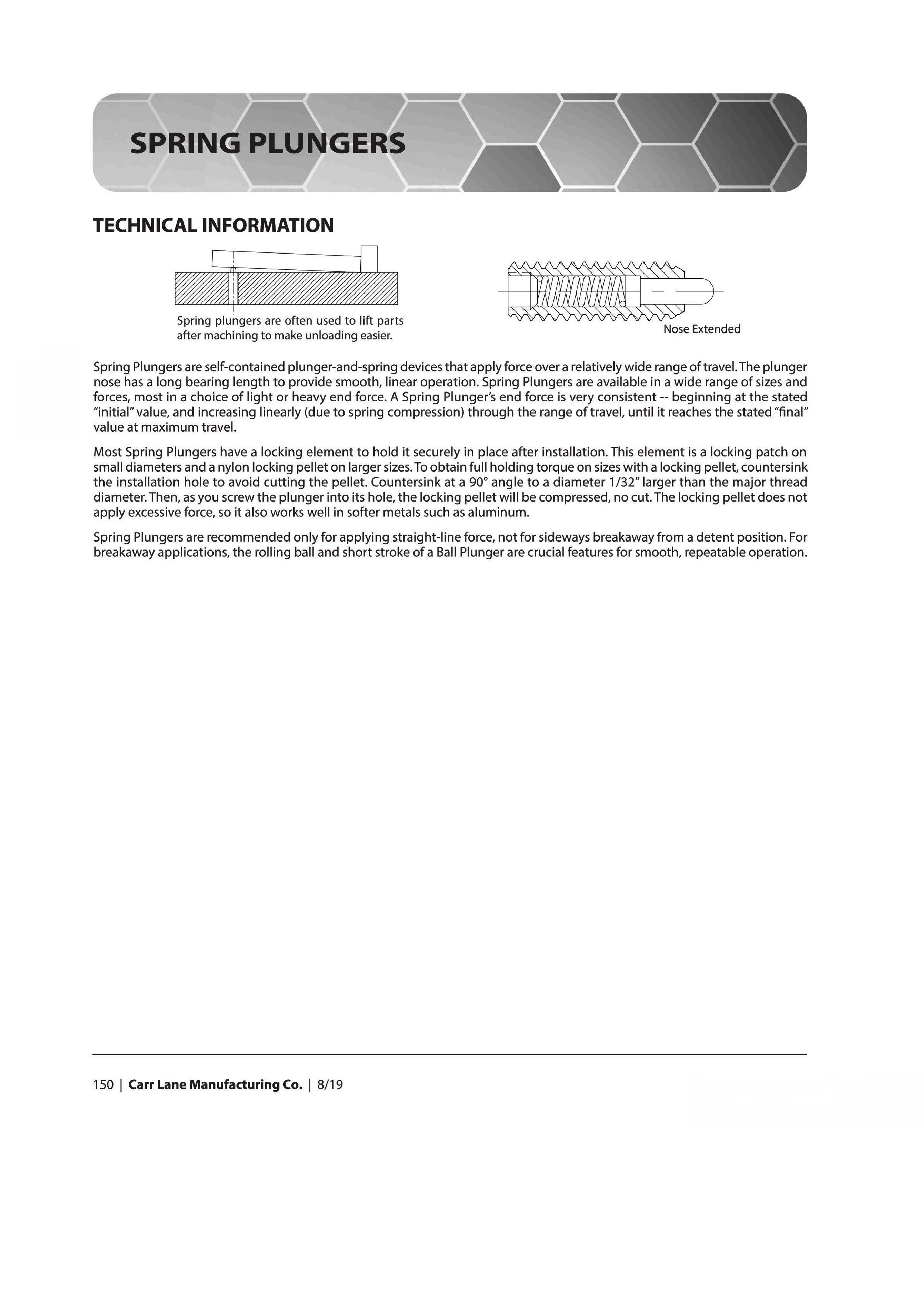

Spring Plungers datasheet

Carr Lane Spring Plungers

Self-contained plunger and spring device available in many sizes and forces. Long bearing length on plunger for smooth operation, and a locking element that holds the unit securely in places after installation. Install and/or adjust from either end (when using the slot at the plunger end, install with a Plunger Wrench to avoid over compressing the spring).

Options:

  • Light and Heavy Force
  • Metric and Imperial sizes available
  • Thread - #6-32 - 1"-8 or M6 - M12
  • Standard and Delrin® with Steel and Stainless Steel options
