Carr Lane Knurled Head Hand Retractable Plungers

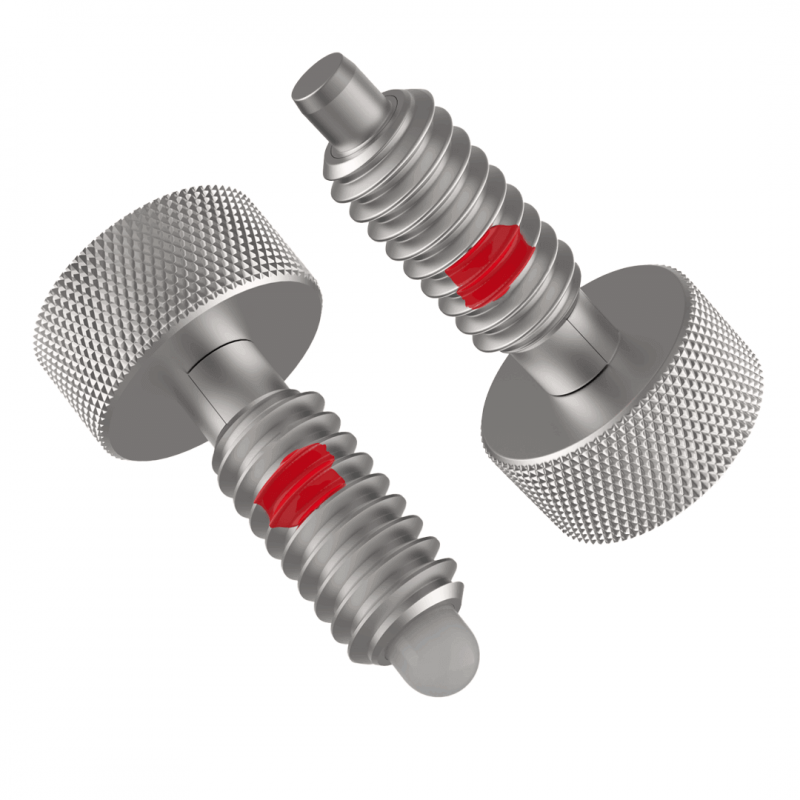

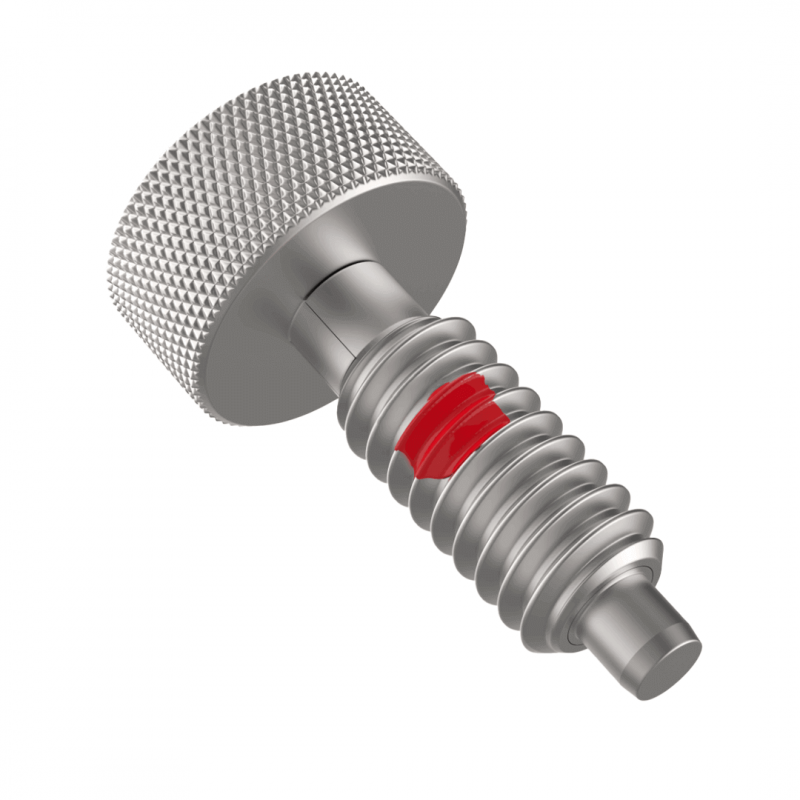

These Hand-retractable plungers feature a locking mechanism that secures it in the retracted position. To lock the plunger, simply pull the knurled knob back and twist it 90°. This product features a slight taper for easy alignment during use. They are available with a radiused Delrin plunger (slightly larger plunger diameter and lighter spring force). Also available in steel or stainless steel variants.

  • Metric and Imperial size available
  • Steel or Stainless Steel
  • Thread - #10-32 - 5/8-11 or M6 - M16

Print page

Products
Downloads
Description
Part Number Material Number Metric or Imperial Material Plunger Type End Force (LBS) Thread Price Add to Parts List
CLM-6-HRP CLM-6-HRP Metric Steel Standard Plunger Initial 1 Final 5 M6 £15.05
£18.06 Inc. VAT
CLM-16-HRP CLM-16-HRP Metric Steel Standard Plunger Initial 5 Final 10 M16 £25.87
£31.04 Inc. VAT
CLM-12-HRP-S CLM-12-HRP-S Metric Stainless Steel Standard Plunger Initial 2.5 Final 10 M12 £31.96
£38.35 Inc. VAT
CLM-12-HRP CLM-12-HRP Metric Steel Standard Plunger Initial 2.5 Final 10 M12 £19.92
£23.90 Inc. VAT
CLM-10-HRP-S CLM-10-HRP-S Metric Stainless Steel Standard Plunger Initial 1.5 Final 8 M10 £33.90
£40.68 Inc. VAT
CLM-10-HRP CLM-10-HRP Metric Steel Standard Plunger Initial 1.5 Final 8 M10 £18.08
£21.70 Inc. VAT
CLM-8-HRP-S CLM-8-HRP-S Metric Stainless Steel Standard Plunger Initial 1.5 Final 6 M8 £28.75
£34.50 Inc. VAT
CLM-8-HRP CLM-8-HRP Metric Steel Standard Plunger Initial 1.5 Final 6 M8 £16.39
£19.67 Inc. VAT
CLM-16-HRP-S CLM-16-HRP-S Metric Stainless Steel Standard Plunger Initial 5 Final 10 M16 £37.64
£45.17 Inc. VAT
CLM-6-HRP-S CLM-6-HRP-S Metric Stainless Steel Standard Plunger Initial 1 Final 5 M6 £24.79
£29.75 Inc. VAT
CL-8-HRP-S CL-8-HRP-S Imperial Stainless Steel Standard Plunger Initial 2.5 Final 10 1/2-13 £31.67
£38.00 Inc. VAT
CL-5-HRP-S CL-5-HRP-S Imperial Stainless Steel Standard Plunger Initial 1.5 Final 6 5/16-18 £24.07
£28.88 Inc. VAT
CL-5-HRP CL-5-HRP Imperial Steel Standard Plunger Initial 1.5 Final 6 5/16-18 £15.04
£18.05 Inc. VAT
CL-8-HRP CL-8-HRP Imperial Steel Standard Plunger Initial 2.5 Final 10 1/2-13 £17.52
£21.02 Inc. VAT

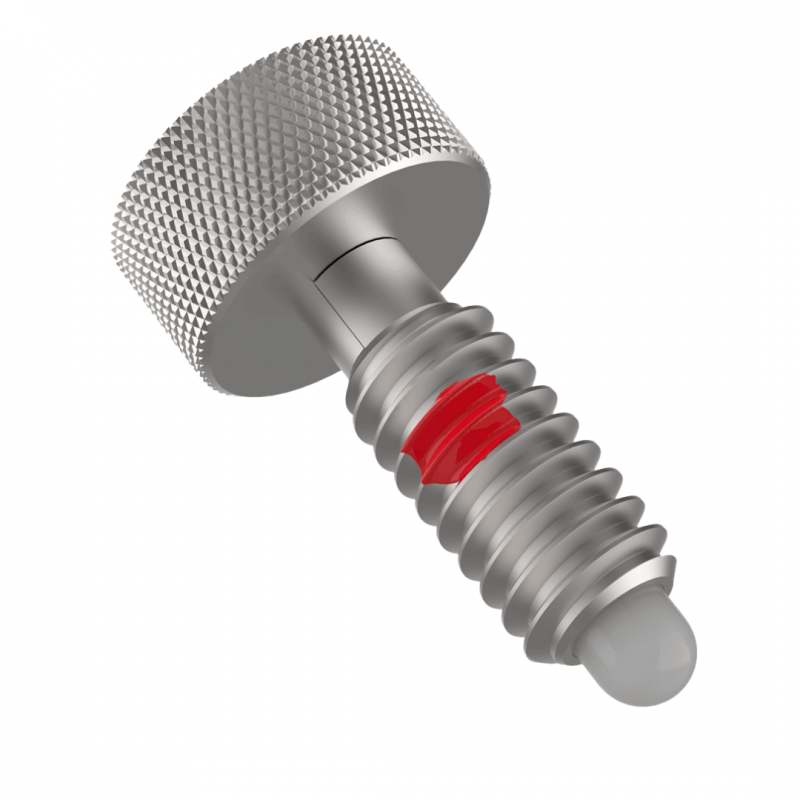

CL-10-HRPN-S CL-10-HRPN-S Imperial Stainless Steel Radiused Delrin Plunger Initial 3 Final 6 5/8-11 On Enquiry
CL-6-HRPN-S CL-6-HRPN-S Imperial Stainless Steel Radiused Delrin Plunger Initial .7 Final 4 3/8-16 On Enquiry
CL-4-HRPN-S CL-4-HRPN-S Imperial Stainless Steel Radiused Delrin Plunger Initial .5 Final 2.5 1/4-20 £26.34
£31.61 Inc. VAT
CL-10-HRPN CL-10-HRPN Imperial Steel Radiused Delrin Plunger Initial 3 Final 6 5/8-11 On Enquiry
CL-6-HRPN CL-6-HRPN Imperial Steel Radiused Delrin Plunger Initial .7 Final 4 3/8-16 £26.62
£31.94 Inc. VAT
CL-4-HRPN CL-4-HRPN Imperial Steel Radiused Delrin Plunger Initial .5 Final 2.5 1/4-20 £23.21
£27.85 Inc. VAT
CL-3-HRP-S CL-3-HRP-S Imperial Stainless Steel Standard Plunger Initial 1 Final 3.5 #10/32 £23.14
£27.77 Inc. VAT
CL-10-HRP-S CL-10-HRP-S Imperial Stainless Steel Standard Plunger Initial 5 Final 10 5/8-11 £37.57
£45.08 Inc. VAT
CL-6-HRP-S CL-6-HRP-S Imperial Stainless Steel Standard Plunger Initial 1.5 Final 8 3/8-16 £28.76
£34.51 Inc. VAT
CL-4-HRP-S CL-4-HRP-S Imperial Stainless Steel Standard Plunger Initial 1 Final 5 1/4-20 £22.86
£27.43 Inc. VAT
CL-3-HRP CL-3-HRP Imperial Steel Standard Plunger Initial 1 Final 3.5 #10/32 £15.43
£18.52 Inc. VAT
CL-4-HRP CL-4-HRP Imperial Steel Standard Plunger Initial 1 Final 5 1/4-20 £13.39
£16.07 Inc. VAT
CL-10-HRP CL-10-HRP Imperial Steel Standard Plunger Initial 5 Final 10 5/8-11 £19.39
£23.27 Inc. VAT
CL-6-HRP CL-6-HRP Imperial Steel Standard Plunger Initial 1.5 Final 8 3/8-16 £15.60
£18.72 Inc. VAT
CL-8-HRPN-S CL-8-HRPN-S Imperial Stainless Steel Radiused Delrin Plunger Initial 1.2 Final 5 1/2-13 £39.12
£46.94 Inc. VAT
CL-5-HRPN-S CL-5-HRPN-S Imperial Stainless Steel Radiused Delrin Plunger Initial .7 Final 3 5/16-18 £27.10
£32.52 Inc. VAT
CL-8-HRPN CL-8-HRPN Imperial Steel Radiused Delrin Plunger Initial 1.2 Final 5 1/2-13 £27.17
£32.60 Inc. VAT
CL-5-HRPN CL-5-HRPN Imperial Steel Radiused Delrin Plunger Initial .7 Final 3 5/16-18 On Enquiry

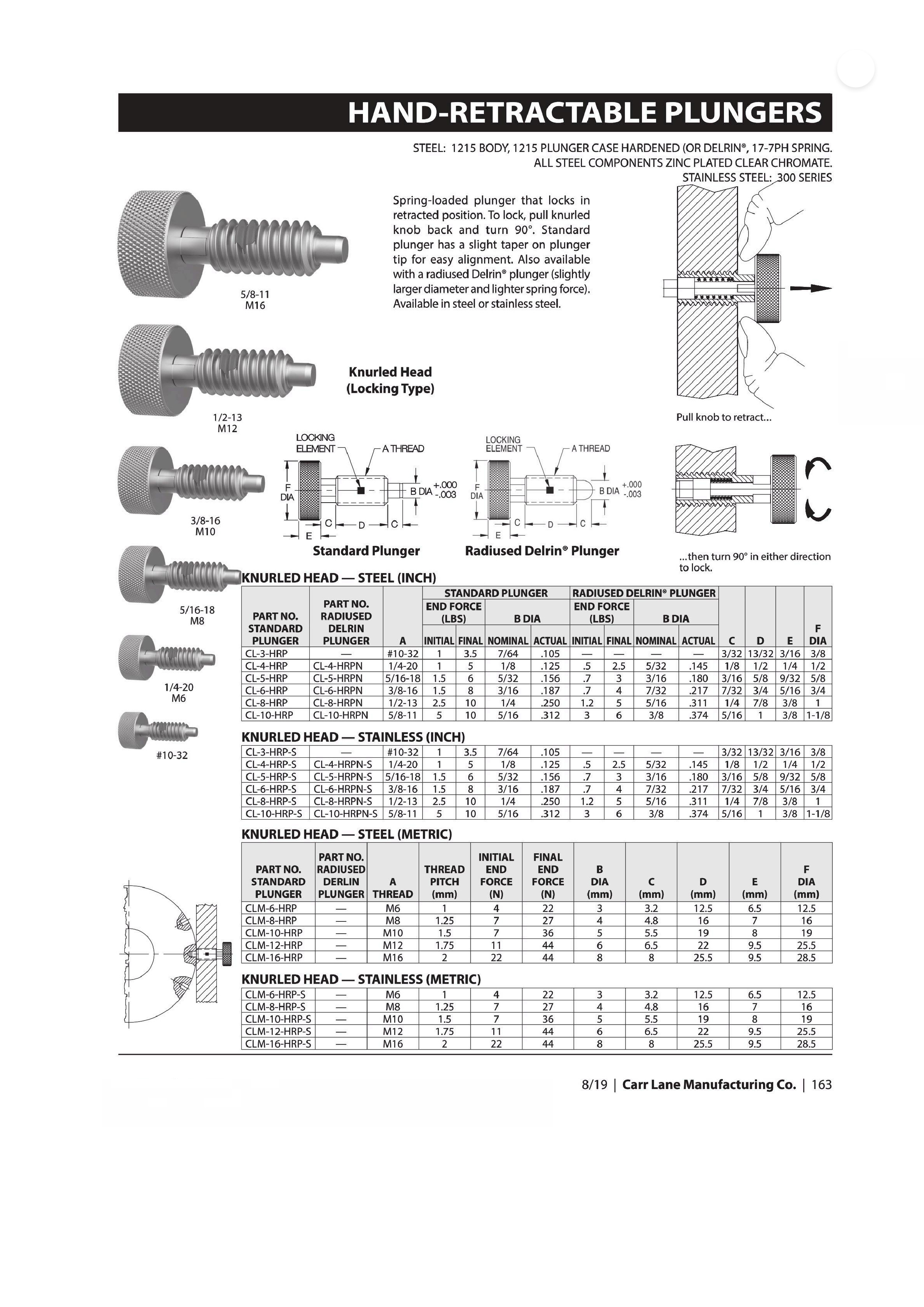

Knurled Head Hand Retractable Plungers datasheet

Carr Lane Knurled Head Hand Retractable Plungers

Spring-loaded plunger that locks in retracted position. To lock, pull knurled knob back and turn 90°. Standard plunger has a slight taper on plunger tip for easy alignment. Also available with a radiused Delrin plunger (slightly larger diameter and lighter spring force) Also available with a radiused Delrin plunger (slightly larger plunger diameter and lighter spring force). Available in steel or stainless steel.

Options:

  • Metric and Imperial size available
  • Steel or Stainless Steel
  • Thread - #10-32 - 5/8-11 or M6 - M16
