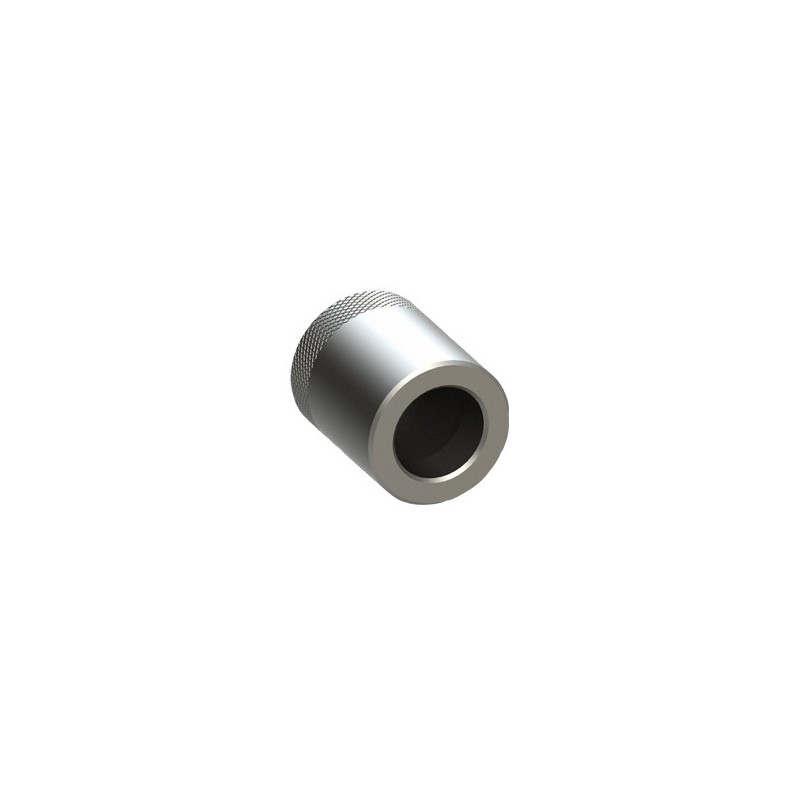

Carr Lane Ball Lock Receiver Caps

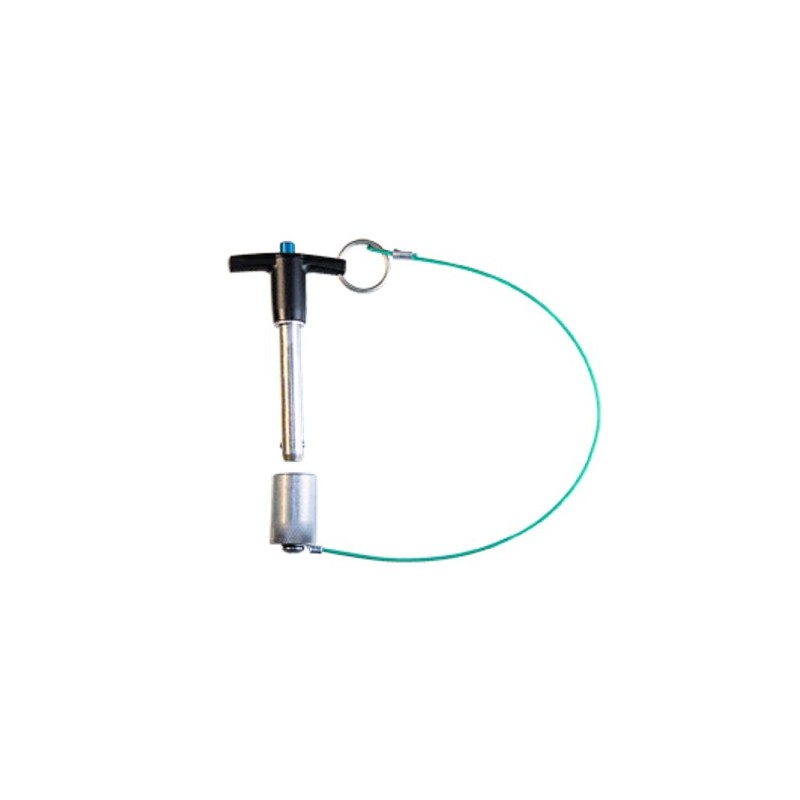

Receiver Caps are ideal for securring Ball Lock Pins used in clevis applications, the caps inside diameter fits the Ball Lock Pin exactly
- Metric and Imperial sizes available
- Internal Diameter - 3/16 - 1 or 5mm - 20mm
- External Diameter - .50 - 1.50
Products
Downloads
Description
| Part Number | Material Number | Metric or Imperial | External Diameter | Length | Internal Diameter | Price | Add to Parts List |
|---|---|---|---|---|---|---|---|
| CLM-10-BLR-S | Metric | 0.75 | 1.03 | 10mm | £18.67 £22.40 Inc. VAT |
|
|
| CLM-16-BLR-S | Metric | 1 | 1.25 | 16mm | £23.52 £28.22 Inc. VAT |
|
|
| CLM-6-BLR-S | Metric | 0.5 | 0.95 | 6mm | £15.67 £18.80 Inc. VAT |
|
|
| CLM-8-BLR-S | Metric | 0.63 | 1 | 8mm | £16.44 £19.73 Inc. VAT |
|
|
| CLM-12-BLR-S | Metric | 0.88 | 1.13 | 12mm | £21.28 £25.54 Inc. VAT |
|
|
| CLM-5-BLR-S | Metric | 0.5 | 0.93 | 5mm | £15.30 £18.36 Inc. VAT |
|
|
| CLM-20-BLR-S | Metric | 1.25 | 1.5 | 20mm | £27.36 £32.83 Inc. VAT |
|
|
| CL-14-BLR-S | Imperial | 1.5 | 1.48 | 7/8 | £27.36 £32.83 Inc. VAT |
|
|
| CL-8-BLR-S | Imperial | 0.88 | 1.25 | 1/2 | £21.28 £25.54 Inc. VAT |
|
|
| CL-4-BLR-S | Imperial | 0.5 | 0.81 | 1/4 | £15.83 £19.00 Inc. VAT |
|
|
| CL-10-BLR-S | Imperial | 1 | 1.31 | 5/8 | £23.52 £28.22 Inc. VAT |
|
|
| CL-6-BLR-S | Imperial | 0.75 | 1.16 | 3/8 | £18.67 £22.40 Inc. VAT |
|
|
| CL-7-BLR-S | Imperial | 0.75 | 1.16 | 7/16 | £19.91 £23.89 Inc. VAT |
|
|
| CL-16-BLR-S | Imperial | 1.5 | 1.69 | 1 | £30.14 £36.17 Inc. VAT |
|
|
| CL-3-BLR-S | Imperial | 0.5 | 0.72 | 3/16 | £15.30 £18.36 Inc. VAT |
|
|
| CL-9-BLR-S | Imperial | 0.88 | 1.25 | 9/16 | £22.84 £27.41 Inc. VAT |
|
|
| CL-5-BLR-S | Imperial | 0.63 | 0.81 | 5/16 | £17.69 £21.23 Inc. VAT |
|
|
| CL-12-BLR-S | Imperial | 1.25 | 1.45 | 3/5 | £26.04 £31.25 Inc. VAT |
|
Carr Lane Ball Lock Receiver Caps
- Metric and Imperial sizes available
- Internal Diameter - 3/16 - 1 or 5mm - 20mm
- External Diameter - .50 - 1.50
Receiver Caps are ideal for securring Ball Lock Pins used in clevis applications,especially when the through hole has excess clearance. The cap's inside diameter fits the Ball Lock Pin exactly and is stepped to provide a perfect locking surface for the ball.

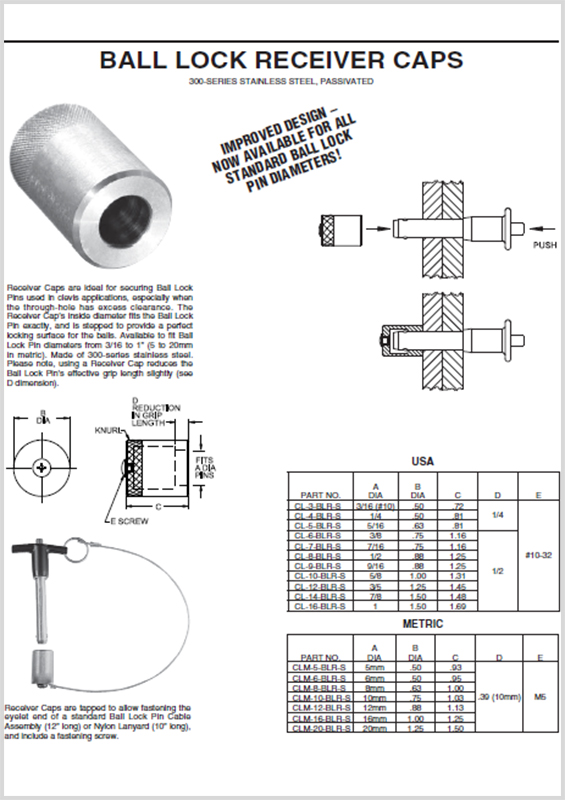

Note: Using a Receiver Cap reduces the Ball Lock Pin's effective grip length slightly (see D dimension on drawing via Data Sheet)
