Carr Lane Swivel Screw Clamps
Clamping screws that accepts a wide assortment of swivel feet
- Metric and Imperial sizes
- Three foot types - Small, Large and Ball
- Thread - 1/4-20 - 5/8-11 or M6 - M16
- Length - 17/32 - 5-7/32 or .59 - 5.02

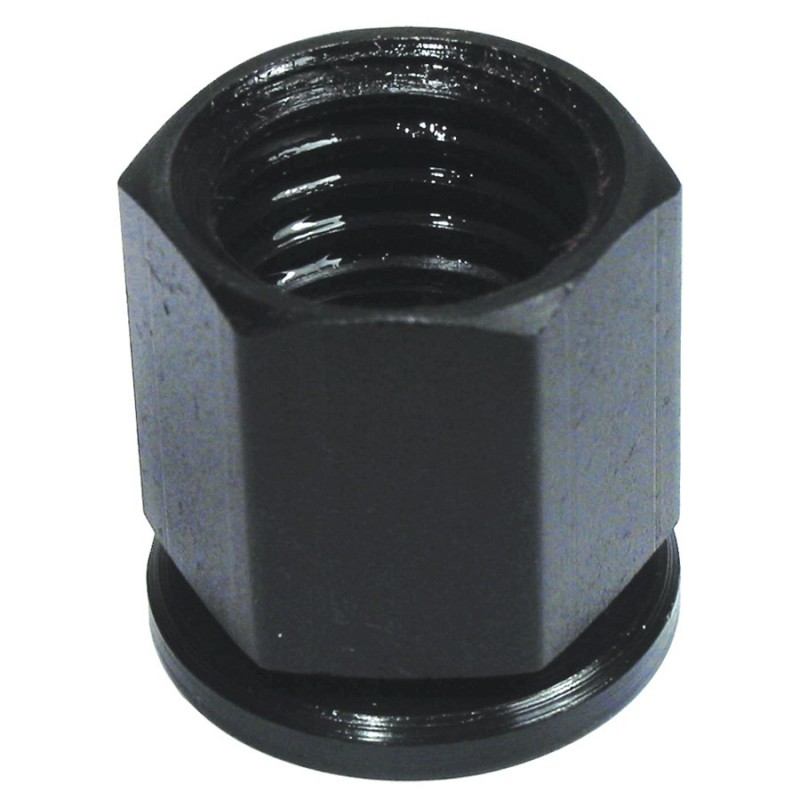

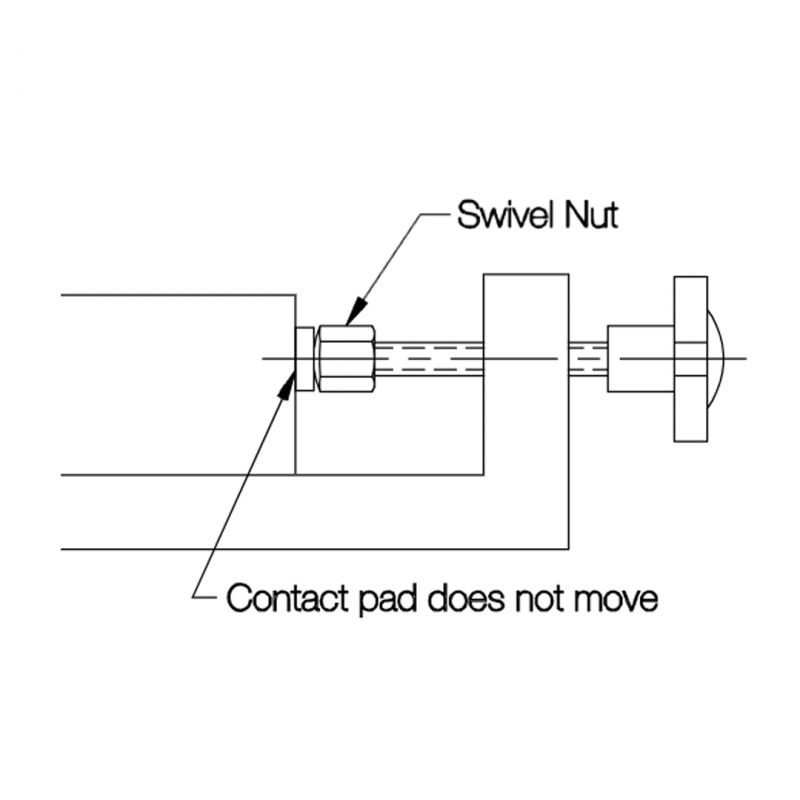

The nut rotates smoothly without shifting, ensuring the contact pad stays in place to prevent any movement or damage to the workpiece. It is offered in tapped-hole sizes ranging from 1/4-20 to 3/4-10 (M6 to M12 in metric). These are available in hardened steel and a black oxide finish.
Part Number | Material Number | Metric or Imperial | Thread | Nut Diameter | Price | Add to Parts List |
---|---|---|---|---|---|---|
CLM-6-SN | Metric | M6 | 8mm | £12.44 £14.93 Inc. VAT |
|
|
CLM-10-SN | Metric | M10 | 13mm | £14.99 £17.99 Inc. VAT |
|
|
CLM-12-SN | Metric | M12 | 17mm | £16.04 £19.25 Inc. VAT |
|
|
CL-4-SN | Imperial | 1/4-20 | 5/16 | £8.71 £10.45 Inc. VAT |
|
|
CL-5-SN | Imperial | 5/16-18 | 3/8 | £11.89 £14.27 Inc. VAT |
|
|
CL-6-SN | Imperial | 3/8-16 | 7/16 | £11.74 £14.09 Inc. VAT |
|
|
CL-8-SN | Imperial | 1/2-13 | 5/8 | £12.26 £14.71 Inc. VAT |
|
|
CL-10-SN | Imperial | 5/8-11 | 3/4 | £14.23 £17.08 Inc. VAT |
|
|
CL-12-SN | Imperial | 3/4-10 | 7/8 | £14.26 £17.11 Inc. VAT |
|
The nut rotates smoothly without shifting, ensuring the contact pad stays in place to prevent any movement or damage to the workpiece. It is offered in tapped-hole sizes ranging from 1/4-20 to 3/4-10 (M6 to M12 in metric). These are available in hardened steel and a black oxide finish.
Options:
Quantity | Unit discount | You Save |
---|
