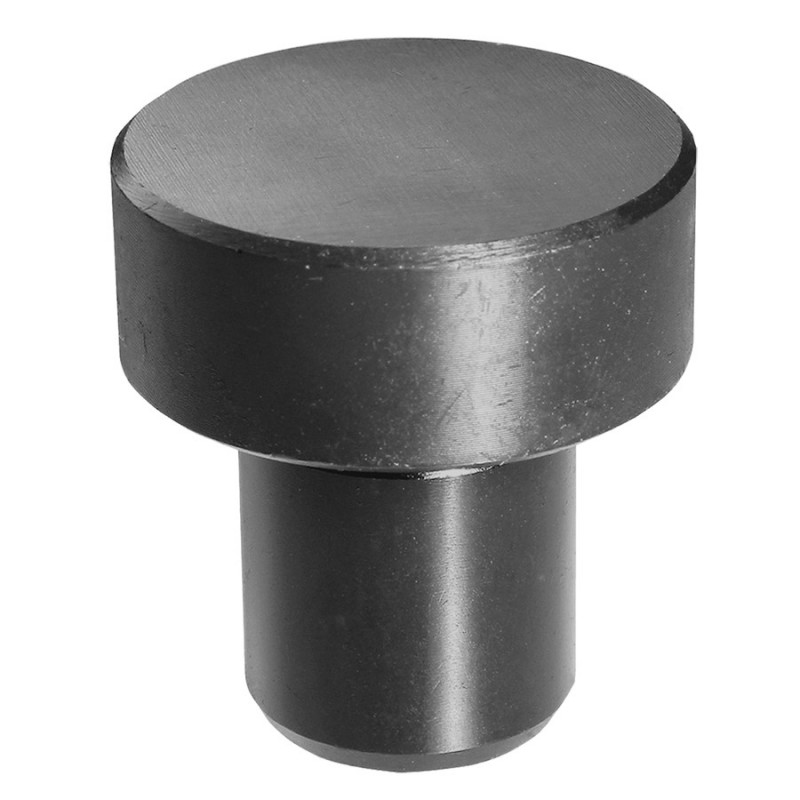

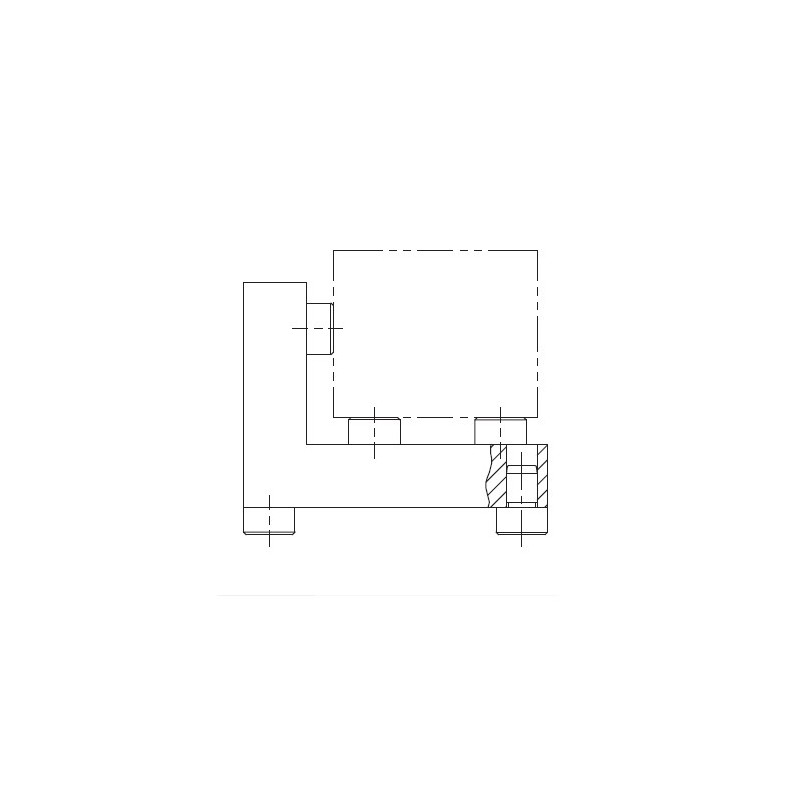

The precision height locator features a tightly fitting shank, designed for installation in a reamed hole. Rest buttons serve as versatile supports, side locator pads, and jig feet. They are offered in head diameters ranging from 3/8" to 1-1/4" (10mm to 20mm in metric), with various height options available. These rest buttons are available in both steel and stainless steel options.

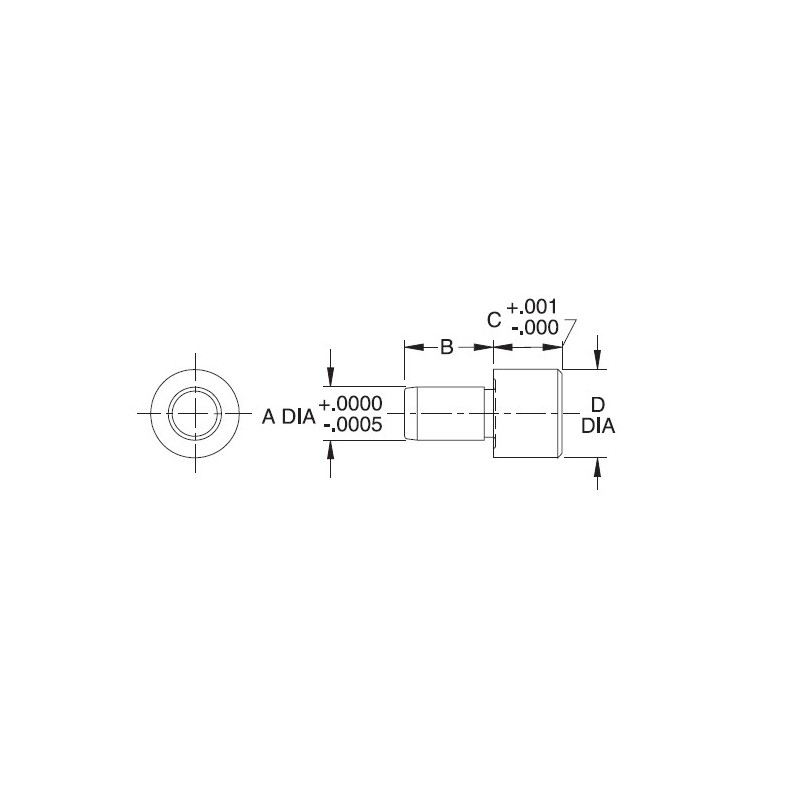

| Part Number | Material Number | Metric or Imperial | External Diameter | Length | Material | Shank Diameter | Price | Add to Parts List |
|---|---|---|---|---|---|---|---|---|
| CLM-810-RB | Metric | 0.63 | 10mm | Steel | 8mm | £10.46 £12.55 Inc. VAT |
|
|
| CLM-1015-RB | Metric | 0.79 | 15mm | Steel | 10mm | £12.10 £14.52 Inc. VAT |
|
|
| CLM-1020-RB | Metric | 0.79 | 20mm | Steel | 10mm | £12.89 £15.47 Inc. VAT |
|
|
| CLM-605-RB | Metric | 0.39 | 5mm | Steel | 6mm | £8.71 £10.45 Inc. VAT |
|
|
| CLM-815-RB | Metric | 0.63 | 15mm | Steel | 8mm | £11.14 £13.37 Inc. VAT |
|
|
| CLM-820-RB | Metric | 0.63 | 20mm | Steel | 8mm | £11.87 £14.24 Inc. VAT |
|
|
| CLM-610-RB | Metric | 0.39 | 10mm | Steel | 6mm | £12.23 £14.68 Inc. VAT |
|
|
| CLM-805-RB | Metric | 0.63 | 5mm | Steel | 8mm | £10.38 £12.46 Inc. VAT |
|
|
| CLM-1010-RB | Metric | 0.79 | 10mm | Steel | 10mm | £11.65 £13.98 Inc. VAT |
|
| Part Number | Material Number | Metric or Imperial | External Diameter | Length | Material | Shank Diameter | Price | Add to Parts List |
|---|---|---|---|---|---|---|---|---|
| CL-14-RB | Imperial | 3/8 | 1/2 | Steel | 3/16 | £6.02 £7.22 Inc. VAT |
|
|
| CL-5-RB | Imperial | 5/8 | 1/4 | Steel | 3/8 | £6.66 £7.99 Inc. VAT |
|
|
| CL-8-RB | Imperial | 5/8 | 3/4 | Steel | 3/8 | £7.73 £9.28 Inc. VAT |
|
|
| CL-17-RB | Imperial | 1 | 3/8 | Steel | 5/8 | £12.89 £15.47 Inc. VAT |
|
|
| CL-11-RB | Imperial | 1-1/4 | 5/8 | Steel | 3/4 | £15.53 £18.64 Inc. VAT |
|
|
| CL-26542 | Imperial | 1/2 | 1/4 | Stainless Steel | 1/4 | £9.16 £10.99 Inc. VAT |
|
|
| CL-26646 | Imperial | 1/2 | 3/4 | Stainless Steel | 5/16 | £10.64 £12.77 Inc. VAT |
|
|
| CL-2-RB | Imperial | 1/2 | 1/4 | Steel | 1/4 | £5.88 £7.06 Inc. VAT |
|
|
| CL-6-RB | Imperial | 5/8 | 3/8 | Steel | 3/8 | £8.15 £9.78 Inc. VAT |
|
|
| CL-15-RB | Imperial | 7/8 | 3/8 | Steel | 1/2 | £10.28 £12.34 Inc. VAT |
|
|
| CL-10-RB | Imperial | 1 | 1/2 | Steel | 5/8 | £13.04 £15.65 Inc. VAT |
|
|
| CL-26432 | Imperial | 3/8 | 1/4 | Stainless Steel | 3/16 | £8.30 £9.96 Inc. VAT |
|
|
| CL-18-RB | Imperial | 1 | 3/4 | Steel | 5/8 | £13.54 £16.25 Inc. VAT |
|
|
| CL-26433 | Imperial | 3/8 | 3/8 | Stainless Steel | 3/16 | £8.57 £10.28 Inc. VAT |
|
|
| CL-12-RB | Imperial | 3/8 | 1/4 | Steel | 3/16 | £5.59 £6.71 Inc. VAT |
|
|
| CL-3-RB | Imperial | 1/2 | 3/8 | Steel | 1/4 | £6.02 £7.22 Inc. VAT |
|
|
| CL-4-RB | Imperial | 5/8 | 1/2 | Steel | 3/8 | £7.28 £8.74 Inc. VAT |
|
|
| CL-9-RB | Imperial | 7/8 | 1/2 | Steel | 1/2 | £10.56 £12.67 Inc. VAT |
|
|
| CL-7-RB | Imperial | 5/8 | 5/8 | Steel | 3/8 | £7.57 £9.08 Inc. VAT |
|
|
| CL-16-RB | Imperial | 7/8 | 5/8 | Steel | 1/2 | £10.84 £13.01 Inc. VAT |
|
|
| CL-19-RB | Imperial | 1-1/4 | 1/2 | Steel | 3/4 | £15.10 £18.12 Inc. VAT |
|
|
| CL-26434 | Imperial | 3/8 | 1/2 | Stainless Steel | 3/16 | £8.72 £10.46 Inc. VAT |
|
|
| CL-13-RB | Imperial | 3/8 | 3/8 | Steel | 3/16 | £5.74 £6.89 Inc. VAT |
|
|
| CL-1-RB | Imperial | 1/2 | 1/2 | Steel | 1/4 | £6.17 £7.40 Inc. VAT |
|
The precision height locator features a tightly fitting shank, designed for installation in a reamed hole. Rest buttons serve as versatile supports, side locator pads, and jig feet. They are offered in head diameters ranging from 3/8" to 1-1/4" (10mm to 20mm in metric), with various height options available. These rest buttons are available in both steel and stainless steel options.
