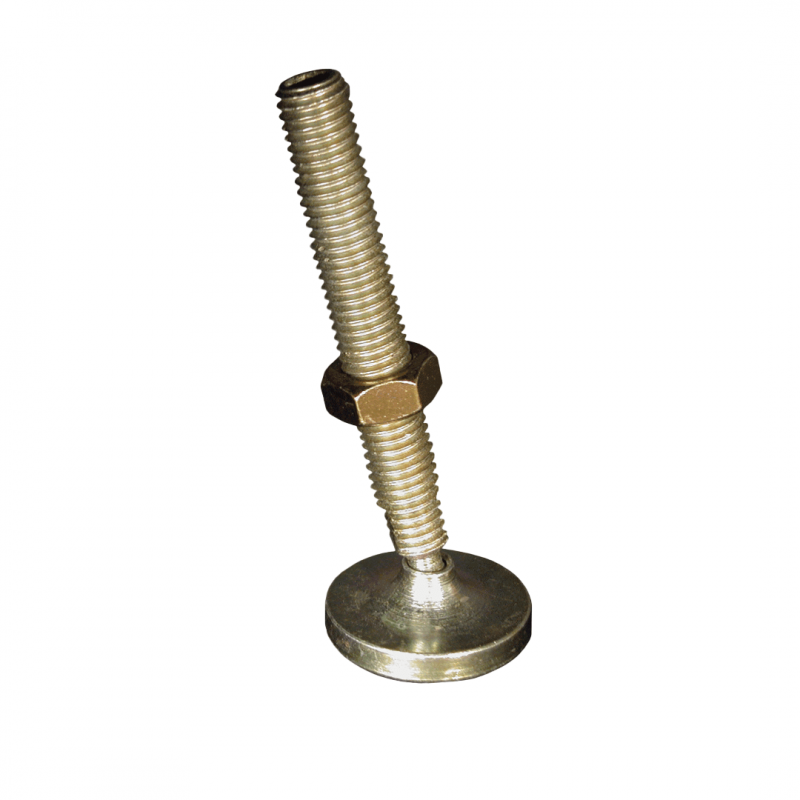

Carr Lane Jig Levelling Feet

This medium-duty levelling foot features a removable pad and a convenient hex socket for easy adjustment from the stud end. The pad offers smooth rotation and pivots with a 20° swivel range. It comes in thread sizes ranging from 1/2-13 to 1"-8 (M12 to M24 in metric), each available in two different thread length options.

Metric and Imperial sizes
Steel Zinc Plated Yellow Chromate
Thread: 1/2-13 - 1-8 or M12 - M24

Print page

First Name *

Last Name *

Position *

Email *

Company Name *

Contact Number *

Town/City *

Message *

Products

Downloads

Description

Part Number	Metric or Imperial	Length	Thread	Price
CLM-1-JFL CLM-1-JFL	Metric	2.17	M12	£19.07 £22.88 Inc. VAT
CLM-2-JFL CLM-2-JFL	Metric	4.33	M12	£21.13 £25.36 Inc. VAT
CLM-3-JFL CLM-3-JFL	Metric	3.35	M16	£22.72 £27.26 Inc. VAT
CLM-4-JFL CLM-4-JFL	Metric	5.31	M16	£25.13 £30.16 Inc. VAT
CLM-5A-JFL CLM-5A-JFL	Metric	3.54	M20	£32.52 £39.02 Inc. VAT
CLM-6-JFL CLM-6-JFL	Metric	5.51	M20	£37.96 £45.55 Inc. VAT
CLM-8-JFL CLM-8-JFL	Metric	5.71	M24	£60.24 £72.29 Inc. VAT
CL-3-JFL CL-3-JFL	Imperial	3-1/4	5/8-11	£18.52 £22.22 Inc. VAT
CL-6-JFL CL-6-JFL	Imperial	5-17/32	3/4-10	£32.76 £39.31 Inc. VAT
CL-4-JFL CL-4-JFL	Imperial	5-1/4	5/8-11	£20.56 £24.67 Inc. VAT
CL-5A-JFL CL-5A-JFL	Imperial	3-1/2	3/4-10	£29.58 £35.50 Inc. VAT
CL-8-JFL CL-8-JFL	Imperial	5-19/32	1-8	£54.76 £65.71 Inc. VAT
CL-1-JFL CL-1-JFL	Imperial	2-7/32	1/2-13	£17.39 £20.87 Inc. VAT
CL-2-JFL CL-2-JFL	Imperial	4-7/32	1/2-13	£20.18 £24.22 Inc. VAT

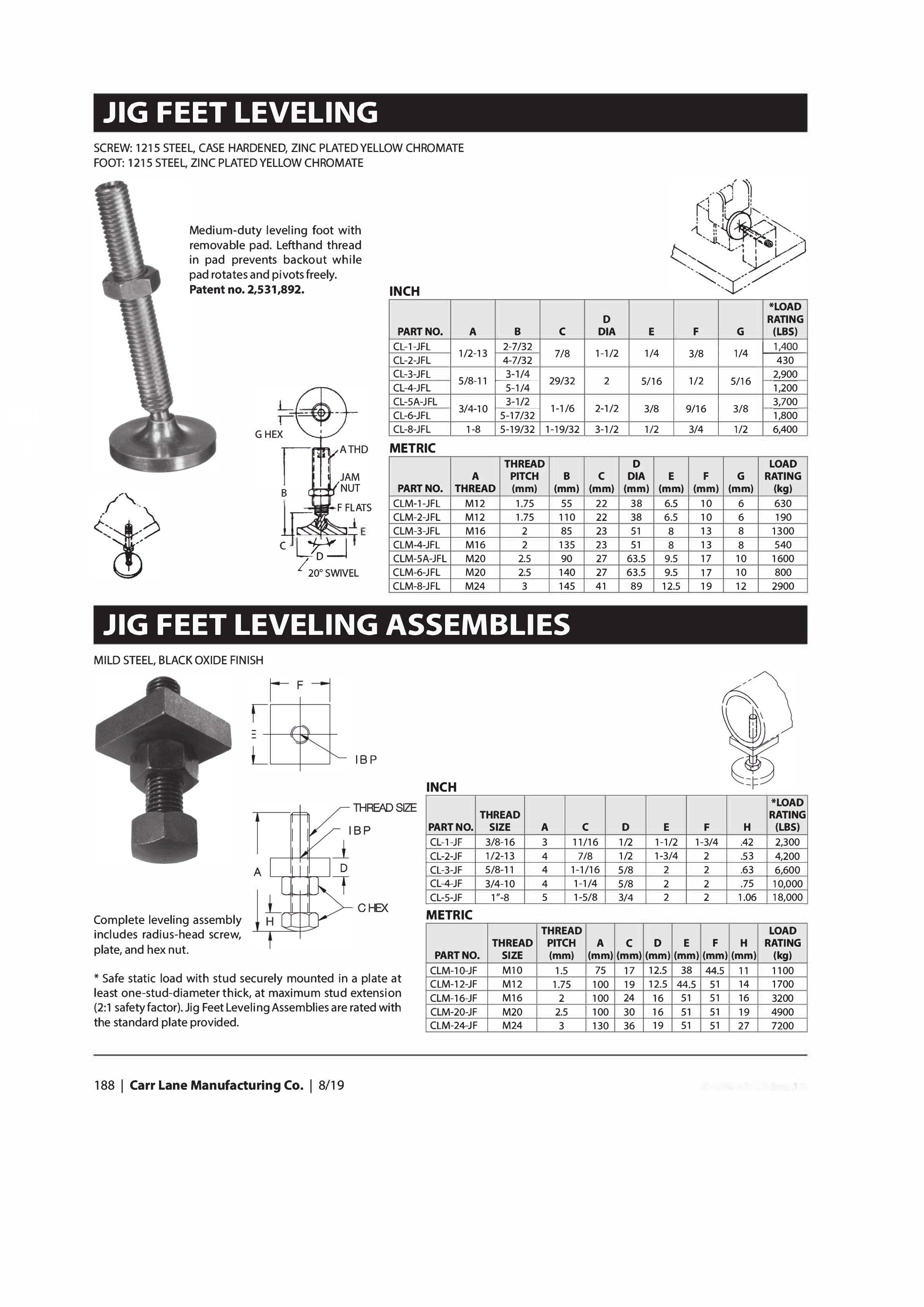

Carr Lane Jig Levelling Feet datasheet
