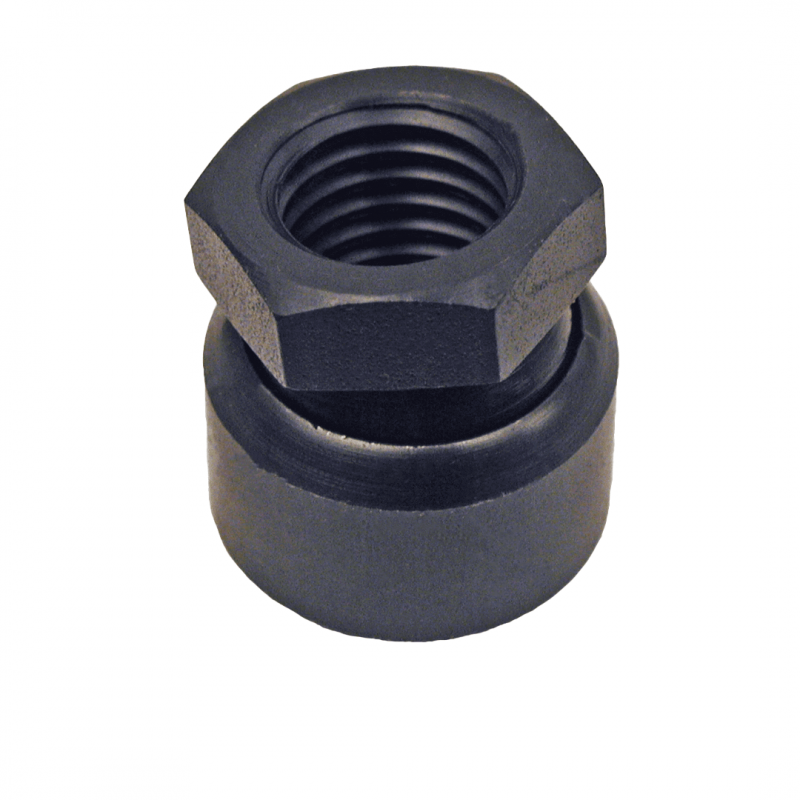

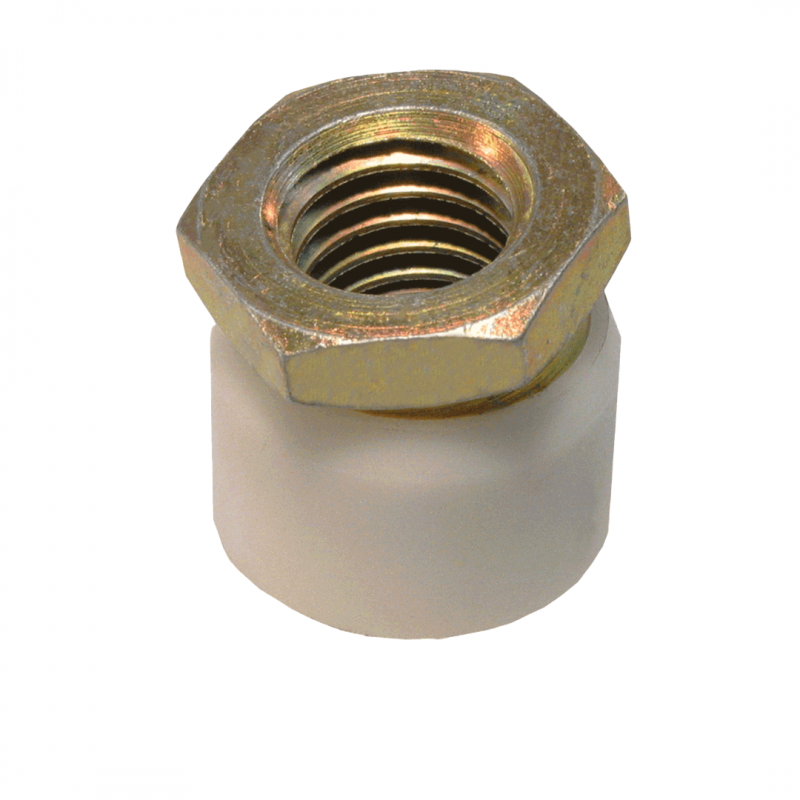

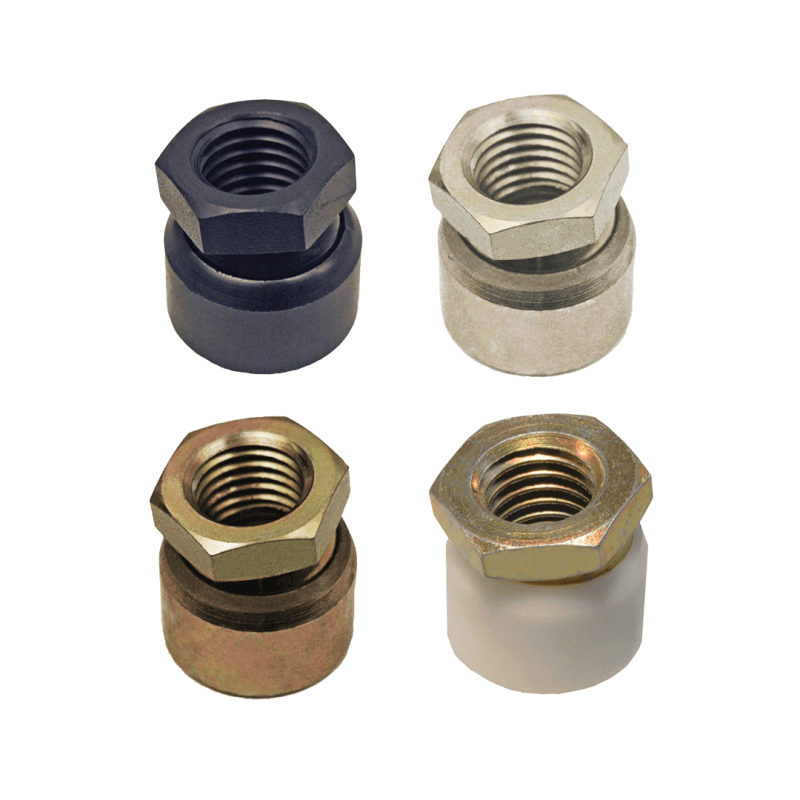

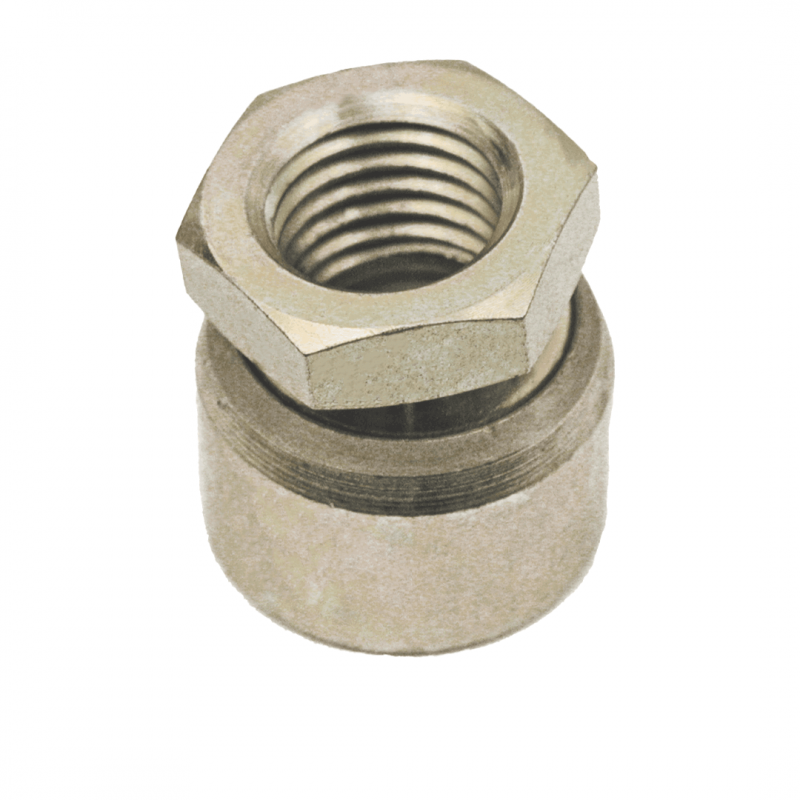

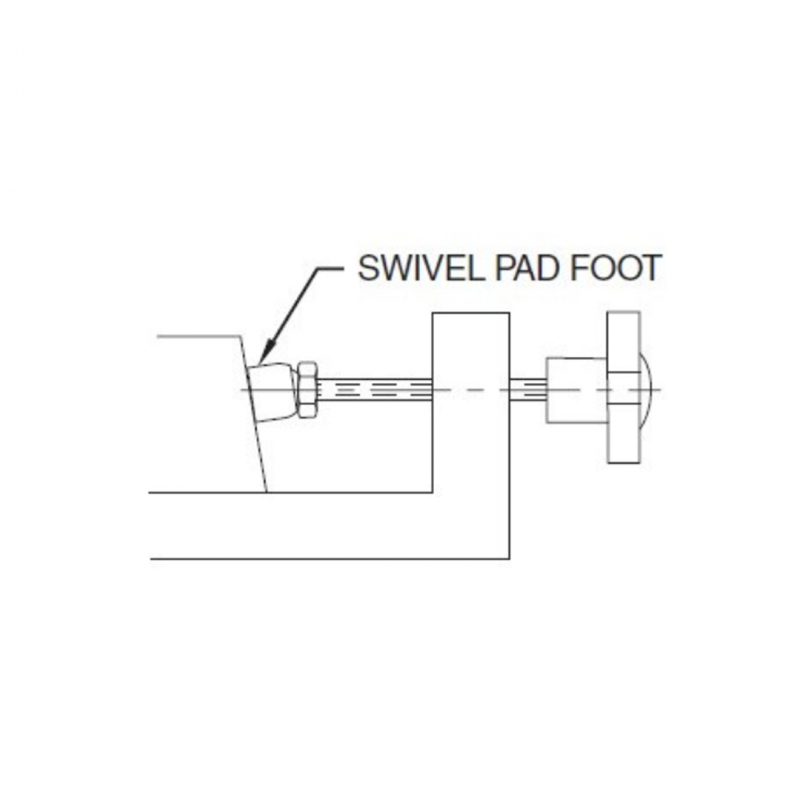

The heavy-duty swivel foot pivots to ensure even contact with sloped surfaces. Its large swivel ball offers a high load capacity with an 20° total swivel angle. Tapped-hole sizes range from 1/4-20 to 3/4-10 (M6 to M20 in metric). These are available in several material and finish options including: steel zinc plated, stainless steel, steel black oxide finish and steel zinc plated with Delrin pad.
| Part Number | Material Number | Metric or Imperial | Material | Thread | Price | Add to Parts List |
|---|---|---|---|---|---|---|
| CL-10-SPFN | Metric | Steel Zinc Plated with Delrin Pad | 5/8-11 | £12.97 £15.56 Inc. VAT |
|
|
| CLM-10-SPF | Metric | Steel Zinc Plated | M10 | £11.48 £13.78 Inc. VAT |
|
|
| CLM-20-SPF-S | Metric | Stainless Steel | M20 | £38.76 £46.51 Inc. VAT |
|
|
| CLM-16-SPFN | Metric | Steel Zinc Plated with Delrin Pad | M16 | £23.96 £28.75 Inc. VAT |
|
|
| CL-6-SPF | Metric | Steel Zinc Plated | 3/8-16 | £11.48 £13.78 Inc. VAT |
|
|
| CL-12-SPF-S | Metric | Stainless Steel | 3/4-10 | £27.22 £32.66 Inc. VAT |
|
|
| CL-8-SPF | Metric | Steel Zinc Plated | 1/2-13 | £12.18 £14.62 Inc. VAT |
|
|
| CL-12-SPFN | Metric | Steel Zinc Plated with Delrin Pad | 3/4-10 | £17.12 £20.54 Inc. VAT |
|
|
| CLM-12-SPF | Metric | Steel Zinc Plated | M12 | £13.36 £16.03 Inc. VAT |
|
|
| CLM-20-SPFN | Metric | Steel Zinc Plated with Delrin Pad | M20 | £26.40 £31.68 Inc. VAT |
|
|
| CL-10-SPF | Metric | Steel Zinc Plated | 5/8-11 | £13.10 £15.72 Inc. VAT |
|
|
| CL-4-SPF-BO | Metric | Steel Black Oxide Finish | 1/4-20 | £10.24 £12.29 Inc. VAT |
|
|
| CLM-16-SPF | Metric | Steel Zinc Plated | M16 | £23.96 £28.75 Inc. VAT |
|
|
| CLM-6-SPF-BO | Metric | Steel Black Oxide Finish | M6 | £11.29 £13.55 Inc. VAT |
|
|
| CLM-8-SPF-BO | Metric | Steel Black Oxide Finish | M8 | £13.91 £16.69 Inc. VAT |
|
|
| CL-4-SPF-S | Metric | Stainless Steel | 1/4-20 | £14.11 £16.93 Inc. VAT |
|
|
| CL-12-SPF | Metric | Steel Zinc Plated | 3/4-10 | £17.12 £20.54 Inc. VAT |
|
|
| CL-5-SPF-BO | Metric | Steel Black Oxide Finish | 5/16-18 | £10.85 £13.02 Inc. VAT |
|
|
| CLM-6-SPF-S | Metric | Stainless Steel | M6 | £15.59 £18.71 Inc. VAT |
|
|
| CLM-20-SPF | Metric | Steel Zinc Plated | M20 | £26.65 £31.98 Inc. VAT |
|
|
| CLM-6-SPFN | Metric | Steel Zinc Plated with Delrin Pad | M6 | £11.29 £13.55 Inc. VAT |
|
|
| CLM-10-SPF-BO | Metric | Steel Black Oxide Finish | M10 | £11.48 £13.78 Inc. VAT |
|
|
| CL-5-SPF-S | Metric | Stainless Steel | 5/16-18 | £14.16 £16.99 Inc. VAT |
|
|
| CL-4-SPF | Metric | Steel Zinc Plated | 1/4-20 | £10.24 £12.29 Inc. VAT |
|
|
| CL-6-SPF-BO | Metric | Steel Black Oxide Finish | 3/8-16 | £11.48 £13.78 Inc. VAT |
|
|
| CLM-8-SPF-S | Metric | Stainless Steel | M8 | £16.09 £19.31 Inc. VAT |
|
|
| CLM-10-SPF-S | Metric | Stainless Steel | M10 | £16.38 £19.66 Inc. VAT |
|
|
| CLM-8-SPFN | Metric | Steel Zinc Plated with Delrin Pad | M8 | £15.90 £19.08 Inc. VAT |
|
|
| CLM-12-SPF-BO | Metric | Steel Black Oxide Finish | M12 | £13.36 £16.03 Inc. VAT |
|
|
| CL-6-SPF-S | Metric | Stainless Steel | 3/8-16 | £14.95 £17.94 Inc. VAT |
|
|
| CL-5-SPFN | Metric | Steel Zinc Plated with Delrin Pad | 5/16-18 | £10.85 £13.02 Inc. VAT |
|
|
| CL-8-SPF-BO | Metric | Steel Black Oxide Finish | 1/2-13 | £12.18 £14.62 Inc. VAT |
|
|
| CL-4-SPFN | Metric | Steel Zinc Plated with Delrin Pad | 1/4-20 | £10.24 £12.29 Inc. VAT |
|
|
| CLM-6-SPF | Metric | Steel Zinc Plated | M6 | £11.41 £13.69 Inc. VAT |
|
|
| CLM-12-SPF-S | Metric | Stainless Steel | M12 | £19.43 £23.32 Inc. VAT |
|
|
| CLM-10-SPFN | Metric | Steel Zinc Plated with Delrin Pad | M10 | £11.48 £13.78 Inc. VAT |
|
|
| CLM-16-SPF-BO | Metric | Steel Black Oxide Finish | M16 | £24.20 £29.04 Inc. VAT |
|
|
| CL-4-SPF | Metric | Steel Zinc Plated | 1/4-20 | £10.24 £12.29 Inc. VAT |
|
|
| CL-8-SPF-S | Metric | Stainless Steel | 1/2-13 | £18.38 £22.06 Inc. VAT |
|
|
| CL-6-SPFN | Metric | Steel Zinc Plated with Delrin Pad | 3/8-16 | £11.48 £13.78 Inc. VAT |
|
|
| CL-10-SPF-BO | Metric | Steel Black Oxide Finish | 5/8-11 | £12.97 £15.56 Inc. VAT |
|
|
| CL-12-SPF-BO | Metric | Steel Black Oxide Finish | 3/4-10 | £17.12 £20.54 Inc. VAT |
|
|
| CLM-8-SPF | Metric | Steel Zinc Plated | M8 | £13.70 £16.44 Inc. VAT |
|
|
| CLM-16-SPF-S | Metric | Stainless Steel | M16 | £29.92 £35.90 Inc. VAT |
|
|
| CLM-12-SPFN | Metric | Steel Zinc Plated with Delrin Pad | M12 | £13.22 £15.86 Inc. VAT |
|
|
| CLM-20-SPF-BO | Metric | Steel Black Oxide Finish | M20 | £26.40 £31.68 Inc. VAT |
|
|
| CL-5-SPF | Metric | Steel Zinc Plated | 5/16-18 | £10.85 £13.02 Inc. VAT |
|
|
| CL-10-SPF-S | Metric | Stainless Steel | 5/8-11 | £21.79 £26.15 Inc. VAT |
|
|
| CL-8-SPFN | Metric | Steel Zinc Plated with Delrin Pad | 1/2-13 | £12.18 £14.62 Inc. VAT |
|
The heavy-duty swivel foot pivots to ensure even contact with sloped surfaces. Its large swivel ball offers a high load capacity with an 20° total swivel angle. Tapped-hole sizes range from 1/4-20 to 3/4-10 (M6 to M20 in metric). These are available in several material and finish options including: steel zinc plated, stainless steel, steel black oxide finish and steel zinc plated with Delrin pad.
