Carr Lane Threaded Tube Ends
| Part Number | Material Number | Type | Thread | Tubing Wall Thickness | Price | Add to Parts List |
|---|---|---|---|---|---|---|
| CL-6-TTER-112 | Round | 3/8-16 | .065/.070 | On Enquiry | ||
| CL-8-TTER-112 | Round | 1/2-13 | .065/.070 | On Enquiry | ||
| CL-10-TTER-112 | Round | 5/8-11 | .065/.070 | On Enquiry | ||
| CL-8-TTES-112 | Square | 1/2-13 | .065/.070 | On Enquiry | ||
| CL-10-TTES-112 | Square | 5/8-11 | .065/.070 | On Enquiry | ||
| CL-8-TTES-112H | Square | 1/2-13 | .120/.130 | On Enquiry | ||
| CL-10-TTES-112H | Square | 5/8-11 | .120/.130 | On Enquiry |
Carr Lane Threaded Tube Ends

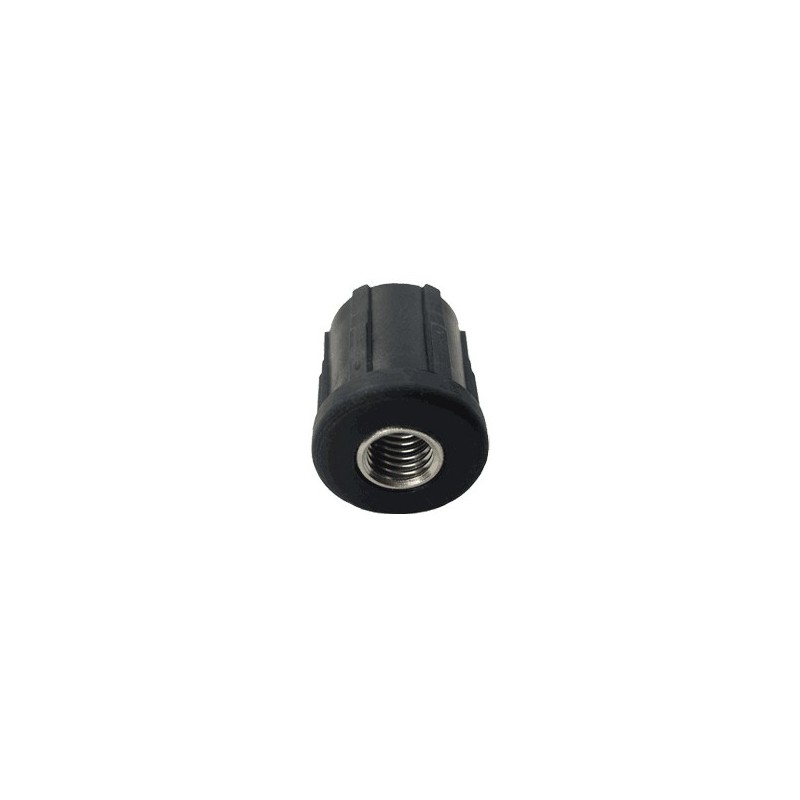

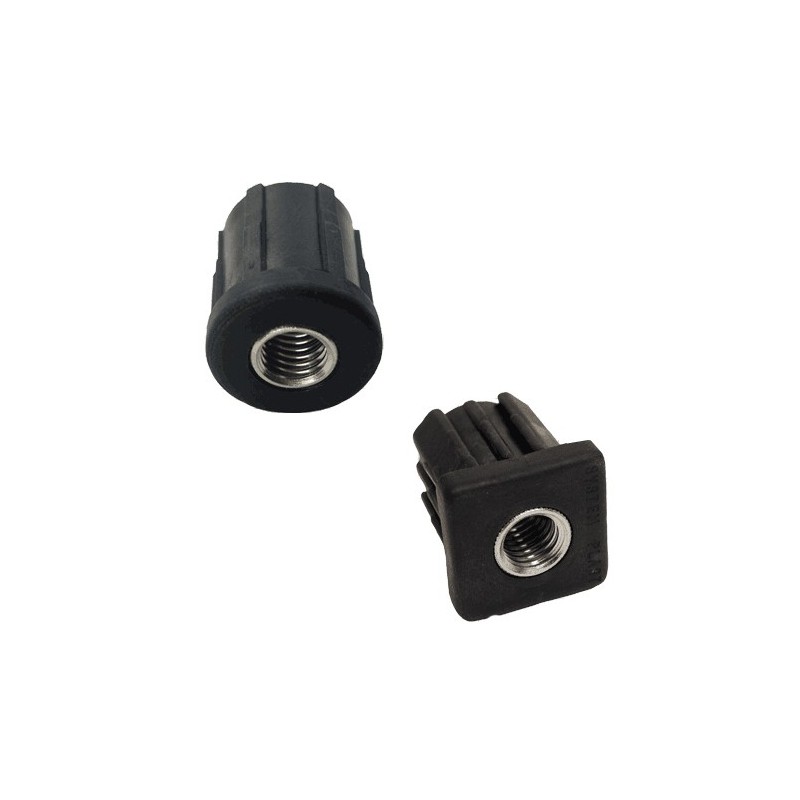

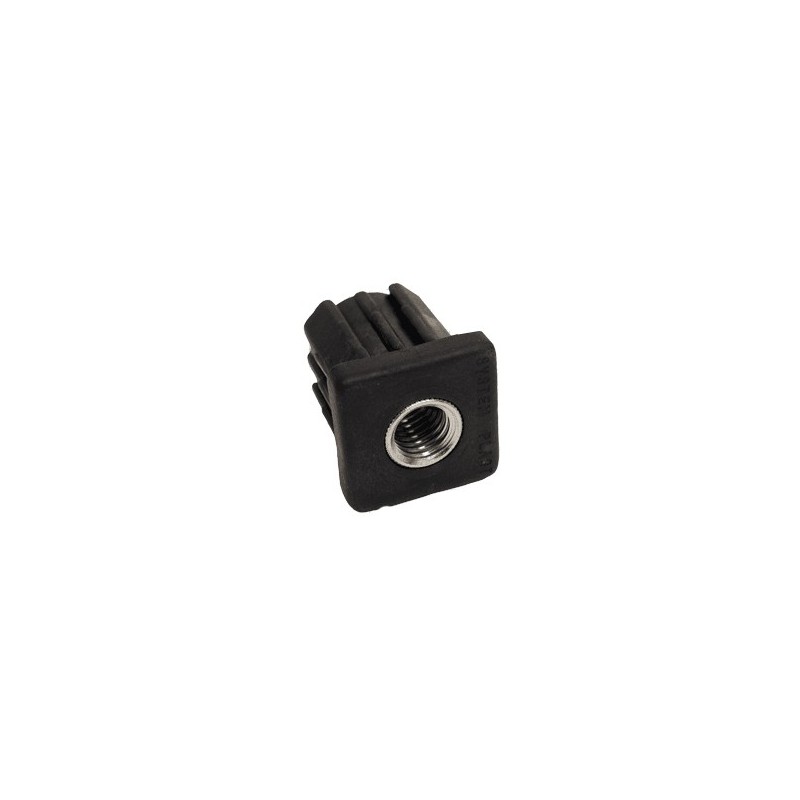

Both Round and Square types are ideal for mounting a Leveling Foot into the end of, both with a high strength ribbed design, that presses into the tube end up to the shoulder, with the Round providing 1100lbs load capacity, and available in three thread sizes to fit round tubing 1-1/2" external dia, and the Square providing 1300lbs loading capacity, available in two thread sizes to fit 1-1/2" square tubing or heavy square tubing depending on wall thickness.
Options:
- Round and Square Types
- Tubing wall thickness - .065/.070 - .120/.130
- Thread - 3/8-16 - 5/8-11
Domestic and export sales enquiries are welcome from end users, original equipment machinery manufacturers and trade suppliers from all industrial sectors.
If you can’t find what you are looking for, need product pricing, delivery, technical support or associated services CONTACT HYQUIP or call our sales office +44 (0)1204 699959
