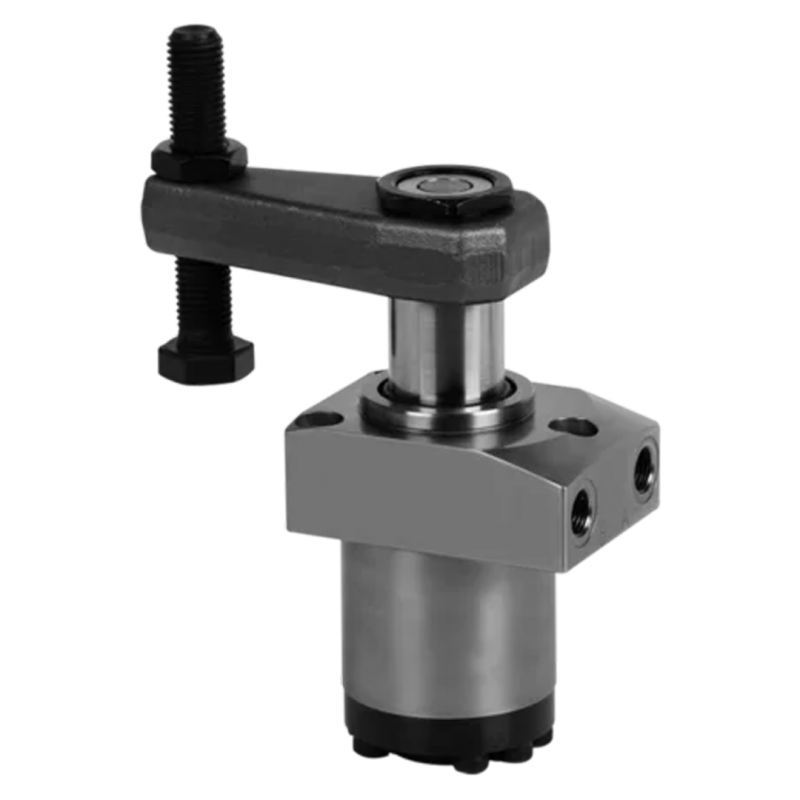

Swing Clamps with Overload Protection Device
ROEMHELD B1.880 Swing Clamps with Overload Protection Device: top flange, single and double acting
- Maximum operating pressure 500 bar
- Maximum clamping force: 2.8 - 41 kN
- Rod diameter: 20 - 50 mm
- Piston diameter: 25 - 63 mm
- Clamping stroke: 11 - 50 mm
- Maximum flow rate: 3 - 28 cm³/s
Products
Downloads
Description
| Part Number | Material Number | Type | Size | Clamping Stroke (mm) | Swing Stroke (mm) | Swing Direction | Price | Add to Parts List |
|---|---|---|---|---|---|---|---|---|
| 1897-643 | Double Acting | 4 | 50 | 12 | 0 degree | £1,268.66 £1,522.40 Inc. VAT |
|
|
| 1895-243 | Double Acting | 2 | 14 | 8 | 0 degree | £614.43 £737.31 Inc. VAT |
|
|
| 1896-403 | Double Acting | 3 | 25 | 11 | CounterClockwise | £886.47 £1,063.77 Inc. VAT |
|
|
| 1897-503 | Double Acting | 4 | 50 | 12 | Clockwise | £1,235.49 £1,482.58 Inc. VAT |
|
|
| 1895-103 | Double Acting | 2 | 14 | 8 | Clockwise | £585.23 £702.28 Inc. VAT |
|
|
| 1897-443 | Double Acting | 4 | 25 | 12 | 0 degree | £1,141.27 £1,369.52 Inc. VAT |
|
|
| 1893-643 | Double Acting | 1 | 50 | 9 | 0 degree | £855.95 £1,027.14 Inc. VAT |
|
|
| 1896-203 | Double Acting | 3 | 15 | 11 | CounterClockwise | £769.69 £923.63 Inc. VAT |
|
|
| 1897-303 | Double Acting | 4 | 25 | 12 | Clockwise | £1,104.11 £1,324.93 Inc. VAT |
|
|
| 1893-503 | Double Acting | 1 | 50 | 9 | Clockwise | £826.75 £992.11 Inc. VAT |
|
|
| 1897-243 | Double Acting | 4 | 15 | 9 | 0 degree | £950.17 £1,140.20 Inc. VAT |
|
|
| 1893-443 | Double Acting | 1 | 25 | 9 | 0 degree | £622.39 £746.87 Inc. VAT |
|
|
| 1895-603 | Double Acting | 2 | 50 | 10 | CounterClockwise | £861.26 £1,033.51 Inc. VAT |
|
|
| 1897-103 | Double Acting | 4 | 15 | 9 | Clockwise | £915.67 £1,098.80 Inc. VAT |
|
|
| 1893-303 | Double Acting | 1 | 25 | 9 | Clockwise | £622.39 £746.87 Inc. VAT |
|
|
| 1893-103 | Double Acting | 1 | 11 | 7 | Clockwise | £510.92 £613.10 Inc. VAT |
|
|
| 1896-643 | Double Acting | 3 | 50 | 11 | 0 degree | £1,074.91 £1,289.90 Inc. VAT |
|
|
| 1893-243 | Double Acting | 1 | 11 | 7 | 0 degree | £540.11 £648.13 Inc. VAT |
|
|
| 1895-403 | Double Acting | 2 | 25 | 10 | CounterClockwise | £660.87 £793.05 Inc. VAT |
|
|
| 1896-503 | Double Acting | 3 | 50 | 11 | Clockwise | £1,044.39 £1,253.27 Inc. VAT |
|
|
| 1896-443 | Double Acting | 3 | 25 | 11 | 0 degree | £920.98 £1,105.17 Inc. VAT |
|
|
| 1897-603 | Double Acting | 4 | 50 | 12 | CounterClockwise | £1,235.49 £1,482.58 Inc. VAT |
|
|
| 1895-203 | Double Acting | 2 | 14 | 8 | CounterClockwise | £585.23 £702.28 Inc. VAT |
|
|
| 1896-303 | Double Acting | 3 | 25 | 11 | Clockwise | £886.47 £1,063.77 Inc. VAT |
|
|
| 1896-243 | Double Acting | 3 | 15 | 11 | 0 degree | £802.87 £963.44 Inc. VAT |
|
|
| 1897-403 | Double Acting | 4 | 25 | 12 | CounterClockwise | £1,104.11 £1,324.93 Inc. VAT |
|
|
| 1893-603 | Double Acting | 1 | 50 | 9 | CounterClockwise | £826.75 £992.11 Inc. VAT |
|
|
| 1896-103 | Double Acting | 3 | 15 | 11 | Clockwise | £769.69 £923.63 Inc. VAT |
|
|
| 1895-643 | Double Acting | 2 | 50 | 10 | 0 degree | £903.72 £1,084.47 Inc. VAT |
|
|
| 1897-203 | Double Acting | 4 | 15 | 9 | CounterClockwise | £915.67 £1,098.80 Inc. VAT |
|
|
| 1893-403 | Double Acting | 1 | 25 | 9 | CounterClockwise | £622.39 £746.87 Inc. VAT |
|
|
| 1895-503 | Double Acting | 2 | 50 | 10 | Clockwise | £861.26 £1,033.51 Inc. VAT |
|
|
| 1895-303 | Double Acting | 2 | 25 | 10 | Clockwise | £660.87 £793.05 Inc. VAT |
|
|
| 1895-443 | Double Acting | 2 | 25 | 10 | 0 degree | £704.67 £845.60 Inc. VAT |
|
|
| 1896-603 | Double Acting | 3 | 50 | 11 | CounterClockwise | £1,044.39 £1,253.27 Inc. VAT |
|
|
| 1893-203 | Double Acting | 1 | 11 | 7 | CounterClockwise | £510.92 £613.10 Inc. VAT |
|
|
| 1885-203 | Single Acting | 2 | 14 | 8 | CounterClockwise | £567.98 £681.57 Inc. VAT |
|
|
| 1883-203 | Single Acting | 1 | 11 | 7 | CounterClockwise | £493.66 £592.40 Inc. VAT |
|
|
| 1887-243 | Single Acting | 4 | 15 | 9 | 0 degree | £974.06 £1,168.87 Inc. VAT |
|
|
| 1887-103 | Single Acting | 4 | 15 | 9 | Clockwise | £936.90 £1,124.28 Inc. VAT |
|
|
| 1886-243 | Single Acting | 3 | 15 | 11 | 0 degree | £858.60 £1,030.32 Inc. VAT |
|
|
| 1886-103 | Single Acting | 3 | 15 | 11 | Clockwise | £825.43 £990.51 Inc. VAT |
|
|
| 1885-243 | Single Acting | 2 | 14 | 8 | 0 degree | £598.50 £718.20 Inc. VAT |
|
|
| 1885-103 | Single Acting | 2 | 14 | 8 | Clockwise | £567.98 £681.57 Inc. VAT |
|
|
| 1883-243 | Single Acting | 1 | 11 | 7 | 0 degree | £522.86 £627.43 Inc. VAT |
|
|
| 1883-103 | Single Acting | 1 | 11 | 7 | Clockwise | £493.66 £592.40 Inc. VAT |
|
|
| 1887-203 | Single Acting | 4 | 15 | 9 | CounterClockwise | £936.90 £1,124.28 Inc. VAT |
|
|
| 1886-203 | Single Acting | 3 | 15 | 11 | CounterClockwise | £825.43 £990.51 Inc. VAT |
|
Swing Clamps with Overload Protection Device - ROEMHELD B1.880
- Max. operating pressure 500 bar
- Max. clamping force: 2.8 - 41 kN
- Rod diameter: 20 - 50 mm
- Piston diameter: 25 - 63 mm
- Clamping stroke: 11 - 50 mm
- Max. flow rate: 3 - 28 cm³/s
Application:
Hydraulic swing clamps are used for clamping of workpieces when it is essential to keep the clamping area free of straps and clamping components for unrestricted workpiece loading and unloading.
Function:
This hydraulic clamping element is a pull-type cylinder where a part of the total stroke is used to swing the piston.
Overload protection device:
An integrated mechanical overload protection device prevents damage to the swing mechanism when striking an object within the 90° rotation, clamping or unclamping alike, or in case of incorrect mounting of the clamping arm.
