Swing Clamp with Pendulum Eye or Fork Head Top Flange

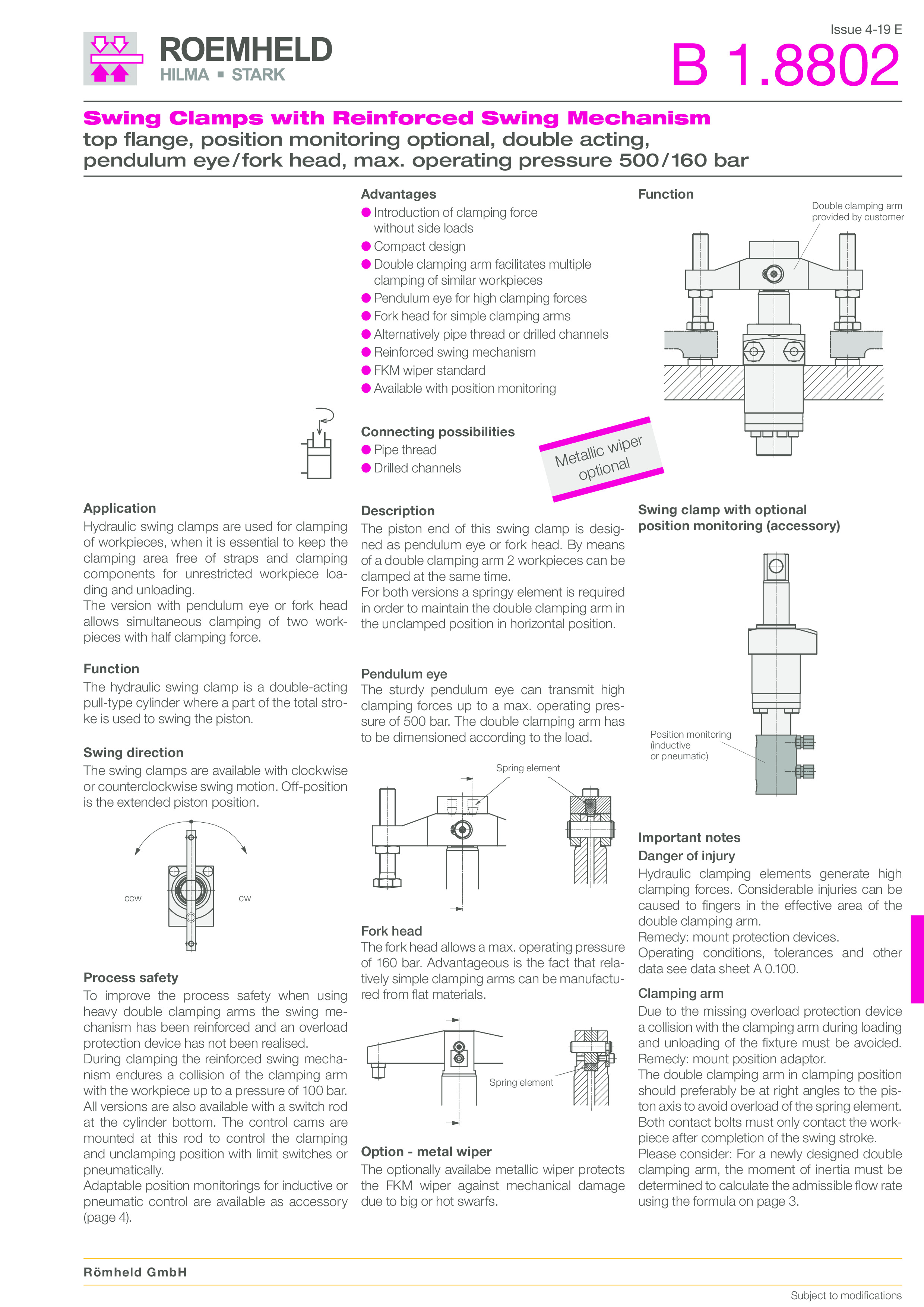

ROEMHELD B1.8802 Swing Clamps with Reinforced Swing Mechanism: top flange, position monitoring optional, double acting, pendulum eye/fork head
- Maximum operating pressure 500/160 bar
- Maximum clamping force: 1.4 - 11.2 kN
- Rod diameter: 20 - 32 mm
- Piston diameter: 25 - 40 mm
- Clamping stroke: 22 - 25 mm
- Maximum flow rate: 8 - 20 cm³/s
The piston end of this swing clamp is designed as pendulum eye or fork head. By means of a double clamping arm 2 workpieces can be clamped at the same time. For both versions a springy element is required in order to maintain the double clamping arm in the unclamped position in horizontal position.

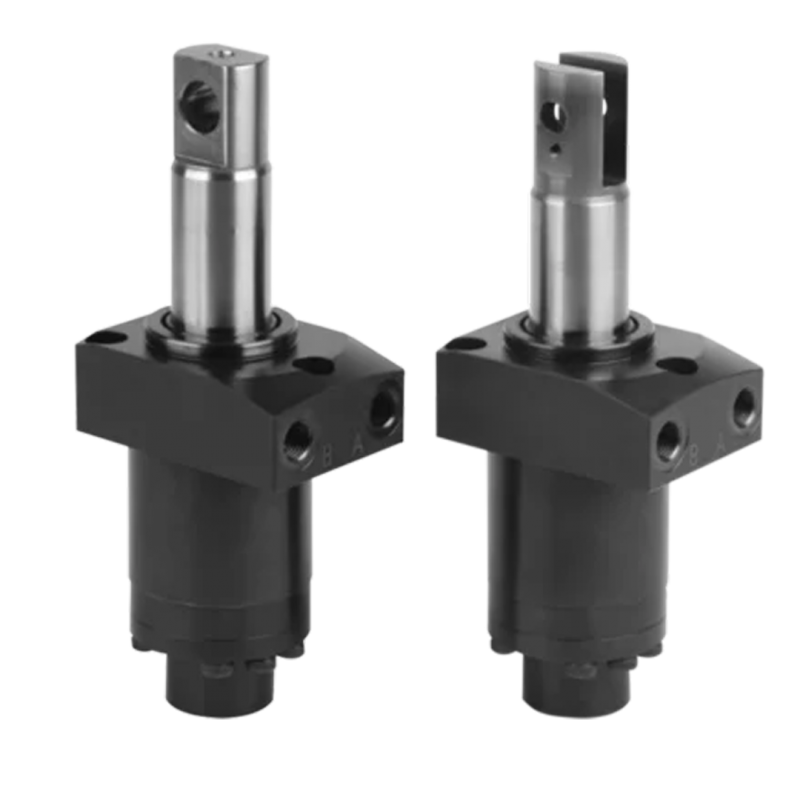

Swing Clamp with Pendulum Eye or Fork Head Top Flange - ROEMHELD B1.8802
- Max. operating pressure 500/160 bar
- Max. clamping force: 1.4 - 11.2 kN
- Rod diameter: 20 - 32 mm
- Piston diameter: 25 - 40 mm
- Clamping stroke: 22 - 25 mm
- Max. flow rate: 8 - 20 cm³/s
Advantages:
- Introduction of clamping force without side loads
- Compact design
- Double clamping arm facilitates multiple clamping of similar workpieces
- Pendulum eye for high clamping forces
- Fork head for simple clamping arms
- Alternatively pipe thread or drilled channels
- Reinforced swing mechanism
- FKM wiper standard
- Available with position monitoring
Application:
Hydraulic swing clamps are used for clamping of workpieces, when it is essential to keep the clamping area free of straps and clamping components for unrestricted workpiece loading and unloading. The version with pendulum eye or fork head allows simultaneous clamping of two work - pieces with half clamping force.
Description:
The piston end of this swing clamp is designed as pendulum eye or fork head. By means of a double clamping arm 2 workpieces can be clamped at the same time. For both versions a springy element is required in order to maintain the double clamping arm in the unclamped position in horizontal position.
