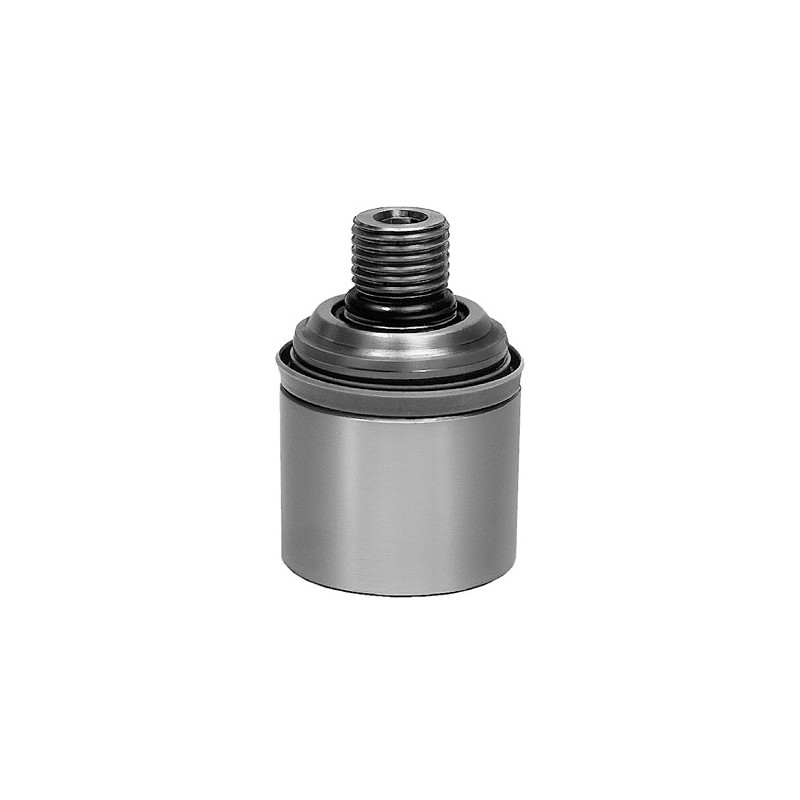

Built-in Pistons with Spring Return
ROEMHELD B1.462 Plunger Piston with integrated pull-back spring, stroke limitation and fastening screw form a unit that cannot be disassembled.
- Max. operating pressure 250 bar
- Piston diameter: 25 - 50 mm
- Stroke: 8 and 12 mm
- Max. push force: 12.2 - 48.7 kN
- External thread: G1/8 - G1/2

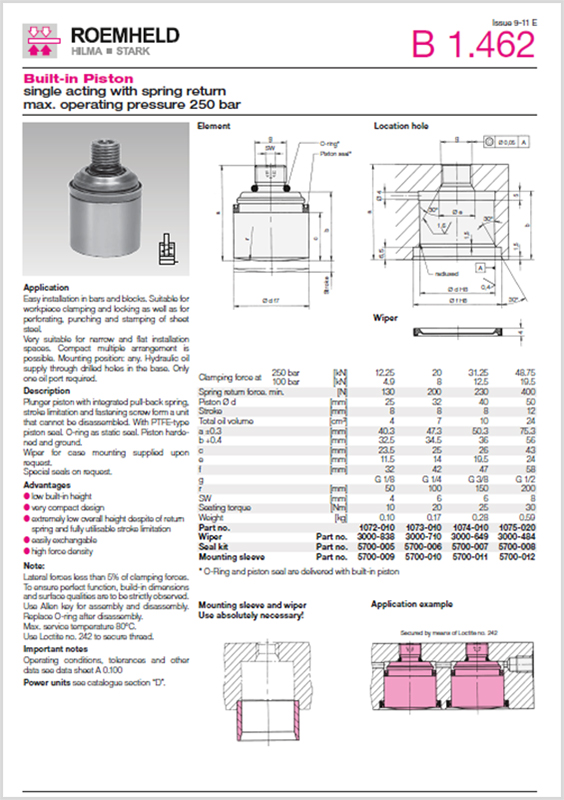

Built-in Pistons, Single-acting with Spring Return - ROEMHELD B1.462
- Max. operating pressure 250 bar
- Piston diameter: 25 - 50 mm
- Stroke: 8 and 12 mm
- Max. push force: 12.2 - 48.7 kN
- External thread: G1/8 - G1/2
Advantages:
- low built-in height
- very compact design
- extremely low overall height despite of return spring and fully utilisable stroke limitation
- easily exchangable
- high force density
Application:
Easy installation in bars and blocks. Suitable for workpiece clamping and locking as well as for perforating, punching and stamping of sheet steel. Very suitable for narrow and flat installation spaces. Compact multiple arrangement is possible. Mounting position: any. Hydraulic oil supply through drilled holes in the base. Only one oil port required.
Description:
Plunger piston with integrated pull-back spring, stroke limitation and fastening screw form a unit that cannot be disassembled. With PTFE-type piston seal. O-ring as static seal. Piston hardened and ground.
Wiper for case mounting supplied upon request.
Special seals on request.
