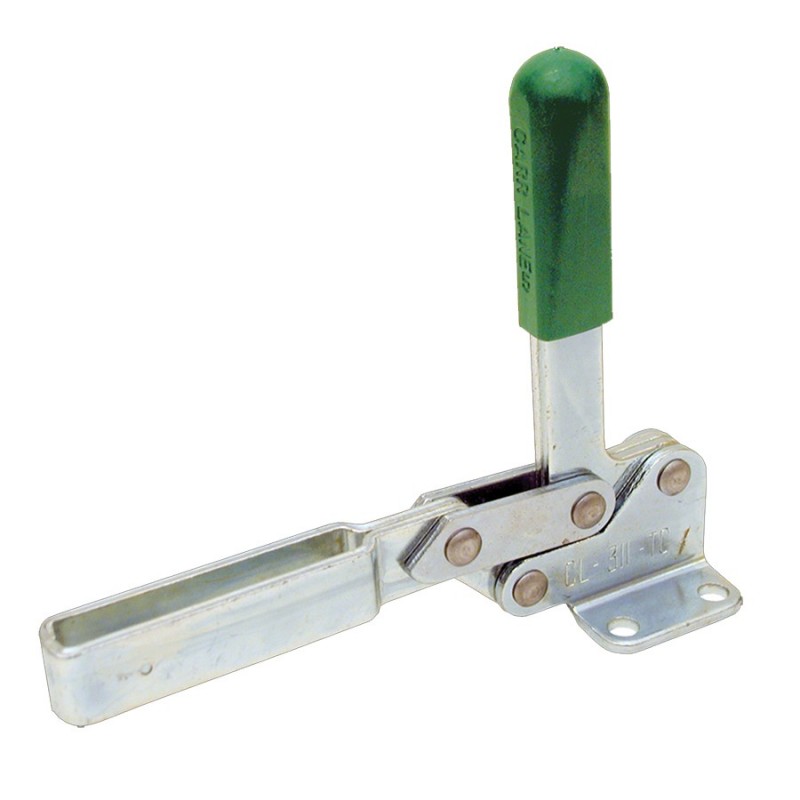

Carr Lane Vertical Handle Toggle Clamps

Carr Lane vertical handle toggle clamps are hold-down clamps with their handle locked in vertical position when clamped. Rotating the handle of vertical toggle clamps upward pivots the clamping arm downward, then locks over centre.  Carr Lane vertical handle toggle clamps are offered in a varied range including heavy-duty, automatically adjusting, angle arm and standard wide opening vertical toggle clamps. Low and high arm vertical toggle clamps are available  in standard and heavy-duty materials with the capability of providing up to 5,000-lbs. of clamping force, depending on the model.  These items are available in both steel and stainless stell with a wide range of holding capacities.

  • Available in steel and stainless steel
  • Various handle and design options available
Print page

Products
Downloads
Description
Part Number Material Number Material Design Holding Capacity Clamp Type Price Add to Parts List
CL-453-VTC CL-453-VTC Steel Wide Opening 500lbs Long Open Arm Flanged Base £32.45
£38.94 Inc. VAT
CL-211-TC CL-211-TC Steel Low Arm 625lbs Open Arm Flanged Base £27.47
£32.96 Inc. VAT
CL-850-VTC CL-850-VTC Steel Wide Opening 1000lbs Open Arm Flanged Base £52.14
£62.57 Inc. VAT
CL-351-VTC CL-351-VTC Steel Wide Opening 500lbs Solid Arm Straight Base £30.91
£37.09 Inc. VAT
CL-101-TC CL-101-TC Steel High Arm 250lbs Open Arm Flanged Base £21.44
£25.73 Inc. VAT
CL-650-ATC CL-650-ATC Steel Wide Opening Automatically Adjusting 750lbs Open Arm Flanged Base £89.45
£107.34 Inc. VAT
CL-150-VTC CL-150-VTC Steel Wide Opening 100lbs Open Arm Flanged Base £18.47
£22.16 Inc. VAT
CL-300-LVTC CL-300-LVTC Steel Low Profile 350lbs Open Arm Flanged Base T Handle with Saftey Lock £54.92
£65.90 Inc. VAT
CL-253-LVTC CL-253-LVTC Steel Wide Opening 200lbs Long Open Arm Flanged Base with Safety Lock £49.37
£59.24 Inc. VAT
CL-301-TC CL-301-TC Steel High Arm 850lbs Open Arm Flanged Base £37.78
£45.34 Inc. VAT
CL-111-HVTC CL-111-HVTC Steel Wide Opening Heavy Duty 750lbs Basic Mechanism Straight Base £140.17
£168.20 Inc. VAT
CL-61-HDC-211 CL-61-HDC-211 Steel High Arm 5000lbs Solid Arm Straight Base £203.58
£244.30 Inc. VAT
CL-350-VTC CL-350-VTC Steel Wide Opening 500lbs Solid Arm Flanged Base £30.47
£36.56 Inc. VAT
CL-45-HDC-121 CL-45-HDC-121 Steel Low Arm 1500lbs Solid Arm Straight Base £125.65
£150.78 Inc. VAT
CL-200-VTC CL-200-VTC Steel Low Profile 150lbs Open Arm Flanged Base T Handle £17.03
£20.44 Inc. VAT
CL-450-LVTC CL-450-LVTC Steel Wide Opening 500lbs Open Arm Flanged Base with Safety Lock £58.67
£70.40 Inc. VAT
CL-40-HDC-211 CL-40-HDC-211 Steel High Arm 1500lbs Solid Arm Straight Base £125.65
£150.78 Inc. VAT
CL-253-VTC CL-253-VTC Steel Wide Opening 200lbs Long Open Arm Flanged Base £22.75
£27.30 Inc. VAT
CL-21-TC CL-21-TC Steel High Arm 100lbs Open Arm Flanged Base On Enquiry
CL-850-LVTC CL-850-LVTC Steel Wide Opening 1000lbs Open Arm Flanged Base with Safety Lock £96.80
£116.16 Inc. VAT
CL-450-VTC CL-450-VTC Steel Wide Opening 500lbs Open Arm Flanged Base £29.74
£35.69 Inc. VAT
CL-50-HDC-121 CL-50-HDC-121 Steel Low Arm 2500lbs Solid Arm Straight Base £157.02
£188.42 Inc. VAT
CL-200-LVTC CL-200-LVTC Steel Low Profile 150lbs Open Arm Flanged Base T Handle with Saftey Lock £40.96
£49.15 Inc. VAT
CL-650-VTC CL-650-VTC Steel Wide Opening 750lbs Open Arm Flanged Base £38.94
£46.73 Inc. VAT
CL-60-HDC-211 CL-60-HDC-211 Steel High Arm 2500lbs Solid Arm Straight Base £151.02
£181.22 Inc. VAT
CL-250-LVTC CL-250-LVTC Steel Wide Opening 200lbs Solid Arm Flanged Base with Safety Lock £45.59
£54.71 Inc. VAT
CL-201-TC CL-201-TC Steel High Arm 625lbs Open Arm Flanged Base £27.47
£32.96 Inc. VAT
CL-100-HVTC CL-100-HVTC Steel Wide Opening Heavy Duty 750lbs Complete Clamp Flanged Base £129.92
£155.90 Inc. VAT
CL-451-VTC CL-451-VTC Steel Wide Opening 500lbs Open Arm Straight Base £33.76
£40.51 Inc. VAT
CL-51-HDC-121 CL-51-HDC-121 Steel Low Arm 5000lbs Solid Arm Straight Base £356.64
£427.97 Inc. VAT
CL-250-VTC CL-250-VTC Steel Wide Opening 200lbs Solid Arm Flanged Base £17.75
£21.30 Inc. VAT
CL-500-LVTC CL-500-LVTC Steel Low Profile 750lbs Open Arm Flanged Base T Handle with Saftey Lock £95.34
£114.41 Inc. VAT
CL-650-LVTC CL-650-LVTC Steel Wide Opening 750lbs Open Arm Flanged Base with Safety Lock £81.60
£97.92 Inc. VAT
CL-51-HDC-121-S CL-51-HDC-121-S Stainless Steel Low Arm 5000lbs Solid Arm Flanged Base £371.23
£445.48 Inc. VAT
CL-250-VTC-S CL-250-VTC-S Stainless Steel Wide Opening 200lbs Solid Arm Flanged Base £47.95
£57.54 Inc. VAT
CL-61-HDC-211-S CL-61-HDC-211-S Stainless Steel High Arm 5000lbs Solid Arm Flanged Base £245.30
£294.36 Inc. VAT
CL-45-HDC-121-S CL-45-HDC-121-S Stainless Steel Low Arm 1500lbs Solid Arm Flanged Base £143.62
£172.34 Inc. VAT
CL-200-VTC-S CL-200-VTC-S Stainless Steel Low Profile 150lbs Open Arm Flanged Base T Handle £37.33
£44.80 Inc. VAT
CL-450-LVTC-S CL-450-LVTC-S Stainless Steel Wide Opening 500lbs Open Arm Flanged Base with Safety Lock £88.88
£106.66 Inc. VAT
CL-40-HDC-211-S CL-40-HDC-211-S Stainless Steel High Arm 1500lbs Solid Arm Flanged Base £143.62
£172.34 Inc. VAT
CL-253-VTC-S CL-253-VTC-S Stainless Steel Wide Opening 200lbs Long Open Arm Flanged Base £49.03
£58.84 Inc. VAT
CL-450-VTC-S CL-450-VTC-S Stainless Steel Wide Opening 500lbs Open Arm Flanged Base £61.74
£74.09 Inc. VAT
CL-50-HDC-121-S CL-50-HDC-121-S Stainless Steel Low Arm 2500lbs Solid Arm Flanged Base £181.67
£218.00 Inc. VAT
CL-650-VTC-S CL-650-VTC-S Stainless Steel Wide Opening 750lbs Open Arm Flanged Base £87.88
£105.46 Inc. VAT
CL-60-HDC-211-S CL-60-HDC-211-S Stainless Steel High Arm 2500lbs Solid Arm Flanged Base £181.67
£218.00 Inc. VAT
CL-150-VTC-S CL-150-VTC-S Stainless Steel Wide Opening 100lbs Open Arm Flanged Base £38.09
£45.71 Inc. VAT

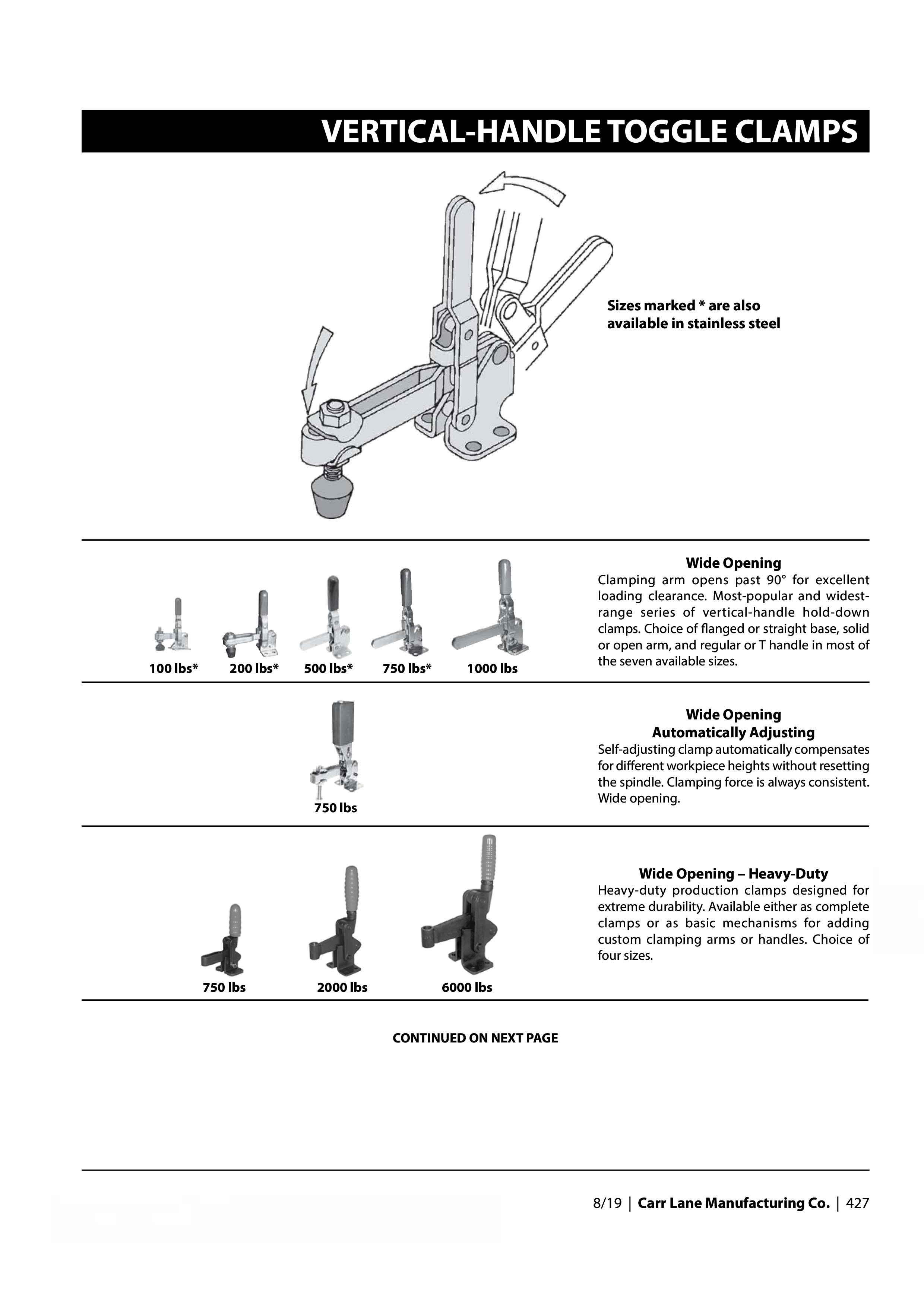

Carr Lane Vertical Handle Toggle Clamps datasheet

Carr Lane Vertical Handle Toggle Clamps

Quick-acting hold-down clamps are clamped with their handle locked in vertical position. Rotating the handle upward pivots the clamping arm downward, then locks over centre. Available in multiple designs.

Wide Opening - Clamping arm opens past 90° for excellent loading clearance. Most-popular and widest-range series of vertical-handle hold-down clamps. Choice of flanged or straight base, solid or open arm, and regular or T handle in most of the seven available sizes.

Wide Opening Angle Arm - Clamps with arm tilted upward for increased clearance underneath. Also useful for applying clamping force at an angle. Wide-opening solid arm. Choice of flanged base or straight base. Available in two sizes.

Wide Opening Automatically Adjusting - Self-adjusting clamp automatically compensates for different workpiece heights without resetting the spindle. Clamping force is always consistent. Wide opening.

Low Profile - Extremely compact low-profile clamps with a unique finger-grip T handle. Available in three sizes.

Low Arm - Simple, easy-opening clamps with excellent arm reach. Extends farther over workpiece than any clamp its size. Choice of flanged or straight base, and solid or open arm, arm opens 83°. Available in six sizes, the largest two forged.

High Arm - Simple, easy-opening clamps with extra arm height. Choice of flanged or straight base, and solid or open arm, arm opens 83°. Available in six sizes, the largest two forged.

Wide Opening Heavy Duty - Heavy-duty production clamps designed for extreme durability, available either as complete clamps or as basic mechanisms for adding custom clamping arms or handles. Choice of four sizes.

All specific measurements and finer details are shown on the Download Sheet
