Carr Lane Push/ Pull Toggle Clamps

 Carr Lane Push/pull toggle clamps are designed with a sliding plunger to allow the clamping action to occur in a straight-line. The plungers on these clamps can be secured in either the pushing or pulling direction by moving the toggle. The push/pull toggle clamps are offer in several variations such as the standard SPC series, horizontal handled, PC series and threaded body variants. Each variation of the push/pull toggle clamp provides different features and holding capacities. These are available in both metric and imperial sizes in both steel and stainless steel.

  • Available in steel and stainless steel
  • Available in metric and imperial
  • Several variations available
Print page

Products
Downloads
Description
Part Number Material Number Metric or Imperial Material Design Holding Capacity Clamp Type Price Add to Parts List
CLM-100-PC CLM-100-PC Metric Steel PC Design 500lbs Tapped Plunger £50.83
£61.00 Inc. VAT
CLM-100-LSPC CLM-100-LSPC Metric Steel Standard SPC Design 300lbs Tapped Plunger with Safety Lock £64.18
£77.02 Inc. VAT
CLM-350-TPC CLM-350-TPC Metric Steel Threaded Body 700lbs Tapped Plunger £60.62
£72.74 Inc. VAT
CLM-350-SPC CLM-350-SPC Metric Steel Standard SPC Design 2500lbs Tapped Plunger £72.77
£87.32 Inc. VAT
CLM-50-SPC CLM-50-SPC Metric Steel Standard SPC Design 100lbs Tapped Plunger On Enquiry
CLM-250-SPC CLM-250-SPC Metric Steel Standard SPC Design 800lbs Tapped Plunger £67.94
£81.53 Inc. VAT
CLM-100-SPC CLM-100-SPC Metric Steel Standard SPC Design 300lbs Tapped Plunger £50.11
£60.13 Inc. VAT
CLM-250-TPC CLM-250-TPC Metric Steel Threaded Body 300lbs Tapped Plunger £38.40
£46.08 Inc. VAT
CLM-300-PC CLM-300-PC Metric Steel PC Design 1500lbs Tapped Plunger £110.47
£132.56 Inc. VAT
CLM-275-SPC CLM-275-SPC Metric Steel Horizontal Handle 600lbs Tapped Plunger Flanged Base £102.89
£123.47 Inc. VAT
CLM-150-SPC CLM-150-SPC Metric Steel Standard SPC Design 300lbs Tapped Plunger £32.96
£39.55 Inc. VAT
CLM-200-PC CLM-200-PC Metric Steel PC Design 850lbs Tapped Plunger £69.60
£83.52 Inc. VAT
CLM-650-SPC CLM-650-SPC Metric Steel Standard SPC Design 16000lbs Tapped Plunger £268.38
£322.06 Inc. VAT
CLM-60-SPC CLM-60-SPC Metric Steel Standard SPC Design 150lbs Tapped Plunger £26.87
£32.24 Inc. VAT
CLM-150-TPC CLM-150-TPC Metric Steel Threaded Body 200lbs Tapped Plunger £30.46
£36.55 Inc. VAT
CL-350-TPC-S CL-350-TPC-S Imperial Stainless Steel Threaded Body 700lbs Tapped Plunger £154.60
£185.52 Inc. VAT
CL-150-TPC CL-150-TPC Imperial Steel Threaded Body 200lbs Tapped Plunger £23.77
£28.52 Inc. VAT
CL-350-LSPC CL-350-LSPC Imperial Steel Standard SPC Design 2500lbs Tapped Plunger with Safety Lock On Enquiry
CL-51-SPC CL-51-SPC Imperial Steel Standard SPC Design 100lbs Externally Threaded Plunger £21.46
£25.75 Inc. VAT
CL-100-LSPC CL-100-LSPC Imperial Steel Standard SPC Design 300lbs Tapped Plunger with Safety Lock £71.75
£86.10 Inc. VAT
CL-50-SPC-S CL-50-SPC-S Imperial Stainless Steel Standard SPC Design 100lbs Tapped Plunger £52.75
£63.30 Inc. VAT
CL-300-LPC CL-300-LPC Imperial Steel PC Design 1500lbs Tapped Plunger with Safety Lock £140.47
£168.56 Inc. VAT
CL-100-PC CL-100-PC Imperial Steel PC Design 500lbs Tapped Plunger £43.76
£52.51 Inc. VAT
CL-350-TPC CL-350-TPC Imperial Steel Threaded Body 700lbs Tapped Plunger £57.24
£68.69 Inc. VAT
CL-200-LPC CL-200-LPC Imperial Steel PC Design 850lbs Tapped Plunger with Safety Lock £163.04
£195.65 Inc. VAT
CL-285-SPC CL-285-SPC Imperial Steel Horizontal Handle 200lbs Self Adjusting Plunger Flanged Base £73.24
£87.89 Inc. VAT
CL-350-SPC CL-350-SPC Imperial Steel Standard SPC Design 2500lbs Tapped Plunger £69.89
£83.87 Inc. VAT
CL-100-SPC-S CL-100-SPC-S Imperial Stainless Steel Standard SPC Design 300lbs Tapped Plunger £85.63
£102.76 Inc. VAT
CL-250-TPC-S CL-250-TPC-S Imperial Stainless Steel Threaded Body 300lbs Tapped Plunger £71.16
£85.39 Inc. VAT
CL-100-LPC CL-100-LPC Imperial Steel PC Design 500lbs Tapped Plunger with Safety Lock £124.44
£149.33 Inc. VAT
CL-276-SPC CL-276-SPC Imperial Steel Horizontal Handle 600lbs Tapped Plunger Straight Base with Bracket £76.49
£91.79 Inc. VAT
CL-50-SPC CL-50-SPC Imperial Steel Standard SPC Design 100lbs Tapped Plunger £18.41
£22.09 Inc. VAT
CL-250-SPC CL-250-SPC Imperial Steel Standard SPC Design 800lbs Tapped Plunger £52.36
£62.83 Inc. VAT
CL-100-SPC CL-100-SPC Imperial Steel Standard SPC Design 300lbs Tapped Plunger £50.11
£60.13 Inc. VAT
CL-60-SPC-S CL-60-SPC-S Imperial Stainless Steel Standard SPC Design 150lbs Tapped Plunger £50.74
£60.89 Inc. VAT
CL-250-TPC CL-250-TPC Imperial Steel Threaded Body 300lbs Tapped Plunger £26.53
£31.84 Inc. VAT
CL-300-PC CL-300-PC Imperial Steel PC Design 1500lbs Tapped Plunger £105.22
£126.26 Inc. VAT
CL-275-SPC CL-275-SPC Imperial Steel Horizontal Handle 600lbs Tapped Plunger Flanged Base £74.52
£89.42 Inc. VAT
CL-355-TPC CL-355-TPC Imperial Steel Threaded Body 200lbs Self Adjusting Plunger On Enquiry
CL-150-TPC-S CL-150-TPC-S Imperial Stainless Steel Threaded Body 200lbs Tapped Plunger £85.79
£102.95 Inc. VAT
CL-150-SPC CL-150-SPC Imperial Steel Standard SPC Design 300lbs Tapped Plunger £27.85
£33.42 Inc. VAT
CL-255-TPC CL-255-TPC Imperial Steel Threaded Body 100lbs Self Adjusting Plunger On Enquiry
CL-200-PC CL-200-PC Imperial Steel PC Design 850lbs Tapped Plunger £68.87
£82.64 Inc. VAT
CL-650-SPC CL-650-SPC Imperial Steel Standard SPC Design 16000lbs Tapped Plunger £263.38
£316.06 Inc. VAT
CL-100-LSPC-S CL-100-LSPC-S Imperial Stainless Steel Standard SPC Design 300lbs Tapped Plunger with Safety Lock £93.37
£112.04 Inc. VAT
CL-60-SPC CL-60-SPC Imperial Steel Standard SPC Design 150lbs Tapped Plunger £33.25
£39.90 Inc. VAT

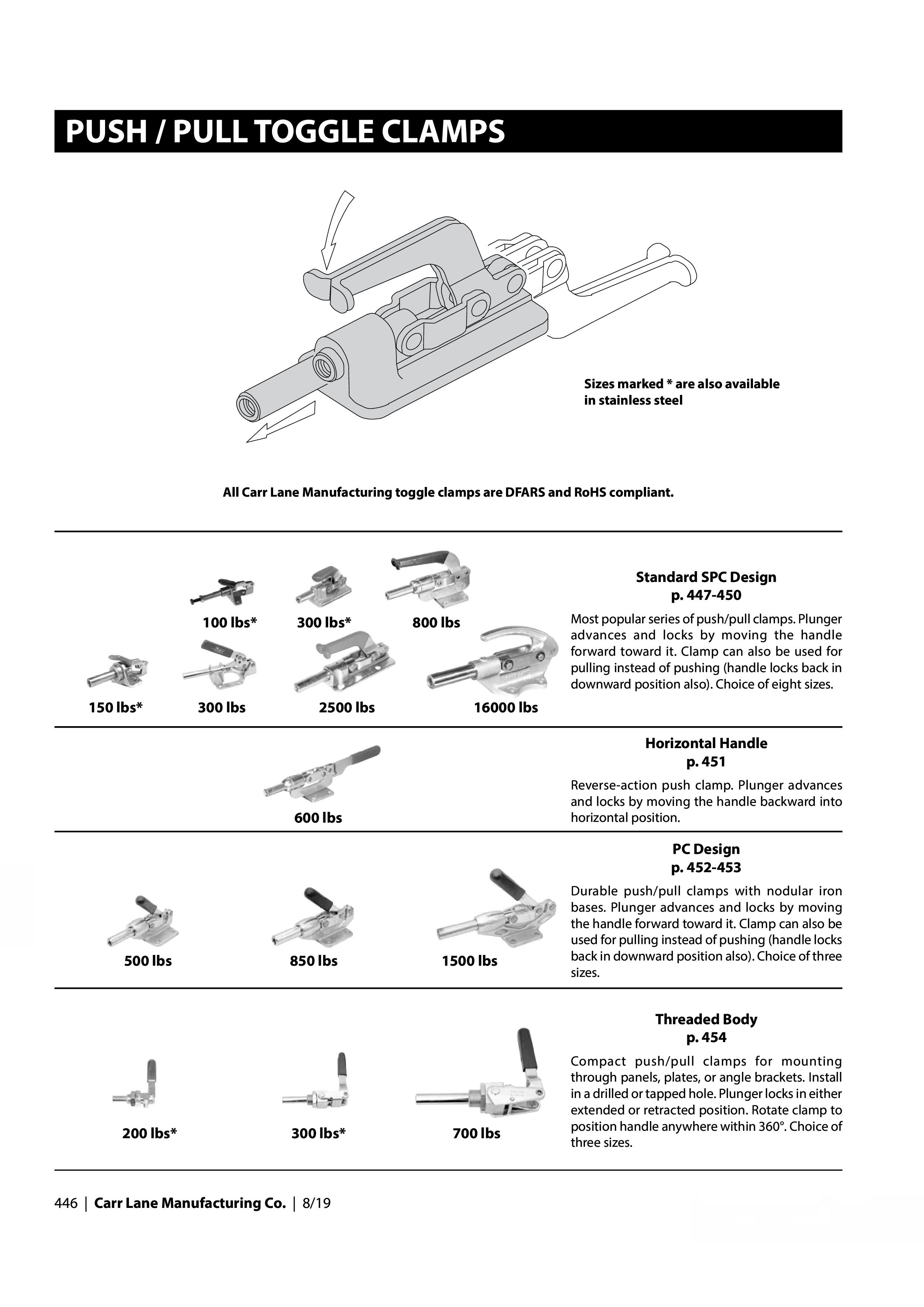

Carr Lane Push/ Pull Toggle Clamps datasheet

Carr Lane Push/Pull Toggle Clamps

Push/pull toggle clamps incorporate a sliding plunger to provide a straight-line clamping action. The toggle action moves and locks the plunger in either the pushing or pulling  Carr Lane Push/pull toggle clamps are designed with a sliding plunger to allow the clamping action to occur in a straight-line. The plungers on these clamps can be secured in either the pushing or pulling direction by moving the toggle. The push/pull toggle clamps are offer in several variations such as the standard SPC series, horizontal handled, PC series and threaded body variants. Each variation of the push/pull toggle clamp provides different features and holding capacities. These are available in both metric and imperial sizes in both steel and stainless steel.

Standard SPC Design -Most popular of the push/pull toggle clamps series. Plunger, available in eight sizes with inch or metric tapped plunger, advances and locks by pivoting the handle forward. Clamps can also be used for pulling instead of pushing, because the handle locks back in downward position also. Two of these sizes are available with optional safety-lock feature, and one size is available with patented self-adjusting plunger.

Threaded Body - Compact push/pull clamps for mounting through panels, plates, or angle brackets. Install in a drilled or tapped hole, plunger locks in either extended or retracted position. Rotate clamp to position handle anywhere within 360°. Choice of three sizes with inch or metric tapped plunger, two of these sizes are optionally available patented self-adjusting plunger.

Horizontal Handle - Reverse-action toggle push clamp. Plunger advances and locks by moving the handle backward into horizontal position. Available in one size, with inch or metric tapped plunger, optionally available with patented self-adjusting plunger.

PC Design - Durable push/pull toggle clamps with nodular iron bases. Plunger advances and locks by pivoting the handle forward. Clamp can also be used for pulling instead of pushing, because the handle locks back in downward position also. Choice of three sizes, with inch or metric tapped plunger with all three sizes available with optional safety-lock feature.

All specific measurements and finer details are shown on the Download Sheet
