Manually Operated Directional Control Valve Combinations ND 4
ROEMHELD C 2.345 Manually Operated Directional Control Valve Combinations ND 4, Single and Double Acting
- Maximum operating pressure 500 bar
- Port size: G 1/4
- Adm. flow rate: 8 l/min
- Hydraulic oil: HLP 22
- Angle of rotation: 90º
- Operating torque: 0.63 Nm
- Single and Double Acting
Description
Downloads

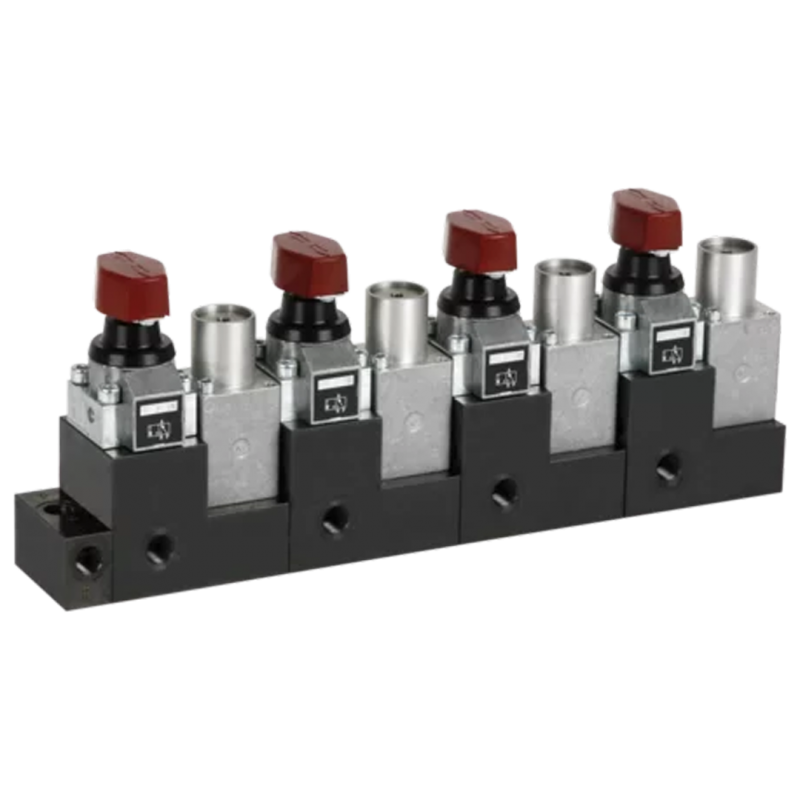

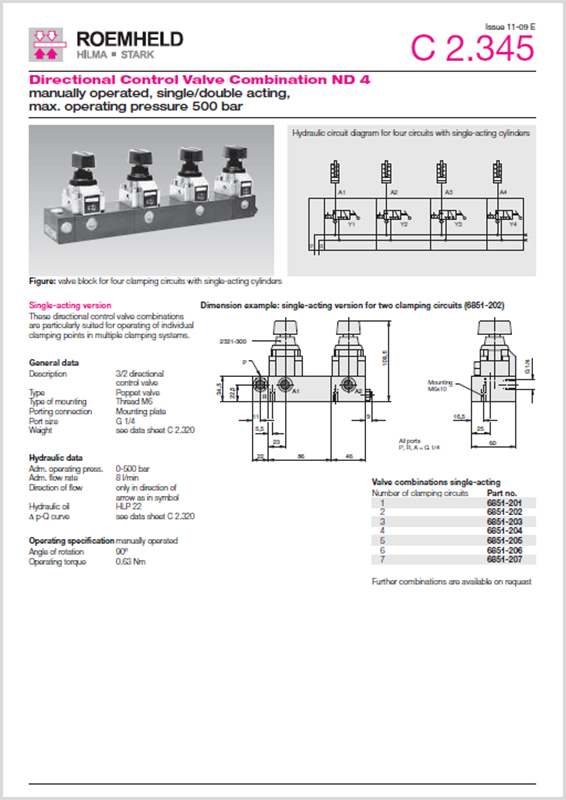

Directional Control Valve Combinations ND 4 - ROEMHELD C 2.345
- Max. operating pressure 500 bar
- Port size: G 1/4
- Adm. flow rate: 8 l/min
- Hydraulic oil: HLP 22
- Angle of rotation: 90º
- Operating torque: 0.63 Nm
- Single and Double Acting
Single-acting version
These directional control valve combinations are particularly suited for operating of individual clamping points in multiple clamping systems.
|
Valve Combinations Single-acting
|
|
|
Number of Clamping Circuits
|
Part Number
|
|
1
|
6851-201
|
|
2
|
6851-202
|
|
3
|
6851-203
|
|
4
|
6851-204
|
|
5
|
6851-205
|
|
6
|
6851-206
|
|
7
|
6851-207
|
|
Further combinations are available on request
|
|
Double-acting version
These valve combinations can be used to operate double-acting cylinders. A 3/2 directional control valve and an intermediate valve plate are operated by a turning knob so that the double-acting function is obtained. The design of the subplates allows the combination with single-acting units.
| Valve Combinations Double-acting | |
| Number of Clamping Circuits | Part Number |
| 1 | 2365-001 |
| 2 | 2365-002 |
| 3 | 2365-003 |
| 4 | 2365-004 |
| 5 | 2365-005 |
| Further combinations are available on request | |
| Quantity | Unit discount | You Save |
|---|
