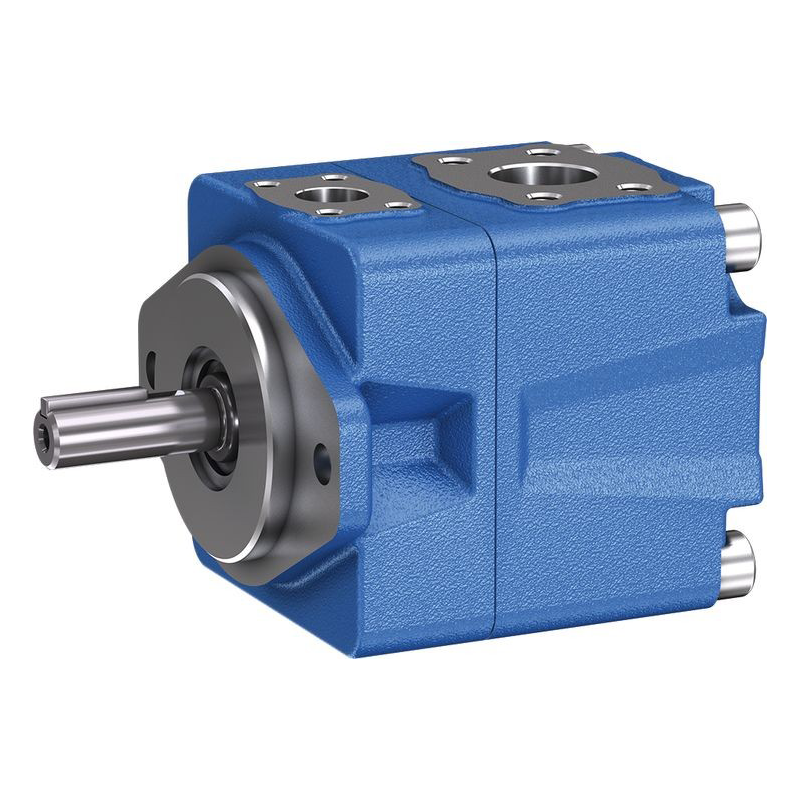

Bosch Rexroth Fixed Displacement Vane Pumps PVH

PVH Series 1x Size 16 to 79

Fixed displacement vane pumps PVH

  • Fixed displacement
  • Frame size 1, 2
  • Size 16 … 79
  • Nominal pressure 290 bar
  • Maximum pressure 320 bar
  • Displacement 15.9 … 79.3 cm³

Description
Downloads

Bosch Rexroth Fixed Displacement Vane Pumps PVH 16cc to 79cc

  • Fixed displacement
  • Frame size 1, 2
  • Size 16 … 79
  • Nominal pressure 290 bar
  • Maximum pressure 320 bar
  • Displacement 15.9 … 79.3 cm³

Features:

  • High bearing life due to hydraulically-balanced drive shaft
  • Low wear due to hydraulically unloaded vanes
  • Low operating noise
  • Easy to service due to exchangeable pump cartridges
  • Good efficiency
  • Position of the suction port selectable
  • Drive direction of rotation clockwise or counter clockwise
  • Drive shaft optionally cylindrical or splined

Use:

  • For drives with high working pressure, for example, press brakes
