Bosch Rexroth Variable Displacement Motors A6VE Series 6x

A6VE Series 6x size 28 to 250

Axial piston variable motor A6VE series 6x

Series 63

  •  High-pressure motor for integration in mechanical gearboxes
  •  Size 250
  •  Nominal pressure 350 bar
  •  Maximum pressure 400 bar
  •  Open and closed circuit

Series 65

  • High pressure motor for integration in mechanical gearbox
  • Sizes 28 to 200
  • Nominal pressure 400 bar (sizes 28 to 200)
  • Maximum pressure 450 bar (size 28)
  • Maximum pressure 530 bar (sizes 55 to 200)
  • Open and closed circuits

Description
Downloads

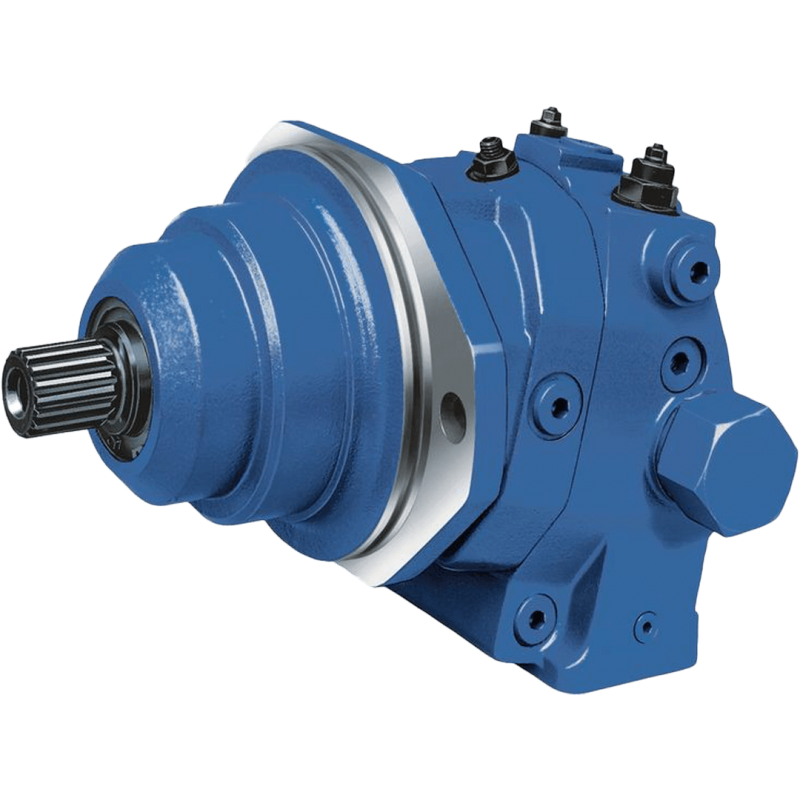

Bosch Rexroth Hydraulic Variable Displacement Motors A6VE Series 6x 28cc to 250cc

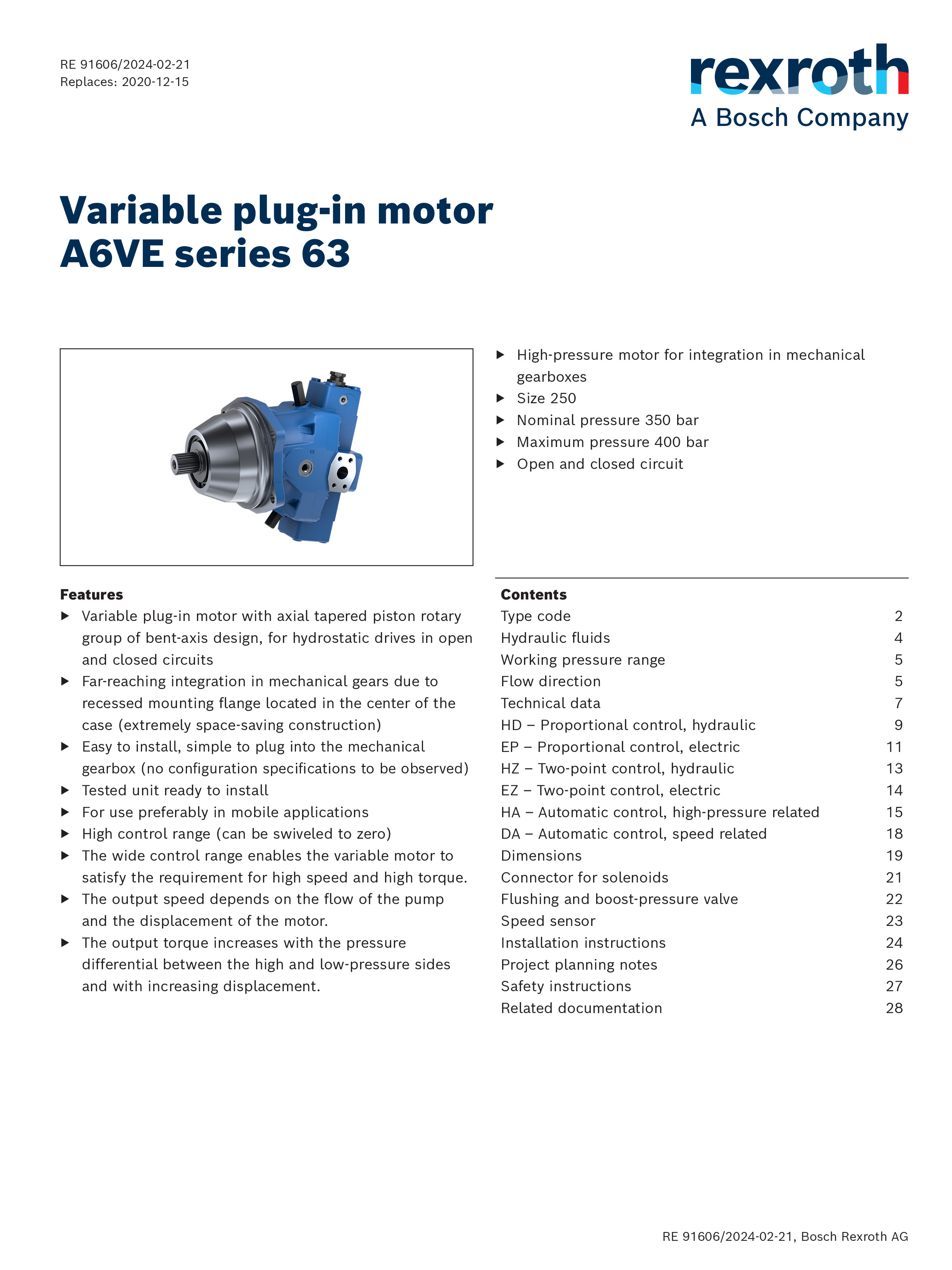

Series 63

  •  High-pressure motor for integration in mechanical gearboxes
  •  Size 250
  •  Nominal pressure 350 bar
  •  Maximum pressure 400 bar
  •  Open and closed circuit

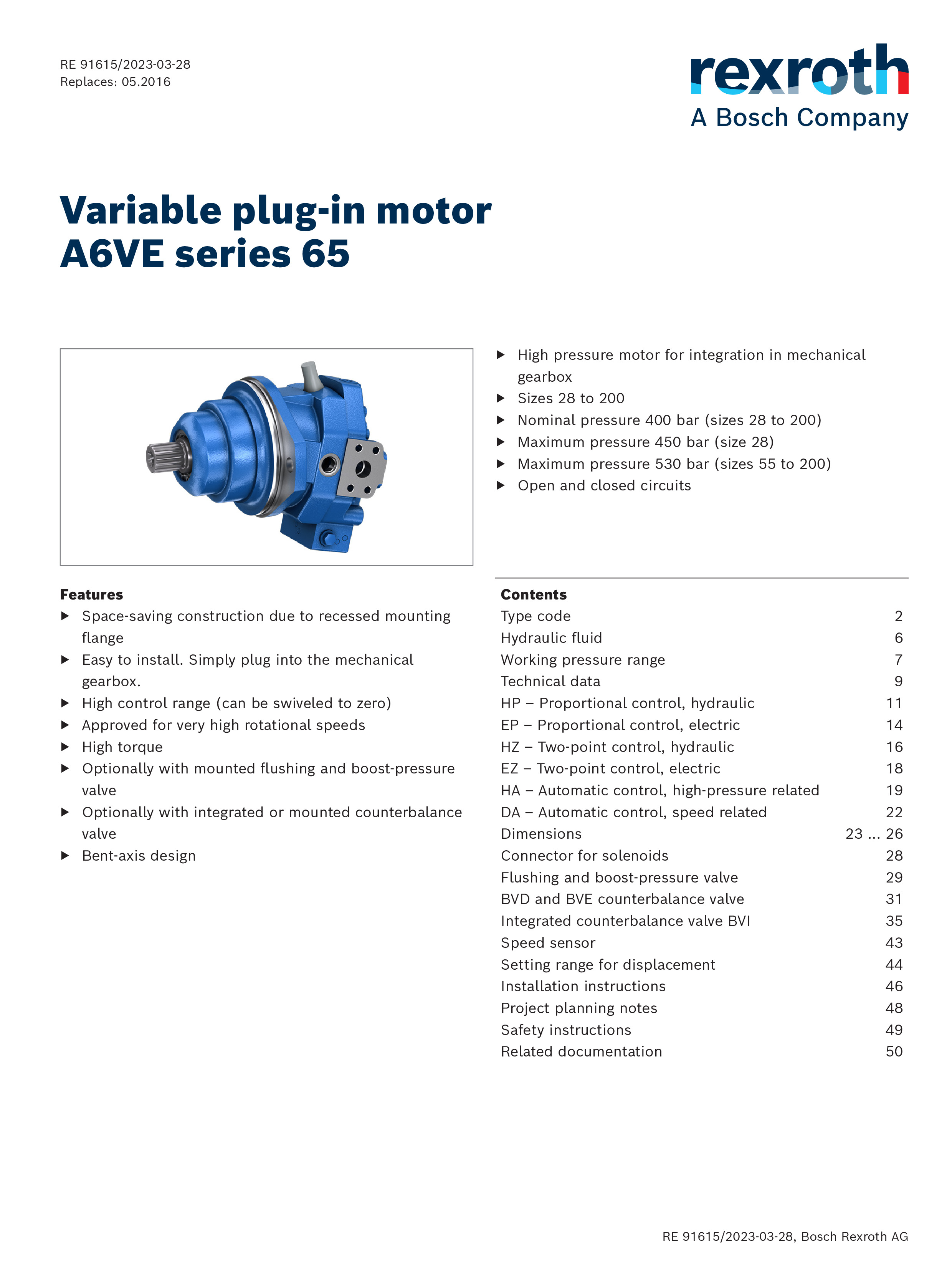

Series 65

  • High pressure motor for integration in mechanical gearbox
  • Sizes 28 to 200
  • Nominal pressure 400 bar (sizes 28 to 200)
  • Maximum pressure 450 bar (size 28)
  • Maximum pressure 530 bar (sizes 55 to 200)
  • Open and closed circuits

Features:

Series 63

  •  Variable plug-in motor with axial tapered piston rotary group of bent-axis design, for hydrostatic drives in open and closed circuits
  •  Far-reaching integration in mechanical gears due to recessed mounting flange located in the centre of the case (extremely space-saving construction)
  •  Easy to install, simple to plug into the mechanical gearbox (no configuration specifications to be observed)
  •  Tested unit ready to install
  •  For use preferably in mobile applications
  •  High control range (can be swivelled to zero)
  •  The wide control range enables the variable motor to satisfy the requirement for high speed and high torque.
  •  The output speed depends on the flow of the pump and the displacement of the motor.
  •  The output torque increases with the pressure differential between the high and low-pressure sides and with increasing displacement

Series 65

  • Space-saving construction due to recessed mounting flange
  • Easy to install. Simply plug into the mechanical gearbox.
  • High control range (can be swiveled to zero)
  • Approved for very high rotational speeds
  • High torque
  • Optionally with mounted flushing and boost-pressure valve
  • Optionally with integrated or mounted counterbalance valve
  • Bent-axis design
