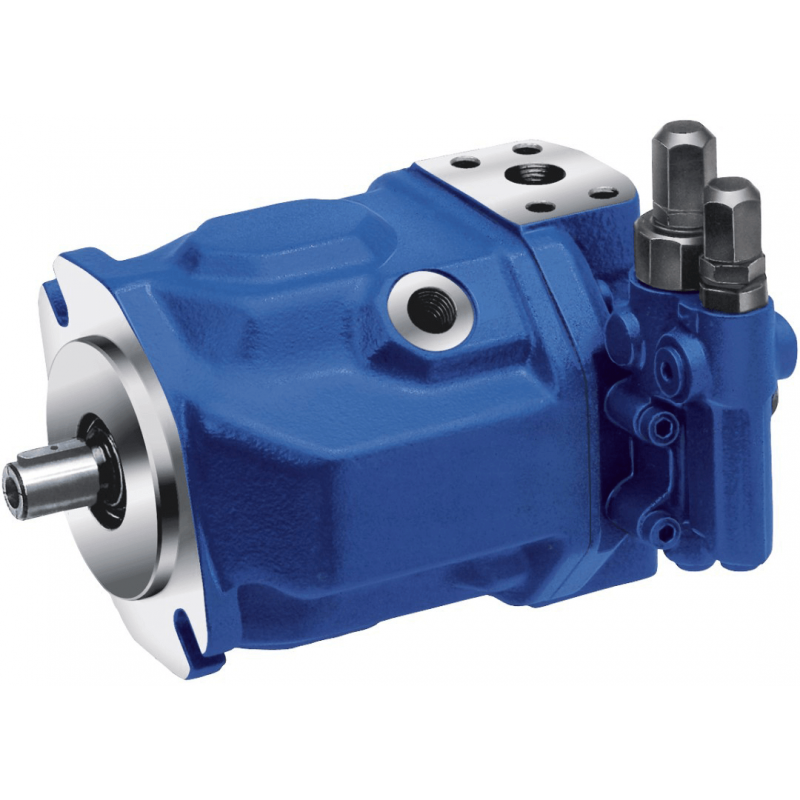

A10VSO series 31 Size 18 to 100

Bosch Rexroth Hydraulic Variable Displacement Axial Piston Pumps 18cc to 100cc

• All-purpose medium pressure pump
• Size: 18 to 100
• Nominal pressure: 280 bar
• Maximum pressure: 350 bar
• Open circuit

Features:

• Variable pump with axial piston rotary group in swashplate design for hydrostatic drives in open circuit
• The flow is proportional to the drive speed and displacement
• The flow can be infinitely varied by adjusting the swashplate angle
• 2 drain ports
• Excellent suction performance
• Low operating noise level
• Long service life
• Favourable power/weight ratio
• Versatile controller range
• Short control response time
• The through drive is suitable for adding gear pumps and axial piston pumps up to the same size, i.e., 100% through drive
• Suitable for operation with mineral oil and HF hydraulic fluids

General Function:

The A10VO and A10VSO are variable pumps with axial piston rotary group in swashplate design for hydrostatic drive in an open circuit. Flow is proportional to drive speed and displacement. The flow can be steplessly changed by adjusting the swashplate. For axial piston units with swashplate design, the pistons are arranged axially with respect to the drive shaft.

In an open circuit, the hydraulic fluid flows from the reservoir to the hydraulic pump from where it is fed to the consumer, e.g. hydraulic motor. From the consumer, the hydraulic fluid flows directly back to the reservoir.

Performance Description:

The Axial piston variable pump generates, controls and regulates a hydraulic fluid flow. The A10VO is designed for mobile applications such as construction machinery. The A10VSO is designed for stationary applications such as tooling machines.
