A15VO series 12 Size 110 to 280

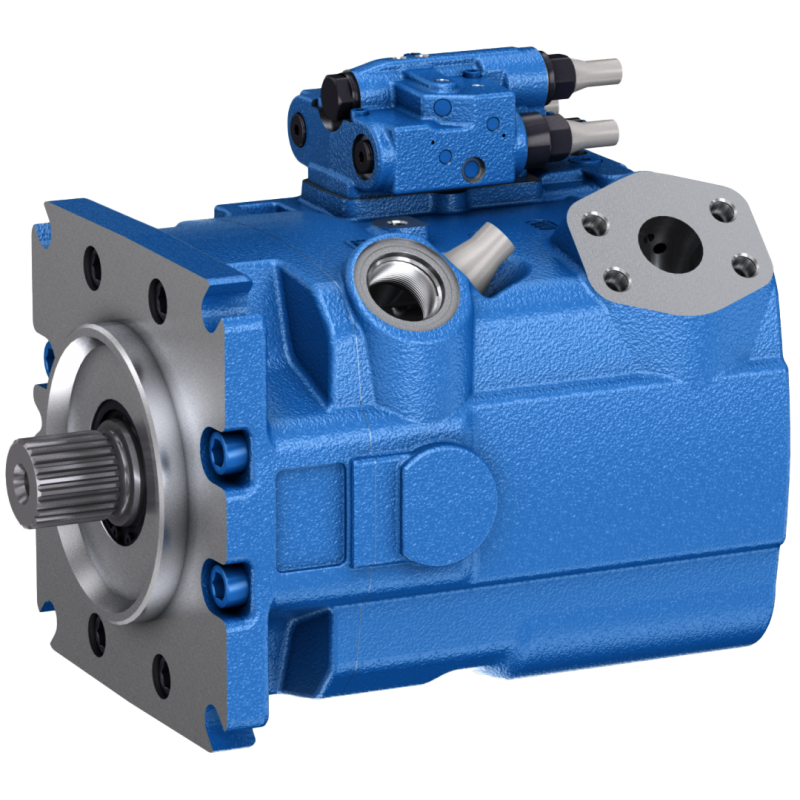

Bosch Rexroth Hydraulic Variable Displacement Axial Piston Pumps 110cc to 280cc

•  Sizes 110 to 280
•  Nominal pressure 350 bar (5100 psi)
•  Maximum pressure 420 bar (6100 psi)
•  Open circuit

Features:

•  Variable pump with axial piston rotary group in swashplate design for hydrostatic drives in open circuit
•  For use in mobile applications
•  Flow is proportional to the drive speed and displacement
•  Flow can be infinitely varied by controlling the swashplate angle
•  Special control device program with dynamic control behaviour and swivel angle sensor with Hall effect for fully electrified pump control
•  Noise-optimized throughout the entire operating range
•  The robust and low-wear swivel angle positioning allows for a long service life
•  Ready for Hybrid: ±100% swivel angles allow for regenerative operation in the motor quadrant area up to nominal pressure
•  Compact design
•  High efficiency
•  High power density
