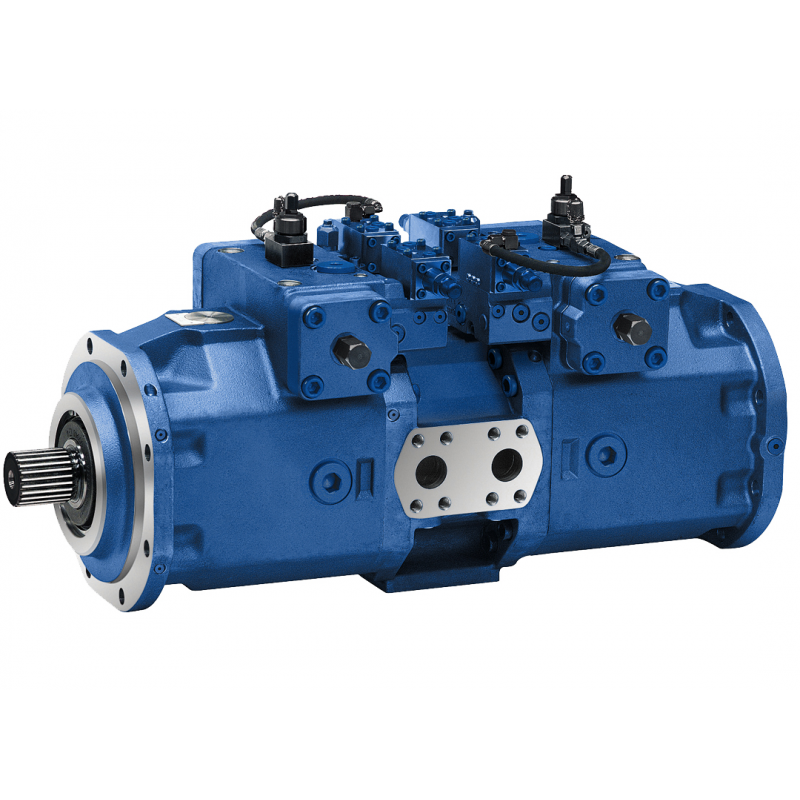

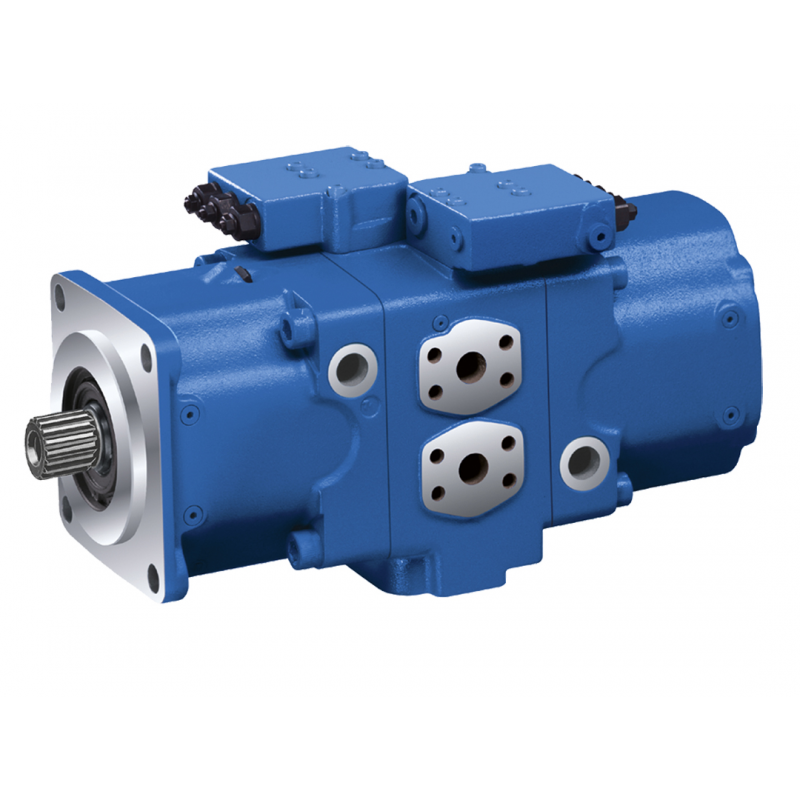

A20VO, A20VLO series 10 Size 60 to 520

Bosch Rexroth Hydraulic Variable Displacement Axial Piston Pumps 60cc to 520cc

•  Size 60 - Nominal pressure 250 bar - Maximum pressure 315 bar
•  Sizes 95 to 520 - Nominal pressure 350 bar - Maximum pressure 400 bar
•  Open circuit

Features:

•  Variable double pump with two axial piston rotary groups with swashplate design for hydrostatic drives in an open circuit
•  Flow is proportional to the drive speed and displacement
•  The flow can be continuously changed with closed loop control
•  For use in mobile and industrial application areas
•  The pump consists of proven components of the A11VO (RE 92500), A10VO/53 (RE 92703), or A4VSO (RE 92050) variable displacement pumps
•  An extensive range of control devices is available in the respective data sheets for different control and regulating functions
•  Pump operation can be self-priming, with a priming reservoir, or with a charge pump (NG 190 and 260)
•  Power setting is possible from the outside, even while the machine is running (only with power controller)
•  The through drive is suitable for mounting gear pumps and axial piston pumps
