Multiple Clamping System MSH

Multiple Clamping Sytems MSH

• Modules: 17 - 40 kN at 17 - 65 Nm
• Linear clamping modules 15 kN at 30 Nm
• Length of base modules: 250 - 750 mm
• Clamping against the fixed jaw
• Sizes 24•40•60•100•120 mm
• 3 sizes available

3 designs - Premium, EasyClamp, Goliath

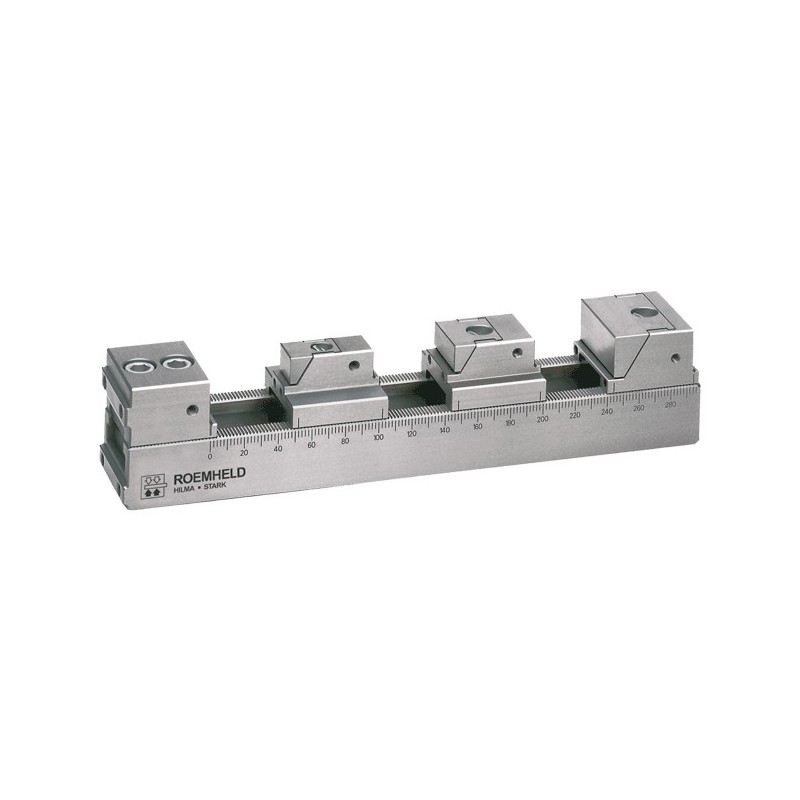

ROEMHELD Multiple Clamping Systems MSH. High-precision multiple clamping system MSH clamps cubic, round as well as irregularly-shaped workpieces with identical or different dimensions in small, mid-sized, and large lot sizes. MSH may be used as an individual system or in combination with additional elements (e.g. towers, bridges, base plates) on all machine tools, machining centres and flexible manufacturing systems.

A simple design that guarantees safe and user-friendly handling. The modular design allows any extension to suit specific requirements. Short set-up times, minimum machine travel achieved by high workpieces density, reduced tool changes and a high rate of amortisation are the economic advantages of using this system. Precise frictional connection between base and clamping module via fine toothing as well as patented eccentric locking by means of one locking screw only. Rapid set-up without measuring instruments using the scale on the base module and graduation marks on the fixed and clamping module.
