Mechanical Hydraulic KNC Machine Vice

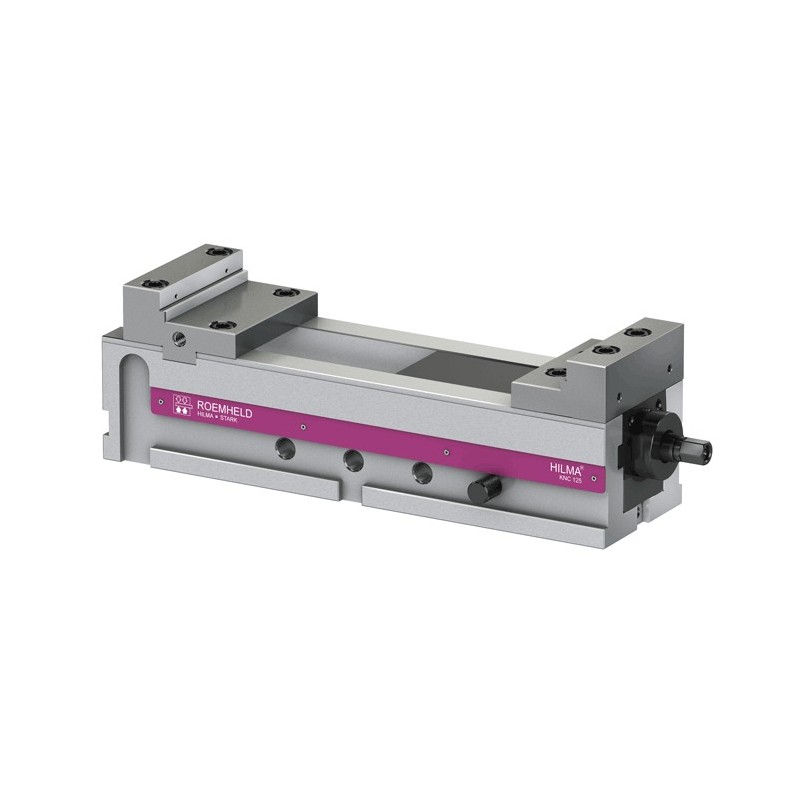

Mechanical Hydraulic KNC Machine Vice - ROEMHELD 1.3150

• Clamping against the fixed jaw
• Mechanically/hydraulically operated
• Sizes: 100, 125, 160mm
• Universal design

Max. Clamping Force

• KNC 100: 25 kN
• KNC 125: 40 kN
• KNC 160: 50 kN

KNC machine vice mechanical-hydraulic for tool making, mould making, construction of jigs and fixtures and production - The machine vice for exacting demands on clamping quality.

The mechanical-hydraulic force transmission and the lead screw are integrated into the slide body and are fully encapsulated. Easy, user-friendly manual clamping using the crank handle. 6-stage clamping force selection and angle drive are available as optional extras which may be retrofitted. The steel base with minimum deformation equipped with hardened and ground guideways as well as the linear guide with almost no play of the slide guarantee maximum precision.
