Ball Valves - 2 Way

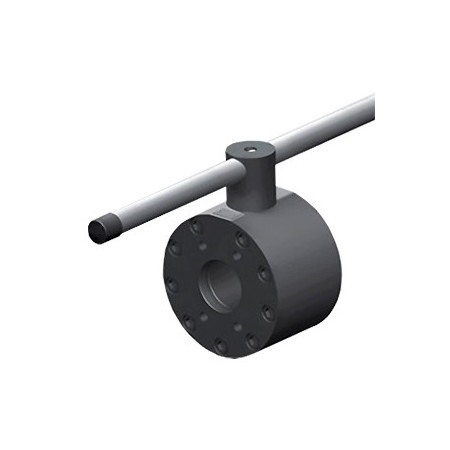

The HYDAC KHF3 is a robust 2-way ball valve with fixed SAE flange connections, designed for medium-pressure applications up to PN 160. With a durable construction and full-flow design, it provides reliable shut-off for a wide range of hydraulic systems using mineral oil or other compatible fluids.

Key Features:

• Fixed SAE flange connection for secure and stable installation
• Full-flow passage for minimal pressure loss and efficient operation
• Compatible with actuator, limit switch, and lock for added control and safety

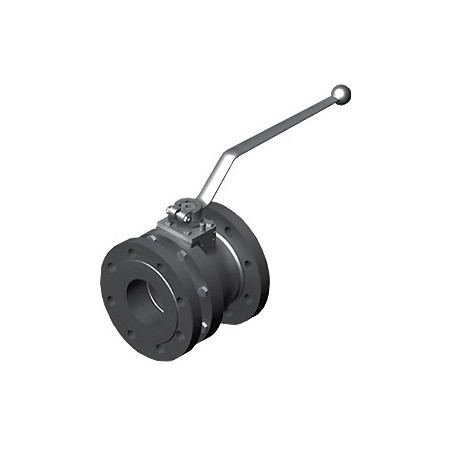

The HYDAC Flanged 2-Way Ball Valve Type KHFF is a robust, high-performance valve designed for demanding industrial applications involving gases and fluids. With pressure ratings from PN 10 to PN 40 and sizes ranging from DN 65 to DN 300, it ensures reliable operation across a wide temperature range, thanks to its adaptable ball seal options.

Key Features:

• Wide temperature tolerance: –50 °C to +230 °C depending on ball seal material
• Compatible with neutral gases, corrosive fluids, alkalis, and mineral oil products
• Optional accessories include stem extension, heating jackets, and locking/positioning devices
