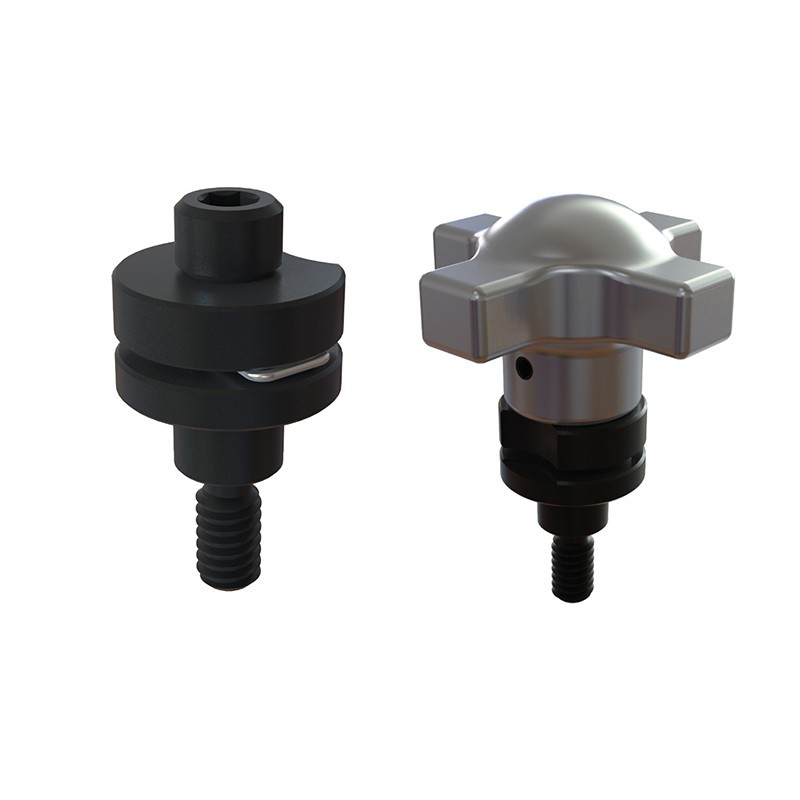

Carr Lane Captive Locating Screws

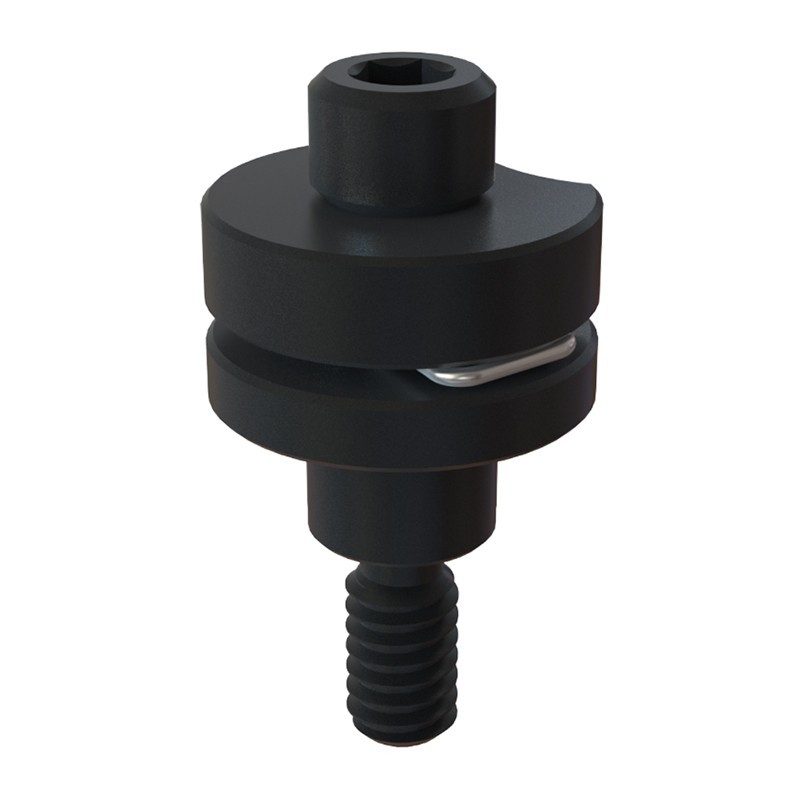

Carr Lane Captive Locating Screws Standard

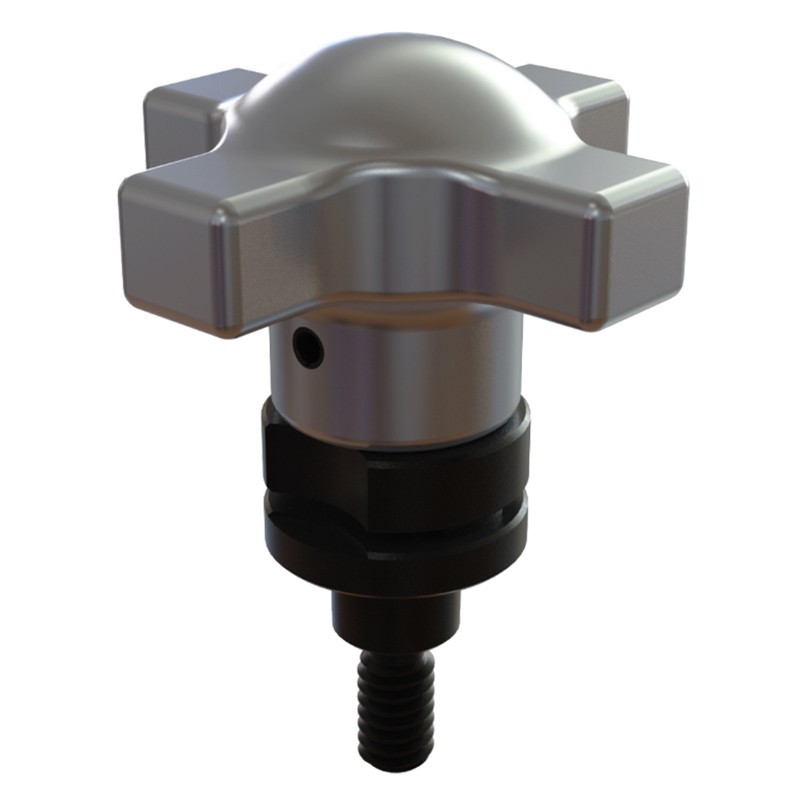

Carr Lane Captive Locating Screws with Hand Knob

Carr Lane Captive Locating Screws

Captive Locating Screws can be used for locating and clamping, or for clamping only, by selecting the appropriate screw length. The locating screw's precision-ground body is positively retained in a locking bushing and in fully retracted position, the bushing's spring clip snaps into the body's radial groove, holding the fully retracted screw by spring force and positively prevents removal. Spring pressure also holds the screw in intermediate extended positions, an advantage especially if the fixture is turned upside down. Available in thread sizes from 1/4-20 to 1/2-13.Locking-Pin Bushings are designed to press fit in a standard reamed hole. Secure with the included Lock screw to positively hold the bushing in place. Shorter or longer bushings are available in most sizes, for thinner or thicker plates.

Print page

Products
Downloads
Description
Part Number Material Number Type Assembly Options External Diameter Length Thread Price Add to Parts List
CL-5-CLSA-3.00 CL-5-CLSA-3.00 Standard Complete Assembly .3115 2.56 5/16-18 £47.74
£57.29 Inc. VAT
CL-8-CLSA-2.00 CL-8-CLSA-2.00 Standard Complete Assembly .4990 1.56 1/2-13 £52.07
£62.48 Inc. VAT
CL-5-CLS-3.00 CL-5-CLS-3.00 Standard Locating Screw Only .3115 n/a 5/16-18 £21.18
£25.42 Inc. VAT
CL-5-CLSA-1.75 CL-5-CLSA-1.75 Standard Complete Assembly .3115 1.31 5/16-18 £47.12
£56.54 Inc. VAT
CL-8-CLSA-1.50 CL-8-CLSA-1.50 Standard Complete Assembly .4990 1.06 1/2-13 £49.15
£58.98 Inc. VAT
CL-5-CLS-1.75 CL-5-CLS-1.75 Standard Locating Screw Only .3115 n/a 5/16-18 £20.57
£24.68 Inc. VAT
CL-8-CLS-3.00 CL-8-CLS-3.00 Standard Locating Screw Only .4990 n/a 1/2-13 £21.28
£25.54 Inc. VAT
CL-5-CLS-1.38 CL-5-CLS-1.38 Standard Locating Screw Only .3115 n/a 5/16-18 £16.63
£19.96 Inc. VAT
CL-8-CLSA-3.00 CL-8-CLSA-3.00 Standard Complete Assembly .4990 2.56 1/2-13 £54.89
£65.87 Inc. VAT
CL-5-CLSA-1.38 CL-5-CLSA-1.38 Standard Complete Assembly .3115 .94 5/16-18 £43.20
£51.84 Inc. VAT
CL-4-CLS-1.25 CL-4-CLS-1.25 Standard Locating Screw Only .2490 n/a 1/4-20 £13.32
£15.98 Inc. VAT
CL-4-CLSA-1.25 CL-4-CLSA-1.25 Standard Complete Assembly .2490 .81 1/4-20 £38.03
£45.64 Inc. VAT
CL-6-CLSA-2.00 CL-6-CLSA-2.00 Standard Complete Assembly .3740 1.56 3/8-16 £47.74
£57.29 Inc. VAT
CL-8-CLS-2.00 CL-8-CLS-2.00 Standard Locating Screw Only .4990 n/a 1/2-13 £18.79
£22.55 Inc. VAT
CL-6-CLSA-1.50 CL-6-CLSA-1.50 Standard Complete Assembly .3740 1.06 3/8-16 £43.84
£52.61 Inc. VAT
CL-8-CLS-1.50 CL-8-CLS-1.50 Standard Locating Screw Only .4990 n/a 1/2-13 £17.48
£20.98 Inc. VAT
CL-6-CLSA-3.00 CL-6-CLSA-3.00 Standard Complete Assembly .3740 2.56 3/8-16 £50.57
£60.68 Inc. VAT
CL-6-CLS-3.00 CL-6-CLS-3.00 Standard Locating Screw Only .3740 n/a 3/8-16 £20.84
£25.01 Inc. VAT
CL-6-CLS-2.00 CL-6-CLS-2.00 Standard Locating Screw Only .3740 n/a 3/8-16 £20.18
£24.22 Inc. VAT
CL-6-CLS-1.50 CL-6-CLS-1.50 Standard Locating Screw Only .3740 n/a 3/8-16 £16.60
£19.92 Inc. VAT
CL-6-LPB CL-6-LPB Bushing Bushing Only .3740 n/a n/a £31.00
£37.20 Inc. VAT
CL-5-LPB CL-5-LPB Bushing Bushing Only .3115 n/a n/a £28.15
£33.78 Inc. VAT
CL-4-LPB CL-4-LPB Bushing Bushing Only .2490 n/a n/a £26.06
£31.27 Inc. VAT
CL-8-LPB CL-8-LPB Bushing Bushing Only .4990 n/a n/a £35.53
£42.64 Inc. VAT

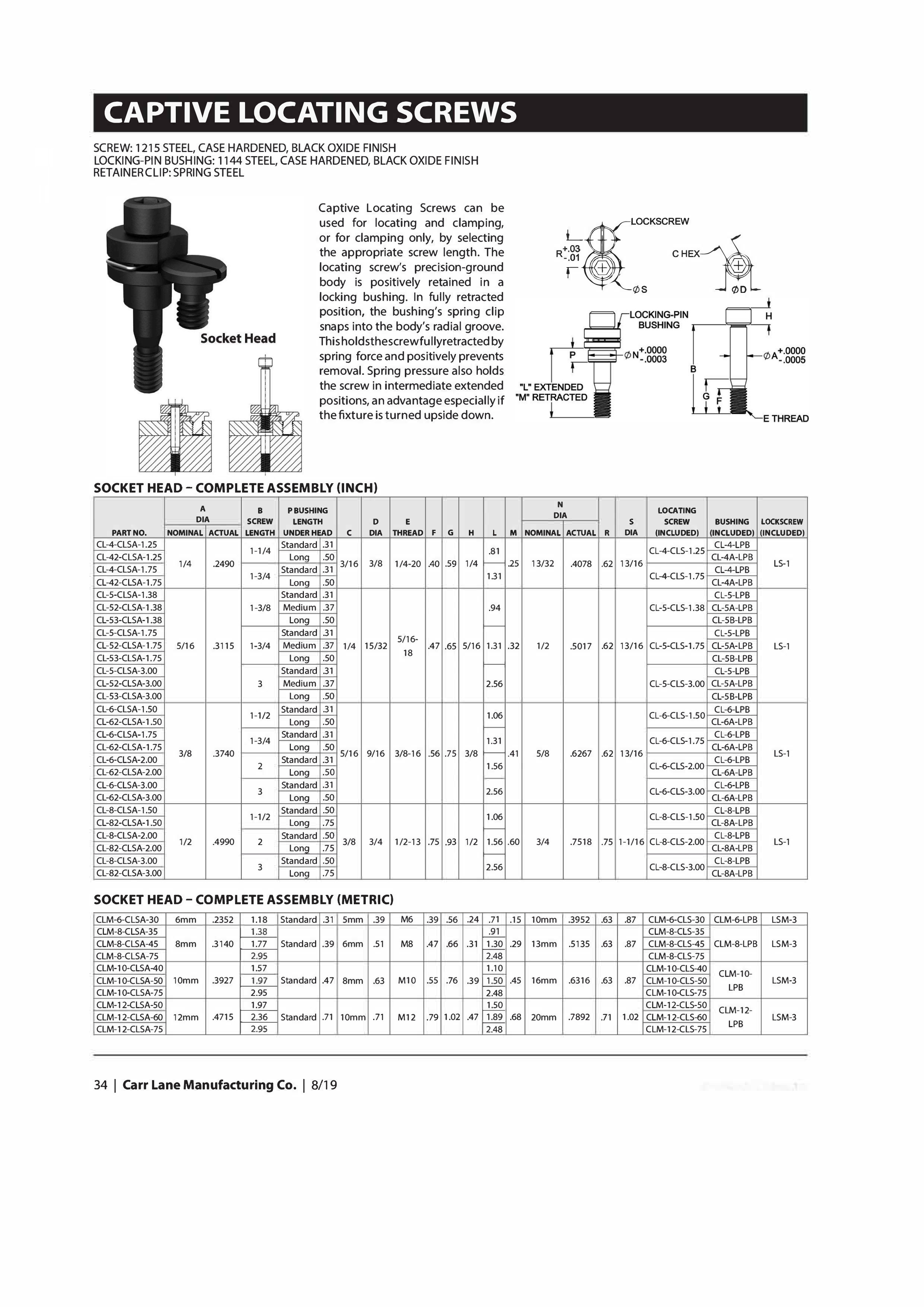

Captive Locating Screws datasheet

Carr Lane Captive Locating Screws

Captive Locating Screws can be used for locating and clamping, or for clamping only, by selecting the appropriate screw length. The locating screw's precision-ground body is positively retained in a locking bushing and in fully retracted position, the bushing's spring clip snaps into the body's radial groove, holding the fully retracted screw by spring force and positively prevents removal.

Spring pressure also holds the screw in intermediate extended positions, an advantage especially if the fixture is turned upside down. Available in thread sizes from 1/4-20 to 1/2-13.

Locking-Pin Bushings are designed to press fit in a standard reamed hole. Secure with the included Lockscrew to positively hold the bushing in place. Shorter or longer bushings are available in most sizes, for thinner or thicker plates.

Options:

  • Standard and Hand Knob Assembly options
  • Thread: 1/4-20 - 1/2-13
  • Length: .81 - 2.56
  • Complete Assembly, locking screw only and bushing only to chose from

Locking-Pin Bushings are designed to press fit in a standard reamed hole. Secure with the included Lockscrew to positively hold the bushing in place. Shorter or longer bushings are available in most sizes.
