Carr Lane Locking Clamping Pins

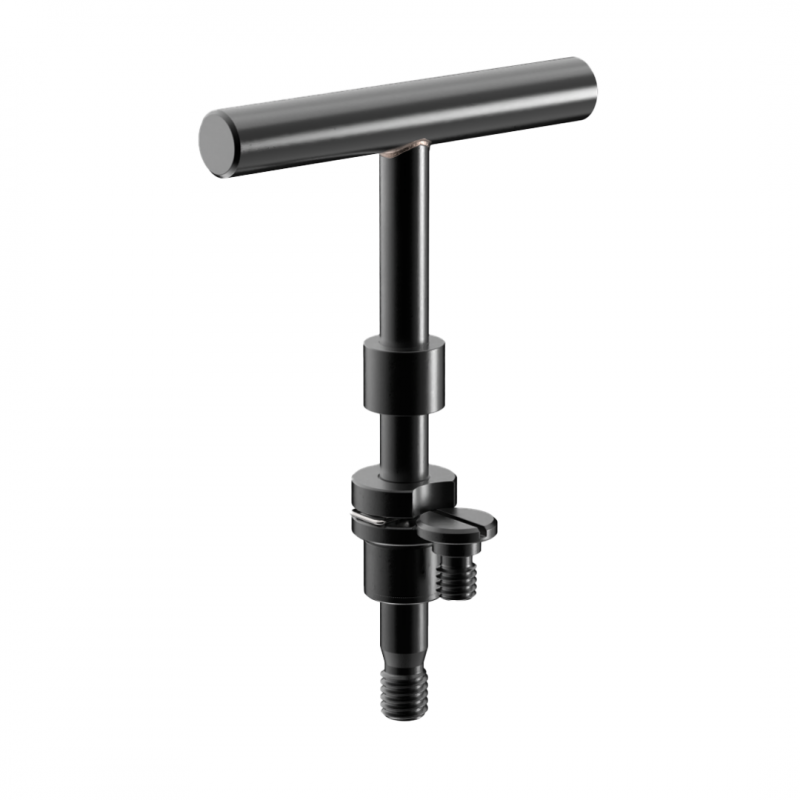

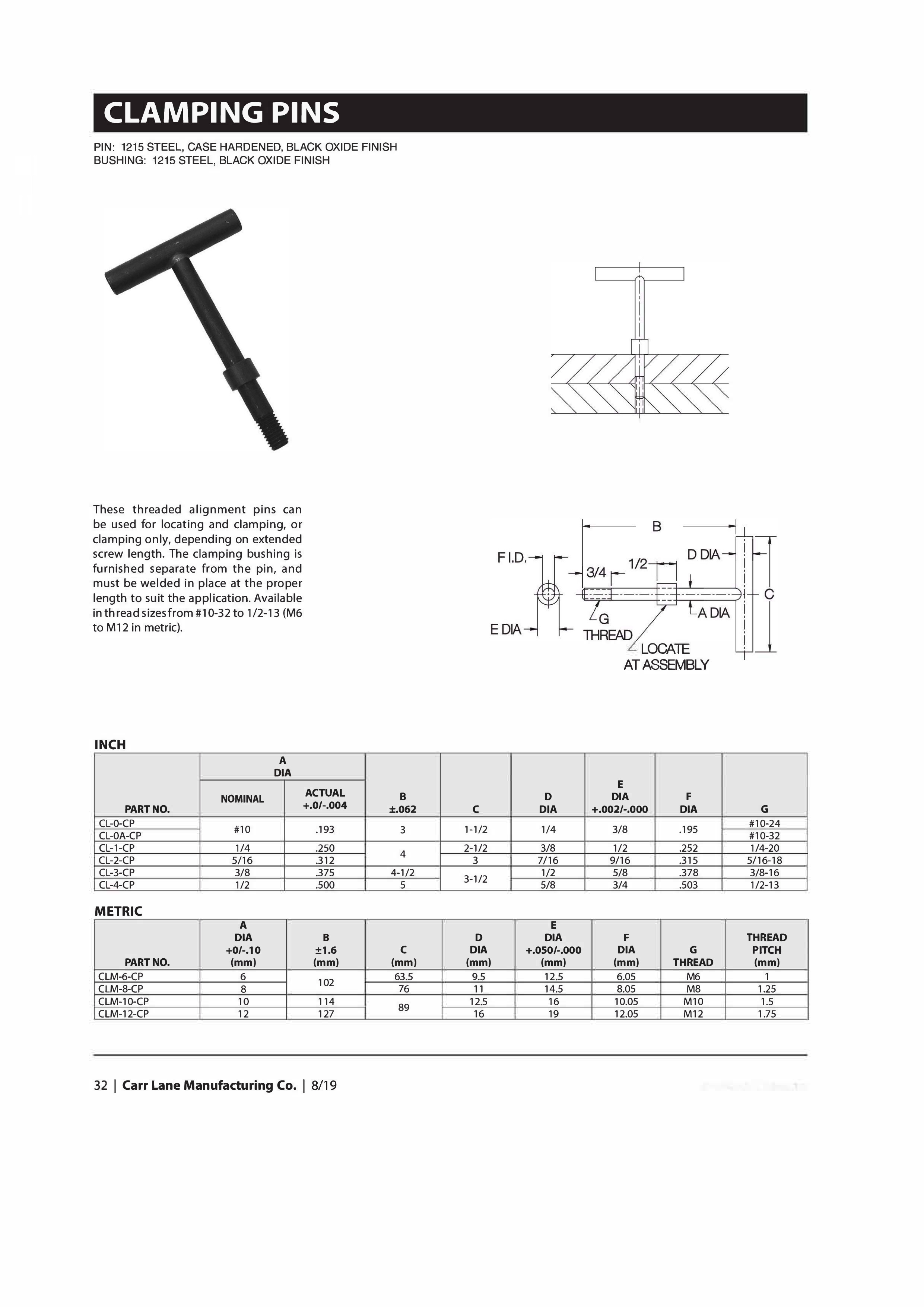

Locking Clamping Pins are available as Complete Assembly, Pin Only and Bushing Only, similar to clamping pins except the pin is positively retained in the bushing. In its retracted position, the bushing's spring clip clips into the pin's radial groove. This prevents removal by using spring force to hold the pin in a fully retracted position. Depending on extended screw length, these threaded alignment pins can be used for clamping and locating, or clamping only. The clamping bushing is made separate from the pin, and is required to be welded in place at the proper length to fit the application. These are available in thread sizes from #10-32 to 1/2-13 (M6 to M12 in metric)
Products
Downloads
Description
| Part Number | Material Number | Assembly Options | Metric or Imperial | Actual Diameter | Length in Inches | Price | Add to Parts List |
|---|---|---|---|---|---|---|---|
| CLM-8-LCP | Pin Only | Metric | .3140 | 4 | £32.96 £39.55 Inc. VAT |
|
|
| CLM-10-LCP | Pin Only | Metric | .3927 | 4-1/2 | £31.67 £38.00 Inc. VAT |
|
|
| CLM-6-LCP | Pin Only | Metric | .2352 | 4 | £32.04 £38.45 Inc. VAT |
|
|
| CLM-12-LCP | Pin Only | Metric | .4715 | 5 | £34.56 £41.47 Inc. VAT |
|
|
| CL-3-LCP | Pin Only | Imperial | .3740 | 4-1/2 | £18.41 £22.09 Inc. VAT |
|
|
| CL-1-LCP | Pin Only | Imperial | .2490 | 4 | £14.60 £17.52 Inc. VAT |
|
|
| CL-4-LCP | Pin Only | Imperial | .4990 | 5 | £20.24 £24.29 Inc. VAT |
|
|
| CL-2-LCP | Pin Only | Imperial | .3115 | 4 | £15.11 £18.13 Inc. VAT |
|
|
| CL-6A-LPB | Bushing Only | Imperial | .3740 | 4-1/2 | £30.58 £36.70 Inc. VAT |
|
|
| CL-4-LPB | Bushing Only | Imperial | .2490 | 4 | £27.62 £33.14 Inc. VAT |
|
|
| CL-8A-LPB | Bushing Only | Imperial | .4990 | 5 | £35.05 £42.06 Inc. VAT |
|
|
| CL-5A-LPB | Bushing Only | Imperial | .3115 | 4 | £27.62 £33.14 Inc. VAT |
|
|
| CLM-12-LPB | Bushing Only | Metric | .4715 | 5 | £37.67 £45.20 Inc. VAT |
|
|
| CLM-8-LPB | Bushing Only | Metric | .3140 | 4 | £29.84 £35.81 Inc. VAT |
|
|
| CLM-10-LPB | Bushing Only | Metric | .3927 | 4-1/2 | £32.86 £39.43 Inc. VAT |
|
|
| CLM-6-LPB | Bushing Only | Metric | .2352 | 4 | £29.84 £35.81 Inc. VAT |
|
|
| CLM-12-LCP-B | Complete Assembly | Metric | .4715 | 5 | £51.43 £61.72 Inc. VAT |
|
|
| CLM-8-LCP-B | Complete Assembly | Metric | .3140 | 4 | £45.46 £54.55 Inc. VAT |
|
|
| CL-1-LCP-B | Complete Assembly | Imperial | .2490 | 4 | £42.76 £51.31 Inc. VAT |
|
|
| CL-3-LCP-B | Complete Assembly | Imperial | .3115 | 4-1/2 | £48.49 £58.19 Inc. VAT |
|
|
| CLM-10-LCP-B | Complete Assembly | Metric | .3927 | 4-1/2 | £48.49 £58.19 Inc. VAT |
|
|
| CLM-6-LCP-B | Complete Assembly | Metric | .2352 | 4 | £45.04 £54.05 Inc. VAT |
|
|
| CL-4-LCP-B | Complete Assembly | Imperial | .4990 | 5 | £54.05 £64.86 Inc. VAT |
|
|
| CL-2-LCP-B | Complete Assembly | Imperial | .3115 | 4 | £43.19 £51.83 Inc. VAT |
|
Carr Lane Locking Clamping Pins
Similar to the Clamping Pins, except that the pin is positively retained in the bushing. The bushing's spring clip ring locks the pin in fully retracted position by snapping into the pin's groove.
Options:
- Complete Assembly, Pin Only and Bushing Only
- Metric and Imperial sizes available
