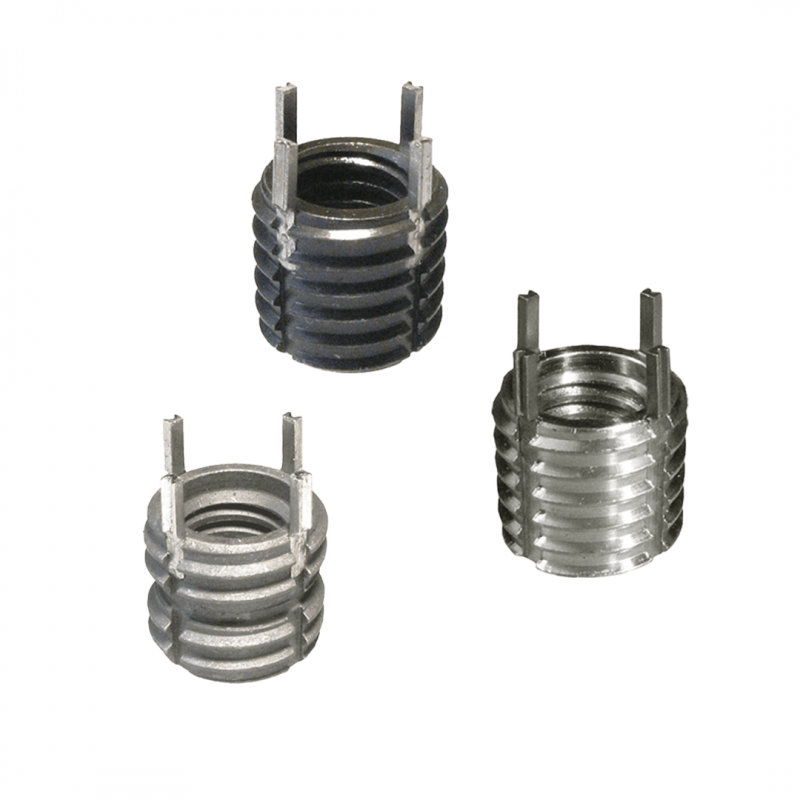

Carr Lane Heavy Duty Key Inserts

Carr lane heavy duty key inserts feature a thick thread wall making it ideal and compatible with a wide range of applications. These key inserts can be used for thread reinforcement particularly when the stud or bolt is moved frequently. Key Inserts are also ideal for quickly repairing stripped, damaged, or worn threads. The locking keys ensure the insert stays securely in place, preventing rotation. These are available in both steel and stainless steal as well as both metric and imperial sizes.

  • Imperial and Metric
  • Steel and Stainless Steel
  • External and Internal Thread Locking
Print page

Products
Downloads
Description
Part Number Material Number Metric or Imperial Length Material Locking or Non-Locking Internal Thread Price Add to Parts List
CLM-1015-SKSM CLM-1015-SKSM Metric .63 Stainless Steel Non-Locking M10 £23.15
£27.78 Inc. VAT
CLM-2025-KSM CLM-2025-KSM Metric 1.18 Steel Non-Locking M20 £29.83
£35.80 Inc. VAT
CLM-1615-KSM CLM-1615-KSM Metric .87 Steel Non-Locking M16x1.5 £31.00
£37.20 Inc. VAT
CLM-81-SKSM CLM-81-SKSM Metric .55 Stainless Steel Non-Locking M8x1 £40.08
£48.10 Inc. VAT
CLM-243-SKS CLM-243-SKS Metric 1.30 Stainless Steel Non-Locking M24 On Enquiry
CLM-8125-SKSM CLM-8125-SKSM Metric .55 Stainless Steel Non-Locking M8 £17.47
£20.96 Inc. VAT
CLM-162-KSM CLM-162-KSM Metric .87 Steel Non-Locking M16 £23.70
£28.44 Inc. VAT
CLM-2025-SKS CLM-2025-SKS Metric 1.18 Stainless Steel Non-Locking M20 £59.44
£71.33 Inc. VAT
CLM-61-SKSM CLM-61-SKSM Metric .47 Stainless Steel Non-Locking M6 £16.22
£19.46 Inc. VAT
CLM-162-SKS CLM-162-SKS Metric .87 Stainless Steel Non-Locking M16 On Enquiry
CLM-58-SKSM CLM-58-SKSM Metric .39 Stainless Steel Non-Locking M5 £16.38
£19.66 Inc. VAT
CLM-242-KSM CLM-242-KSM Metric 1.30 Steel Non-Locking M24x2 On Enquiry
CLM-12125-SKSM CLM-12125-SKSM Metric .71 Stainless Steel Non-Locking M12x1.25 £33.18
£39.82 Inc. VAT
CLM-12175-SKSM CLM-12175-SKSM Metric .71 Stainless Steel Non-Locking M12 £27.16
£32.59 Inc. VAT
CLM-243-KSM CLM-243-KSM Metric 1.30 Steel Non-Locking M24 On Enquiry
CLM-10125-SKSM CLM-10125-SKSM Metric .63 Stainless Steel Non-Locking M10x1.25 £29.83
£35.80 Inc. VAT
CLM-2015-KSM CLM-2015-KSM Metric 1.18 Steel Non-Locking M20x1.5 £46.51
£55.81 Inc. VAT
CL-3816-SKSL CL-3816-SKSL Imperial .50 Stainless Steel Locking 3/8-16 £15.98
£19.18 Inc. VAT
CL-3816-SKS CL-3816-SKS Imperial .50 Stainless Steel Non-Locking 3/8-16 £14.20
£17.04 Inc. VAT
CL-1126-KS CL-1126-KS Imperial 2.00 Steel Non-Locking 1-1/2"-6 £195.41
£234.49 Inc. VAT
CL-789-KS CL-789-KS Imperial 1.25 Steel Non-Locking 7/8-9 £71.36
£85.63 Inc. VAT
CL-1213-KS CL-1213-KS Imperial .62 Steel Non-Locking 1/2-13 £4.67
£5.60 Inc. VAT
CL-1420-KS CL-1420-KS Imperial .37 Steel Non-Locking 1/4-20 £2.65
£3.18 Inc. VAT
CL-51624-SKS CL-51624-SKS Imperial .43 Stainless Steel Non-Locking 5/16-24 £7.67
£9.20 Inc. VAT
CL-11412-KS CL-11412-KS Imperial 1.81 Steel Non-Locking 1-1/4"-12 On Enquiry
CL-3416-KS CL-3416-KS Imperial 1.12 Steel Non-Locking 3/4-16 £32.76
£39.31 Inc. VAT
CL-71620-KS CL-71620-KS Imperial .62 Steel Non-Locking 7/16-20 £13.25
£15.90 Inc. VAT
CL-1032-KS CL-1032-KS Imperial .31 Steel Non-Locking #10-32 £2.88
£3.46 Inc. VAT
CL-51618-SKSL CL-51618-SKSL Imperial .43 Stainless Steel Locking 5/16-18 £14.12
£16.94 Inc. VAT
CL-1024-KS CL-1024-KS Imperial .31 Steel Non-Locking #10-24 £3.28
£3.94 Inc. VAT
CL-1420-SKSL CL-1420-SKSL Imperial .37 Stainless Steel Locking 1/4-20 £10.45
£12.54 Inc. VAT
CL-51618-SKS CL-51618-SKS Imperial .43 Stainless Steel Non-Locking 5/16-18 £7.60
£9.12 Inc. VAT
CL-1147-KS CL-1147-KS Imperial 1.81 Steel Non-Locking 1-1/4"-7 £84.83
£101.80 Inc. VAT
CL-3410-KS CL-3410-KS Imperial 1.12 Steel Non-Locking 3/4-10 £19.01
£22.81 Inc. VAT
CL-71614-KS CL-71614-KS Imperial .62 Steel Non-Locking 7/16-14 £4.33
£5.20 Inc. VAT
CL-3410-SKS CL-3410-SKS Imperial 1.12 Stainless Steel Non-Locking 3/4-10 £31.69
£38.03 Inc. VAT
CL-1428-SKS CL-1428-SKS Imperial .37 Stainless Steel Non-Locking 1/4-28 £5.51
£6.61 Inc. VAT
CL-11812-KS CL-11812-KS Imperial 1.62 Steel Non-Locking 1-1/8"-12 On Enquiry
CL-5818-KS CL-5818-KS Imperial .87 Steel Non-Locking 5/8-18 £10.44
£12.53 Inc. VAT
CL-3824-KS CL-3824-KS Imperial .50 Steel Non-Locking 3/8-24 £16.82
£20.18 Inc. VAT
CL-5811-SKS CL-5811-SKS Imperial .87 Stainless Steel Non-Locking 5/8-11 £23.45
£28.14 Inc. VAT
CL-1420-SKS CL-1420-SKS Imperial .37 Stainless Steel Non-Locking 1/4-20 £5.05
£6.06 Inc. VAT
CL-1187-KS CL-1187-KS Imperial 1.62 Steel Non-Locking 1-1/8"-7 £83.66
£100.39 Inc. VAT
CL-5811-KS CL-5811-KS Imperial .87 Steel Non-Locking 5/8-11 £9.41
£11.29 Inc. VAT
CL-3816-KS CL-3816-KS Imperial .50 Steel Non-Locking 3/8-16 £3.59
£4.31 Inc. VAT
CL-1032-SKS CL-1032-SKS Imperial .31 Stainless Steel Non-Locking #10-32 £4.66
£5.59 Inc. VAT
CL-112-KS CL-112-KS Imperial 1.37 Steel Non-Locking 1"-12 £34.56
£41.47 Inc. VAT
CL-91618-KS CL-91618-KS Imperial .81 Steel Non-Locking 9/16-18 £64.54
£77.45 Inc. VAT
CL-51624-KS CL-51624-KS Imperial .43 Steel Non-Locking 5/16-24 £5.57
£6.68 Inc. VAT
CL-1220-SKS CL-1220-SKS Imperial .62 Stainless Steel Non-Locking 1/2-20 £17.84
£21.41 Inc. VAT
CL-51618-KS CL-51618-KS Imperial .43 Steel Non-Locking 5/16-18 £2.94
£3.53 Inc. VAT
CL-5811-SKSL CL-5811-SKSL Imperial .87 Stainless Steel Locking 5/8-11 £50.17
£60.20 Inc. VAT
CL-1213-SKS CL-1213-SKS Imperial .62 Stainless Steel Non-Locking 1/2-13 £16.84
£20.21 Inc. VAT
CL-1024-SKS CL-1024-SKS Imperial .31 Stainless Steel Non-Locking #10-24 £5.28
£6.34 Inc. VAT
CL-18-KS CL-18-KS Imperial 1.37 Steel Non-Locking 1"-8 £31.99
£38.39 Inc. VAT
CL-91612-KS CL-91612-KS Imperial .81 Steel Non-Locking 9/16-12 £64.54
£77.45 Inc. VAT
CL-1213-SKSL CL-1213-SKSL Imperial .68 Stainless Steel Locking 1/2-13 £25.13
£30.16 Inc. VAT
CL-3824-SKS CL-3824-SKS Imperial .50 Stainless Steel Non-Locking 3/8-24 £10.04
£12.05 Inc. VAT
CL-11212-KS CL-11212-KS Imperial 2.00 Steel Non-Locking 1-1/2"-12 £257.35
£308.82 Inc. VAT
CL-7814-KS CL-7814-KS Imperial 1.25 Steel Non-Locking 7/8-14 £71.36
£85.63 Inc. VAT
CL-1220-KS CL-1220-KS Imperial .62 Steel Non-Locking 1/2-20 £7.42
£8.90 Inc. VAT
CL-1428-KS CL-1428-KS Imperial .37 Steel Non-Locking 1/4-28 £2.78
£3.34 Inc. VAT

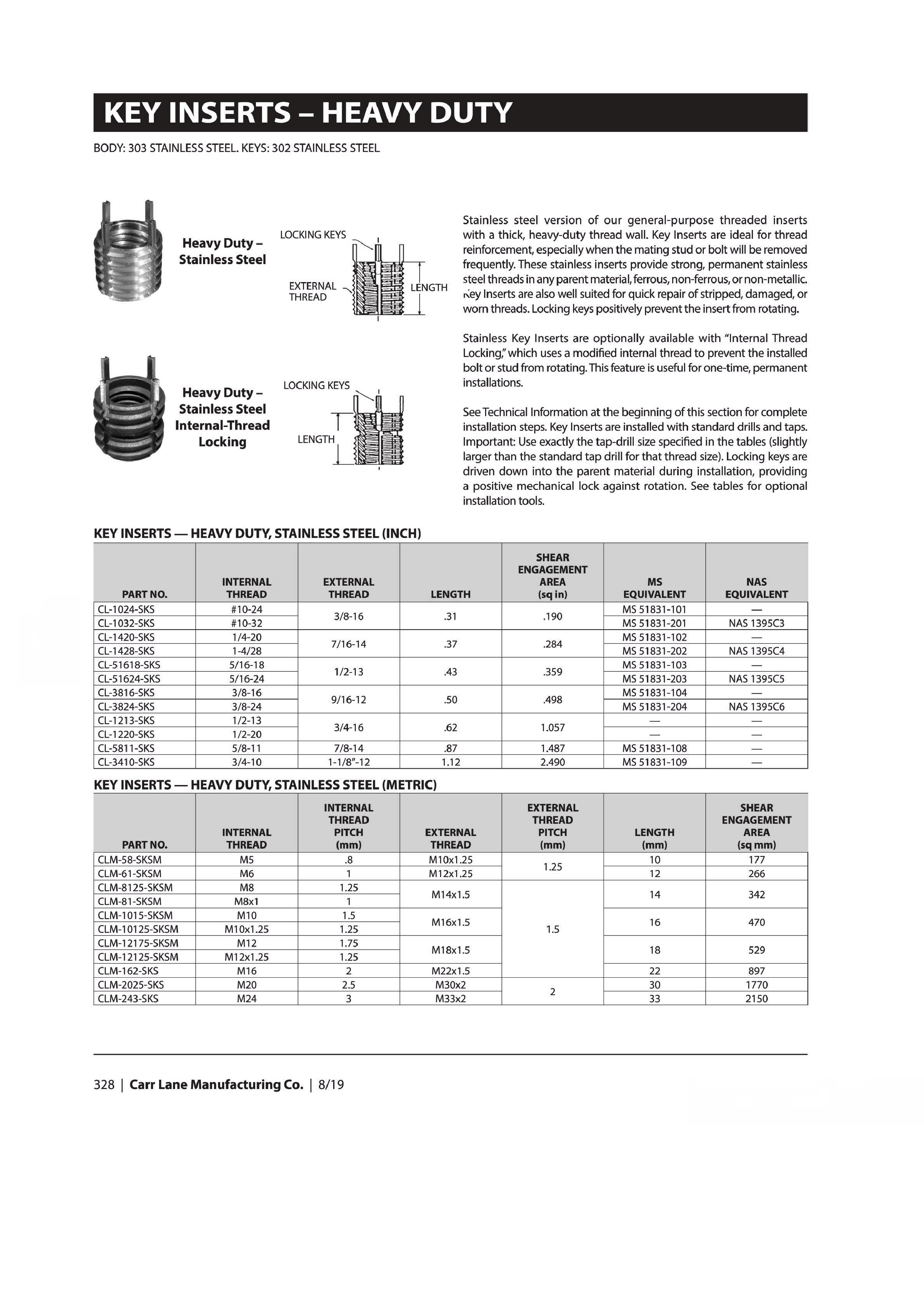

Carr Lane Heavy Duty Key Inserts datasheet

Carr Lane Heavy Duty Key Inserts

Carr lane heavy duty key inserts feature a thick thread wall making it ideal and compatible with a wide range of applications. These key inserts can be used for thread reinforcement particularly when the stud or bolt is moved frequently. Key Inserts are also ideal for quickly repairing stripped, damaged, or worn threads. The locking keys ensure the insert stays securely in place, preventing rotation. These are available in both steel and stainless stell as well as both metric and imperial sizes.

Options:

  • Imperial and Metric
  • Steel and Stainless Steel
  • External and Internal Thread Locking

Stainless Key Inserts have the option of Internal Thread Locking, which uses modified internal thread to prevent the installed bolt or stud from rotating, this feature is used for

Quantity Unit discount You Save
