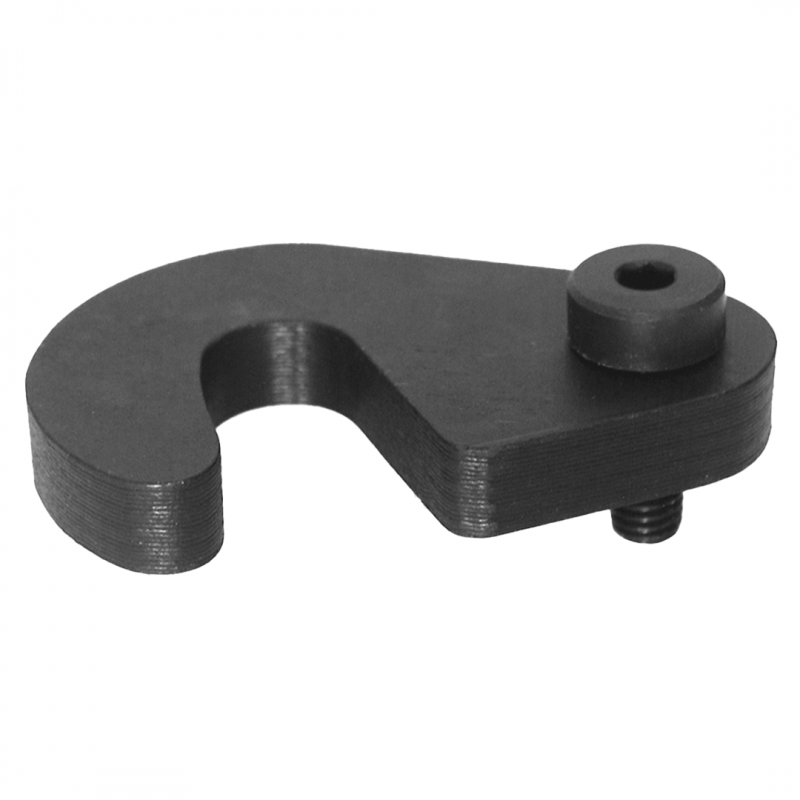

Carr Lane Swing C Washers

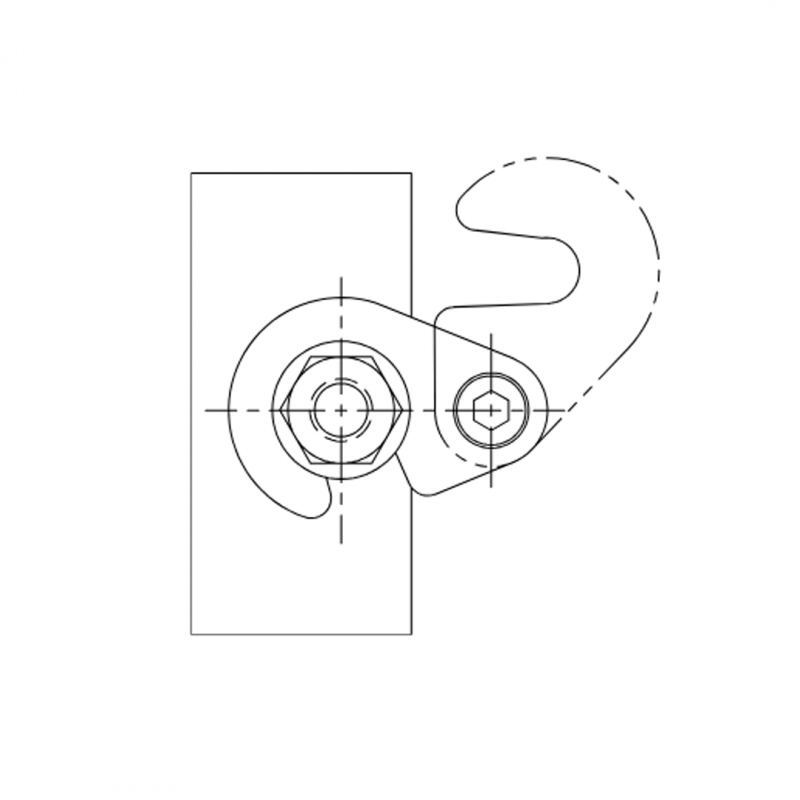

Carr Lanes swing C washers are designed to be permanently fixed to any application and swing out of the way to allow for convenient loading. These washers can be positioned to swing either clockwise or counterclockwise. They are available in sizes which accommodate stud sizes 3/8 to 3/4" (M10 to M12 in metric).

  • Swing either clockwise or counter clockwise
  • Available in Metric or Imperial sizes
Print page

Products

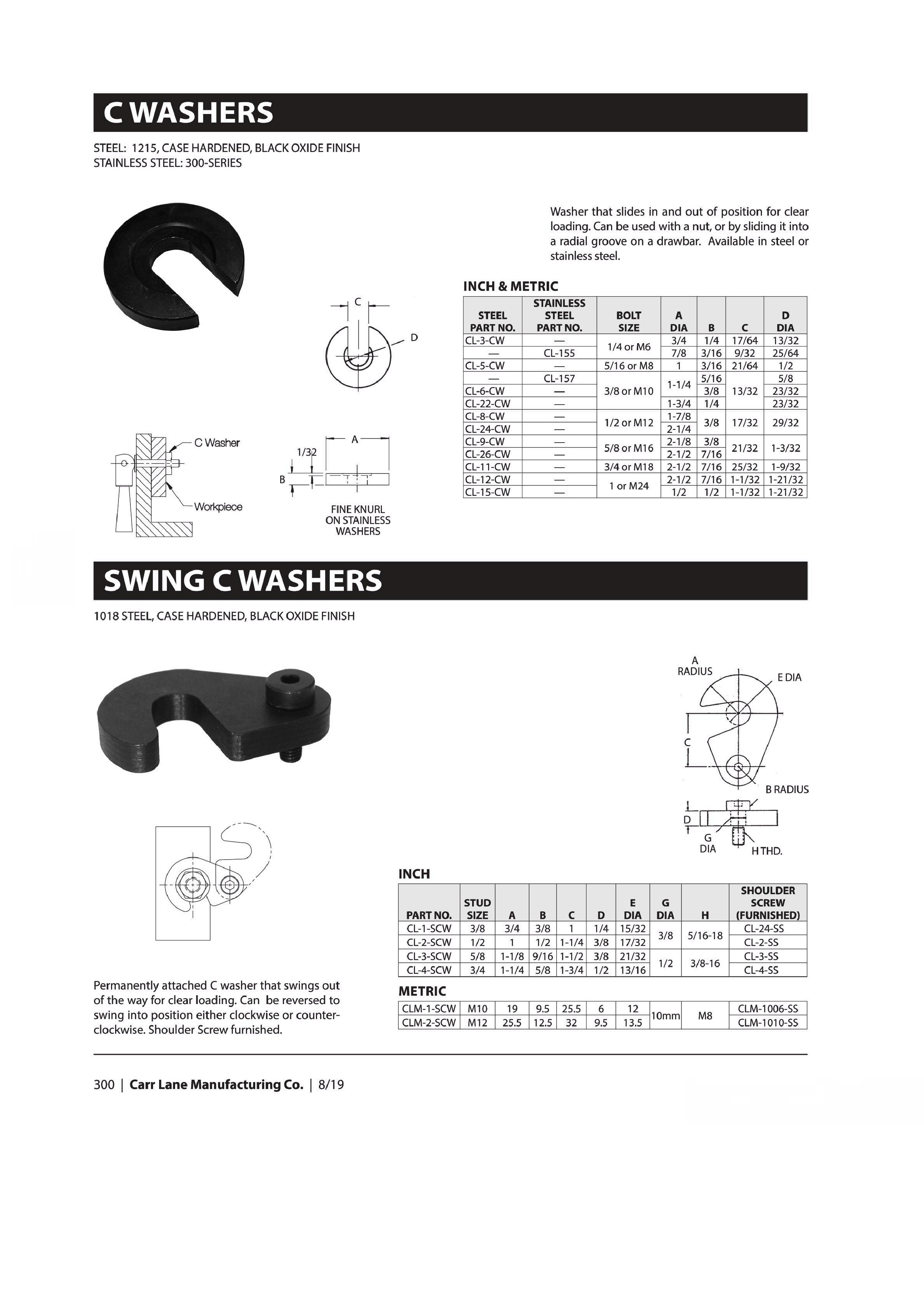

Downloads
Description

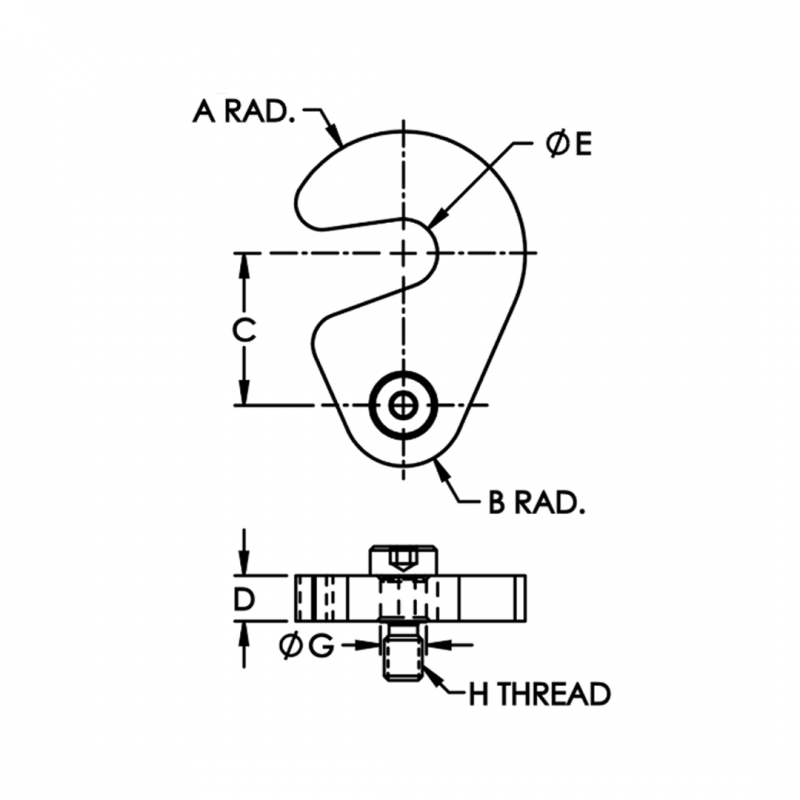

Part Number Material Number Metric or Imperial Stud Size Shoulder Screw (Furnished) Price Add to Parts List
CLM-1-SCW CLM-1-SCW Metric 3/8 CL-24-SS £56.72
£68.06 Inc. VAT
CLM-2-SCW CLM-2-SCW Metric 1/2 CL-2-SS £36.05
£43.26 Inc. VAT
CL-4-SCW CL-4-SCW Imperial M16 CLM-1312-SS £57.60
£69.12 Inc. VAT
CL-1-SCW CL-1-SCW Imperial M10 CLM-1006-SS £23.32
£27.98 Inc. VAT
CL-2-SCW CL-2-SCW Imperial M12 CLM-1010-SS £26.40
£31.68 Inc. VAT
CL-3-SCW CL-3-SCW Imperial M16 CLM-1310-SS £36.43
£43.72 Inc. VAT
Carr Lane Swing C Washers

Carr Lane Swing C Washers

Carr Lanes swing C washers are designed to be permanently fixed to any application and swing out of the way to allow for convenient loading. These washers can be positioned to swing either clockwise or counterclockwise. They are available in sizes which accommodate stud sizes 3/8 to 3/4" (M10 to M12 in metric).

Quantity Unit discount You Save
