Carr Lane Cone Locator Pins

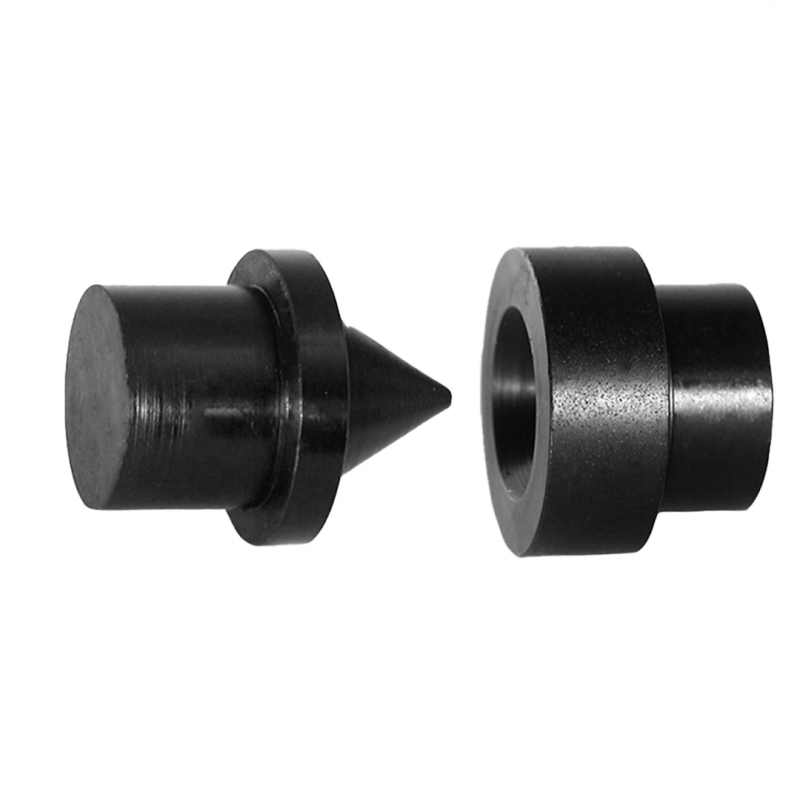

Carr Lanes cone locating pin is designed to be used with the matching bushing. These pins are ideal for the fast assembly of two fixture parts, as they help accommodate significant misalignment. The pin's shank diameter and the bushing's outer diameter are precisely the same, enabling both fixture pieces to be bored for the installation hole simultaneously, ensuring enhanced accuracy. The mating bushing is paired with a Cone Locator Pin to align two pieces of a fixture.  These are offered with 1/2 and 3/4" shank diameters (12 and 20mm in metric).

  • Pin and Bushing
  • Available in imperial and metric sizes

Print page

Products
Downloads
Description
Part Number Material Number External Diameter Pin or Bushing B Diameter Price Add to Parts List
CL-7-CLP CL-7-CLP 1 Pin .7515 £9.70
£11.64 Inc. VAT
CL-7-CLB CL-7-CLB 1 Bushing .7515 £12.89
£15.47 Inc. VAT
CL-5-CLB CL-5-CLB 3/4 Bushing .5014 £11.22
£13.46 Inc. VAT
CL-5-CLP CL-5-CLP 3/4 Pin .5014 £8.22
£9.86 Inc. VAT

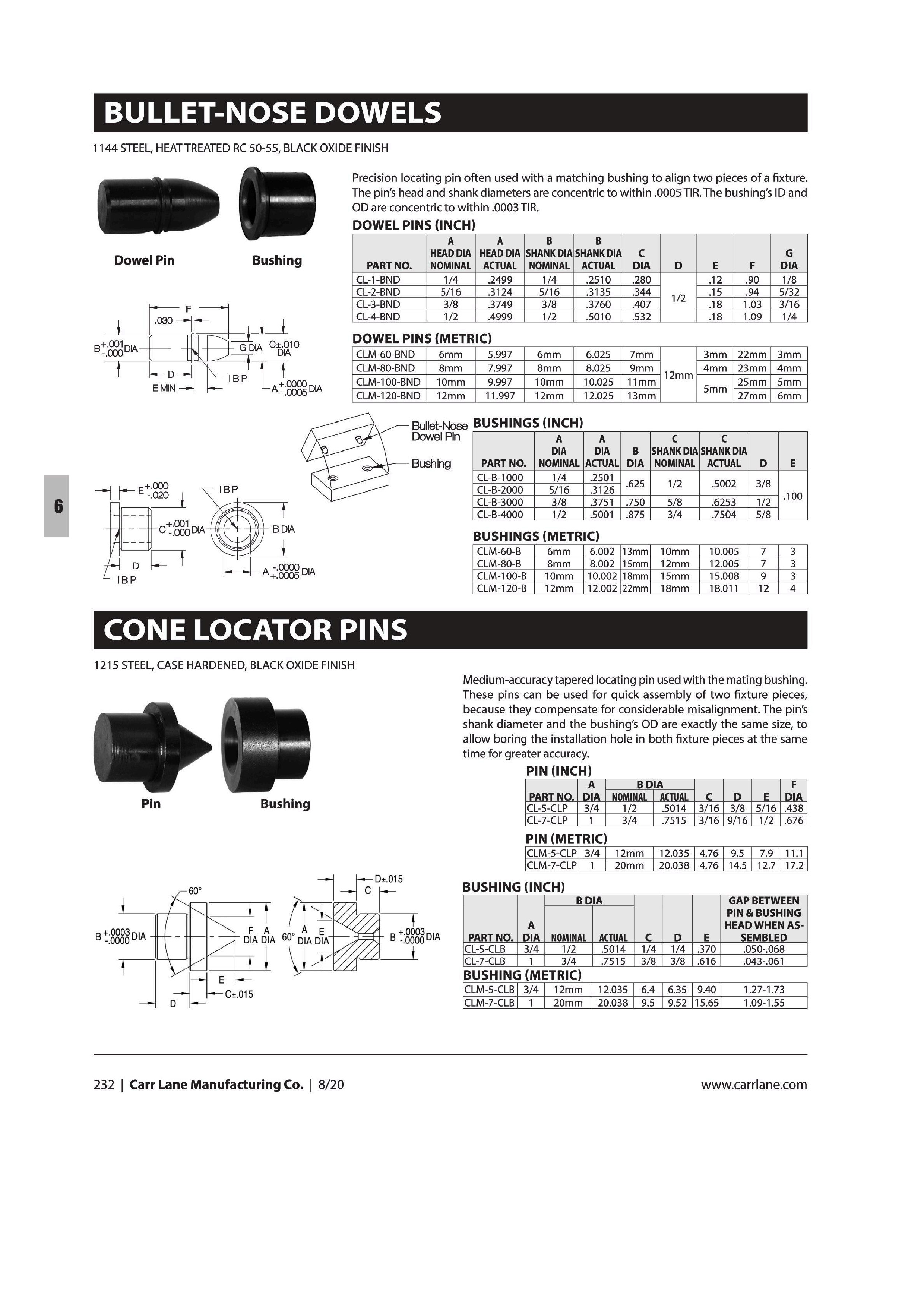

Carr Lane Cone Locator Pins datasheet
