WH, WHZ 6 Series 5x
Directional spool valves with hydraulic actuation WH 6, 4/3, 4/2 and 3/2 direct operated for sub plate mounting
- Component series: 5X
- Maximum operating pressure: 315 bar
- Maximum flow: 60 l/min
- Explosion-proof also available
Products
Downloads
Description
| Part Number | Material Number | Spool | Price | Add to Parts List |
|---|---|---|---|---|
| 4WH 6 C5X/ | R900470476 | C | £634.16 £760.99 Inc. VAT |
|
| 4WH 6 D5X/ | R900449957 | D | £634.16 £760.99 Inc. VAT |
|

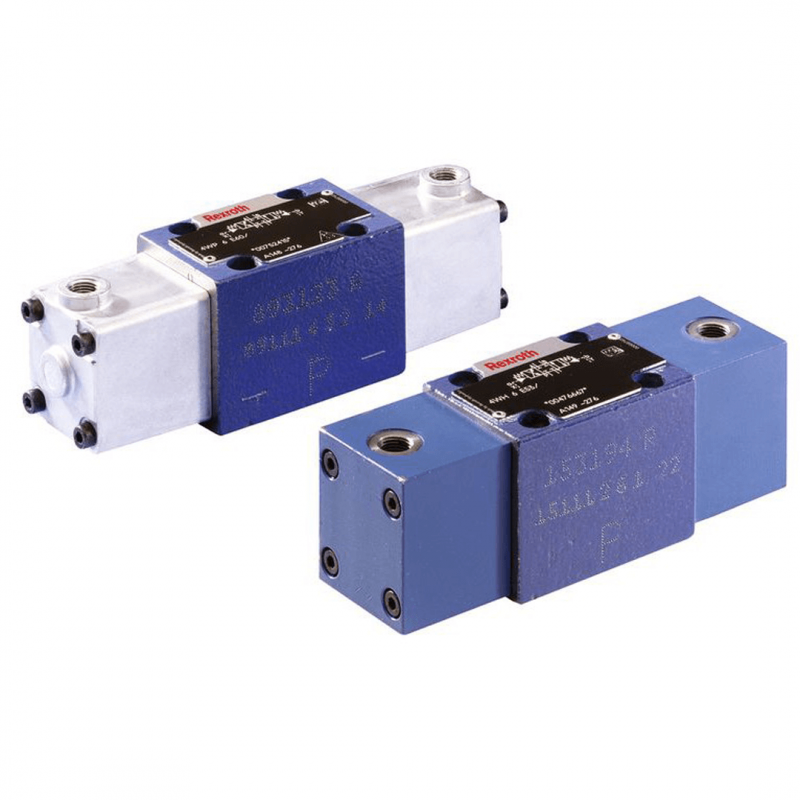

Bosch Rexroth Directional Spool Valves with Hydraulic Actuation WH 6
- Size: 6
- Component series: 5X
- Maximum operating pressure: 315 bar
- Maximum flow: 60 l/min
- Explosion-proof also available
Features:
- Direct operated directional spool valve
- Types of actuation Pneumatic (WP, WPZ), Hydraulic (WH, WHZ)
- Porting pattern according to DIN 24340 form A (without locating hole)
- Porting pattern according to ISO 4401-03-02-0-05 and NFPA T3.5.1 R2-2002 D03 (with locating hole)
- Subplates according to data sheet 45052 (separate order)
- Inductive positions witch and proximity sensor (contactless),
