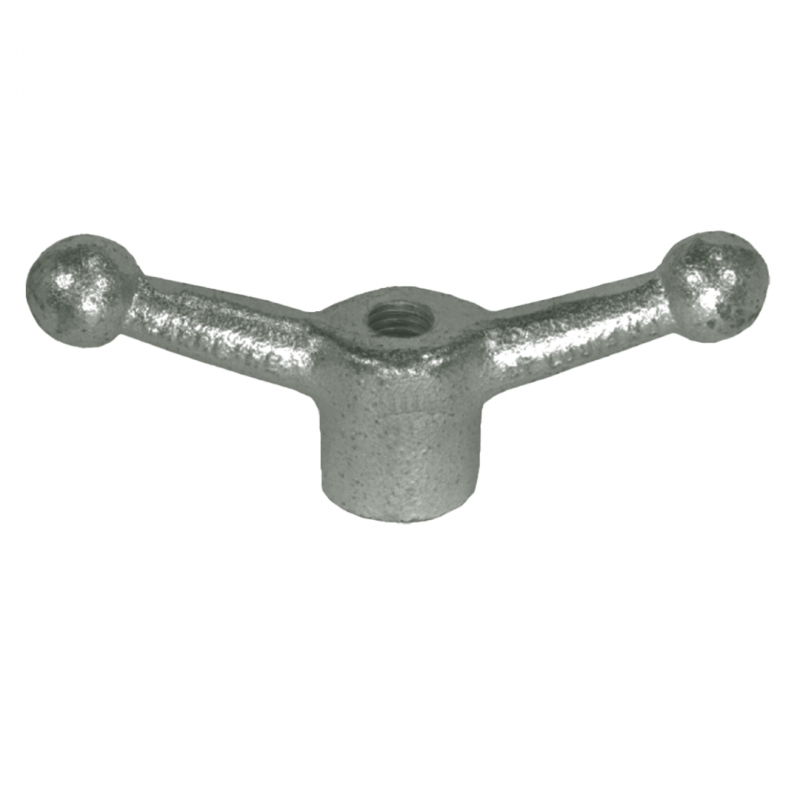

Carr Lane Speed Ball Handles
The speed handles are designed with added weight for rapid turning as well as a long arm extension fitted to offer superior leverage for hand tightening. Available in two sizes, each comes in either a blank or tapped-through option, with tapped-hole sizes ranging from 1/2-13 to 3/4-10 (M12 to M20 in metric).
- Double arms available in Metric & Imperial
- sizes ranging from 1/2-13 to 3/4-10
- sizes ranging from M12 to M20 in metric
Products
Downloads
Description
| Part Number | Material Number | External Diameter | Handle Type | Internal Thread | Height | Price | Add to Parts List |
|---|---|---|---|---|---|---|---|
| CLM-44-SBH | 4-7/8 | Double Arm | M12 | 2-1/4 | £19.79 £23.75 Inc. VAT |
|
|
| CL-44-SBH | 4-7/8 | Double Arm | 1/2-13 | 2-1/4 | £19.79 £23.75 Inc. VAT |
|
|
| CL-4-SBH | 4-7/8 | Double Arm | Blank | 2-1/4 | £11.83 £14.20 Inc. VAT |
|
|
| CLM-64-SBH | 6 | Double Arm | M16 | 2-3/8 | £22.24 £26.69 Inc. VAT |
|
|
| CL-64-SBH | 6 | Double Arm | 5/8-11 | 2-3/8 | £22.24 £26.69 Inc. VAT |
|
|
| CL-6-SBH | 6 | Double Arm | Blank | 2-3/8 | £15.32 £18.38 Inc. VAT |
|
|
| CL-84-SBH | 8 | Double Arm | 3/4-10 | 2-7/8 | £31.07 £37.28 Inc. VAT |
|
|
| CL-8-SBH | 8 | Double Arm | Blank | 2-7/8 | £22.85 £27.42 Inc. VAT |
|
|
| CLM-84-SBH | 8 | Double Arm | M20 | 2-7/8 | £31.07 £37.28 Inc. VAT |
|
Carr Lane Speed Ball Handles
- Double or Single Arm Inch & Metric
- Speed handles that are weighted for quick turning
- Long arm extensions provide excellent leverage for hand tightening
Speed Ball Handles are made from Nodular Iron Per Astm-A536 Class 65-45-12, Zinc Plated Clear Chromate.
| Quantity | Unit discount | You Save |
|---|
