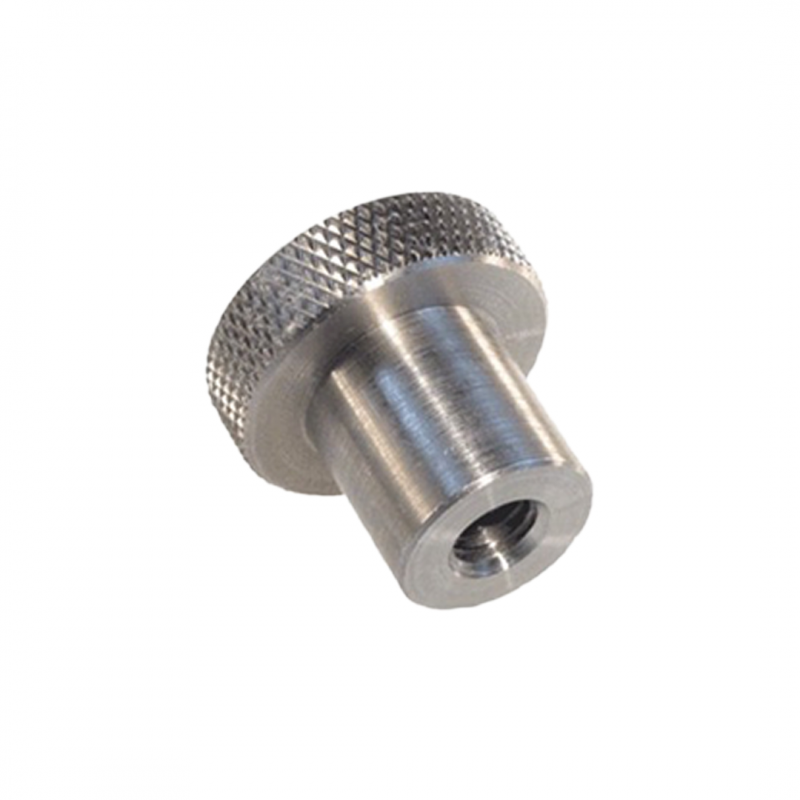

This durable knurled-head knob ensures a secure grip, allowing for easy finger tightening in light clamping tasks. It is offered in steel with tapped-hole sizes ranging from 1/4-20 to 1/2-13 (M5 to M12 in metric), and in stainless steel with tapped-hole sizes from #10-32 to 1/2-13 (M5 to M12 in metric).
| Part Number | Material Number | Metric or Imperial | External Diameter | Material | Thread | Price | Add to Parts List |
|---|---|---|---|---|---|---|---|
| CLM-6-KK | Metric | .94 | Steel | M6 | £9.11 £10.93 Inc. VAT |
|
|
| CLM-8-KK-S | Metric | 1.18 | Stainless Steel | M8 | On Enquiry | ||
| CLM-10-KK | Metric | 1.42 | Steel | M10 | £10.10 £12.12 Inc. VAT |
|
|
| CLM-12-KK-S | Metric | 1.57 | Stainless Steel | M12 | On Enquiry | ||
| CLM-5-KK-S | Metric | .79 | Stainless Steel | M5 | On Enquiry | ||
| CLM-8-KK | Metric | 1.18 | Steel | M8 | £11.93 £14.32 Inc. VAT |
|
|
| CLM-10-KK-S | Metric | 1.42 | Stainless Steel | M10 | £15.23 £18.28 Inc. VAT |
|
|
| CLM-12-KK | Metric | 1.57 | Steel | M12 | £10.48 £12.58 Inc. VAT |
|
|
| CLM-5-KK | Metric | .79 | Steel | M5 | £7.44 £8.93 Inc. VAT |
|
|
| CLM-6-KK-S | Metric | .94 | Stainless Steel | M6 | £11.89 £14.27 Inc. VAT |
|
|
| CL-5-KK | Imperial | 1-1/4 | Steel | 5/16-18 | £7.68 £9.22 Inc. VAT |
|
|
| CL-16635 | Imperial | 1-1/4 | Stainless Steel | 5/16-18 | £15.67 £18.80 Inc. VAT |
|
|
| CL-16324 | Imperial | 1 | Stainless Steel | #10-24 | £12.25 £14.70 Inc. VAT |
|
|
| CL-16514 | Imperial | 1 | Stainless Steel | 1/4-20 | £12.31 £14.77 Inc. VAT |
|
|
| CL-8-KK | Imperial | 1-1/2 | Steel | 1/2-13 | £9.91 £11.89 Inc. VAT |
|
|
| CL-16735 | Imperial | 1-1/4 | Stainless Steel | 3/8-16 | £19.92 £23.90 Inc. VAT |
|
|
| CL-16422 | Imperial | 1/2 | Stainless Steel | #10-32 | £11.78 £14.14 Inc. VAT |
|
|
| CL-16534 | Imperial | 1 | Stainless Steel | 1/4-20 | £12.55 £15.06 Inc. VAT |
|
|
| CL-16322 | Imperial | 1/2 | Stainless Steel | #10-24 | £10.68 £12.82 Inc. VAT |
|
|
| CL-16424 | Imperial | 1 | Stainless Steel | #10-32 | £12.25 £14.70 Inc. VAT |
|
|
| CL-16314 | Imperial | 1 | Stainless Steel | #10-24 | £12.55 £15.06 Inc. VAT |
|
|
| CL-16513 | Imperial | 3/4 | Stainless Steel | 1/4-20 | £11.78 £14.14 Inc. VAT |
|
|
| CL-6-KK | Imperial | 1-1/4 | Steel | 3/8-16 | £8.86 £10.63 Inc. VAT |
|
|
| CL-16725 | Imperial | 1-1/4 | Stainless Steel | 3/8-16 | £16.49 £19.79 Inc. VAT |
|
|
| CL-16412 | Imperial | 1/2 | Stainless Steel | #10-32 | £11.78 £14.14 Inc. VAT |
|
|
| CL-16524 | Imperial | 1 | Stainless Steel | 1/4-20 | £12.31 £14.77 Inc. VAT |
|
|
| CL-16312 | Imperial | 1/2 | Stainless Steel | #10-24 | £10.27 £12.32 Inc. VAT |
|
|
| CL-8-KK-S | Imperial | 1-1/2 | Stainless Steel | 1/2-13 | £21.24 £25.49 Inc. VAT |
|
|
| CL-16414 | Imperial | 1 | Stainless Steel | #10-32 | £12.25 £14.70 Inc. VAT |
|
|
| CL-4-KK | Imperial | 1 | Steel | 1/4-20 | £7.46 £8.95 Inc. VAT |
|
|
| CL-16625 | Imperial | 1-1/4 | Stainless Steel | 5/16-18 | £12.31 £14.77 Inc. VAT |
|

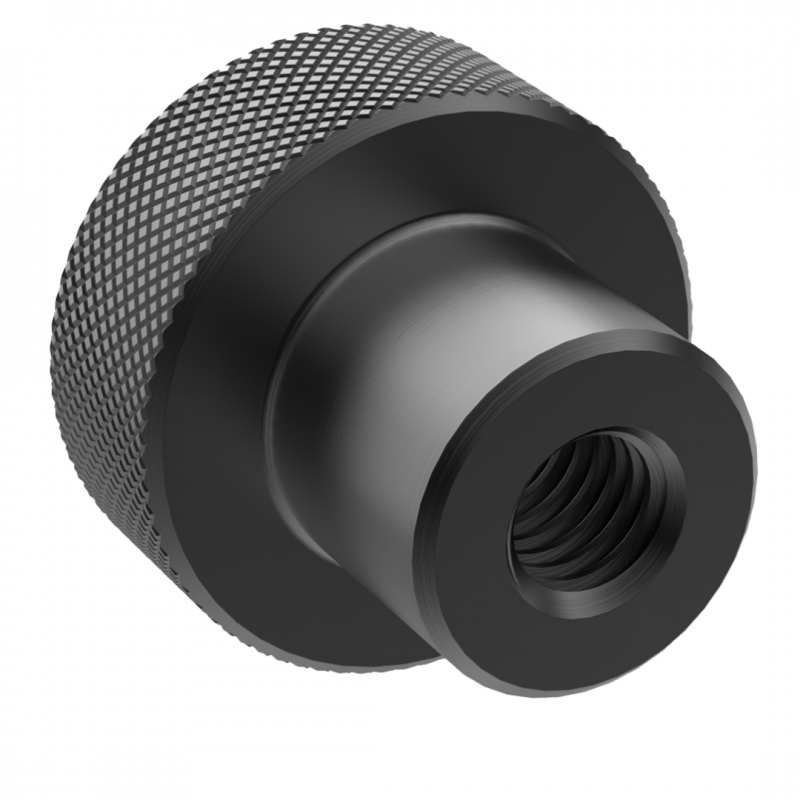

High-quality knurled-head knob provides a positive grip for quick finger tightening in light clamping applications. Available in steel with a black oxide finish or stainless steel.
