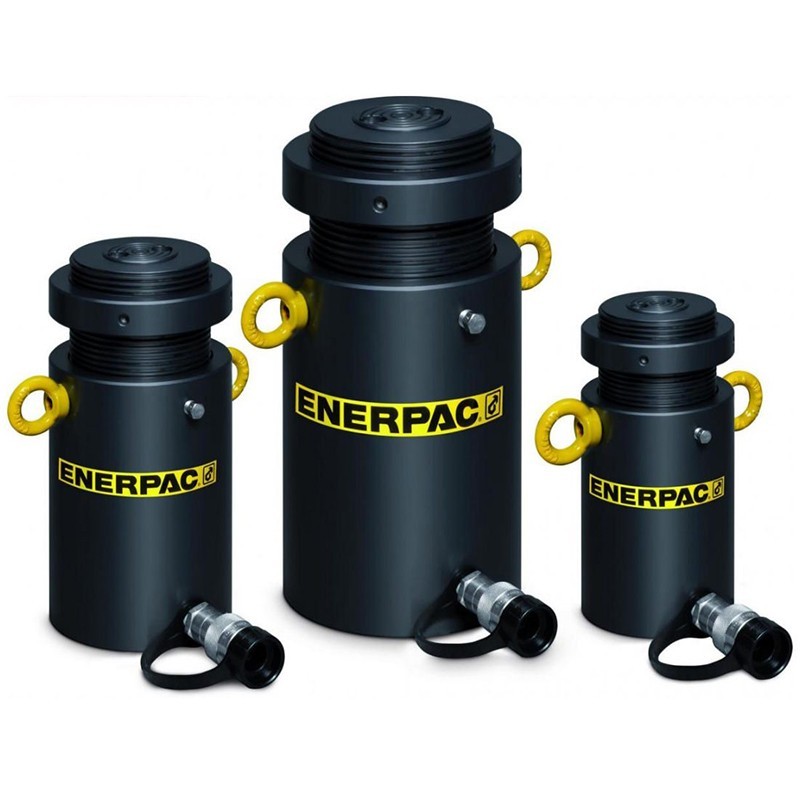

Enerpac HCL-Series Lock Nut Cylinders

HCL-Series Lock Nut Cylinders designed to provide superior durability and side-load (eccentric load) protection

Capacity: 50 - 1000 ton
Stroke: 50 - 300 mm
Max Pressure: 700 bar

HCL type cylinders above 150 Ton, are Price on Request

Print page

First Name *

Last Name *

Position *

Email *

Company Name *

Contact Number *

Town/City *

Message *

50 ton

100 ton

150 ton

Downloads

Description

Part Number	Cylinder Capacity	Cylinder Stroke	Price
HCL-5012 HCL-5012	50 ton	300 mm	£1,857.00 £2,228.40 Inc. VAT
HCL-502 HCL-502	50 ton	50 mm	£1,265.00 £1,518.00 Inc. VAT
HCL-504 HCL-504	50 ton	100 mm	£1,343.00 £1,611.60 Inc. VAT
HCL-506 HCL-506	50 ton	150 mm	£1,432.00 £1,718.40 Inc. VAT
HCL-508 HCL-508	50 ton	200 mm	£1,557.00 £1,868.40 Inc. VAT
HCL-5010 HCL-5010	50 ton	250 mm	£1,691.00 £2,029.20 Inc. VAT

Part Number	Cylinder Capacity	Cylinder Stroke	Price
HCL-1004 HCL-1004	100 ton	100 mm	£1,998.00 £2,397.60 Inc. VAT
HCL-1006 HCL-1006	100 ton	150 mm	£2,183.00 £2,619.60 Inc. VAT
HCL-1008 HCL-1008	100 ton	200 mm	£2,424.00 £2,908.80 Inc. VAT
HCL-1002 HCL-1002	100 ton	50 mm	£1,847.00 £2,216.40 Inc. VAT
HCL-10010 HCL-10010	100 ton	250 mm	£2,690.00 £3,228.00 Inc. VAT
HCL-10012 HCL-10012	100 ton	300 mm	£3,023.00 £3,627.60 Inc. VAT

Part Number	Cylinder Capacity	Cylinder Stroke	Price
HCL-1504 HCL-1504	150 ton	100 mm	£2,723.00 £3,267.60 Inc. VAT
HCL-1506 HCL-1506	150 ton	150 mm	£2,997.00 £3,596.40 Inc. VAT
HCL-1508 HCL-1508	150 ton	200 mm	£3,356.00 £4,027.20 Inc. VAT
HCL-1502 HCL-1502	150 ton	50 mm	£2,495.00 £2,994.00 Inc. VAT
HCL-15010 HCL-15010	150 ton	250 mm	£3,755.00 £4,506.00 Inc. VAT
HCL-15012 HCL-15012	150 ton	300 mm	£4,252.00 £5,102.40 Inc. VAT

HCL-Series_High-Tonnage_Lock_Nut_Cylinders_EN-GB

Enerpac HCL-Series Lock Nut Cylinders

Capacity: 50 - 1000 ton
Stroke: 50 - 300 mm
Max Pressure: 700 bar

Features:

Lock nut provides positive and safe mechanical load holding
Low friction to easily spin the load locking rings
Designed to withstand 10% side-load up to 90% of maximum stroke
Hardened surface resists side-loading and cyclic wear
Overflow port as stroke limiter to prevent plunger blow-out
Weather protected, inside and out
Replaceable bearings enclose the plunger for support throughout the stroke
Certified lifting eyes and base mounting holes

General Function:

Lock Nut, Single-Acting, Gravity-Return Cylinders
These high tonnage hydraulic cylinders are designed to provide superior durability and side-load (eccentric load) protection
