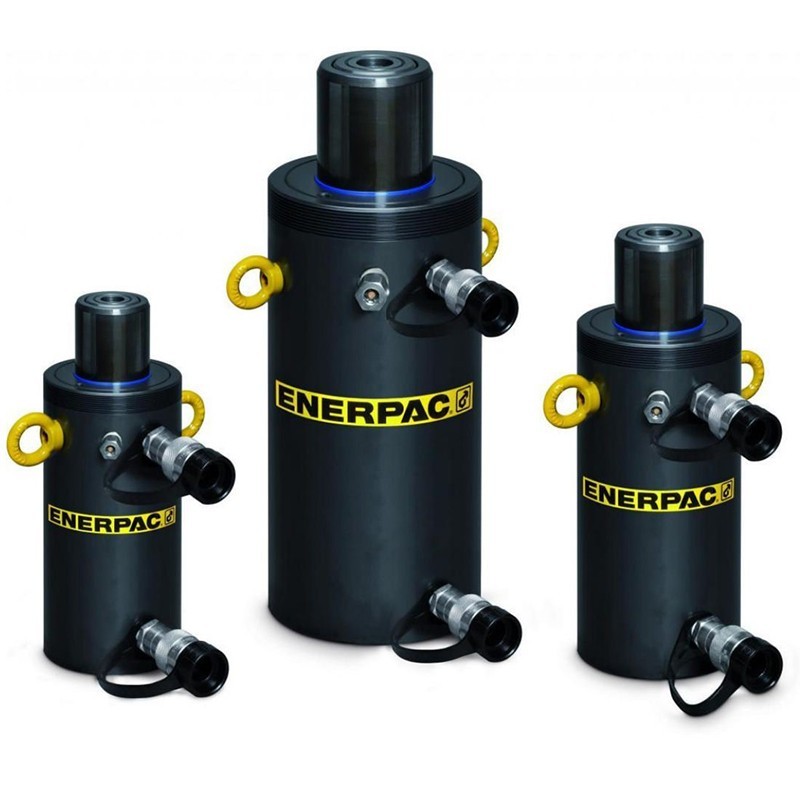

Enerpac HCR-Series High-tonnage Cylinders

Enerpac HCR-Series High-tonnage Cylinders

High Tonnage Hydraulic Cylinders are designed to provide superior durability and side-load (eccentric load) protection

  • Capacity: 50 - 1000 ton
  • Stroke: 50 - 300 mm
  • Max Pressure: 700 bar

HCR type cylinders above 150 Ton, are Price on Request

50 ton
100 ton
150 ton
Downloads
Description
Part Number Material Number Cylinder Capacity Cylinder Stroke Price Add to Parts List
HCR-504 HCR-504 50 ton 100 mm £1,752.00
£2,102.40 Inc. VAT
HCR-506 HCR-506 50 ton 150 mm £1,844.00
£2,212.80 Inc. VAT
HCR-508 HCR-508 50 ton 200 mm £1,973.00
£2,367.60 Inc. VAT
HCR-5010 HCR-5010 50 ton 250 mm £2,106.00
£2,527.20 Inc. VAT
HCR-5012 HCR-5012 50 ton 300 mm £2,276.00
£2,731.20 Inc. VAT
HCR-502 HCR-502 50 ton 50 mm £1,677.00
£2,012.40 Inc. VAT
Part Number Material Number Cylinder Capacity Cylinder Stroke Price Add to Parts List
HCR-1002 HCR-1002 100 ton 50 mm £2,311.00
£2,773.20 Inc. VAT
HCR-1008 HCR-1008 100 ton 200 mm £2,890.00
£3,468.00 Inc. VAT
HCR-10010 HCR-10010 100 ton 250 mm £3,157.00
£3,788.40 Inc. VAT
HCR-1004 HCR-1004 100 ton 100 mm £2,463.00
£2,955.60 Inc. VAT
HCR-1006 HCR-1006 100 ton 150 mm £2,645.00
£3,174.00 Inc. VAT
Part Number Material Number Cylinder Capacity Cylinder Stroke Price Add to Parts List
HCR-15012 HCR-15012 150 ton 300 mm £4,770.00
£5,724.00 Inc. VAT
HCR-10012 HCR-10012 150 ton 300 mm £3,490.00
£4,188.00 Inc. VAT
HCR-1504 HCR-1504 150 ton 100 mm £3,236.00
£3,883.20 Inc. VAT
HCR-1506 HCR-1506 150 ton 150 mm £3,508.00
£4,209.60 Inc. VAT
HCR-1508 HCR-1508 150 ton 200 mm £3,877.00
£4,652.40 Inc. VAT
HCR-1502 HCR-1502 150 ton 50 mm £3,008.00
£3,609.60 Inc. VAT
HCR-15010 HCR-15010 150 ton 250 mm £4,273.00
£5,127.60 Inc. VAT

Enerpac HCR-Series High-tonnage Cylinders

  • Capacity: 50 - 1000 ton
  • Stroke: 50 - 300 mm
  • Max Pressure: 700 bar

Features:

  • Fast advance and retract
  • Designed to withstand 10% side-load of maximum capacity*
  • Hardened surface resists side-loading and cyclic wear
  • Weather protected, inside and out
  • Upper and lower replaceable bearings enclose the cylinder plunger for support throughout the stroke
  • Certified lifting eyes, base mounting holes and collar threads
  • * HCR-506 and HCR-5012: 7% side-load of maximum capacity

General Function:

Double-Acting Cylinders
These high tonnage hydraulic cylinders are designed to provide superior durability and side-load (eccentric load) protection

Quantity Unit discount You Save
