  2. Enerpac H700-Series High Pressure Hydraulic Hoses

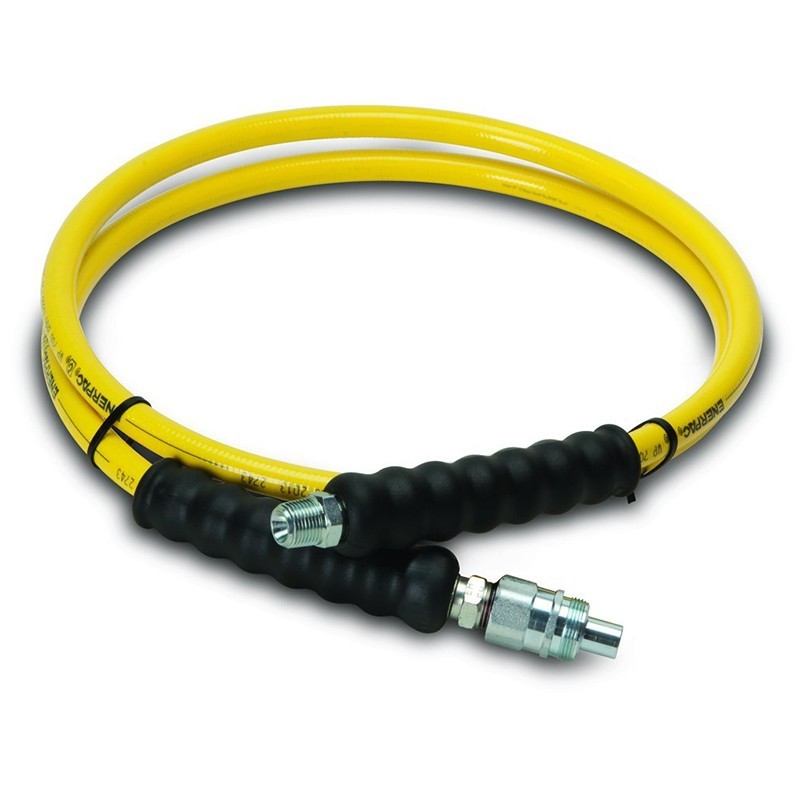

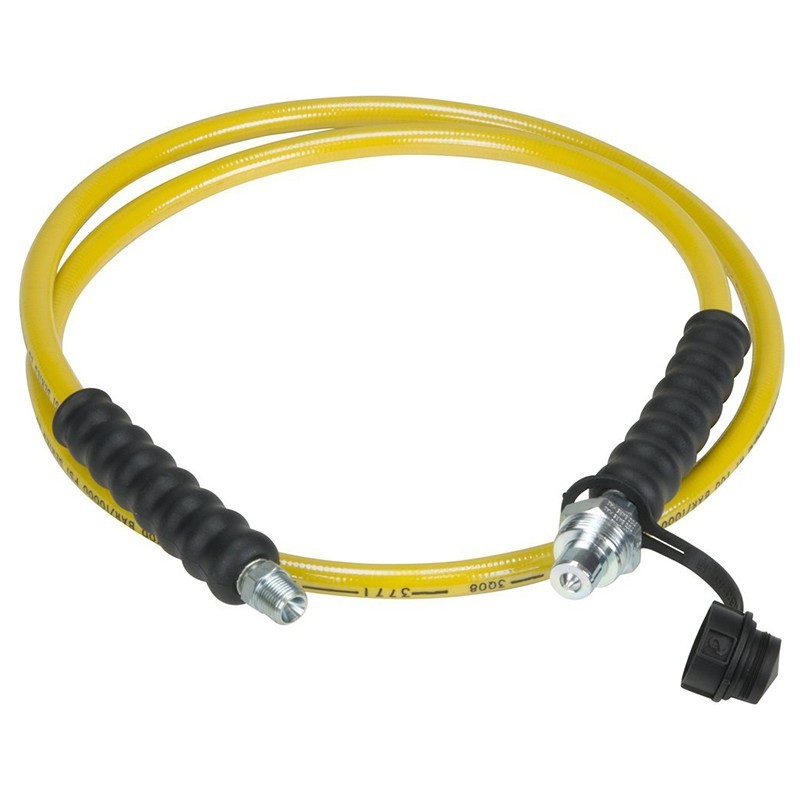

Enerpac H700-Series High Pressure Hydraulic Hoses

New

Enerpac H700-Series high pressure hydraulic hoses; thermo-plastic hoses for demanding applications and heavy duty rubber hoses with rubber coating

  • Available Hose lengths: 0,6 - 15 m
  • Maximum working pressure: 700 bar
  • Available Internal diameters: 6.4 - 9,7 mm

More details

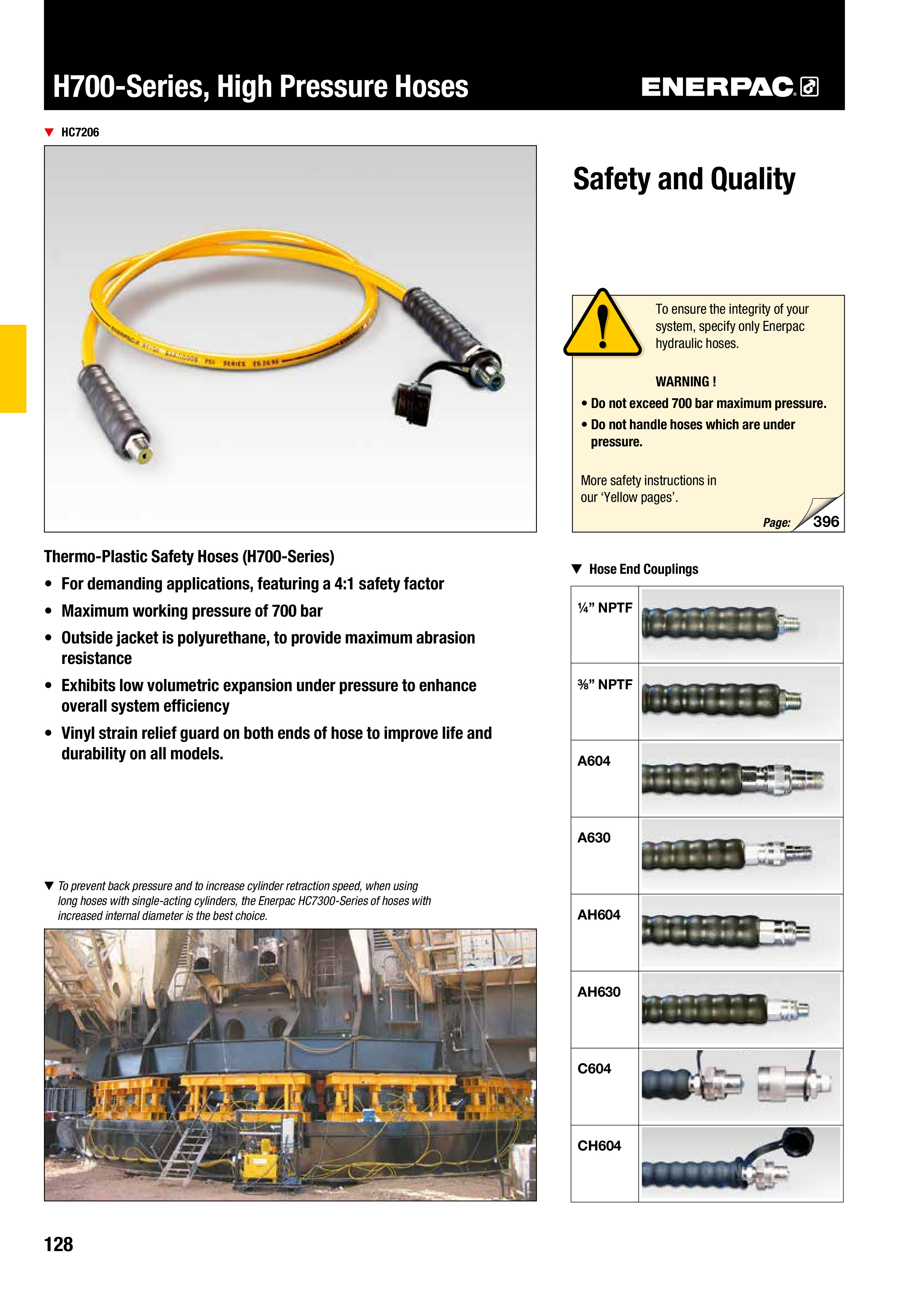

Download Data Sheet H700-Series, High Pressure Hoses

Enerpac H700-Series High Pressure Hydraulic Hoses

  • Available Hose lengths: 0,6 - 15 m
  • Maximum working pressure: of 700 bar
  • Available Internal diameters: 6.4 - 9,7 mm

Features:

  • For demanding applications, featuring a 4:1 safety factor
  • Outside jacket is polyurethane, to provide maximum abrasion resistance
  • Exhibits low volumetric expansion under pressure to enhance overall system efficiency
  • Very tolerant to high pressure cycling
  • Crimped-on rubber strain relief for improved life and durability on all models

The Enerpac H700-Series thermoplastic high pressure hydraulic hoses have four layers, including two high strength steel wire braids. The rubber hose is also reinforced with two layers of braided steel webbing

Domestic and export sales enquiries are welcome from end users, original equipment machinery manufacturers and trade suppliers from all industrial sectors.
If you can't find what you are looking for, need product pricing, delivery, technical support or associated services CONTACT HYQUIP or call our sales office +44 (0)1204 699959

PART NUMBER LENGTH INTERNAL DIAMETER ASSEMBLIES AND COUPLERS PRICE inc. VAT PRICE exc. VAT ADD TO MY PARTS LIST
HB7206 HB7206 1.8 Metres 6.4 mm End one 3/8" NPTF - End two AH-630 £ 129.16 £ 107.63 ADD
HC7206 HC7206 1.8 Metres 6.4 mm End one 3/8" NPTF - End two CH-604 £ 141.46 £ 117.88 ADD
H7202 H7202 0.6 Metres 6.4 mm End one 3/8" NPTF - End two 3/8" NPTF £ 73.80 £ 61.50 ADD
H7203 H7203 0.9 Metres 6.4 mm End one 3/8" NPTF - End two 3/8" NPTF £ 88.56 £ 73.80 ADD
H7206 H7206 1.8 Metres 6.4 mm End one 3/8" NPTF - End two 3/8" NPTF £ 108.24 £ 90.20 ADD
H7210 H7210 3.0 Metres 6.4 mm End one 3/8" NPTF - End two 3/8" NPTF £ 142.68 £ 118.90 ADD
H7220 H7220 6.1 Metres 6.4 mm End one 3/8" NPTF - End two 3/8" NPTF £ 207.88 £ 173.23 ADD
H7230 H7230 9.1 Metres 6.4 mm End one 3/8" NPTF - End two 3/8" NPTF £ 277.98 £ 231.65 ADD
H7250 H7250 1.5 Metres 6.4 mm End one 3/8" NPTF - End two 3/8" NPTF £ 419.44 £ 349.53 ADD
HA7206 HA7206 1.8 Metres 6.4 mm End one 3/8" NPTF - End two AH-604 £ 130.38 £ 108.65 ADD
HA7210 HA7210 3.0 Metres 6.4 mm End one 3/8" NPTF - End two AH-604 £ 166.06 £ 138.38 ADD
HC7203 HC7203 0.9 Metres 6.4 mm End one 3/8" NPTF - End two CH-604 £ 121.78 £ 101.48 ADD
HC7206B HC7206B 1.8 Metres 6.4 mm End one 3/8" NPTF - End two C-604 £ 194.34 £ 161.95 ADD
HC7210 HC7210 3.0 Metres 6.4 mm End one 3/8" NPTF - End two CH-604 £ 177.12 £ 147.60 ADD
HC7220 HC7220 6.1 Metres 6.4 mm End one 3/8" NPTF - End two CH-604 £ 242.32 £ 201.93 ADD
HC7206C HC7206C 1.8 Metres 6.4 mm End one CH-604 - End two CH-604 £ 174.66 £ 145.55 ADD
HC7250C HC7250C 15 Metres 6.4 mm End one CH-604 - End two CH-604 £ 485.86 £ 404.88 ADD
H7306 H7306 1.8 Metres 9.7 mm End one 3/8" NPTF - End two 3/8" NPTF £ 188.20 £ 156.83 ADD
H7310 H7310 3.0 Metres 9.7 mm End one 3/8" NPTF - End two 3/8" NPTF £ 262.00 £ 218.33 ADD
H7320 H7320 6.1 Metres 9.7 mm End one 3/8" NPTF - End two 3/8" NPTF £ 482.16 £ 401.80 ADD
H7330 H7330 9.1 Metres 9.7 mm End one 3/8" NPTF - End two 3/8" NPTF £ 644.52 £ 537.10 ADD
H7350 H7350 15 Metres 9.7 mm End one 3/8" NPTF - End two 3/8" NPTF £ 954.48 £ 795.40 ADD
HC7306 HC7306 1.8 Metres 9.7 mm End one 3/8" NPTF - End two CH-604 £ 222.64 £ 185.53 ADD
HC7310 HC7310 3.0 Metres 9.7 mm End one 3/8" NPTF - End two CH-604 £ 295.20 £ 246.00 ADD
HC7320 HC7320 6.1 Metres 9.7 mm End one 3/8" NPTF - End two CH-604 £ 515.38 £ 429.48 ADD
HB7206QB HB7206QB 1.8 Metres 6.4 mm End one 1/4" NPTF - End two A-630 £ 161.14 £ 134.28 ADD
HC7206Q HC7206Q 1.8 Metres 6.4 mm End one 1/4" NPTF - End two CH-604 £ 141.46 £ 117.88 ADD
HC7203B HC7203B 0.9 Metres 6.4 mm End one 3/8" NPTF - End two C-604 £ 174.66 £ 145.55 ADD
HA7206B HA7206B 1.8 Metres 6.4 mm End one 3/8" NPTF - End two A-604 £ 164.82 £ 137.35 ADD
HC7210B HC7210B 3.0 Metres 6.4 mm End one 3/8" NPTF - End two C-604 £ 228.78 £ 190.65 ADD
Internal DiameterHose End Assemblies and CouplersHose Length Model
Number		 Weight
(mm)End oneEnd two(m)kg
6,4 1/4” NPTF - - -  -
-  - -  -
A-630 1,8 HB-7206QB 1,1
 -  - -  -
CH-604 1,8 HC-7206Q 1,0
3/8” NPTF 3/8” NPTF 0,6 H-7202 0,5
0,9 H-7203 0,7
1,8 H-7206 0,9
3.0 H-7210 1,4
6.1 H-7220 2,8
9,1 H-7230 4,5
15 H-7250 7,0
A-604  - -  -
1,8 HA-7206B 1,1
 - -  -
AH-604  - -  -
 - -  -
1,8 HA-7206 1,0
3,0 HA-7210 1,5
AH-630 1,8 HB-7206 1,0
C-604 0,9 HC-7203B 1,0
1,8 HC-7206B 1,3
3,0 HC-7210B 1,8
CH-604 0,9 HC-7203 0,8
1,8 HC-7206 1,0
3,0 HC-7210 1,5
6,1 HC-7220 2,9
CH-604 CH-604 1,8 HC-7206C 1,1
15 HC-7250C 7,0
9,7 3/8” NPTF 3/8” NPTF 1,8 H-7306 1,6
- - -
3,0 H-7310 2,4
6,1 H-7320 4,5
9,1 H-7330 7,3
15 H-7350 11,5
CH-604 1,8 HC-7306 1,7
3,0 HC-7310 2,5
6,1 HC-7320 5,1
