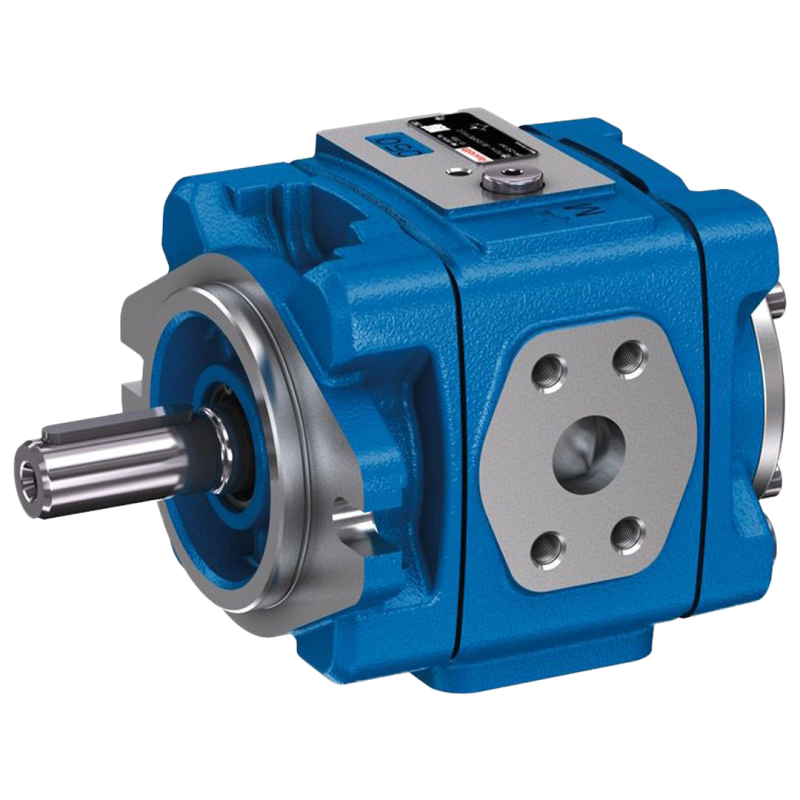

Bosch Rexroth Internal Gear Pump PGH Fixed Displacement Series 3X

PGH Series 3X Size 20 to 250

Internal gear pump with fixed displacement type PGH-3X

  • Frame size 4, 5
  • Size 20 ... 250
  • Component series 3X
  • Maximum operating pressure 350 bar
  • Maximum displacement 250 cm³

Products
Downloads
Description
Part Number Material Number No-Show Price Add to Parts List
PGH4-3X/020RE11VU2 PGH4-3X/020RE11VU2 R901147100 0 £2,303.95
£2,764.74 Inc. VAT
PGH5-3X/125RE11VU2 PGH5-3X/125RE11VU2 R901147118 0 £6,205.88
£7,447.06 Inc. VAT
PGH4-3X/040RE11VU2 PGH4-3X/040RE11VU2 R901147103 0 £2,924.79
£3,509.75 Inc. VAT
PGH5-3X/080RE11VU2 PGH5-3X/080RE11VU2 R901147116 0 £4,670.38
£5,604.46 Inc. VAT
PGH4-3X/025RE11VU2 PGH4-3X/025RE11VU2 R901147101 0 £2,407.66
£2,889.19 Inc. VAT
PGH4-3X/050RE11VU2 PGH4-3X/050RE11VU2 R901147104 0 £3,172.07
£3,806.48 Inc. VAT
PGH5-3X/100RE11VU2 PGH5-3X/100RE11VU2 R901147117 0 £5,522.54
£6,627.05 Inc. VAT
PGH4-3X/032RE11VU2 PGH4-3X/032RE11VU2 R901147102 0 £2,750.65
£3,300.78 Inc. VAT
PGH5-3X/063RE11VU2 PGH5-3X/063RE11VU2 R901147115 0 £3,975.06
£4,770.07 Inc. VAT

Bosch Rexroth Hydraulic Internal Gear Pump PGH Fixed Displacement Series 3X 20cc to 250cc

  • Frame size 4, 5
  • Size 20 ... 250
  • Component series 3X
  • Maximum operating pressure 350 bar
  • Maximum displacement 250.5 cm³

Features:

  • Fixed displacement
  • Low operating noise
  • Little flow pulsation
  • High efficiency also at low speed and viscosity due to sealing gap compensation
  • Suitable for broad viscosity and speed ranges
  • All frame sizes and sizes can be combined with each other in any form
  • Can be combined with internal gear pumps, vane pumps and axial piston pumps
  • Suitable for operation with HFC fluid (seal design "W")

Use:

For fatigue-resistant drives with high power and high pressures with very large load cycle numbers, e.g. plastics processing machines, automated presses, foundry machines and other applications with accumulator charging operation.
