Carr Lane Press Fit Ball Plungers

Press-fit ball plungers are perfect for use in softer materials like aluminium, wood, or plastic. They are ideal when a threaded hole isn't feasible or when no adjustment is needed. The sturdy shoulder ensures a secure seating position and effectively resists detent force. The installation hole can be counterbored to accommodate the shoulder. They are available in four different versions including steel stainless, steel steal with Delrin ball and stainless steel with Delrin ball

  • Steel or Stainless Steel
  • Choice of six sizes, two forces and a Stainless Steel or Delrin® Ball

Print page

Products
Downloads
Description
Part Number Material Number External Diameter Material Plunger Type Price Add to Parts List
CL-2-PBP-1 CL-2-PBP-1 .125 Steel Standard Ball, Light Force £4.93
£5.92 Inc. VAT
CL-2-PBPN-1 CL-2-PBPN-1 .125 Steel Delrin Ball, Light Force £5.35
£6.42 Inc. VAT
CL-2-PBPSN-1 CL-2-PBPSN-1 .125 Stainless Steel Delrin Ball, Light Force £7.00
£8.40 Inc. VAT
CL-2-PBPS-1 CL-2-PBPS-1 .125 Stainless Steel Standard Ball, Light Force On Enquiry
CL-2-PBP-2 CL-2-PBP-2 .125 Steel Standard Ball, Heavy Force £4.74
£5.69 Inc. VAT
CL-2-PBPN-2 CL-2-PBPN-2 .125 Steel Delrin Ball, Heavy Force On Enquiry
CL-2-PBPS-2 CL-2-PBPS-2 .125 Stainless Steel Standard Ball, Heavy Force £6.68
£8.02 Inc. VAT
CL-2-PBPSN-2 CL-2-PBPSN-2 .125 Stainless Steel Delrin Ball, Heavy Force On Enquiry
CL-3-PBPN-1 CL-3-PBPN-1 .188 Steel Delrin Ball, Light Force £5.17
£6.20 Inc. VAT
CL-3-PBP-1 CL-3-PBP-1 .188 Steel Standard Ball, Light Force £5.18
£6.22 Inc. VAT
CL-3-PBPSN-1 CL-3-PBPSN-1 .188 Stainless Steel Delrin Ball, Light Force On Enquiry
CL-3-PBPS-1 CL-3-PBPS-1 .188 Stainless Steel Standard Ball, Light Force £6.73
£8.08 Inc. VAT
CL-3-PBP-2 CL-3-PBP-2 .188 Steel Standard Ball, Heavy Force On Enquiry
CL-3-PBPN-2 CL-3-PBPN-2 .188 Steel Delrin Ball, Heavy Force £5.22
£6.26 Inc. VAT
CL-3-PBPSN-2 CL-3-PBPSN-2 .188 Stainless Steel Delrin Ball, Heavy Force On Enquiry
CL-3-PBPS-2 CL-3-PBPS-2 .188 Stainless Steel Standard Ball, Heavy Force £6.53
£7.84 Inc. VAT
CL-4-PBPN-2 CL-4-PBPN-2 .250 Steel Delrin Ball, Heavy Force £5.34
£6.41 Inc. VAT
CL-4-PBP-2 CL-4-PBP-2 .250 Steel Standard Ball, Heavy Force £4.81
£5.77 Inc. VAT
CL-4-PBPSN-2 CL-4-PBPSN-2 .250 Stainless Steel Delrin Ball, Heavy Force £7.21
£8.65 Inc. VAT
CL-4-PBPS-2 CL-4-PBPS-2 .250 Stainless Steel Standard Ball, Heavy Force £7.21
£8.65 Inc. VAT
CL-4-PBP-1 CL-4-PBP-1 .250 Steel Standard Ball, Light Force £4.76
£5.71 Inc. VAT
CL-4-PBPN-1 CL-4-PBPN-1 .250 Steel Delrin Ball, Light Force £5.54
£6.65 Inc. VAT
CL-4-PBPS-1 CL-4-PBPS-1 .250 Stainless Steel Standard Ball, Light Force £7.21
£8.65 Inc. VAT
CL-4-PBPSN-1 CL-4-PBPSN-1 .250 Stainless Steel Delrin Ball, Light Force £7.50
£9.00 Inc. VAT
CL-5-PBP-2 CL-5-PBP-2 .312 Steel Standard Ball, Heavy Force On Enquiry
CL-5-PBPN-2 CL-5-PBPN-2 .312 Steel Delrin Ball, Heavy Force On Enquiry
CL-5-PBPS-2 CL-5-PBPS-2 .312 Stainless Steel Standard Ball, Heavy Force £7.42
£8.90 Inc. VAT
CL-5-PBPSN-2 CL-5-PBPSN-2 .312 Stainless Steel Delrin Ball, Heavy Force On Enquiry
CL-5-PBP-1 CL-5-PBP-1 .312 Steel Standard Ball, Light Force £5.04
£6.05 Inc. VAT
CL-5-PBPN-1 CL-5-PBPN-1 .312 Steel Delrin Ball, Light Force On Enquiry
CL-5-PBPS-1 CL-5-PBPS-1 .312 Stainless Steel Standard Ball, Light Force On Enquiry
CL-5-PBPSN-1 CL-5-PBPSN-1 .312 Stainless Steel Delrin Ball, Light Force On Enquiry
CL-6-PBPN-1 CL-6-PBPN-1 .375 Steel Delrin Ball, Light Force On Enquiry
CL-6-PBP-1 CL-6-PBP-1 .375 Steel Standard Ball, Light Force £5.90
£7.08 Inc. VAT
CL-6-PBPSN-1 CL-6-PBPSN-1 .375 Stainless Steel Delrin Ball, Light Force On Enquiry
CL-6-PBPS-1 CL-6-PBPS-1 .375 Stainless Steel Standard Ball, Light Force £8.27
£9.92 Inc. VAT
CL-6-PBP-2 CL-6-PBP-2 .375 Steel Standard Ball, Heavy Force On Enquiry
CL-6-PBPN-2 CL-6-PBPN-2 .375 Steel Delrin Ball, Heavy Force On Enquiry
CL-6-PBPS-2 CL-6-PBPS-2 .375 Stainless Steel Standard Ball, Heavy Force £8.45
£10.14 Inc. VAT
CL-6-PBPSN-2 CL-6-PBPSN-2 .375 Stainless Steel Delrin Ball, Heavy Force On Enquiry
CL-8-PBPN-1 CL-8-PBPN-1 .500 Steel Delrin Ball, Light Force On Enquiry
CL-8-PBP-1 CL-8-PBP-1 .500 Steel Standard Ball, Light Force £7.06
£8.47 Inc. VAT
CL-8-PBPS-1 CL-8-PBPS-1 .500 Stainless Steel Standard Ball, Light Force £11.16
£13.39 Inc. VAT
CL-8-PBPSN-1 CL-8-PBPSN-1 .500 Stainless Steel Delrin Ball, Light Force On Enquiry
CL-8-PBPN-2 CL-8-PBPN-2 .500 Steel Delrin Ball, Heavy Force On Enquiry
CL-8-PBP-2 CL-8-PBP-2 .500 Steel Standard Ball, Heavy Force On Enquiry
CL-8-PBPSN-2 CL-8-PBPSN-2 .500 Stainless Steel Delrin Ball, Heavy Force On Enquiry
CL-8-PBPS-2 CL-8-PBPS-2 .500 Stainless Steel Standard Ball, Heavy Force £11.16
£13.39 Inc. VAT

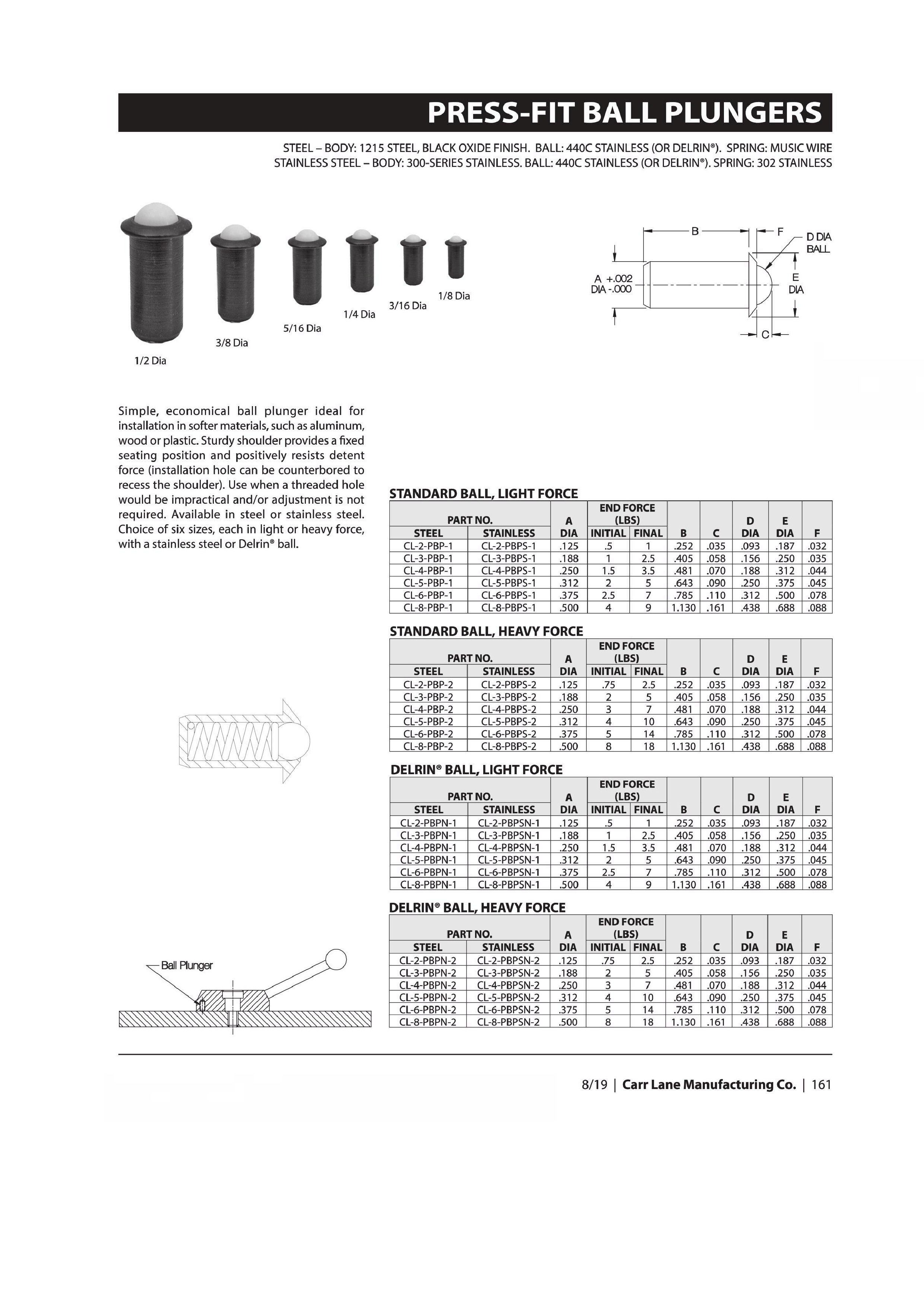

Press-fit Ball Plungers datasheet

Carr Lane Press Fit Ball Plungers

This straightforward and cost-effective ball plunger is perfect for use in softer materials like aluminium, wood, or plastic. It's ideal when a threaded hole isn't feasible or when no adjustment is needed. The robust shoulder ensures a secure seating position and effectively resists detent force. The installation hole can be counterbored to accommodate the shoulder. It comes in four different versions, as shown below.

Options:

  • Steel or Stainless Steel
  • Choice of six sizes, two forces and a Stainless Steel or Delrin® Ball
