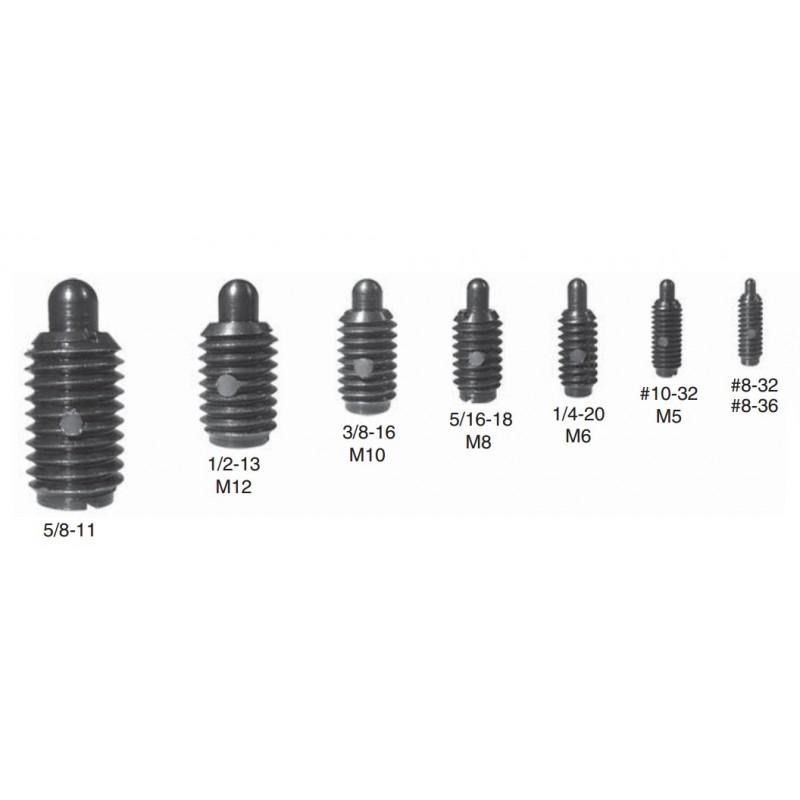

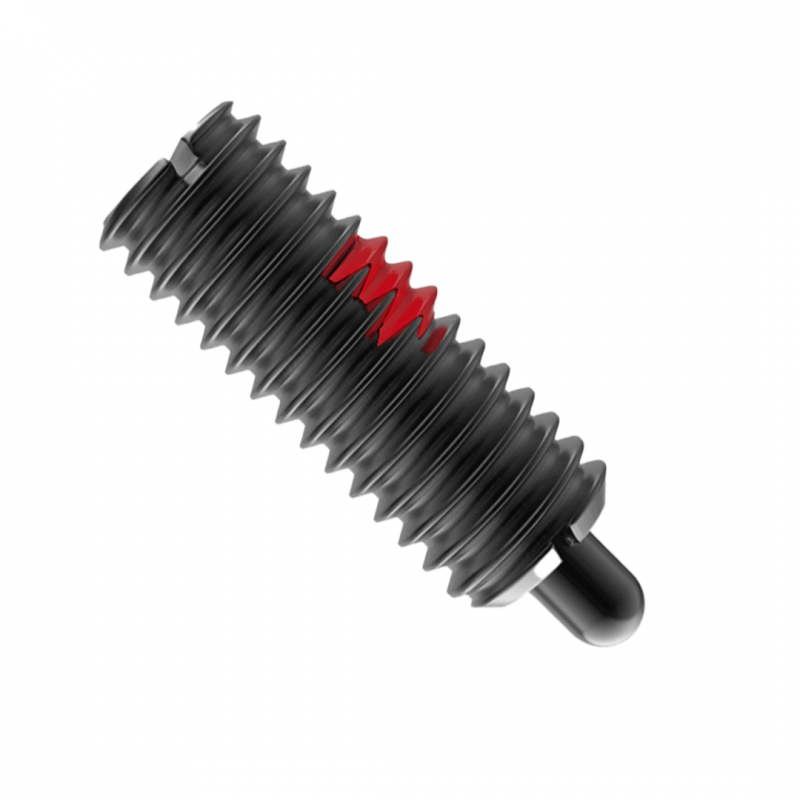

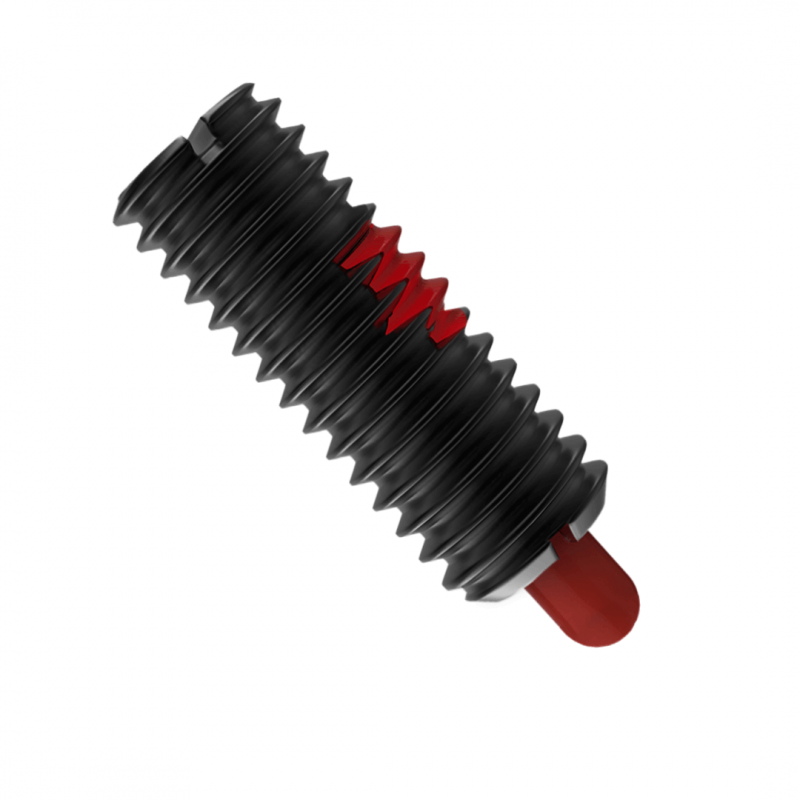

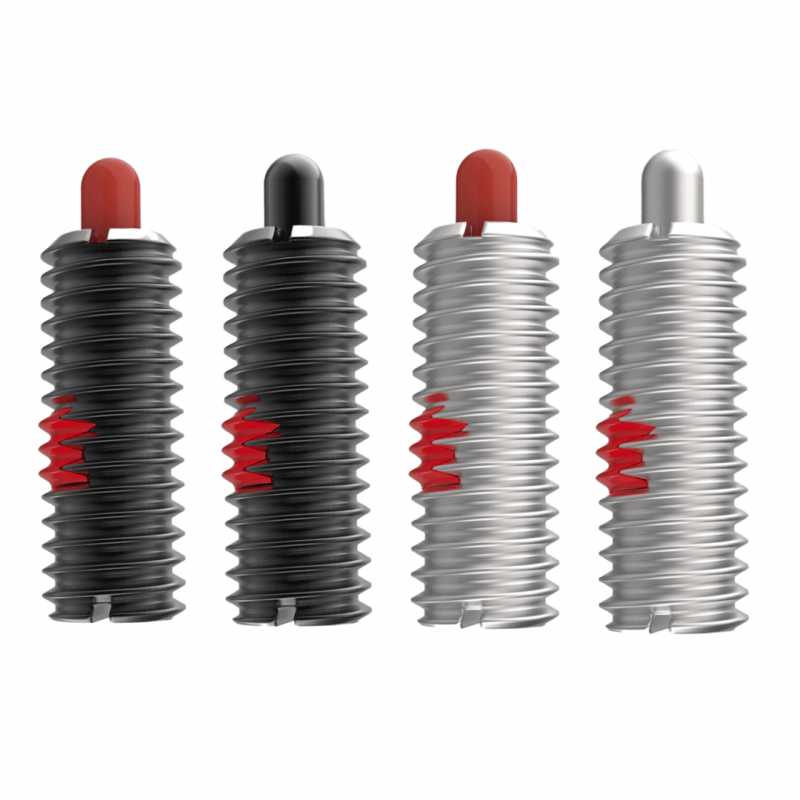

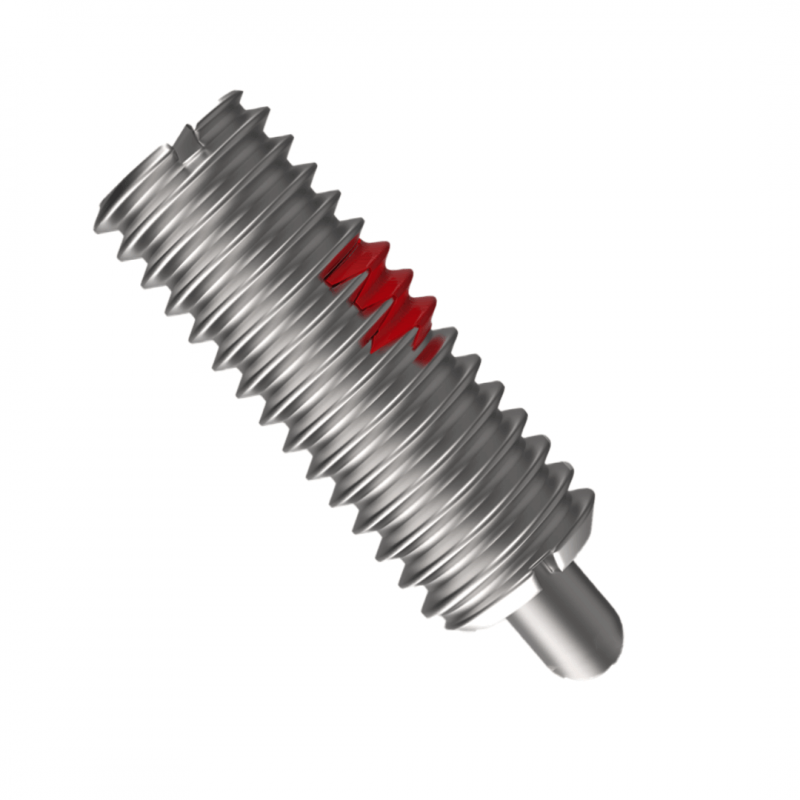

Short Spring Plungers with Extended Travel feature the same body length as a Short Spring Plunger but offer the longer stroke of a standard Spring Plunger. This self-contained plunger and spring device comes in various sizes and includes a locking element to ensure the unit stays securely in place after installation. It can be installed and adjusted from either side.
| Part Number | Material Number | Metric or Imperial | External Diameter | Length | Material | Plunger Type | Price | Add to Parts List |
|---|---|---|---|---|---|---|---|---|
| CLM-65-SPN-1 | Metric | M6 | .53 | Steel | Delrin Plunger Nose, Heavy Force | £9.90 £11.88 Inc. VAT |
|
|
| CLM-125-SPS-1 | Metric | M12 | .75 | Steel | Standard Plunger Nose, Heavy Force | £13.26 £15.91 Inc. VAT |
|
|
| CLM-105-SPS-1 | Metric | M10 | .62 | Steel | Standard Plunger Nose, Heavy Force | £13.13 £15.76 Inc. VAT |
|
|
| CLM-85-SPS-1 | Metric | M8 | .56 | Steel | Standard Plunger Nose, Heavy Force | On Enquiry | ||
| CLM-65-SPS-1 | Metric | M6 | .53 | Steel | Standard Plunger Nose, Heavy Force | £9.90 £11.88 Inc. VAT |
|
|
| CLM-55-SPS-1 | Metric | M5 | .47 | Steel | Standard Plunger Nose, Heavy Force | £10.32 £12.38 Inc. VAT |
|
|
| CLM-125-SPN-1 | Metric | M12 | .75 | Steel | Delrin Plunger Nose, Heavy Force | On Enquiry | ||
| CLM-85-SPN-1 | Metric | M8 | .56 | Steel | Delrin Plunger Nose, Heavy Force | On Enquiry | ||
| CL-25-SPS-1 | Imperial | #8-32 | 7/16 | Steel | Standard Plunger Nose | £6.76 £8.11 Inc. VAT |
|
|
| CL-45-SPS-1 | Imperial | 1/4-20 | 17/32 | Steel | Standard Plunger Nose | £6.50 £7.80 Inc. VAT |
|
|
| CL-75-SSPS-1 | Imperial | 1/2-13 | 3/4 | Stainless Steel | Standard Plunger Nose | £12.43 £14.92 Inc. VAT |
|
|
| CL-75-SPS-1 | Imperial | 1/2-13 | 3/4 | Steel | Standard Plunger Nose | £7.67 £9.20 Inc. VAT |
|
|
| CL-65-SSPS-1 | Imperial | 3/8-16 | 5/8 | Stainless Steel | Standard Plunger Nose | £10.79 £12.95 Inc. VAT |
|
|
| CL-65-SPS-1 | Imperial | 3/8-16 | 5/8 | Steel | Standard Plunger Nose | £6.76 £8.11 Inc. VAT |
|
|
| CL-35-SPN-1 | Imperial | #10-32 | 15/32 | Steel | Delrin Plunger Nose | £6.76 £8.11 Inc. VAT |
|
|
| CL-65-SPN-1 | Imperial | 3/8-16 | 5/8 | Steel | Delrin Plunger Nose | £6.98 £8.38 Inc. VAT |
|
|
| CL-55-SSPS-1 | Imperial | 5/16-18 | 9/16 | Stainless Steel | Standard Plunger Nose | £10.02 £12.02 Inc. VAT |
|
|
| CL-85-SPS-1 | Imperial | 5/8-11 | 1-1/16 | Steel | Standard Plunger Nose | £14.65 £17.58 Inc. VAT |
|
|
| CL-26-SSPS-1 | Imperial | #8-36 | 7/16 | Stainless Steel | Standard Plunger Nose | £9.53 £11.44 Inc. VAT |
|
|
| CL-45-SPN-1 | Imperial | 1/4-20 | 17/32 | Steel | Delrin Plunger Nose | £7.16 £8.59 Inc. VAT |
|
|
| CL-55-SPS-1 | Imperial | 5/16-18 | 9/16 | Steel | Standard Plunger Nose | £7.06 £8.47 Inc. VAT |
|
|
| CL-35-SSPS-1 | Imperial | #10-32 | 15/32 | Stainless Steel | Standard Plunger Nose | £9.38 £11.26 Inc. VAT |
|
|
| CL-26-SPS-1 | Imperial | #8-36 | 7/16 | Steel | Standard Plunger Nose | On Enquiry | ||
| CL-35-SPS-1 | Imperial | #10-32 | 15/32 | Steel | Standard Plunger Nose | £6.66 £7.99 Inc. VAT |
|
|
| CL-25-SSPS-1 | Imperial | #8-32 | 7/16 | Stainless Steel | Standard Plunger Nose | £9.38 £11.26 Inc. VAT |
|
|
| CL-45-SSPS-1 | Imperial | 1/4-20 | 17/32 | Stainless Steel | Standard Plunger Nose | £9.18 £11.02 Inc. VAT |
|

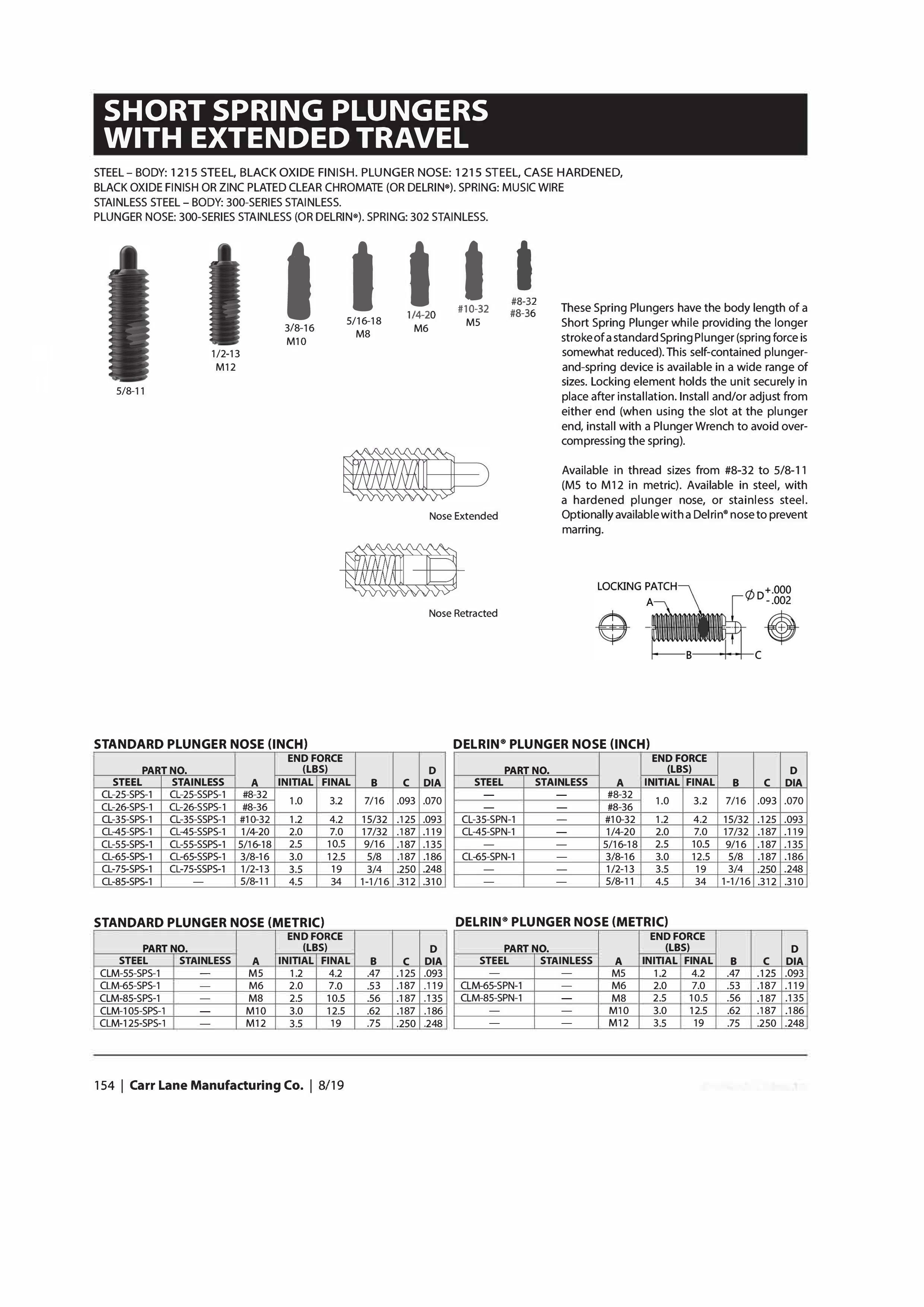

Short Spring Plungers with Extended Travel have the body length of a Short Spring Plunger while providing the longer stroke of a standard Spring Plunger (spring force is somewhat reduced). This self-contained plunger and spring device is available in a wide range of sizes, with a locking element that holds the unit securely in place after installation. Install and/or adjust from either end (when using the slot at the plunger end, install with a Plunger Wrench to avoid over-compressing the spring).
