Carr Lane Latch Action Toggle Clamps

Carr Lane latch action toggle clamps are created and manufactured for the occurrence where a pulling action in a straight line is required. These are available with several different features such as an adjustable U-bolt, a right-angled adjustable U-bolt, an adjustable hook or a fixed length, each designed to fit the unique needs of any application. All variants are available in several sizes with a range of holding capacities.  Latch action toggle clamps are available in both steel and stainless steel as well as both standard clamp type and some with safety lock.

  • Available in steel or stainless steel
  • Various designs available
  • Wide range of holding capacities
Print page

Products
Downloads
Description
Part Number Material Number Material Design Holding Capacity Clamp Type Price Add to Parts List
CL-350-PA CL-350-PA Steel Adjustable Hook 1000lbs Standard £64.18
£77.02 Inc. VAT
CL-150-PA CL-150-PA Steel Fixed Length 375lbs Standard £34.21
£41.05 Inc. VAT
CL-300-LPA CL-300-LPA Steel Adjustable U Bolt 2000lbs with Safety Lock £70.90
£85.08 Inc. VAT
CL-200-PA CL-200-PA Steel Adjustable U Bolt 700lbs Standard £27.25
£32.70 Inc. VAT
CL-250-PA CL-250-PA Steel Adjustable Hook 375lbs Standard £22.50
£27.00 Inc. VAT
CL-210-PA CL-210-PA Steel Right Angle Adjustable U Bolt 1000lbs Standard £40.30
£48.36 Inc. VAT

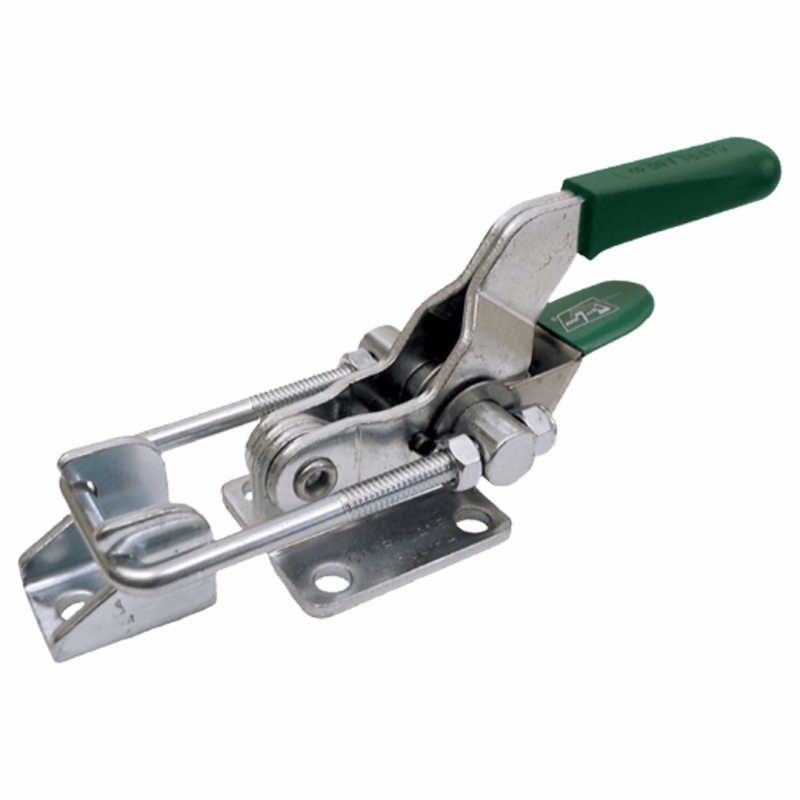

CL-100-LPA CL-100-LPA Steel Adjustable U Bolt 360lbs with Safety Lock £43.34
£52.01 Inc. VAT
CL-500-LPA CL-500-LPA Steel Adjustable U Bolt 7500lbs with Safety Lock £172.48
£206.98 Inc. VAT
CL-300-PA CL-300-PA Steel Adjustable U Bolt 2000lbs Standard £55.44
£66.53 Inc. VAT
CL-251-PA CL-251-PA Steel Adjustable Hook 375lbs Narrow Base £23.21
£27.85 Inc. VAT
CL-310-PA CL-310-PA Steel Right Angle Adjustable U Bolt 2000lbs Standard £57.40
£68.88 Inc. VAT
CL-200-LPA CL-200-LPA Steel Adjustable U Bolt 700lbs with Safety Lock £48.42
£58.10 Inc. VAT
CL-100-PA CL-100-PA Steel Adjustable U Bolt 360lbs Standard £21.08
£25.30 Inc. VAT
CL-110-PA CL-110-PA Steel Right Angle Adjustable U Bolt 500lbs Standard £30.46
£36.55 Inc. VAT
CL-500-PA CL-500-PA Steel Adjustable U Bolt 7500lbs Standard £134.71
£161.65 Inc. VAT
CL-250-PA-HOOK CL-250-PA-HOOK Steel Adjustable Hook 375lbs Replacement Hooks Only £7.73
£9.28 Inc. VAT
CL-350-PA-HOOK CL-350-PA-HOOK Steel Adjustable Hook 1000lbs Replacement Hooks Only £17.89
£21.47 Inc. VAT
CL-257-PA CL-257-PA Steel Adjustable Hook 375lbs Manual Safety Lock £51.68
£62.02 Inc. VAT
CL-250-PA-S-HOOK CL-250-PA-S-HOOK Stainless Steel Adjustable Hook 375lbs Replacement Hooks Only £14.00
£16.80 Inc. VAT
CL-110-PA-S CL-110-PA-S Stainless Steel Right Angle Adjustable U Bolt 500lbs Standard £56.94
£68.33 Inc. VAT
CL-500-PA-S CL-500-PA-S Stainless Steel Adjustable U Bolt 7500lbs Standard £301.13
£361.36 Inc. VAT
CL-150-PA-S CL-150-PA-S Stainless Steel Fixed Length 375lbs Standard £80.58
£96.70 Inc. VAT
CL-300-LPA-S CL-300-LPA-S Stainless Steel Adjustable U Bolt 2000lbs with Safety Lock On Enquiry
CL-200-PA-S CL-200-PA-S Stainless Steel Adjustable U Bolt 700lbs Standard £52.48
£62.98 Inc. VAT
CL-250-PA-S CL-250-PA-S Stainless Steel Adjustable Hook 375lbs Standard £44.27
£53.12 Inc. VAT
CL-210-PA-S CL-210-PA-S Stainless Steel Right Angle Adjustable U Bolt 1000lbs Standard £67.06
£80.47 Inc. VAT
CL-100-LPA-S CL-100-LPA-S Stainless Steel Adjustable U Bolt 360lbs with Safety Lock £67.70
£81.24 Inc. VAT
CL-500-LPA-S CL-500-LPA-S Stainless Steel Adjustable U Bolt 7500lbs with Safety Lock £344.76
£413.71 Inc. VAT
CL-300-PA-S CL-300-PA-S Stainless Steel Adjustable U Bolt 2000lbs Standard £94.67
£113.60 Inc. VAT
CL-310-PA-S CL-310-PA-S Stainless Steel Right Angle Adjustable U Bolt 2000lbs Standard £116.17
£139.40 Inc. VAT
CL-200-LPA-S CL-200-LPA-S Stainless Steel Adjustable U Bolt 700lbs with Safety Lock £89.65
£107.58 Inc. VAT
CL-100-PA-S CL-100-PA-S Stainless Steel Adjustable U Bolt 360lbs Standard £42.53
£51.04 Inc. VAT

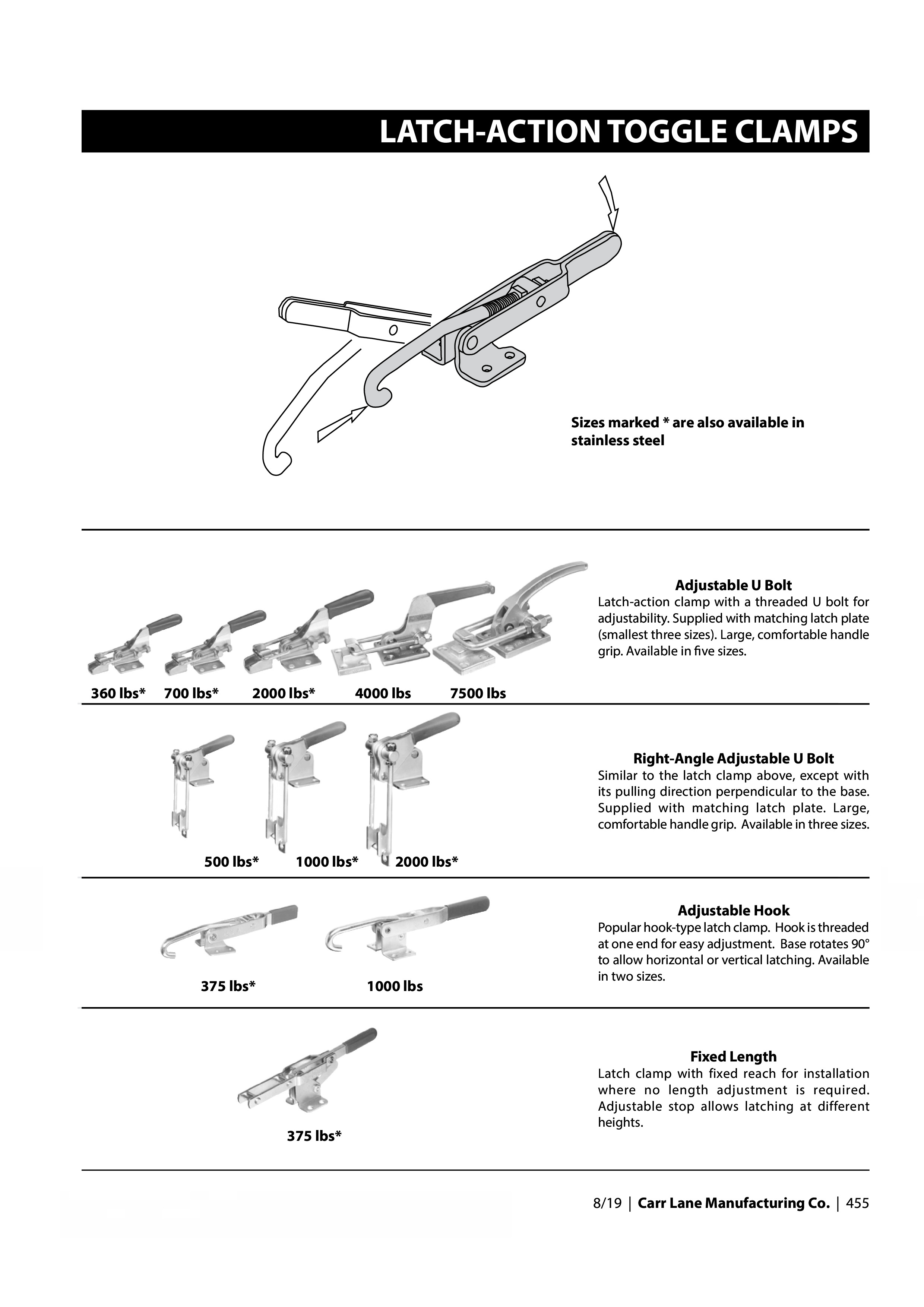

Carr Lane Latch Action Toggle Clamps datasheet

Carr Lane Latch Action Toggle Clamps

Carr Lane latch action toggle clamps are created and manufactured for the occurrence where a pulling action in a straight line is required. These are available with several different features such as an adjustable U-bolt, a right-angled adjustable U-bolt, an adjustable hook or a fixed length, each designed to fit the unique needs of any application. All variants are available in several sizes with a range of holding capacities.  Latch action toggle clamps are available in both steel and stainless steel as well as both standard clamp type and some with safety lock.

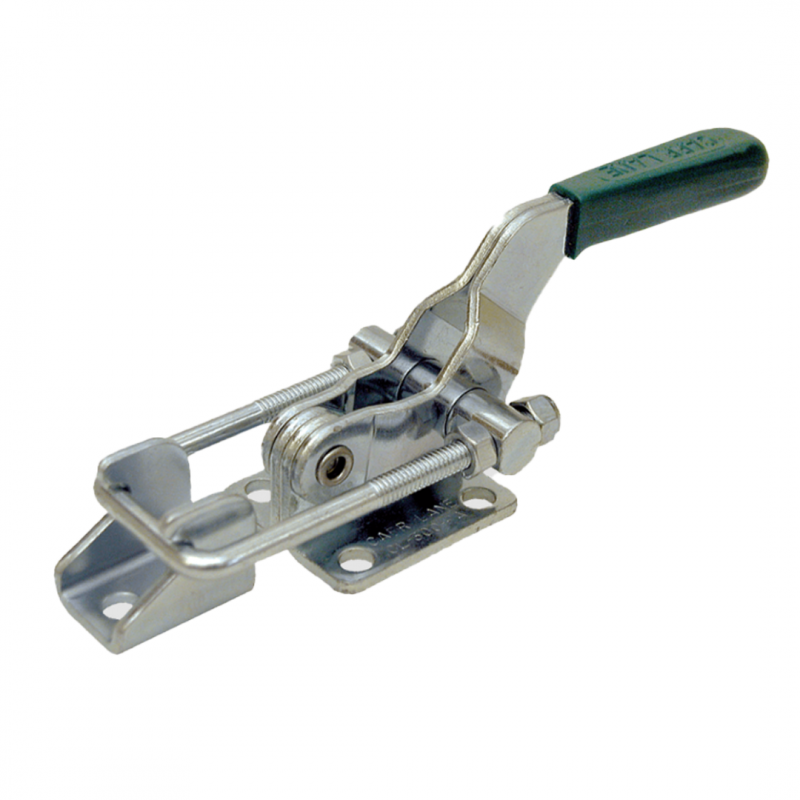

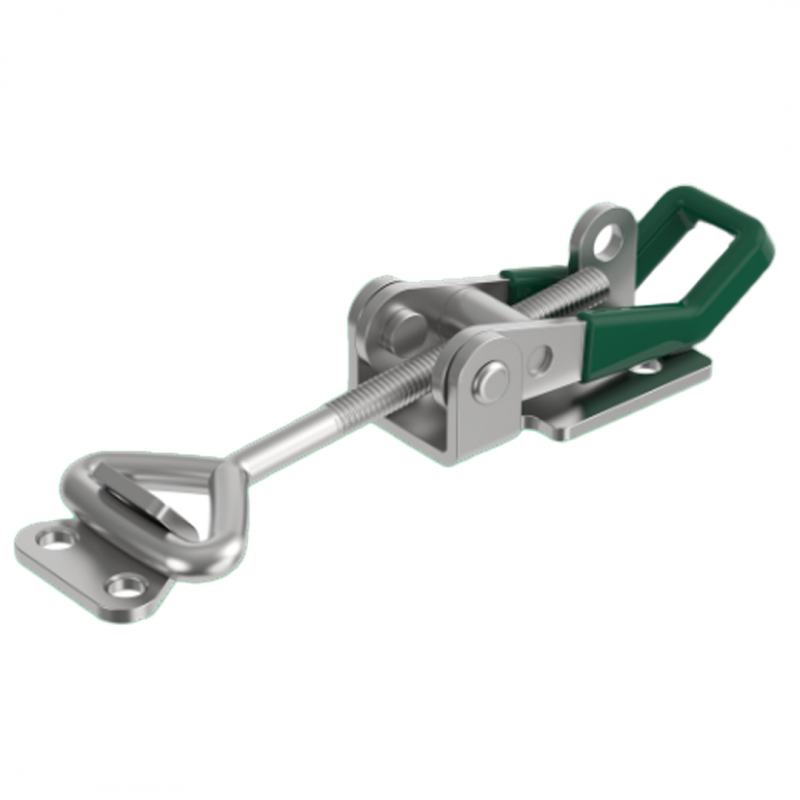

Adjustable U Bolt - Latch-action clamp with a threaded U bolt for adjustability and large, comfortable handle grip. Supplied with matching latch plate (smallest three sizes). Available in five sizes.

Right-Angle Adjustable U Bolt - Similar to the latch clamp above, except with its pulling direction perpendicular to the base. Supplied with matching latch plate and large, comfortable handle grip. Available in three sizes.

Adjustable Hook - Popular hook-type latch clamp. Hook is threaded at one end for easy adjustment while base rotates 90° to allow horizontal or vertical latching. Available in two sizes.

Fixed Length - Latch clamp with fixed reach for installation where no length adjustment is required. Adjustable stop allows latching at different heights. Available in two sizes.

All specific measurements and finer details are shown on the Download Sheet
