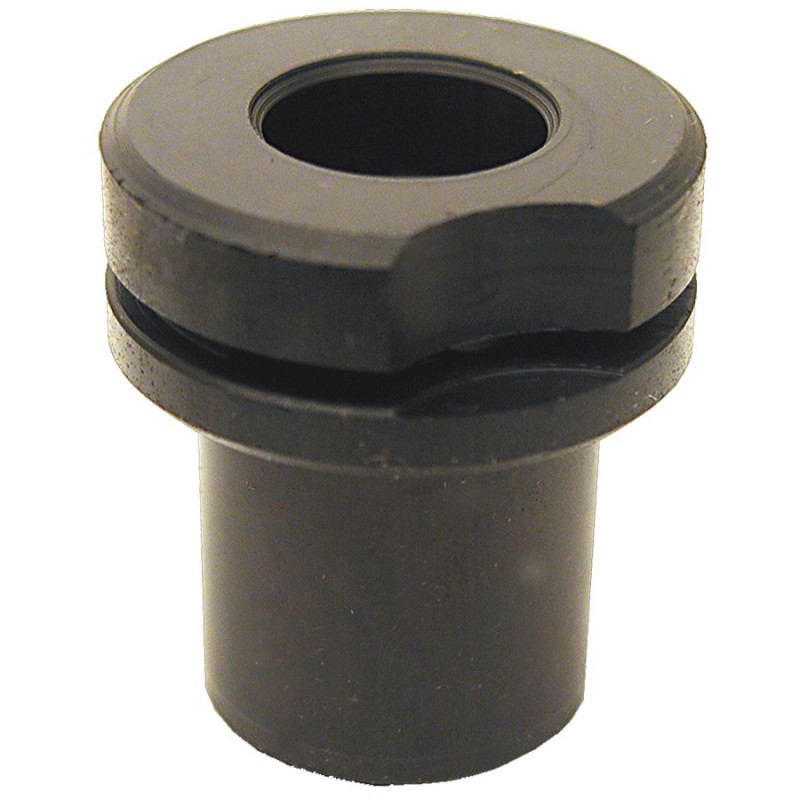

Carr Lane locking-pin bushings are compatible with Locking L Pins, Locking T Pins and Locking Clamping Pins. They are equipped with a retainer spring clip on the inside diameter, and is compatible with all types of locking pins and locating screws. These precision bushings are designed to be press-fitted into a standard reamed hole and can be securely fastened with a lock screw to ensure the bushing remains in place.
| Part Number | Material Number | Metric or Imperial | Length | Internal Diameter | Price | Add to Parts List |
|---|---|---|---|---|---|---|
| CLM-6-LPB | Metric | 0.31 | 6mm | £28.15 £33.78 Inc. VAT |
|
|
| CLM-8-LPB | Metric | 0.39 | 8mm | £28.15 £33.78 Inc. VAT |
|
|
| CLM-10-LPB | Metric | 0.47 | 10mm | £31.00 £37.20 Inc. VAT |
|
|
| CLM-12-LPB | Metric | 0.71 | 12mm | £35.53 £42.64 Inc. VAT |
|
|
| CL-4A-LPB | Imperial | 0.5 | 1/4 | £28.15 £33.78 Inc. VAT |
|
|
| CL-5-LPB | Imperial | 0.31 | 5/16 | £28.15 £33.78 Inc. VAT |
|
|
| CL-5A-LPB | Imperial | 0.37 | 5/16 | £26.06 £31.27 Inc. VAT |
|
|
| CL-5B-LPB | Imperial | 0.5 | 5/16 | £28.15 £33.78 Inc. VAT |
|
|
| CL-6-LPB | Imperial | 0.31 | 3/8 | £31.00 £37.20 Inc. VAT |
|
|
| CL-6A-LPB | Imperial | 0.5 | 3/8 | £28.85 £34.62 Inc. VAT |
|
|
| CL-3-LPB | Imperial | 0.31 | 3/16 | £26.06 £31.27 Inc. VAT |
|
|
| CL-8-LPB | Imperial | 0.5 | 1/2 | £35.53 £42.64 Inc. VAT |
|
|
| CL-4-LPB | Imperial | 0.31 | 1/4 | £26.06 £31.27 Inc. VAT |
|
|
| CL-8A-LPB | Imperial | 0.75 | 1/2 | £33.07 £39.68 Inc. VAT |
|
Bushing equipped with retainer spring on the I.D, used with Locking L Pins, Locking T Pins and Locking Clamping Pins.
