Carr Lane Hook Clamps

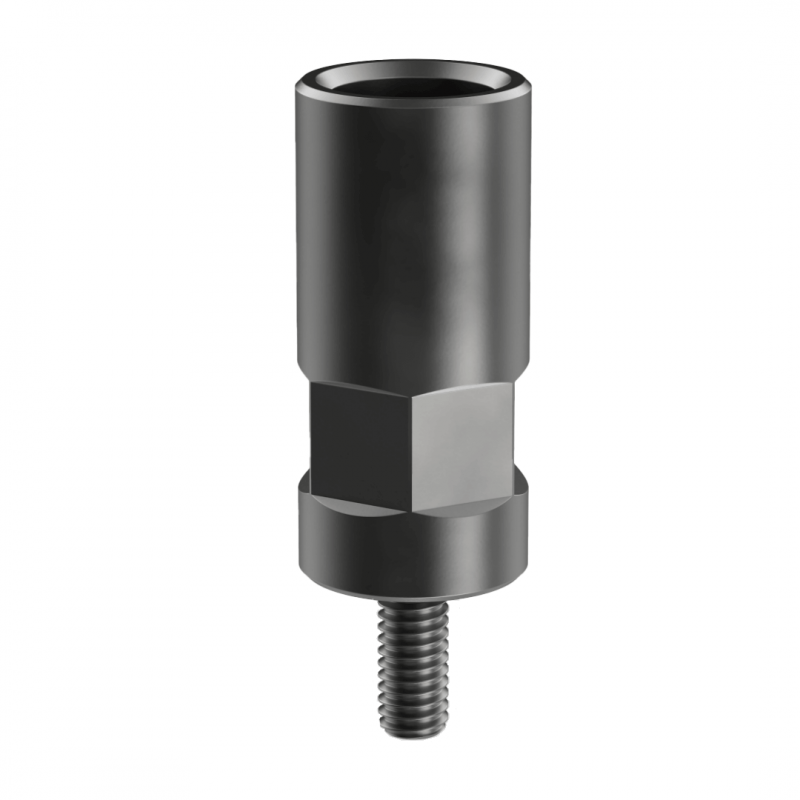

HYQUIP supply the full range of Carr Lane hook clamps and accessories this includes hook clamp, mounting block and holders. Carr Lane hook clamps are manufactures to swing into the clamping position manually, then using a screwing action can be clamped down.  These clamps provide clear access when swung to the unclamped position, making them perfect for tight spaces where strong clamping force is essential. They can be mounted either in a reamed hole or with a Hook-Clamp Holder or Mounting Block (sold separately). For taller clamping applications, Riser Cylinders are available to extend the reach of standard Hook-Clamp Holders.  These clamps are available in various finishes and sizes to accommodate the needs of your application.

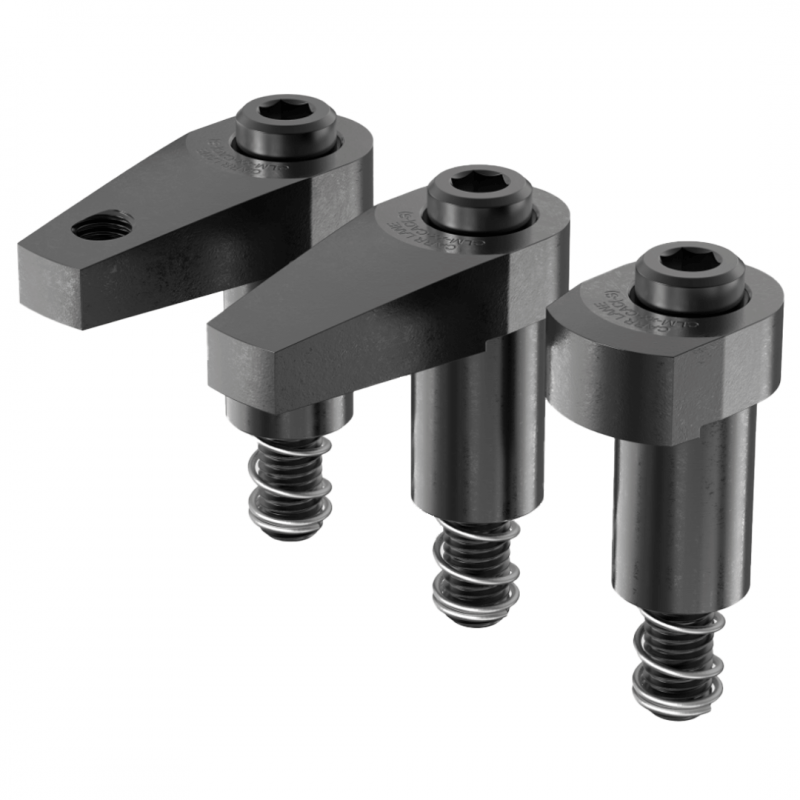

  • Hook Clamps with both Long and Standard arms, Socket Head and Hex Nuts

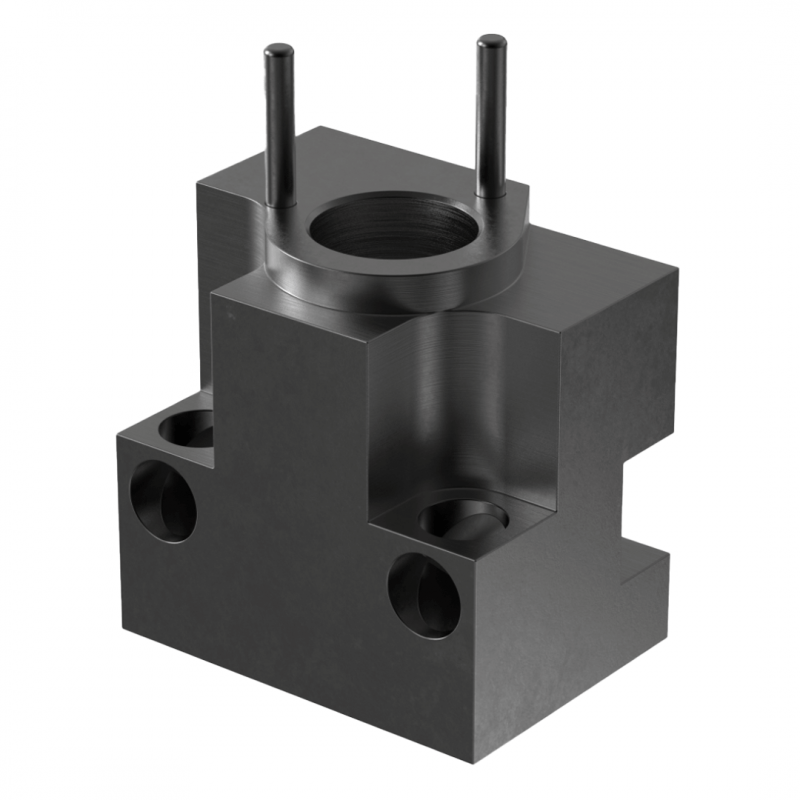

  • Hook Clamp Mounting Blocks and Hook-Clamp Holders
  • Metric and Imperial size available with a range of threads

Print page

Products
Downloads
Description
Part Number Material Number Metric or Imperial Thread Clamp Type Price Add to Parts List
CL-MF12-5013 CL-MF12-5013 Metric M12 Tapped Long Arm, Socket Head On Enquiry
CL-MF08-5101 CL-MF08-5101 Metric M8 Hook Clamp Holders On Enquiry
CLM-1-CAC CLM-1-CAC Metric M8 Standard Arm, Socket Head On Enquiry
CLM-3-CA CLM-3-CA Metric M16 Standard Arm, Hex Nut On Enquiry
CL-MF12-5101 CL-MF12-5101 Metric M12 Hook Clamp Holders On Enquiry
CLM-2-CAC CLM-2-CAC Metric M12 Standard Arm, Socket Head On Enquiry
CL-MF16-5101 CL-MF16-5101 Metric M16 Hook Clamp Holders On Enquiry
CLM-3-CAC CLM-3-CAC Metric M16 Standard Arm, Socket Head On Enquiry
CL-MF08-5002 CL-MF08-5002 Metric M8 Long Arm, Socket Head On Enquiry
CL-MF12-5002 CL-MF12-5002 Metric M12 Long Arm, Socket Head On Enquiry
CLM-1-CA CLM-1-CA Metric M8 Standard Arm, Hex Nut On Enquiry
CL-MF16-5002 CL-MF16-5002 Metric M16 Long Arm, Socket Head On Enquiry
CLM-2-CA CLM-2-CA Metric M12 Standard Arm, Hex Nut On Enquiry
CL-MF08-5013 CL-MF08-5013 Metric M8 Tapped Long Arm, Socket Head On Enquiry
CL-MF40-5102 CL-MF40-5102 Imperial 1/2-13 Hook Clamp Holders On Enquiry
CL-3-CAC CL-3-CAC Imperial 5/8-11 Standard Arm, Socket Head On Enquiry
CL-MF40-5013 CL-MF40-5013 Imperial 1/2-13 Tapped Long Arm, Socket Head On Enquiry
CL-MF50-5014 CL-MF50-5014 Imperial 5/8-11 Tapped Long Arm, Socket Head On Enquiry
CL-MF50-5101 CL-MF50-5101 Imperial 5/8-11 Hook Clamp Holders On Enquiry
CL-MF50-5801 CL-MF50-5801 Imperial 5/8-11 Hook Clamp Mounting Blocks On Enquiry
CL-MF50-5102 CL-MF50-5102 Imperial 5/8-11 Hook Clamp Holders On Enquiry
CL-1-CA CL-1-CA Imperial 5/16-18 Standard Arm, Hex Nut On Enquiry
CL-MF25-5002 CL-MF25-5002 Imperial 5/16-18 Long Arm, Socket Head On Enquiry
CL-2-CA CL-2-CA Imperial 1/2-13 Standard Arm, Hex Nut On Enquiry
CL-MF40-5002 CL-MF40-5002 Imperial 1/2-13 Long Arm, Socket Head On Enquiry
CL-3-CA CL-3-CA Imperial 5/8-11 Standard Arm, Hex Nut £55.86
£67.03 Inc. VAT
CL-MF50-5002 CL-MF50-5002 Imperial 5/8-11 Long Arm, Socket Head On Enquiry
CL-MF25-5101 CL-MF25-5101 Imperial 5/16-18 Hook Clamp Holders On Enquiry
CL-1-CAC CL-1-CAC Imperial 5/16-18 Standard Arm, Socket Head On Enquiry
CL-2-CAC CL-2-CAC Imperial 1/2-13 Standard Arm, Socket Head On Enquiry
CL-MF25-5013 CL-MF25-5013 Imperial 5/16-18 Tapped Long Arm, Socket Head On Enquiry
CL-MF40-5101 CL-MF40-5101 Imperial 1/2-13 Hook Clamp Holders On Enquiry
Carr Lane Hook Clamps datasheet

Carr Lane Hook Clamps

  • HYQUIP supply the full range of Carr Lane hook clamps and accessories this includes hook clamp, mounting block and holders. Carr Lane hook clamps are manufactures to swing into the clamping position manually, then using a screwing action can be clamped down.  These clamps provide clear access when swung to the unclamped position, making them perfect for tight spaces where strong clamping force is essential. They can be mounted either in a reamed hole or with a Hook-Clamp Holder or Mounting Block (sold separately). For taller clamping applications, Riser Cylinders are available to extend the reach of standard Hook-Clamp Holders.  These clamps are available in various finishes and sizes to accommodate the needs of your application.

  • Hook Clamps with both Long and Standard arms, Socket Head and Hex Nuts
  • Hook Clamp Mounting Blocks and Hook-Clamp Holders
  • Metric and Imperial size available with a range of threads
