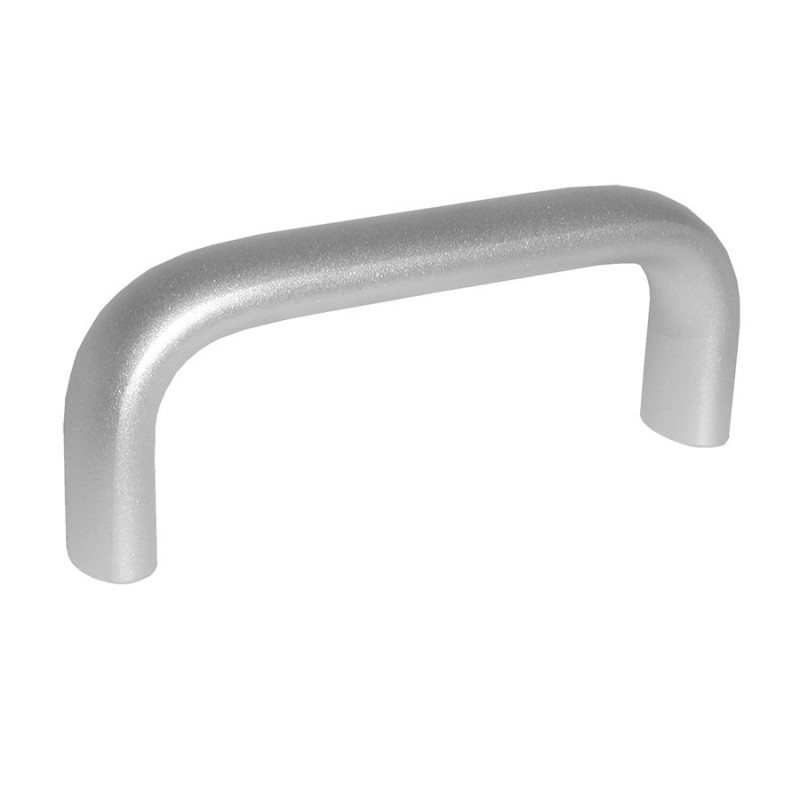

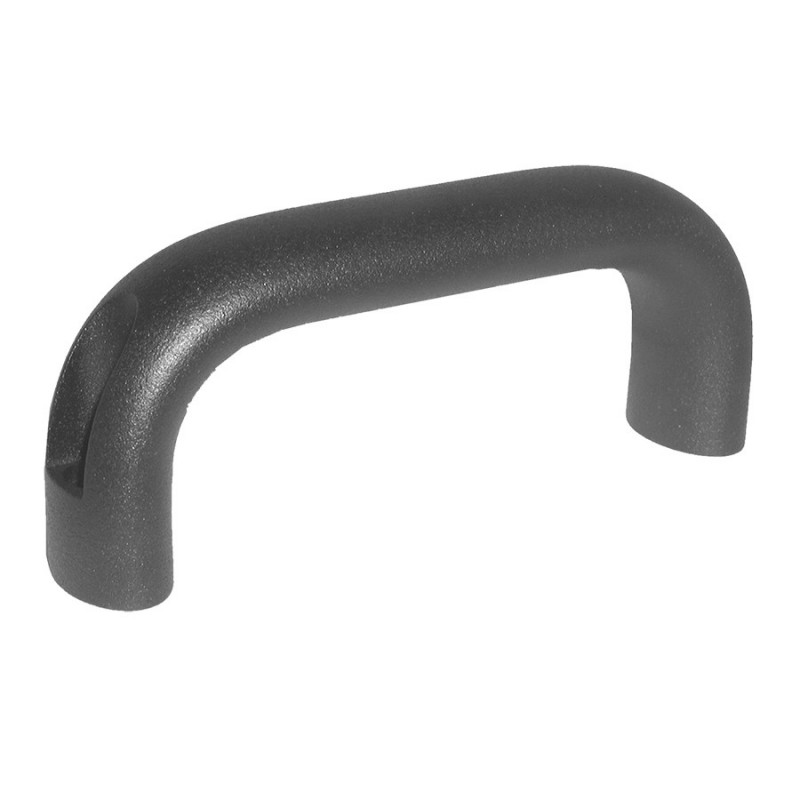

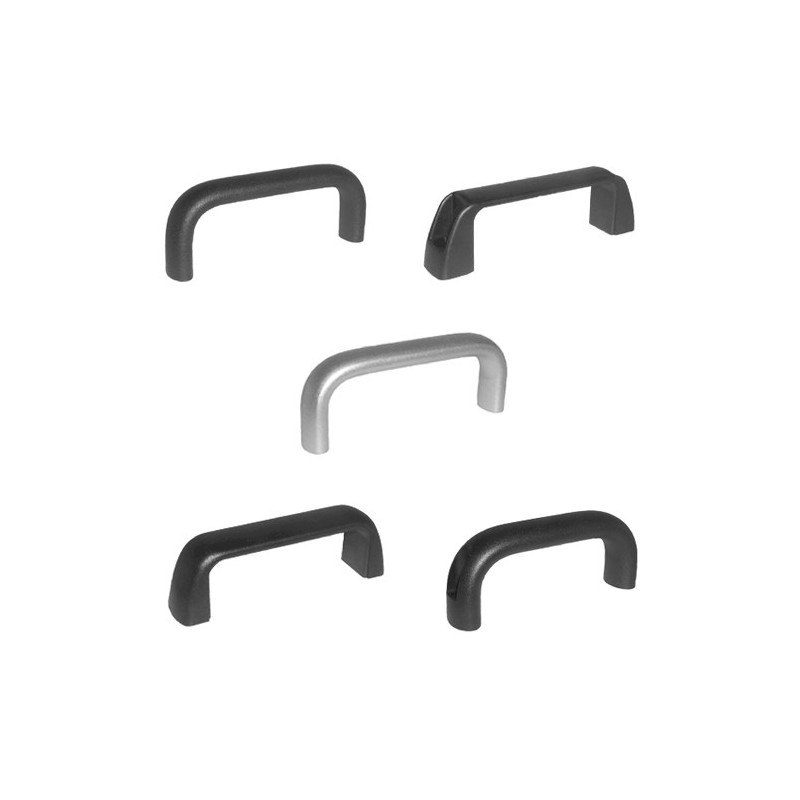

These Carr Lane pull handles have a modern design handle that offers a comfortable grip with ergonomic features. These handles are available in both rounded or squared design options as well as a range of materials such s thermoplastic, aluminium and stainless steel. Options of metric and imperial sizing are available for this range.
| Part Number | Material Number | Metric or Imperial | External Diameter | Handle Type | Material | Thread | Height | Tapped | Price | Add to Parts List |
|---|---|---|---|---|---|---|---|---|---|---|
| CLM-160-PHR-8 | Metric | 6.97 | Round Design | Aluminum | M8 | 2.24 | Tapped | £29.65 £35.58 Inc. VAT |
|
|
| CLM-128-PHR-6-S | Metric | 5.55 | Round Design | Stainless Steel | M6 | 2.01 | Tapped | £65.50 £78.60 Inc. VAT |
|
|
| CLM-128-PHR-6 | Metric | 5.55 | Round Design | Aluminum | M6 | 2.01 | Tapped | £22.49 £26.99 Inc. VAT |
|
|
| CLM-117-PHS-8 | Metric | 5.24 | Square Design | Thermoplastic | M8 | 4.57 | Tapped | £9.59 £11.51 Inc. VAT |
|
|
| CLM-192-PHR-8 | Metric | 8.23 | Round Design | Aluminum | M8 | 2.24 | Tapped | £36.13 £43.36 Inc. VAT |
|
|
| CLM-112-PHR-6-S | Metric | 4.92 | Round Design | Stainless Steel | M6 | 1.93 | Tapped | £61.38 £73.66 Inc. VAT |
|
|
| CLM-112-PHR-6 | Metric | 4.92 | Round Design | Aluminum | M6 | 1.93 | Tapped | £21.91 £26.29 Inc. VAT |
|
|
| CLM-105-PHS-6 | Metric | 4.76 | Square Design | Thermoplastic | M6 | 1.46 | Tapped | £8.98 £10.78 Inc. VAT |
|
|
| CL-112-PHR-4 | Imperial | 4.92 | Round Design | Aluminum | 1/4-20 | 1.93 | Tapped | £25.81 £30.97 Inc. VAT |
|
|
| CL-132-PHSC-5 | Imperial | 6.14 | Square Design | Thermoplastic | 5/16 | 1.77 | Counterbored | £9.56 £11.47 Inc. VAT |
|
|
| CL-196-PHRC-4 | Imperial | 8.23 | Round Design | Aluminum | 1/4 | 2.24 | Counterbored | £35.33 £42.40 Inc. VAT |
|
|
| CL-117-PHS-5 | Imperial | 5.24 | Square Design | Thermoplastic | 5/16-18 | 1.57 | Tapped | £9.34 £11.21 Inc. VAT |
|
|
| CL-116-PHRC-4 | Imperial | 5.08 | Round Design | Aluminum | 1/4 | 2.09 | Counterbored | £30.16 £36.19 Inc. VAT |
|
|
| CL-160-PHR-5 | Imperial | 6.97 | Round Design | Aluminum | 5/16-18 | 2.24 | Tapped | £34.81 £41.77 Inc. VAT |
|
|
| CL-117-PHSC-5 | Imperial | 5.47 | Square Design | Thermoplastic | 5/16 | 1.61 | Counterbored | £6.97 £8.36 Inc. VAT |
|
|
| CL-164-PHRC-4 | Imperial | 6.97 | Round Design | Aluminum | 1/4 | 2.24 | Counterbored | £33.40 £40.08 Inc. VAT |
|
|
| CL-94-PHSC-4 | Imperial | 4.41 | Square Design | Thermoplastic | 1/4 | 1.42 | Counterbored | £6.24 £7.49 Inc. VAT |
|
|
| CL-105-PHS-4 | Imperial | 4.76 | Square Design | Thermoplastic | 1/4-20 | 1.46 | Tapped | £8.18 £9.82 Inc. VAT |
|
|
| CL-128-PHR-4 | Imperial | 5.55 | Round Design | Aluminum | 1/4-20 | 2.01 | Tapped | £26.50 £31.80 Inc. VAT |
|
|
| CL-179-PHSC-5 | Imperial | 8.03 | Square Design | Thermoplastic | 5/16 | 1.97 | Counterbored | £12.59 £15.11 Inc. VAT |
|
|
| CL-132-PHRC-4 | Imperial | 5.71 | Round Design | Aluminum | 1/4 | 2.17 | Counterbored | £30.90 £37.08 Inc. VAT |
|
|
| CL-192-PHR-5 | Imperial | 8.23 | Round Design | Aluminum | 5/16-18 | 2.24 | Tapped | £42.52 £51.02 Inc. VAT |
|
Attractive, modern design handle that provides a comfortable grip with good ergonomic features.

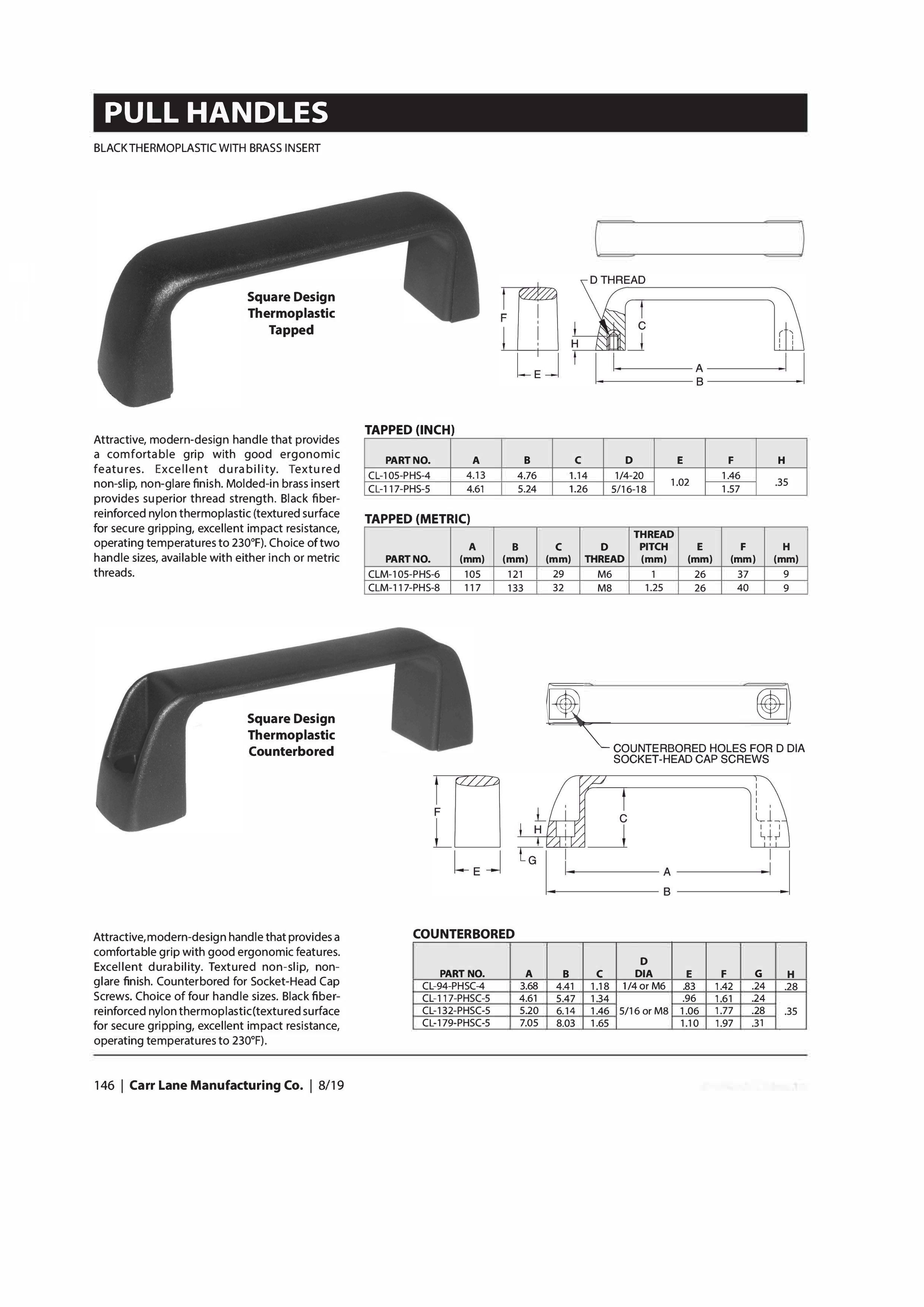

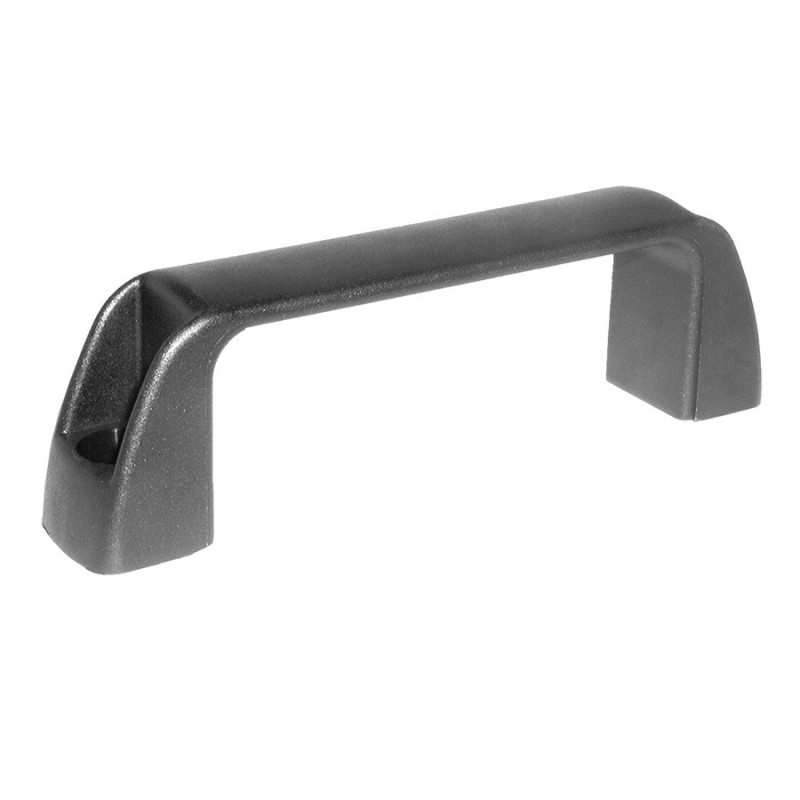

Tapped Handles feature molded-in brass insert, providing superior thread strength or tapped holes for mounting, Counterbored Handles are similar to the others however they're counterbored for Socket-Head Cap Screws.
