Carr Lane Washers

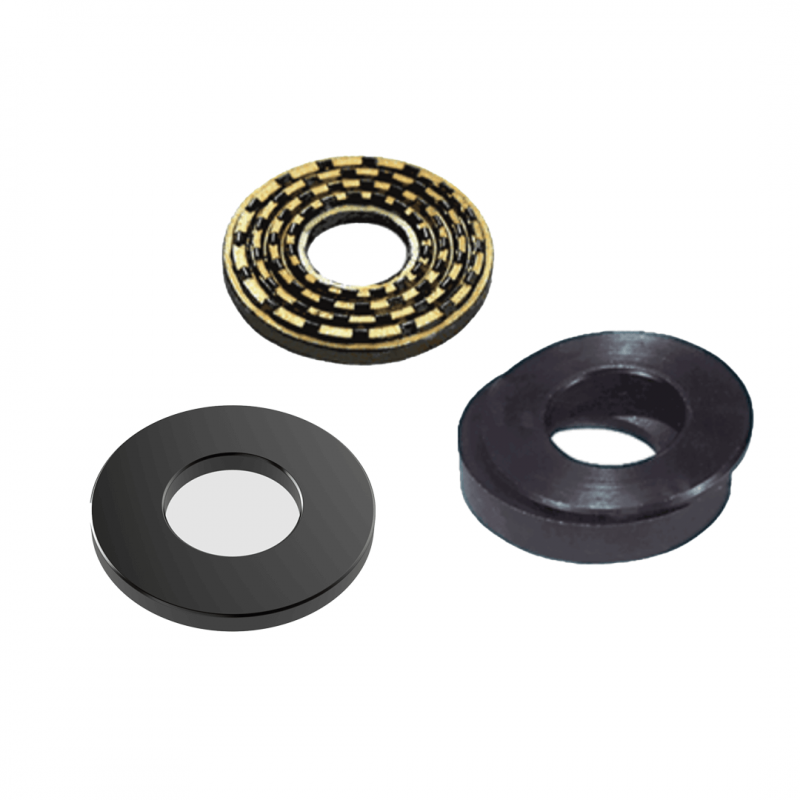

Carr Lane offer various types of washers including flat washers, spherical washers and knurled face washers. Flat washers have a serrated surface designed to stop two parts from slipping relative to one another. Spherical Washers are robust two-piece washers designed to adjust when a stud and clamping surface are not perfectly perpendicular. These items are available in metric and imperial sizing as well as steel and stainless-steel options for selected products.
- Available in metric and imperial
- Available in steel and stainless steel
Products
Downloads
Description
| Part Number | Material Number | Type | Metric or Imperial | Material | Thread | Price | Add to Parts List |
|---|---|---|---|---|---|---|---|
| CL-4-KFW | Knurled Face Washer | Imperial | Steel | Not Threaded | £12.80 £15.36 Inc. VAT |
|
|
| CL-6-KFW | Knurled Face Washer | Imperial | Steel | Not Threaded | On Enquiry | ||
| CL-5-KFW | Knurled Face Washer | Imperial | Steel | Not Threaded | On Enquiry | ||
| CL-3-KFW | Knurled Face Washer | Imperial | Steel | Not Threaded | £12.80 £15.36 Inc. VAT |
|
|
| CL-12-FW | Flat Washer | Imperial | Steel | 1 | £6.60 £7.92 Inc. VAT |
|
|
| CL-11-FW | Flat Washer | Imperial | Steel | 3/4 or M18 | £2.99 £3.59 Inc. VAT |
|
|
| CL-257 | Flat Washer | Imperial | Stainless | 3/8 or M10 | £2.50 £3.00 Inc. VAT |
|
|
| CL-3-FW | Flat Washer | Imperial | Steel | 5/8 or M16 | £1.38 £1.66 Inc. VAT |
|
|
| CL-255 | Flat Washer | Imperial | Stainless | 1/4 or M6 | £1.92 £2.30 Inc. VAT |
|
|
| CL-13-FW | Flat Washer | Imperial | Steel | 7/8 or M22 | £3.70 £4.44 Inc. VAT |
|
|
| CL-8-FW | Flat Washer | Imperial | Steel | 3/8 or M10 | £1.87 £2.24 Inc. VAT |
|
|
| CL-259 | Flat Washer | Imperial | Stainless | 5/8 or M16 | £5.78 £6.94 Inc. VAT |
|
|
| CL-256 | Flat Washer | Imperial | Stainless | 5/16 or M8 | £2.22 £2.66 Inc. VAT |
|
|
| CL-9-FW | Flat Washer | Imperial | Steel | 1/2 or M12 | £1.87 £2.24 Inc. VAT |
|
|
| CLM-10-FW | Flat Washer | Metric | Steel | M20 | £3.96 £4.75 Inc. VAT |
|
|
| CL-258 | Flat Washer | Imperial | Stainless | 1/2 or M12 | £5.50 £6.60 Inc. VAT |
|
|
| CL-254 | Flat Washer | Imperial | Stainless | #10 or M5 | £1.80 £2.16 Inc. VAT |
|
|
| CL-260 | Flat Washer | Imperial | Stainless | 3/4 or M18 | £8.96 £10.75 Inc. VAT |
|
|
| CL-1-FW | Flat Washer | Imperial | Steel | 3/8 or M10 | £0.89 £1.07 Inc. VAT |
|
|
| CL-10-FW | Flat Washer | Imperial | Steel | 5/8 or M16 | £1.88 £2.26 Inc. VAT |
|
|
| CL-7-FW | Flat Washer | Imperial | Steel | 1/4 or M6 | £0.71 £0.85 Inc. VAT |
|
|
| CL-2-FW | Flat Washer | Imperial | Steel | 1/2 or M12 | £0.96 £1.15 Inc. VAT |
|
|
| CL-4-FW | Flat Washer | Imperial | Steel | 3/4 or M18 | £1.67 £2.00 Inc. VAT |
|
|
| CL-14-FW | Flat Washer | Imperial | Steel | 5/16 or M8 | £0.72 £0.86 Inc. VAT |
|
|
| CLM-20-SW | Spherical Washer | Metric | Steel | M20 | £10.54 £12.65 Inc. VAT |
|
|
| CL-3-SW | Spherical Washer | Imperial | Steel | 1/2 and M12 | On Enquiry | ||
| CL-6-SW | Spherical Washer | Imperial | Steel | 7/8 and M22 | £12.19 £14.63 Inc. VAT |
|
|
| CL-11-SW | Spherical Washer | Imperial | Steel | 5/16 and M8 | On Enquiry | ||
| CL-4-SW | Spherical Washer | Imperial | Steel | 5/8 and M16 | £6.18 £7.42 Inc. VAT |
|
|
| CL-8-SW | Spherical Washer | Imperial | Steel | 1-1/8 | £20.39 £24.47 Inc. VAT |
|
|
| CL-2-SW | Spherical Washer | Imperial | Steel | 3/8 and M10 | On Enquiry | ||
| CL-5-SW | Spherical Washer | Imperial | Steel | 3/4 and M18 | £7.30 £8.76 Inc. VAT |
|
|
| CL-1-SW | Spherical Washer | Imperial | Steel | 1/4 and M6 | On Enquiry | ||
| CL-10-SW | Spherical Washer | Imperial | Steel | 1-1/2 and M36 | £30.07 £36.08 Inc. VAT |
|
|
| CL-145 | Spherical Washer | Imperial | Stainless | 1/4 and M6 | £7.74 £9.29 Inc. VAT |
|
|
| CL-148 | Spherical Washer | Imperial | Stainless | 1/2 and M12 | £12.89 £15.47 Inc. VAT |
|
|
| CL-7-SW | Spherical Washer | Imperial | Steel | 1 and M24 | £12.11 £14.53 Inc. VAT |
|
|
| CL-146 | Spherical Washer | Imperial | Stainless | 5/16 and M8 | £9.50 £11.40 Inc. VAT |
|
|
| CL-149 | Spherical Washer | Imperial | Stainless | 5/8 and M16 | £17.72 £21.26 Inc. VAT |
|
|
| CL-144 | Spherical Washer | Imperial | Stainless | #10 and M5 | £7.21 £8.65 Inc. VAT |
|
|
| CL-9-SW | Spherical Washer | Imperial | Steel | 1-1/4 and M30 | £22.26 £26.71 Inc. VAT |
|
|
| CL-147 | Spherical Washer | Imperial | Stainless | 3/8 and M10 | £11.06 £13.27 Inc. VAT |
|
|
| CL-150 | Spherical Washer | Imperial | Stainless | 3/4 and M18 | £22.73 £27.28 Inc. VAT |
|
Carr Lane Washers

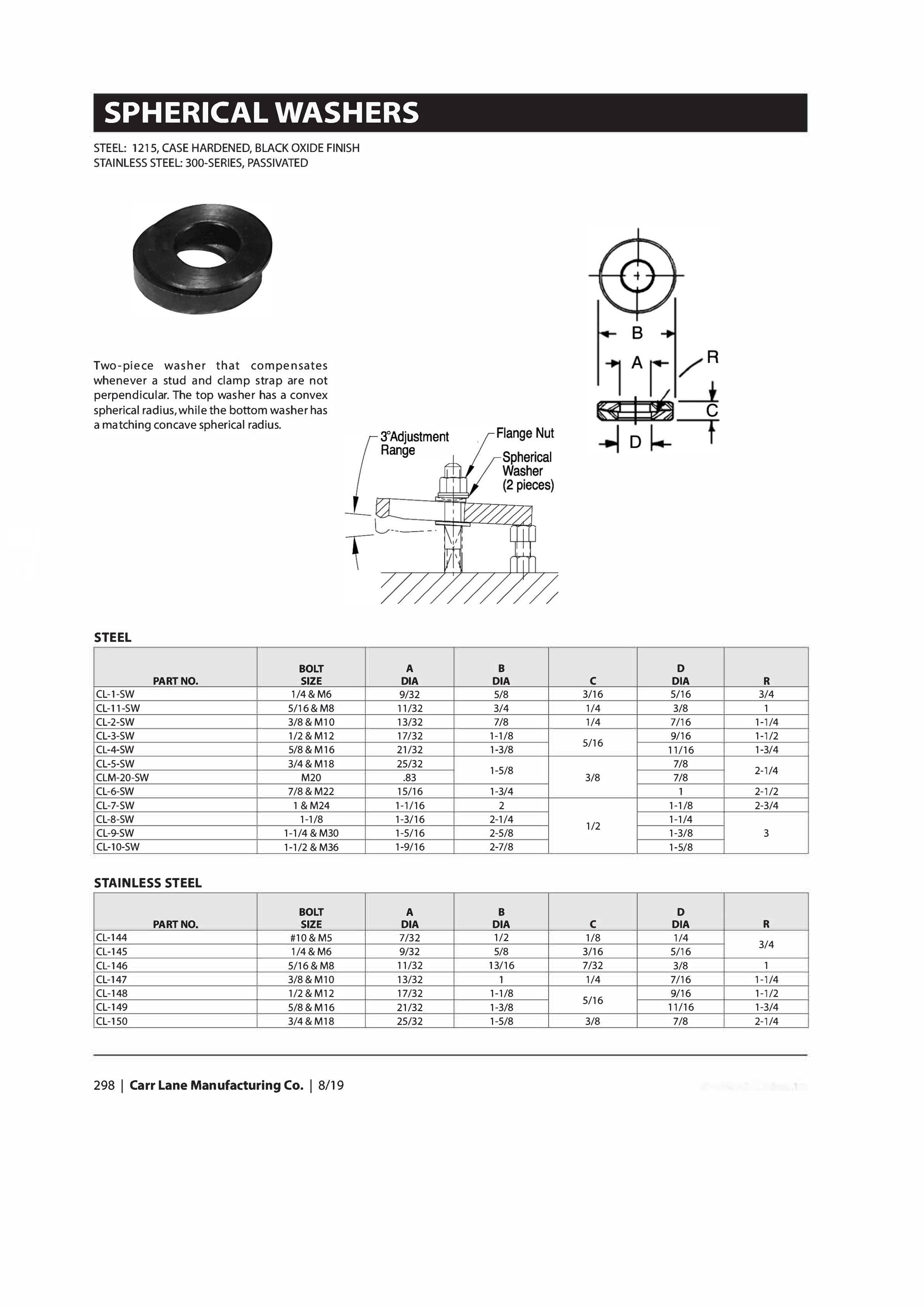

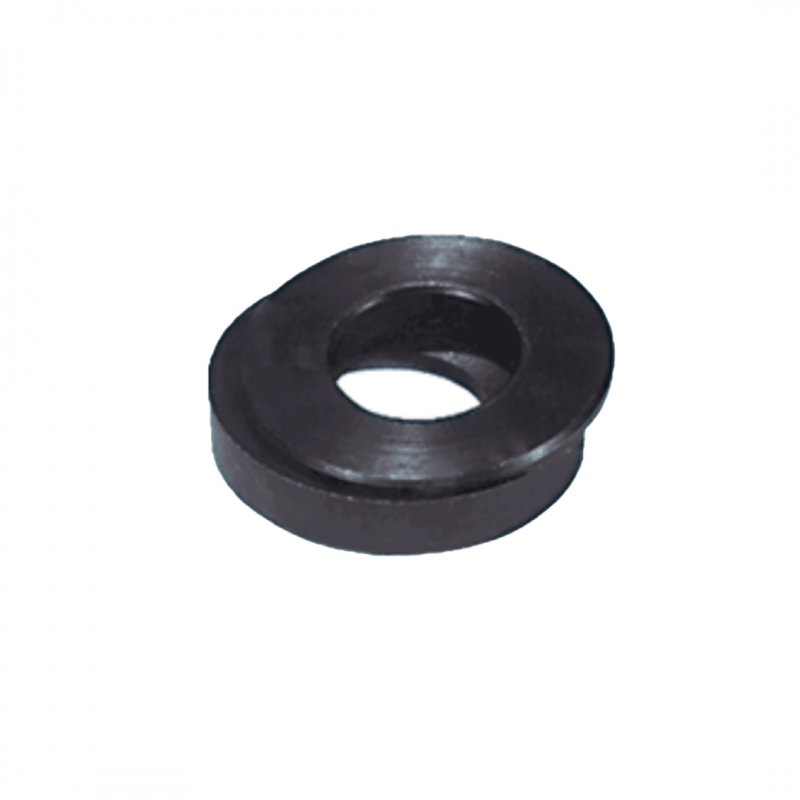

Spherical washers
Spherical Washers, also referred to as Equalizing Washers, are robust two-piece washers designed to adjust when a stud and clamping surface are not perfectly perpendicular. The upper washer features a convex spherical shape, while the lower washer has a corresponding concave spherical design. These washers are available in steel for stud sizes ranging from 1/4 to 1-1/2" (M6 to M36 in metric) and in stainless steel for stud sizes from #10 to 3/4" (M5 to M18 in metric).

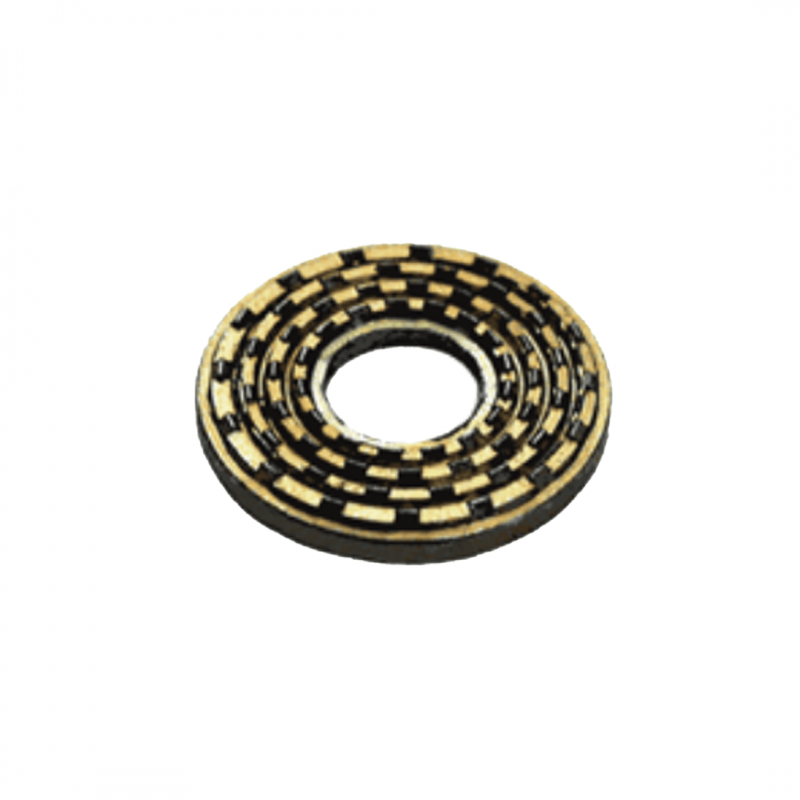

Knurled face
These thick, heavy-duty washers are offered in steel for stud sizes between 1/4 to 1" (M6 to M22 in metric) and in stainless steel for stud sizes ranging from #10 to 3/4" (M5 to M18 in metric).

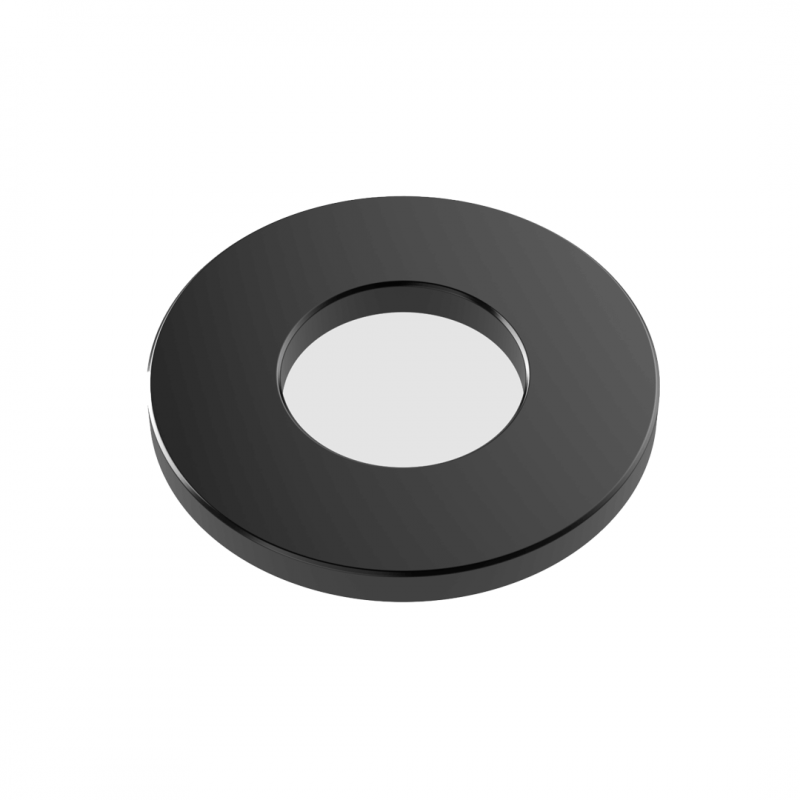

Flat Washers
Flat washers have a serrated surface designed to stop two parts from slipping relative to one another. These are available to accommodate stud sizes #10 and 1/4".
